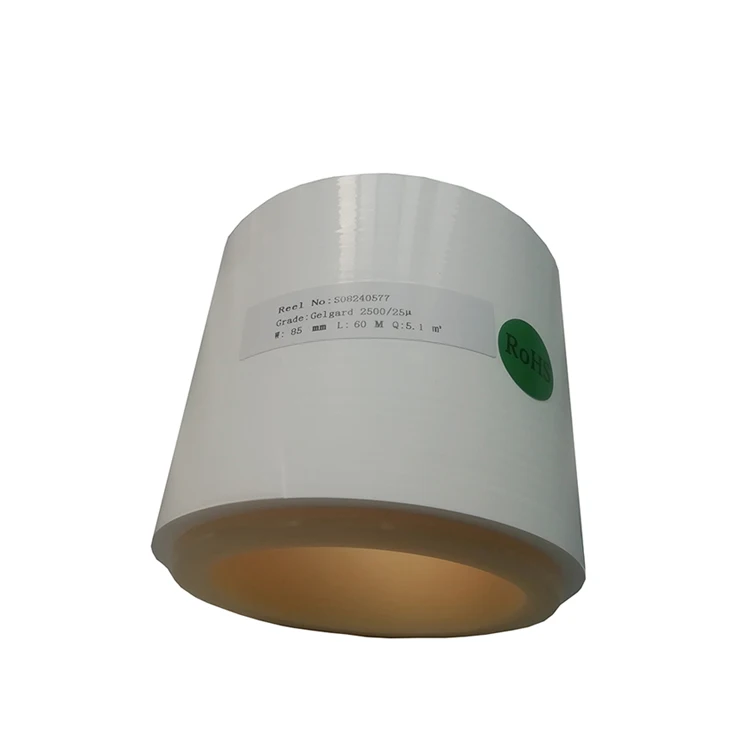

This 25 µm Microporous Monolayer Membrane (PP) Separator is recommended to use in lithium ion batteries lab research.
Features:
1.Low electrical impedance and high porosity provide high-rate capabilities.
2.Uniform pore structure with high chemical and thermal stability.
3.Zero TD shrinkage reduces internal shorting and improves high temperature dimensional stability.
4.Oxidation resistance for excellent cycling and trickle charge performance.
2.Uniform pore structure with high chemical and thermal stability.
3.Zero TD shrinkage reduces internal shorting and improves high temperature dimensional stability.
4.Oxidation resistance for excellent cycling and trickle charge performance.
25µm Battery Separator Monolayer PP Membrane Celgard 2500 | ||||
Basic Film Properties | Unit of Measure | Typical Value | ||
Thickness | um | 25 | ||
Gurley(JIS) | Seconds | 200 | ||
Porosity | % | 55 | ||
PP Pore Size (Average Diameter) | um | 0.064 | ||
TD Shrinkage @ 90℃/1 Hour | % | 0 | ||
MD Shrinkage @ 90℃/1 Hour | % | 5 | ||
Puncture Strength | Grams | 335 | ||
Tensile Strength, MD | Kg/cm2 | 1055 | ||
Tensile Strength, TD | Kg/cm2 | 135 | ||
WARRANTY:
This product is to be used only by persons familiar with its use. It must be maintained within the stated limitations. The product is warranted to be free of any manufacturing defects. No other warranty is expressed or implied.
Packing & Delivery

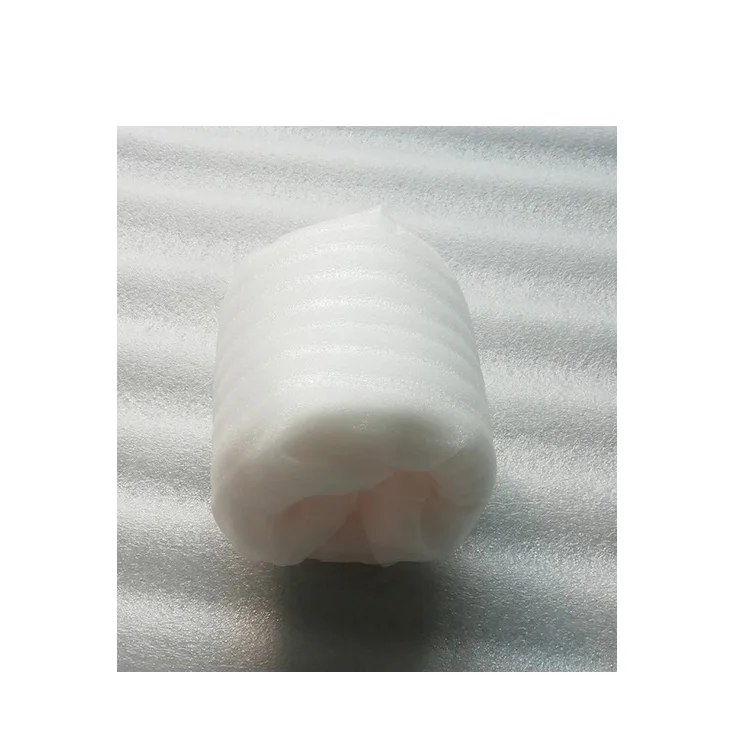

1.Standard exported package: Internal anticollision with foam protection , external export wooden box packaging.
2.Responsible for the damage during the shipping process, will change the damage part for you for free.
Relevant Products
Please click on the picture.

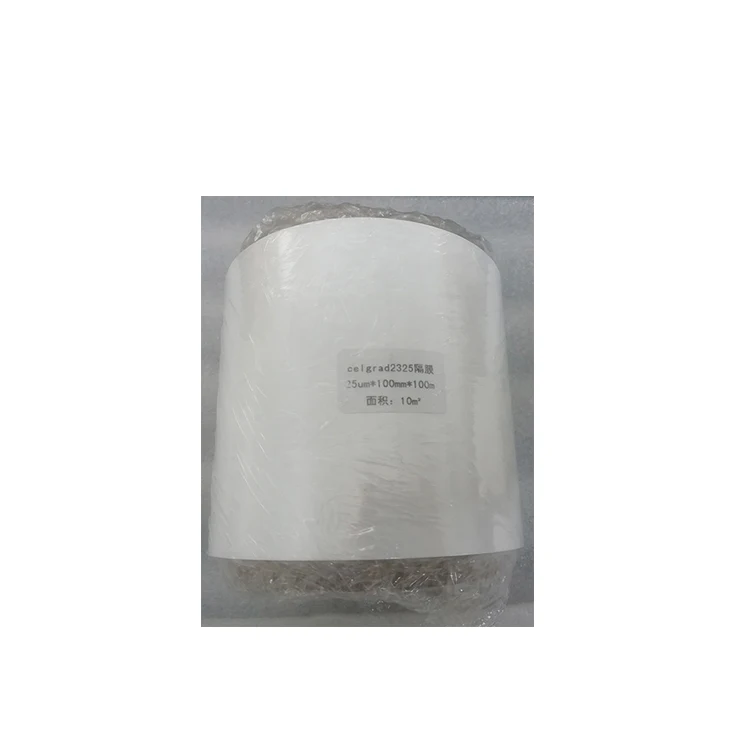

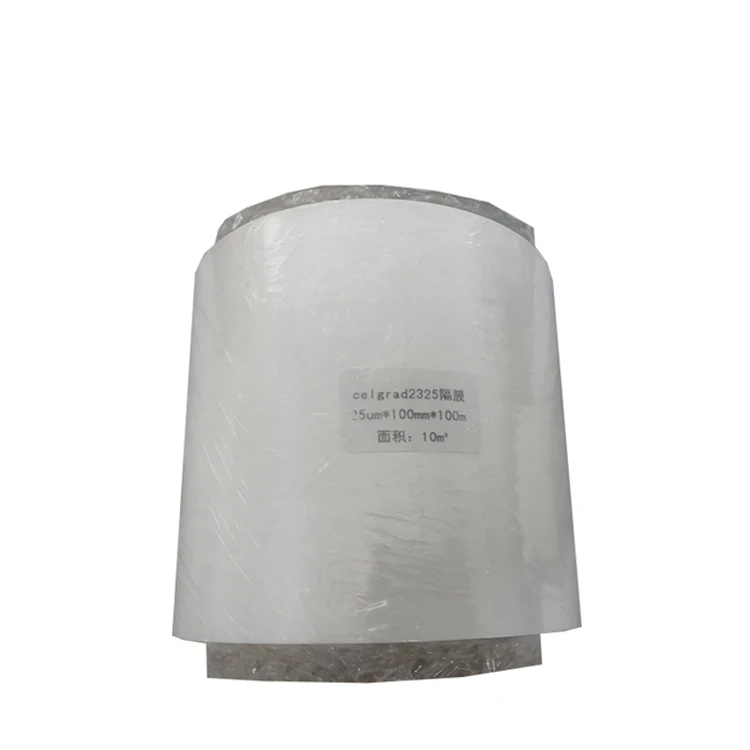

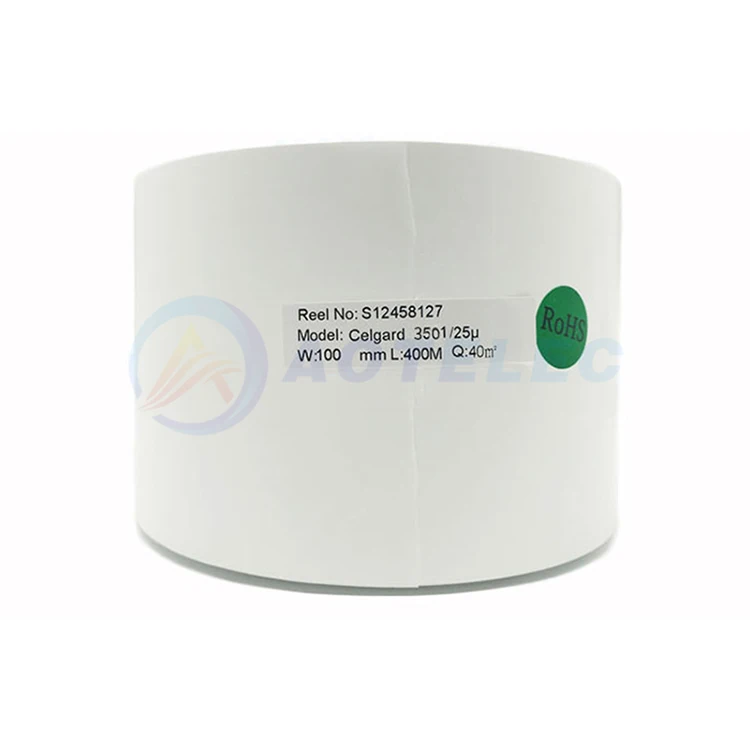

Celgard: 2320 2325 2400 3501
