Product Overview

Description



Product Description

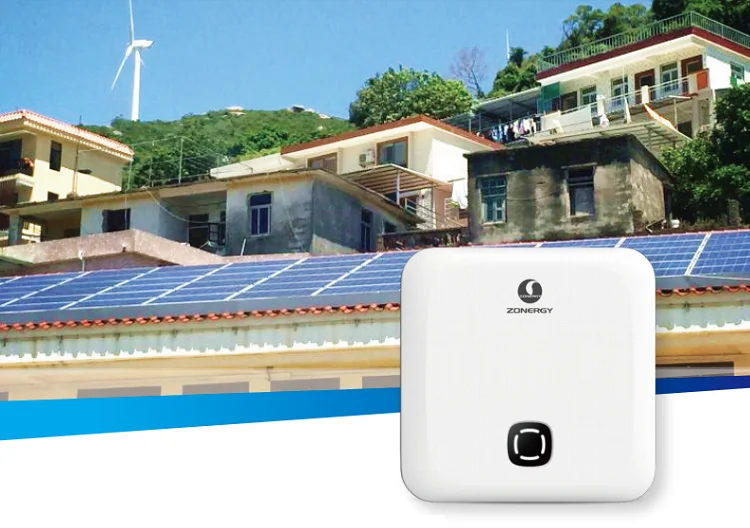

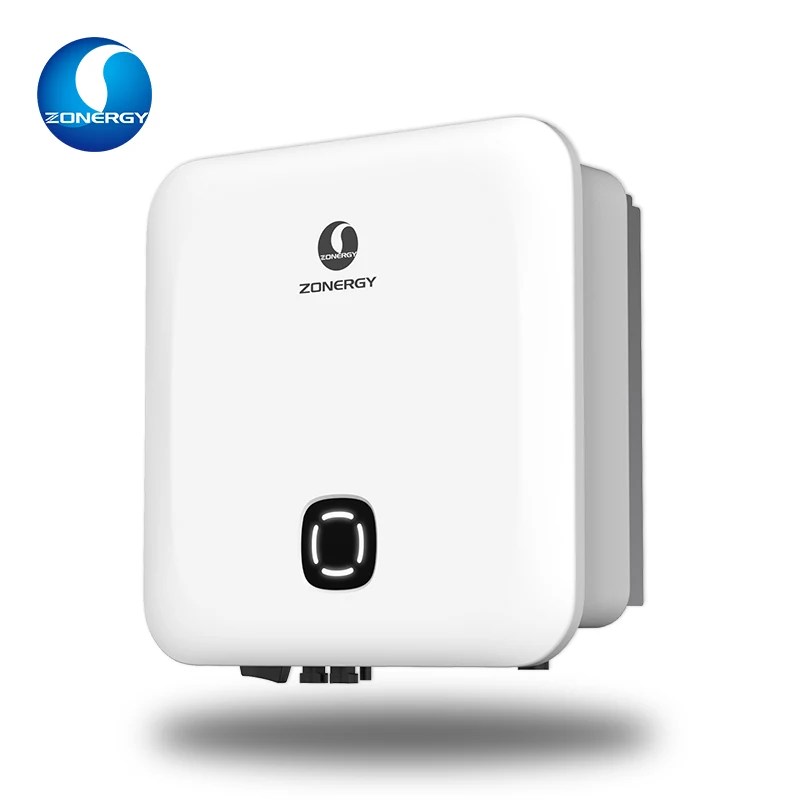

Residential Single-phase On-grid Inverter for Photovoltaic Power Mercury Series
1. Smart adaptive weak current network serves to avoid frequent grid-connection failures of the product.
2. Independent dual MPPT tracking adaptable to different installation environment.
3. Wide DC voltage range and longer power generation duration.
4. This product supports remote parameter setting, fault diagnosis and software upgrade.
5. This product with a variety of monitoring modes supports RS485, Wi-Fi/Ethernet/GPRS.
6. IP65 degrees of protection makes the product suitable for various harsh application environments.


Specification



Technical parameters
MER 3680TL-S1
MER 5000TL-S1
MER 6000TL-S1
input (DC)
maximum panel input power recommended
4900 Wp
7500 Wp
9000 Wp
maximum DC power of single channel MPPT
2400 W
3000 W
3150 W
maximum input voltage
600 V
start-up input voltage
120 V
rated input voltage
360 V
MPPT voltage range
90 V-550 V
full load DC voltage range
165 V-500 V
175 V-500 V
250 V-520 V
number of independent MPPT
2
number of DC inputs
1/1
maximum Input current
13 A/13 A
maximum short circuit current
18 A /18 A
output (AC)
rated output power
3680 W
5000 W
6000 W
maximum output current
16 A
25 A
27.3 A
nominal grid voltage
L/N/PE, 220 VAC, 230 VAC, 240 VAC
nominal AC voltage range
180 VAC-276 VAC ( according to local standard )
rated grid frequency
50 Hz/ 60 Hz
grid frequency range
45 Hz-55 Hz/54 Hz-66 Hz ( according to local standard )
active power adjustable range
0~ 100%
total harmonic component (current)
<3%
Power Factor
1 (+/-0.8 adjustable)
efficiency
maximum efficiency
97.60%
97.80%
98.00%
European weighted efficiency
97.20%
97.30%
97.30%
MPPT efficiency
>99.9%
protection
insulation impedance detection
available
DC reverse connection protection
available
ground fault monitoring
available
over-current protection
available
DC switch
available
battery soft start protection
available
AFCI protection
optional
general parameters
ambient temperature range
-30 ~ + 60 ℃ (Rating reduction occurs when the ambient temperate rises above 45 ℃.)
stand-by loss
<10 W
topology
no transformer
degrees of protection
IP65
Relative Humidity range allowed
0~ 100%
communication
RS 485, Wi-Fi/GPRS (optional)
protection level
Class I
maximum altitude for product operation
2000 m
connection mode of current sensor
external
noise
<29 dB
weight
11 kg
cooling mode
natural cooling
dimension（mm）
380*380*150
display
LCD & APP
warranty
5 years (extendable)
standard
EMC
EN 61000-6-1 EN 61000-6-3
safety regulations and standards
IEC62109-1, IEC62109-2


Note：Technical parameters listed hereunder are for reference only. Actual parameters shall be subject to products shipped.


Recommend Products




Company Profile

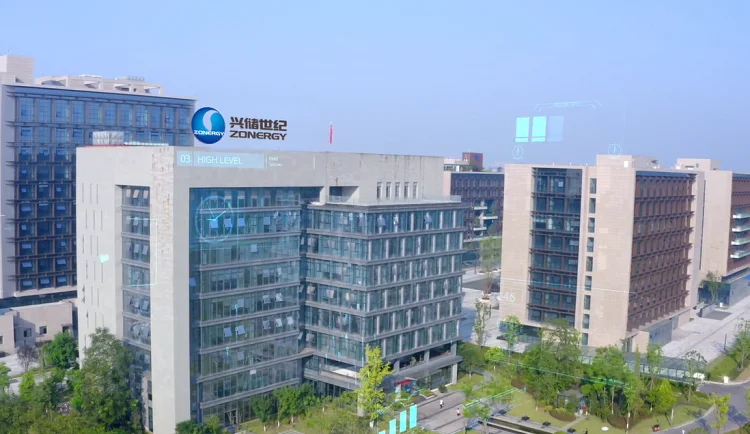

Zonergy Corporation
Zonergy Corporation is a state-level high-tech enterprise, established more than 15 years, that is famous for its global competence in integrated smart microgrid solutions, including Solar panels, ESS, and Solar inverter computing.

The company has set up a research and development department specializing in inverter research.

Under the institute, there are cutting-edge technology pre-research Department, New energy product System Department, optical storage and inverter product R&D department, test center (including product safety laboratory, environment and reliability laboratory, failure analysis laboratory, device reliability laboratory, photovoltaic grid-connected performance laboratory) departments.

The company adheres to the market demand as the guide, technology innovation as the power source of the enterprise development.

Research focus on store inverter technology, power electronics and digital information fusion technology, optical storage technology, photovoltaic technology, intelligent management and operational technology and weak power grid adaptability, clean electricity conversion technology in the field of exploration and research.

All our products have been ISO 9001, CE, and TUV certified and get a high reputation and hot market in Asia, Europe, South America, and other areas.
