Geniuspy HD 1080P Mini CCTV IP Network Door Hole Peephole ICSEE XMEYE P2P RTSP Micro Wireless Wifi Doorbell Camera Security
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (1600829842713):
Product Overview
Description
Geniuspy HD 1080P Mini CCTV IP Network Door Hole Peephole ICSEE XMEYE P2P RTSP Micro Wireless Wifi Doorbell Camera Security
Note: with 2 Way audio/tf card slot ,support on vif P2P ,rtsp !
This models is an Special Mini IP Camera With Unique IPC Board ,it is Custom Made for other client !
So the senor is IMX307 +XM530 Dsp ,It is an ordinary Chip and Senor,1080p real HD starlight ,with 1920*1080P video record 25fps pal .ntsc 30fps
it is widely used in Helmet&Police , Industrial equipment, medical instrument , Laboratory Instruments etc.
in addation ,the camera support P2P on vif compatible with NVR ,such as xiongmai . Dahua .Hikvision NVR etc
Product Overviews
Product Description
Note:
the camera support P2P BY XMEYE Or ICSEE remmote view support on vif ,the camera record the video by TF Card max128gb!
After the successful installation of mobile APP, you can set up PC-side operation. You need to connect your wireless SSID network through mobile APP. This camera support RJ45 network interface connection and PC-side and mobile APP watching at the same time!
H.265 advantages
1. It is approximate 2 times as effective as H.264.
2. Reduces file size up to 50% with the same quality.
3. Supports resolution up to 7680 × 4320 (8K).
4. Reduces video noise and increases dynamic range.
5. Extend far greater video quality experience compared to H.264
Features:
1. H.265 2MP
2. H.265support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
3. Color 0.1Lux; B/W 0.01Lux;
4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;
5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
6. Support on vif, and mobile monitoring; WIFI and sd card slot

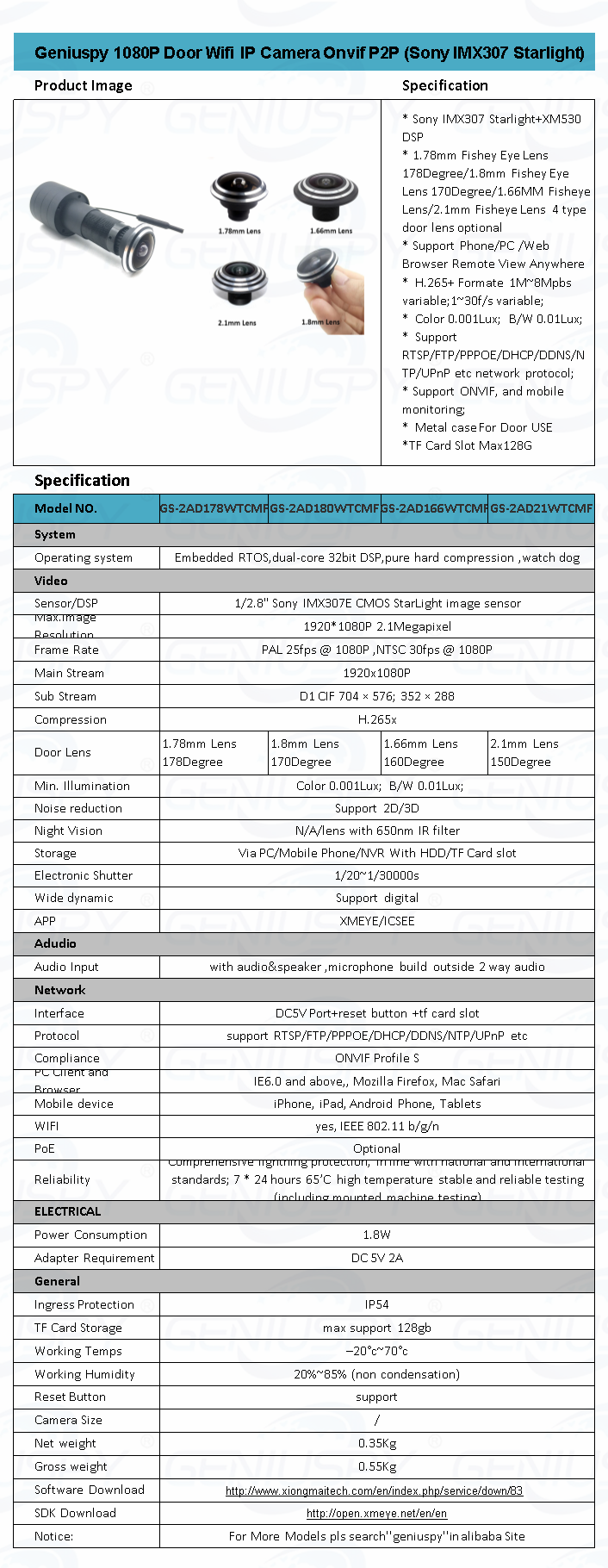

Specifications:
We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.
Q & A
1, IP camera default IP address:192.168.1.10
User name:admin,password:empty(null)
If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.
Please click "Edit Device" to change the camera's ip address,
For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.
"DeviceManage" It can find and change the IP address, upgrade the firmware.
2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera's port information.
on vif 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support on vif protocol.
Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
Example:
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
- CN99 / DynDns / Oray / NO-IP / MYQ-SEE
7.
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
Package contents:
1 x Camera,1 x English User Manual,1x adapter 5V ,1X usb cable for power
Note:
Software will be sent to your emails !pls contact with our SALES team if you need !
Product Overviews
Packaging & Shipping
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
Our Services
| Quick response | Within 24hours you can get a reply |
| Sample | Sample is available, it will be send 2-3days after you paid sample charge and shippin cost. |
| Shipping Method | By sea, by air, by express(DHL, UPS,FEDEX,TNT,HK post,China post,EMS,SF etc). |
| Payment Terms | T/T, Western Union,PayPal. |
| OEM&ODM | OEM design, OEM color, OEM packing, ODM are highly welcome. |
| Trade Terms | EXW,FOB,CIF or as per you request. |
| QC | Each product will be 100% inspected before shipping. |
| After-Services | Responsible and effective. |
| Warranty | 12 months. |
