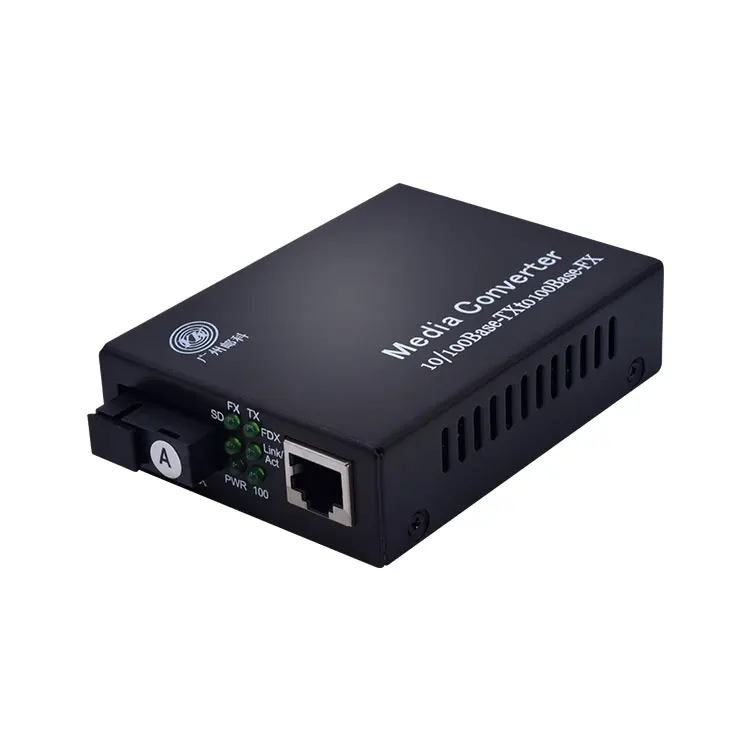

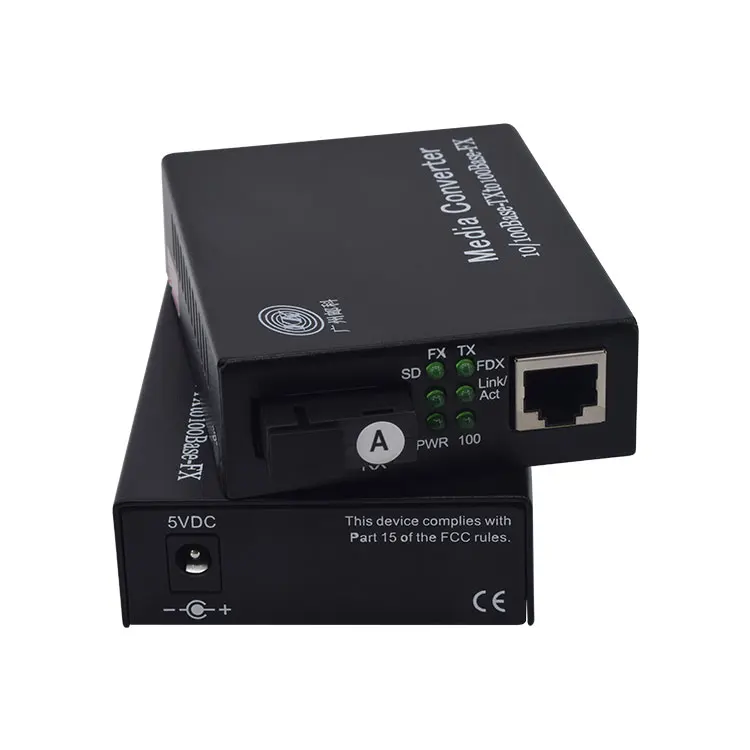

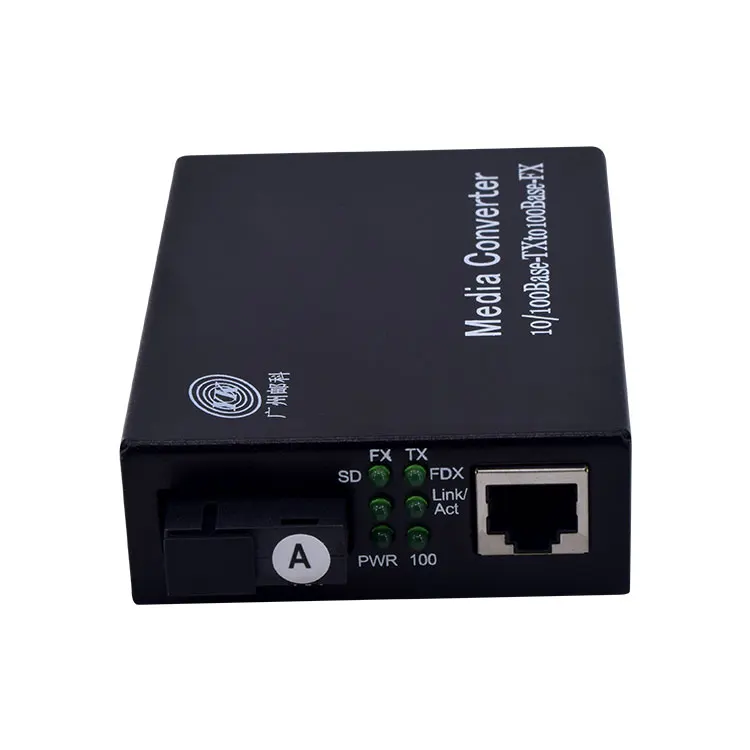

Single Mode Fiber 100 Gigabit Converter Single Core Optical Telecom Transceiver
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600829874036):
Product Overview
Description
Product Introduction
Product characteristic:
10/100M adaptive Ethernet single-fiber bi-directional fiber transceiver, using high-quality single-fiber bi-directional optical transceiver module, stable performance, excellent quality. It is suitable for telecommunication, broadcasting, broadband networks and other network environments that need to improve fiber optic data traffic and high performance and reliability.
- 1 RJ45 electrical port and 1 single-fibre SC optical port for optical signal conversion between twisted pair and optical fibre
- Only one core of fibre is needed to transmit the signal all the way through, doubling the amount of fibre data transmission compared to the dual-fibre method
- Compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
- 10M/100M adaptive capability
- Adaptive straight-through/crossover connection for electrical ports
- Supports full duplex / half duplex mode of operation
- Supports IEEE802.3X full-duplex flow control and half-duplex backpressure flow control
- Supports broadcast storm protection
- Built-in lightning protection circuit to greatly reduce damage caused by lightning induction
- Six LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; easy to monitor the operating status of the transceiver and determine the cause of failure
- External and internal power supply types: AC220V (175-250V), 50Hz DC48V
- Operating ambient temperature: 0 ~ 50 ℃, -25 ~ 65 ℃ (industrial grade)
- Storage ambient temperature: - 20 ~ 70 ℃
- 1 RJ45 electrical port and 1 single-fibre SC optical port for optical signal conversion between twisted pair and optical fibre
- Only one core of fibre is needed to transmit the signal all the way through, doubling the amount of fibre data transmission compared to the dual-fibre method
- Compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
- 10M/100M adaptive capability
- Adaptive straight-through/crossover connection for electrical ports
- Supports full duplex / half duplex mode of operation
- Supports IEEE802.3X full-duplex flow control and half-duplex backpressure flow control
- Supports broadcast storm protection
- Built-in lightning protection circuit to greatly reduce damage caused by lightning induction
- Six LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; easy to monitor the operating status of the transceiver and determine the cause of failure
- External and internal power supply types: AC220V (175-250V), 50Hz DC48V
- Operating ambient temperature: 0 ~ 50 ℃, -25 ~ 65 ℃ (industrial grade)
- Storage ambient temperature: - 20 ~ 70 ℃
Product Specifications
Product Type | Optoelectronic converters | |
Product Model | YKF Series | |
Brand Name | YUCOO | |
Place of Origin | China，Guangdong | |
Color | Black | |
Transmitted power | -11 to -6 (dbm) | |
Voltage input | AC220/DC48（V） | |
Ventilation openings | 2 | |
Access available | Fibre optic cables, network cables, power cables | |
Transmission distance | 20 (km) | |
Operating ambient temperature | 0 ～ 50 ℃ | |
Storage temperature | - 20 ～ 70 ℃ | |
Interfaces | Electrical, optical | |
