CCTV Security Surveillance Audio High Speed HD 1080P 30FPS UVC Android 90 Degrees 3 Meters Cable Mini USB Camera Security Module
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (1600829875603):
Product Overview
Description

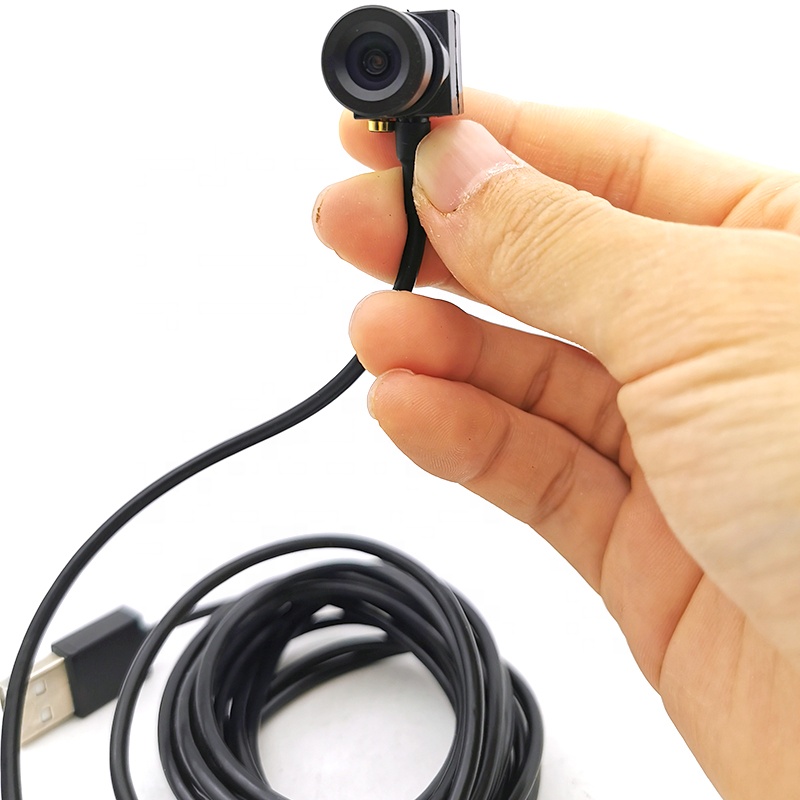

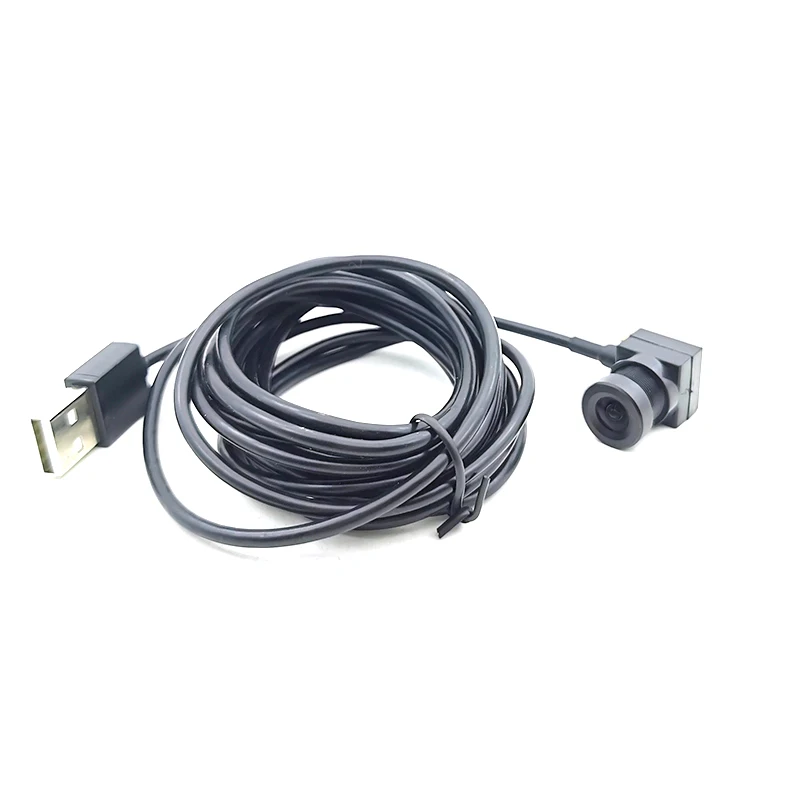

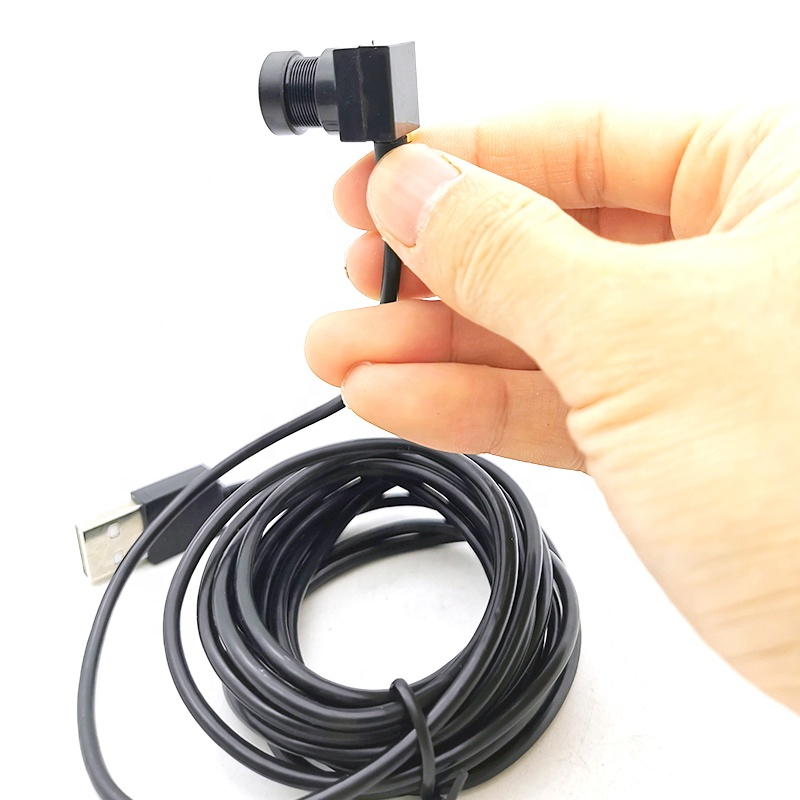

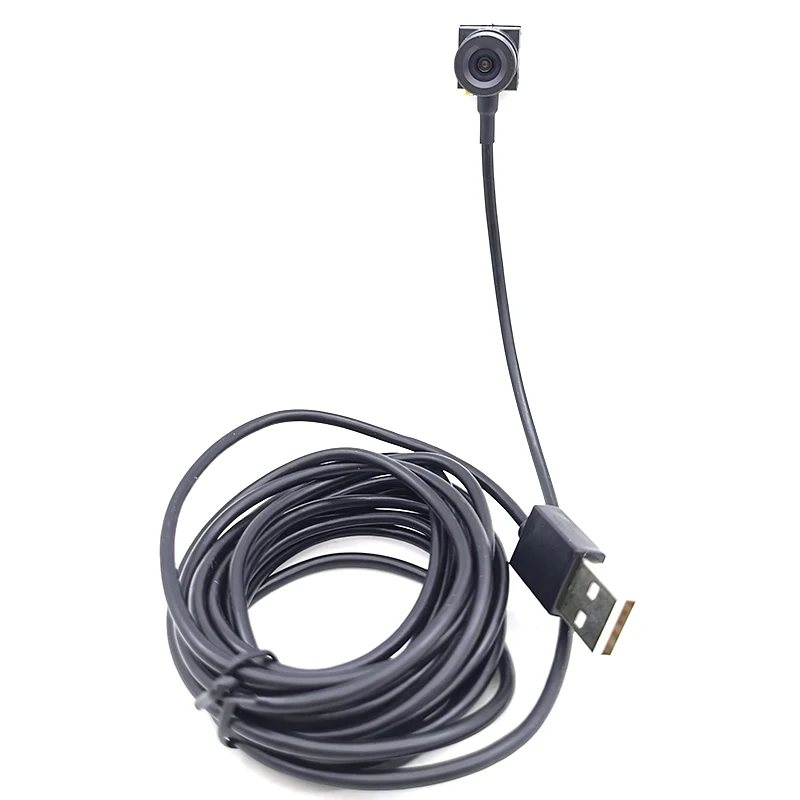

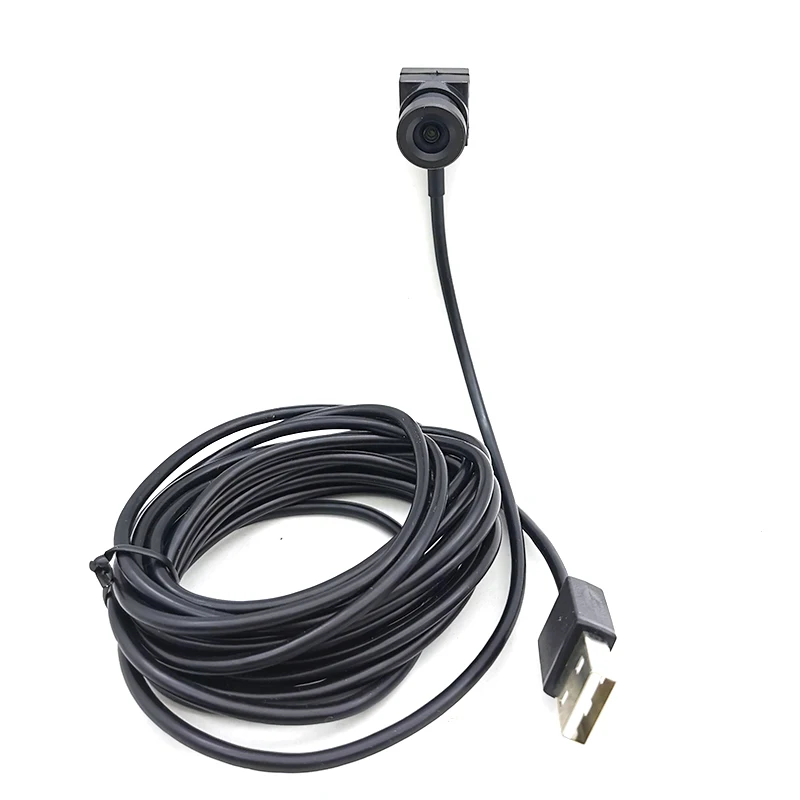

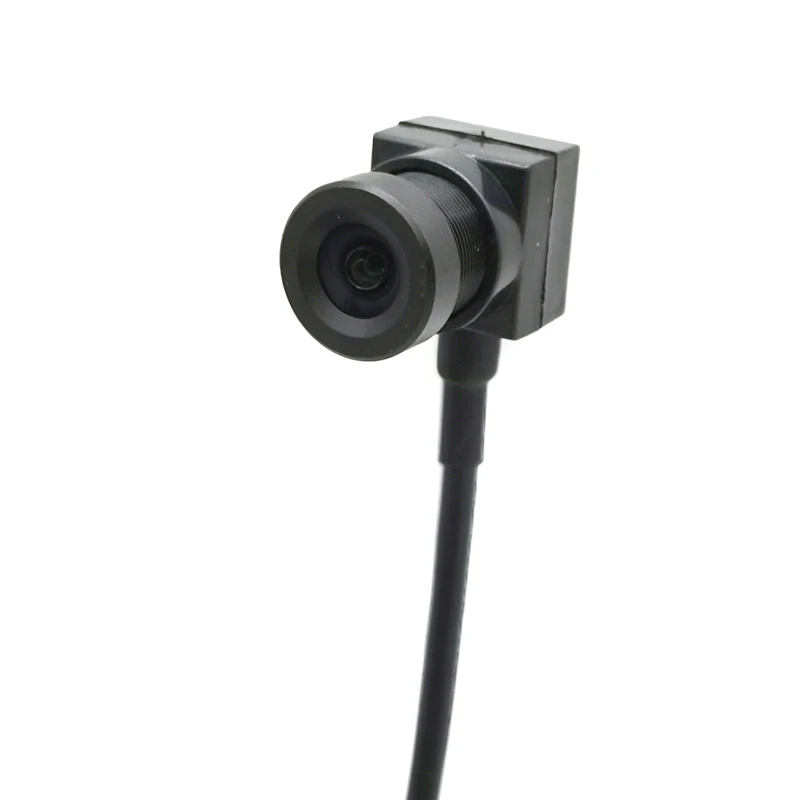

CCTV Security Surveillance Audio High Speed HD 1080P 30FPS UVC Android 90 Degrees Mini USB Camera Security Module with 3 Meters Cable
Note: 1080P with audio,3M usb cable with Zero distortion Lens
TYPE-C/OTG Micro usb interface optional , 1meters default
Product Overviews
Product Description
l Small size, Hands free filming
l high clearance lens
l 1080P FULL HD
l Free drive
l Suitable for multi system equipment
l High clearance image
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Detailed Specifications Of The Parameters
This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!
Feature:
HD 1080P USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,m ac
Typical application
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
Remarks:
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.
Parameter description:
SLens Size:1/3 inch
Pixel size: 3um
Maximum effective pixels: 1920 (H) X1080 (V)
Output image format: YUV2 (YUYV) / MJPEG
Frame rate: 640X480 @ 30fps MJPEG,1280X720 @ 30fps MJPEG,1920X1080 @ 30fps MJPEG
YUV2,640X480 @ 20fps YUV2,1280X720 @ 5fps YUV2,1920X1080 @ 5fps YUV2
Signal to noise ratio: 60dB
Dynamic range: 69dB
Sensitivity: 3.3V/lux-sec@550nm
Minimum illumination: 0.01LUX
Shutter type: Electronic rolling Frame shutter/ exposure
Interface type: USB2.0 High Speed
Support free flooding protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: support
Automatic white balance AEB: support
Automatic gain control AGC: support
Adjustable parameters: brightness contrast color saturation hue resolution
The gamma exposure contrast gain white balance backlighting
Power supply: USB BUS 4P-2.0mm POWER socket
Working voltage: 5V
Working current: 140mA~220mA
Working temperature: 0 ~ 60
Storage temperature: -20 ~ 70 C
Board size: 15X15mm
m achine weight: 50g
Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ m ac-OS X 10.4.8 or later
/Wince with UVC/Android 4 or with above UVC
Lens: 5MP 3.6MM
Angle: 90degrees
Line length:3M Cable
Packaging & Shipping
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
Our Services
| Quick response | Within 24hours you can get a reply |
| Sample | Sample is available, it will be send 2-3days after you paid sample charge and shippin cost. |
| Shipping Method | By sea, by air, by express(DHL, UPS,FEDEX,TNT,HK post,China post,EMS,SF etc). |
| Payment Terms | T/T, Western Union,PayPal. |
| OEM&ODM | OEM design, OEM color, OEM packing, ODM are highly welcome. |
| Trade Terms | EXW,FOB,CIF or as per you request. |
| QC | Each product will be 100% inspected before shipping. |
| After-Services | Responsible and effective. |
| Warranty | 12 months. |
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 8 years!
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦ Do you accept small order?
A: Yes, Sample order is available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
A: Yes, Sample order is available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
