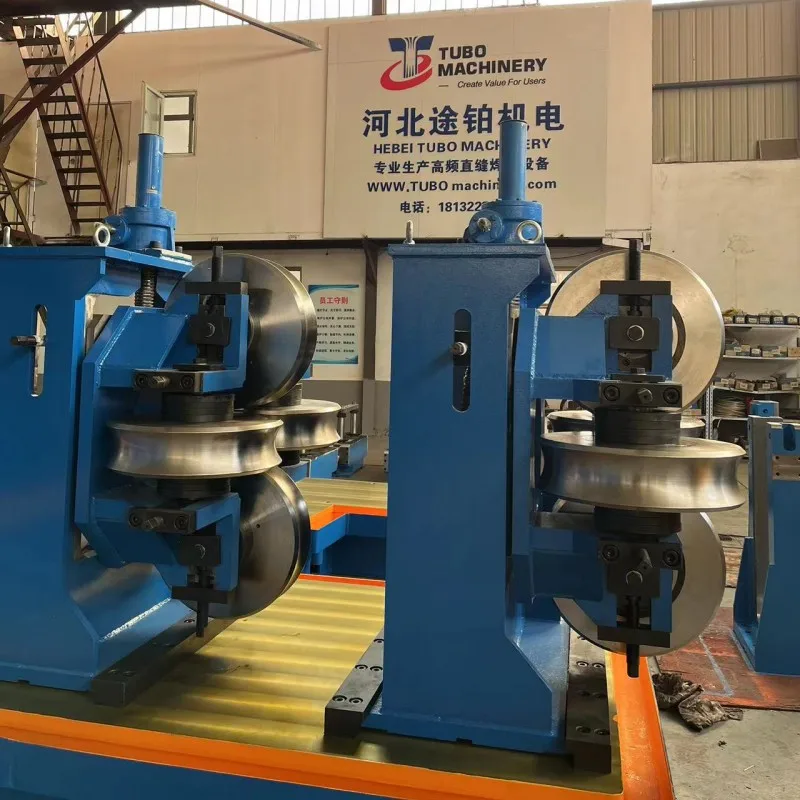

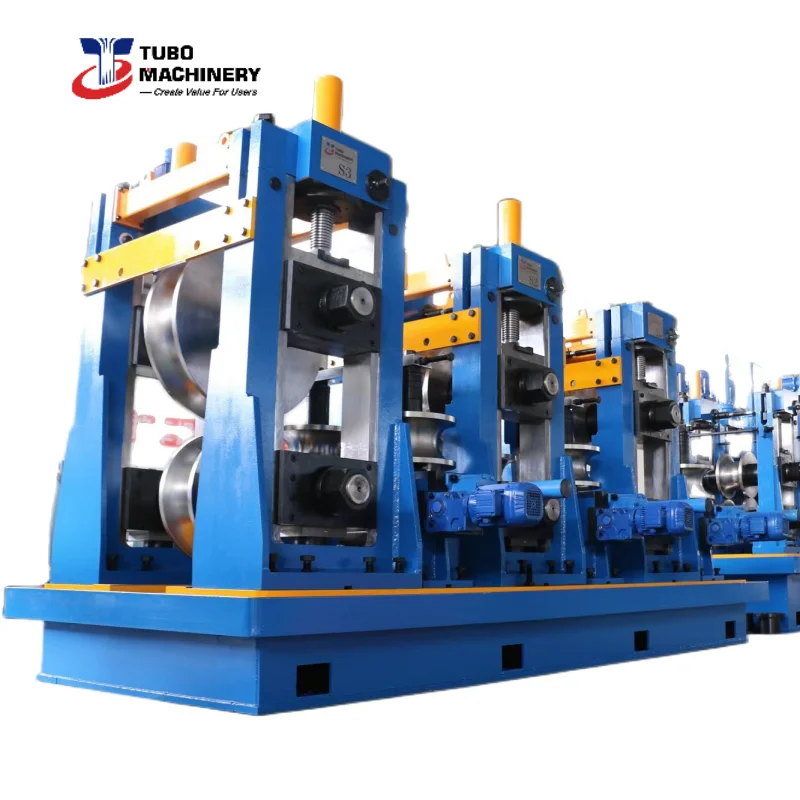

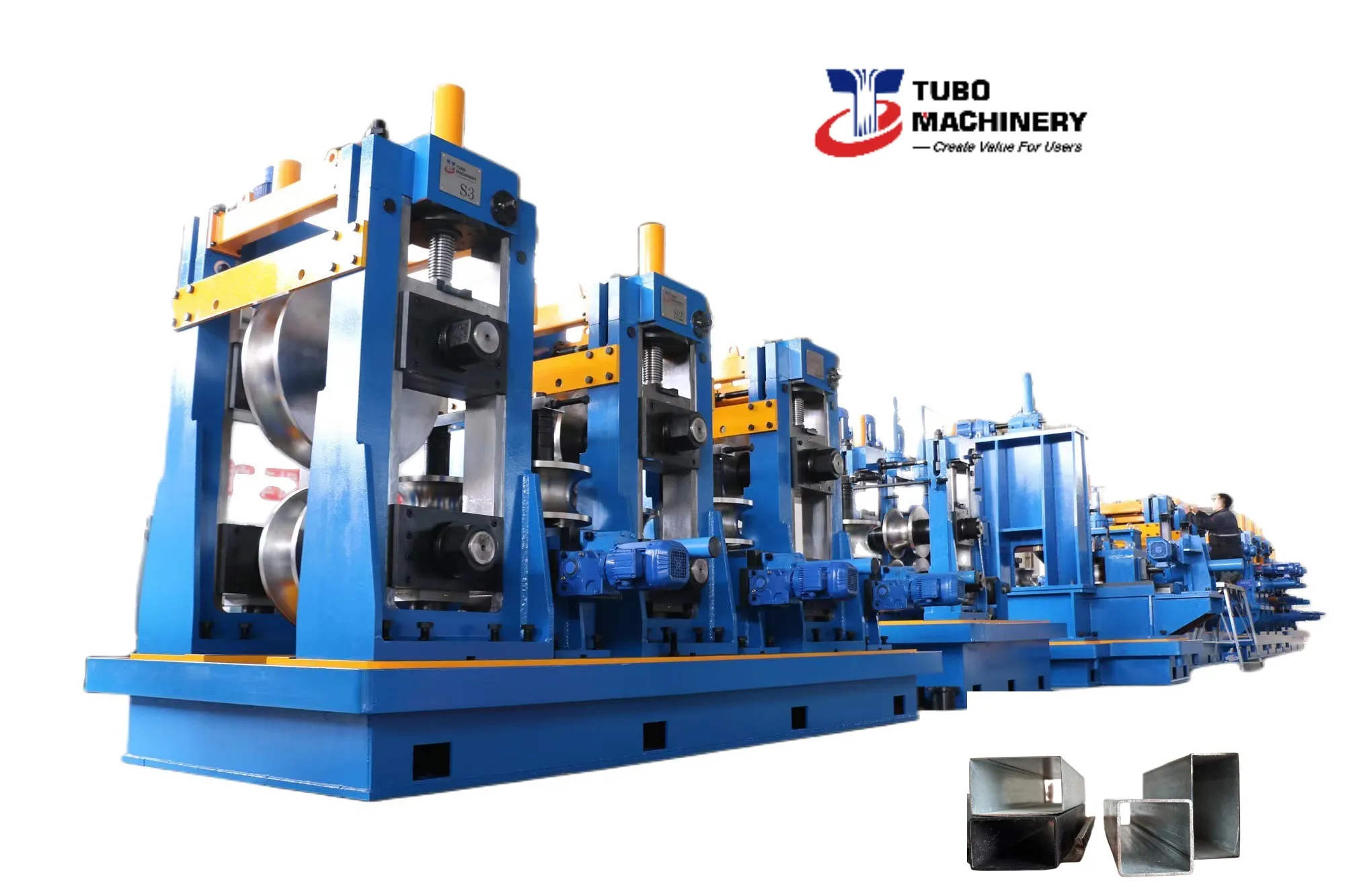

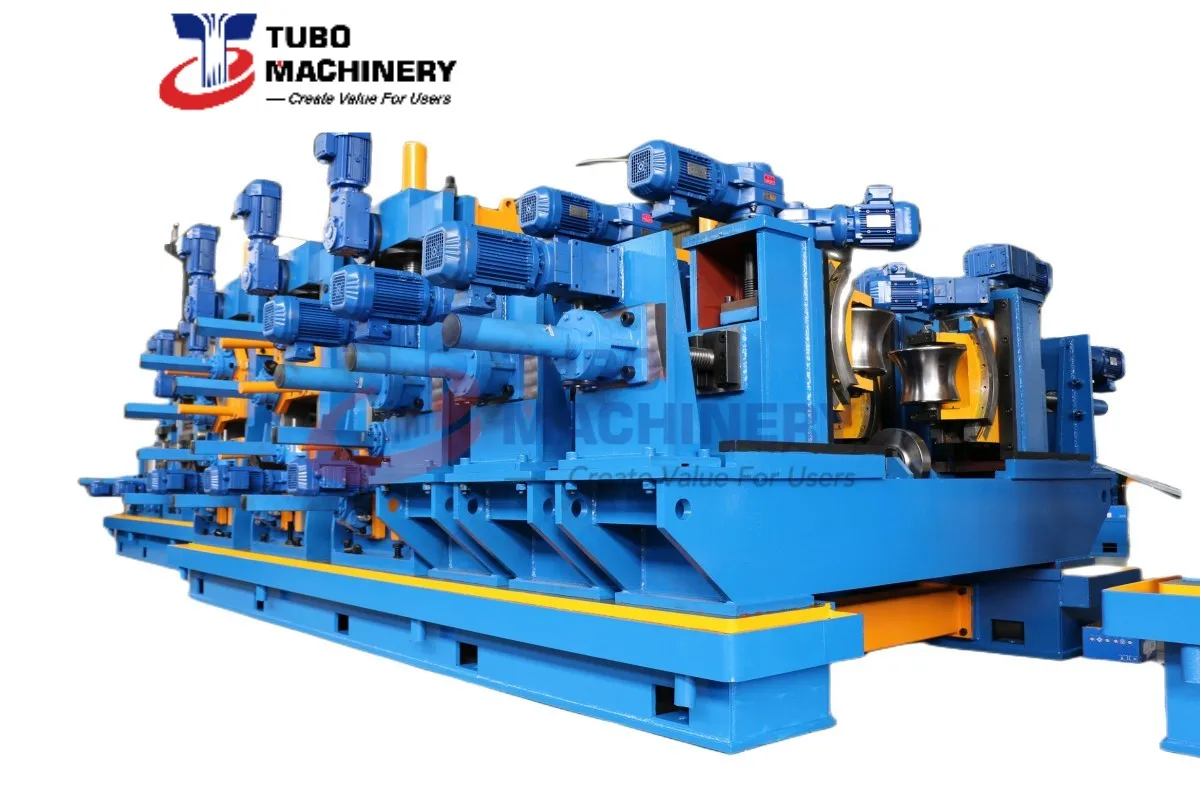

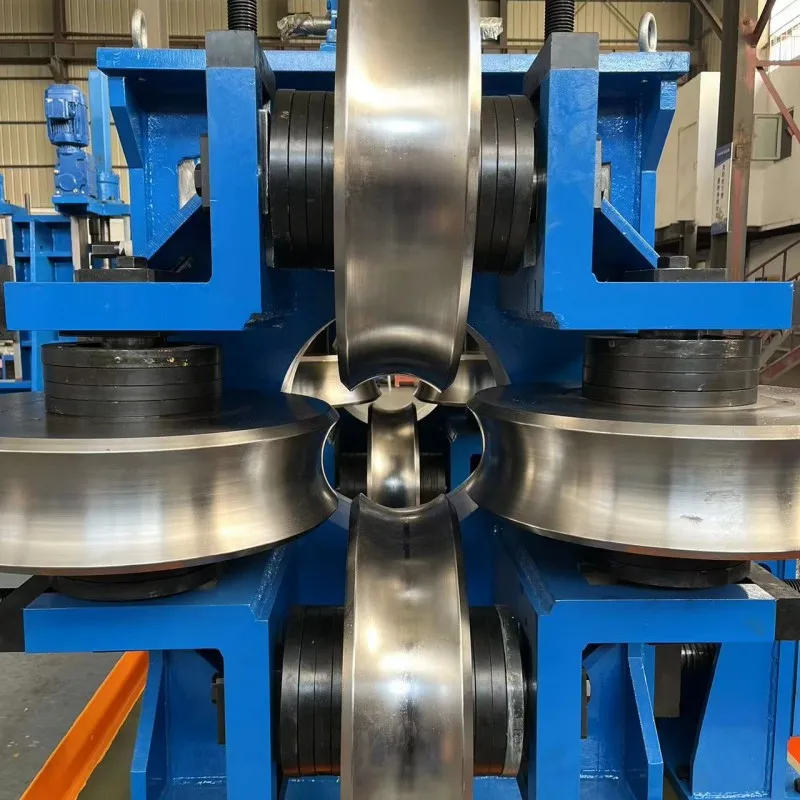

Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill
Large Size Square Pipe Roll Forming Machine Steel Tube Mill

Large Size Square Pipe Roll Forming Machine Steel Tube Mill

Share on (1600829879617):


Price:$200,000.00 - $300,000.00

Quantity:


Product Overview

Description



Product Description


Large Size Square Pipe Roll Forming Machine Steel Tube Mill




Model
Square pipe (mm)
Rectangular pipe (mm)
Thickness (mm)
Speed (m/min)
LW400
40*40~100*100
40*60~80*120
1.5~5.0
20~70
LW600
50*50~150*150
50*70~100*200
2.0~6.0
20~50
LW800
80*80~200*200
60*100~150*250
2.0~8.0
10~40
LW1000
100*100~250*250
80*120~200*300
3.0~10.0
10~35
LW1200
100*100~300*300
100*120~200*400
4.0~12.0
10~25
LW1600
200*200~400*400
150*200~300*500
5.0~16.0
10~25
LW2000
250*250~500*500
200*300~400*600
8.0~20.0
10~25


Specification

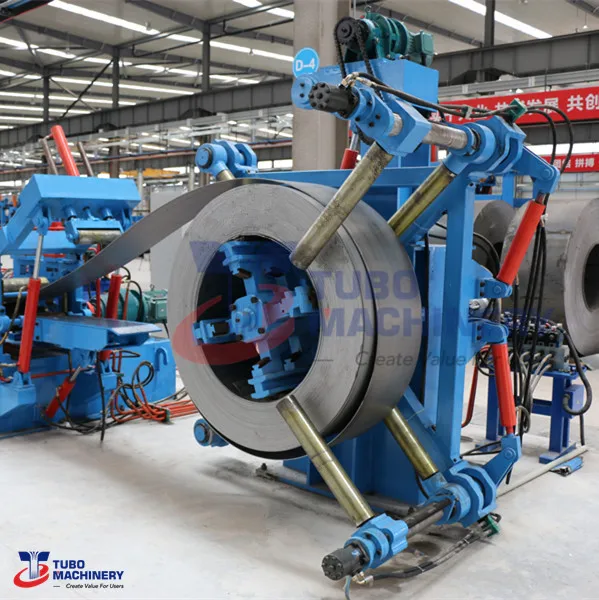

UN-COILER :
Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤ 3 tons


 ACCUMULATOR
Accumulator is used to store the steel strip material before it is delivered to pipe forming section to ensuring the continuous of
production .
1 Strip width: 60 ~ 200mm
2 Strip thickness: 0.7 ~ 2.5mm
3 Storage capacity: Max.1000m
4 Outside Diameter: 4.2m
5 Feeding speed: Max.160m/min


 FORMING  SIZING AND WELDING
High precision: ovality of pipe can be reached to ±0.03mm, which is used to produce high precision pipe, such as cylinder
tube,transmission shaft tube etc.
High speed : running speed can be reach 150 m/min
Quick change system : small diameter tube mill adopts complete fast structure, greatly reduce the time of roller changing . large
diameter pipe mill adopts exclusive quick change system .
Roller common use system : “FFX” froming &direct forming to square , can save 60-80% roller cost for user .
Special tube mill for: large diameter with thin wall thickness ,small diameter with large wall thickness , high strength section
steel , “9” shape pipe etc.




Orbtial Milling Saw
high accuracy


 Option  section  : bundling
1. manual
2. Hydraulic
3. Plug arm type
4. magnet






Packing & Delivery




Company Profile












FAQ


1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining
equipment to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
