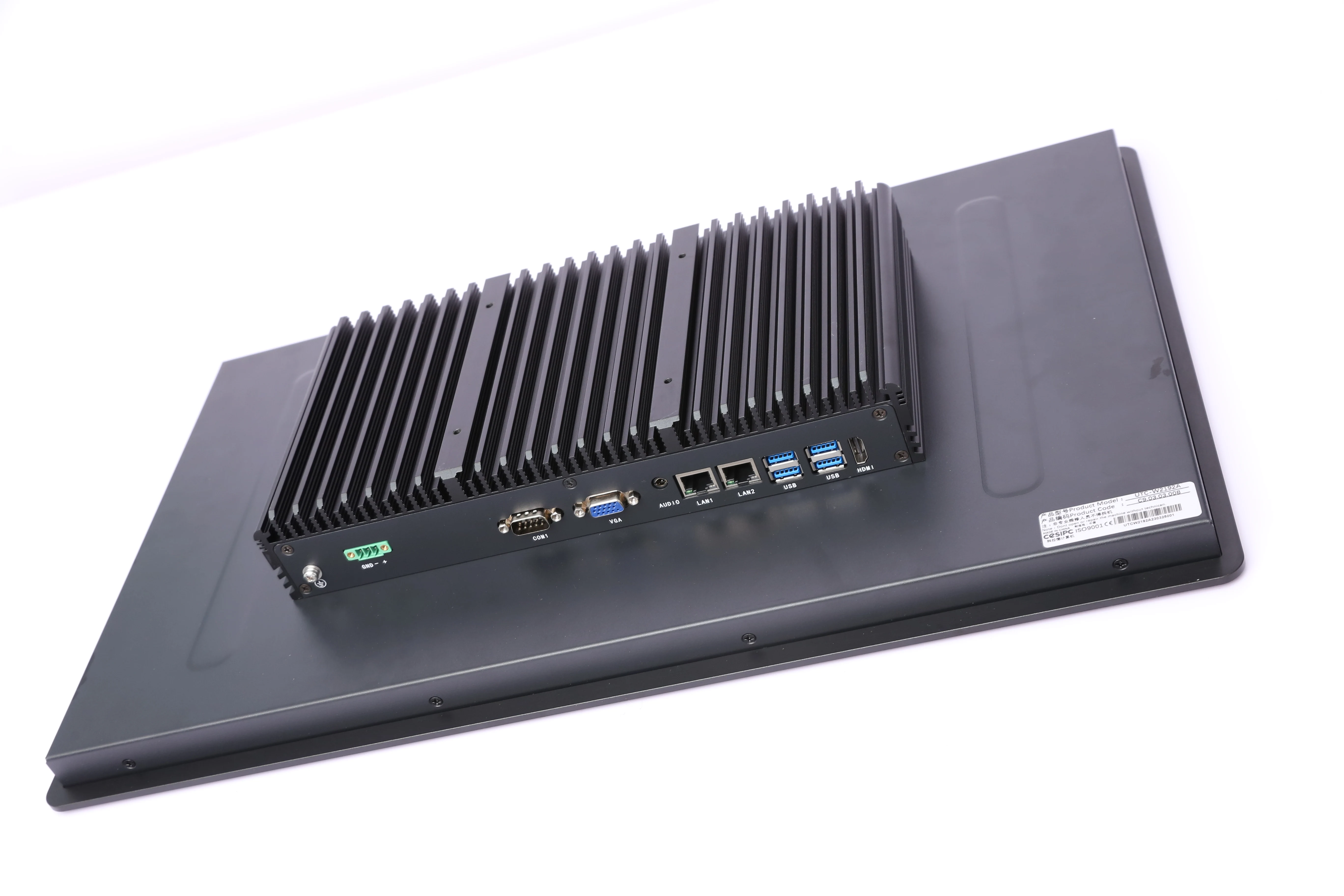

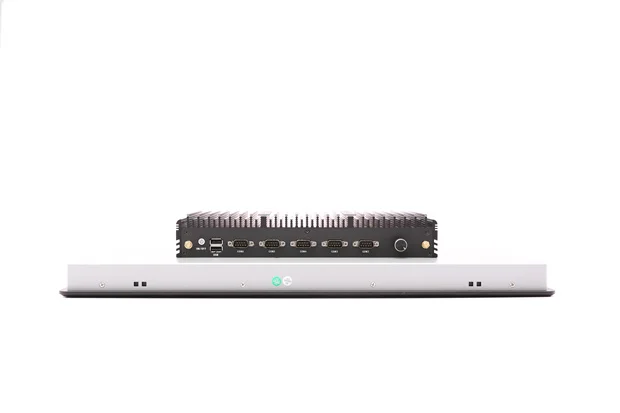

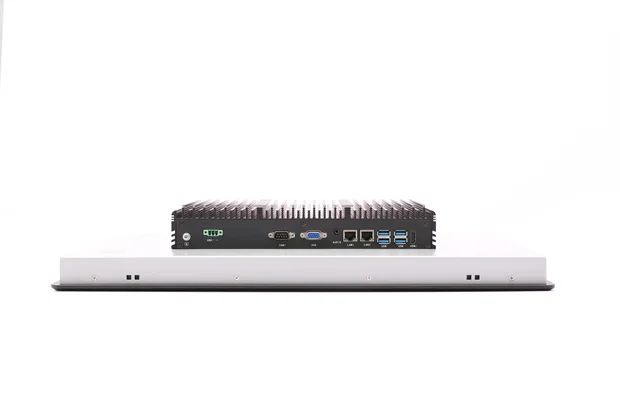

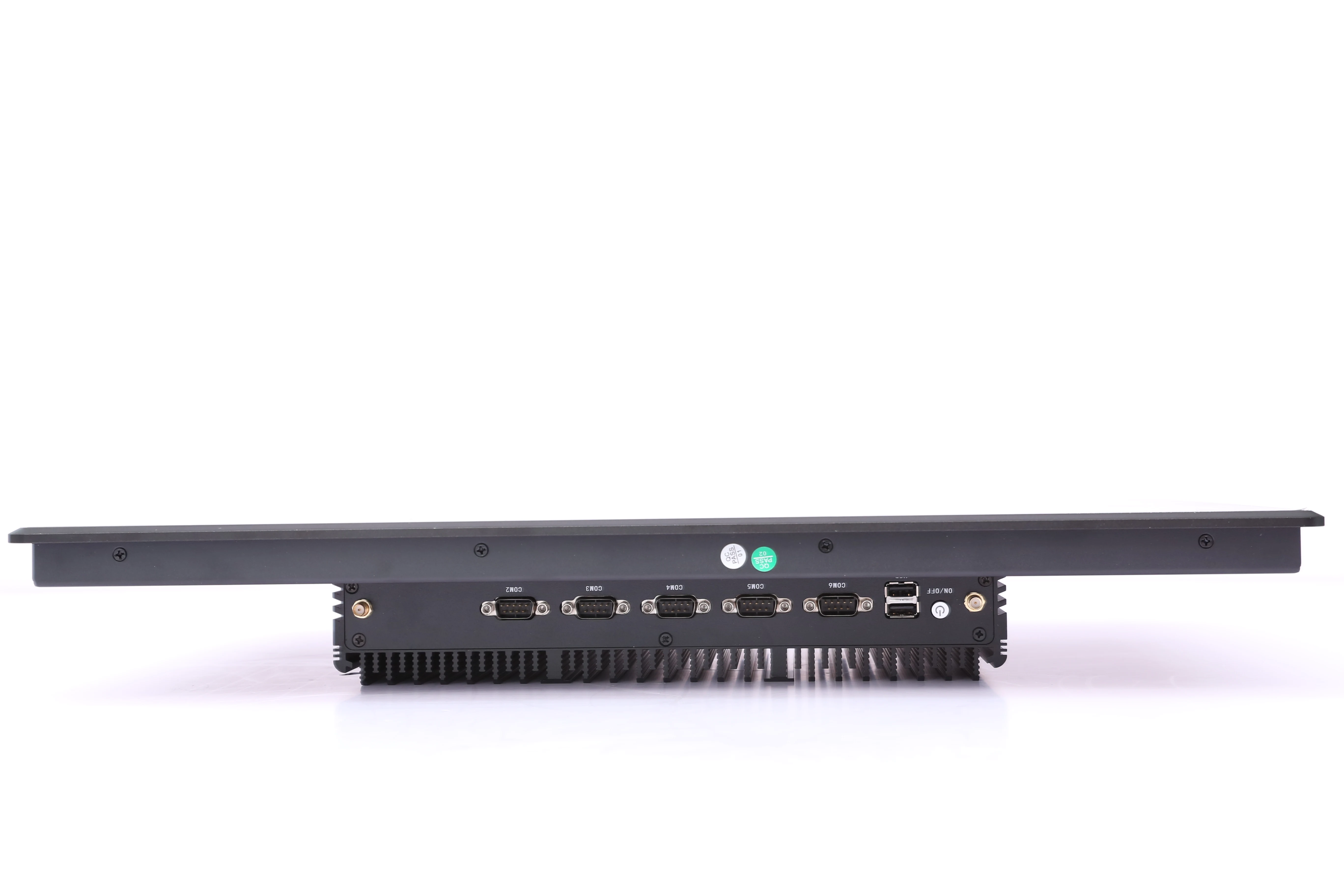

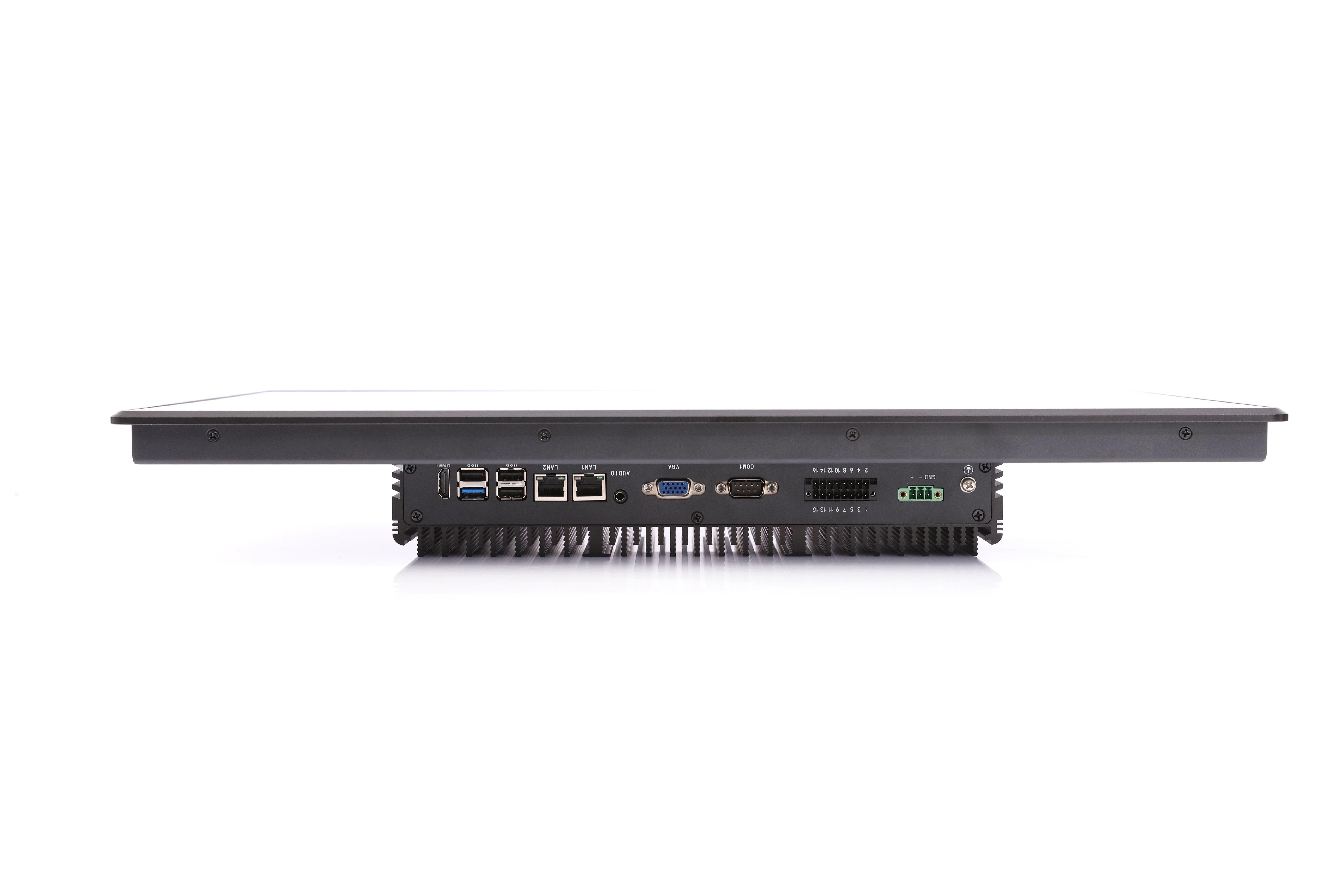

21.5 fanless panel Win dows/Linux Intel i3 i5 i7 all in one computer touch panel pc industrial
- Category: >>>
- Supplier: Shenzhen Cloud Embedded Technology Co. Ltd.
Share on (1600829881201):
Product Overview
Description
CESIPC Global Customer
CESIPC global partners include Vietnam, Turkey, Thailand, Israel.
Sincerely invite other global partners.
CESIPC Strengths
CESIPC Industrial Panel Pc strengths
1. Focus on the development and production of industrial Computers
2. Over 10 years' experience and superior professional knowledge
3. Reliable industrial PCs that meet the high quality standards and industry requirements
4. Proprietary development and design of the entire IPC, right down to the motherboard
5. Consistent use of Intel® chip sets (embedded) for 100% compatibility
6. Warranty available for industrial computers for three years
7. 7x24hrs services and support to meet the demands
8. Certified according to ISO 9001 and complete production of industrial PCs in Shenzhen, China
3. Reliable industrial PCs that meet the high quality standards and industry requirements
4. Proprietary development and design of the entire IPC, right down to the motherboard
5. Consistent use of Intel® chip sets (embedded) for 100% compatibility
6. Warranty available for industrial computers for three years
7. 7x24hrs services and support to meet the demands
8. Certified according to ISO 9001 and complete production of industrial PCs in Shenzhen, China
CESIPC Factory
CESIPC move to new working place from 2022 Sep, now we have 2 production lines, metal plate factory for casing and SMT factory from other boards.
SMT Factory
Metal Case Factory
Production Lines
CESIPC Industrial Panel Pc Service
1. Provide 2 Years+ Warranty, include Industrial Panel Pc
2. Pre-sales Service
3. After-sales Service
4. Worldwide Local service, include pre-sales service and warranty service
2. Pre-sales Service
3. After-sales Service
4. Worldwide Local service, include pre-sales service and warranty service
CESIPC Team
CESIPC is divided into delivery center and marketing center.
Delivery Center includes R&D department, engineering department, failure analysis department, quality inspection department,
production department, and warehousing department.
Marketing Center includes Marketing Department, Commerce Department, Finance Department and Business Department.
Delivery Center includes R&D department, engineering department, failure analysis department, quality inspection department,
production department, and warehousing department.
Marketing Center includes Marketing Department, Commerce Department, Finance Department and Business Department.
Product Description
UTC-W2192A Industrial Panel Pc Features
1, Cable-less design
2, Highly compatible Structure (compatible with Celeron, Core 7th, 10th Gen CPU in same dimensions)
3. Modular design
4, Easy operation: easy assembly, easy maintenance
5. Supports customization
2, Highly compatible Structure (compatible with Celeron, Core 7th, 10th Gen CPU in same dimensions)
3. Modular design
4, Easy operation: easy assembly, easy maintenance
5. Supports customization
Specification
Processor | CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10310U Quad Core, 1.70-4.40 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
Cooling System | Fanless | |
Memory | Single Socket, 4GB-16GB DDR4 | |
Storage | M.2 SSD | |
Network(LAN) | 2x 10/100/1000Mbps Ethernet | |
I/O ports | 2xUSB2.0+4xUSB3.0, Type-A | |
COM: 6xRS232, DB9, 2*RS485 optional | ||
Dual Display: 1xHDMI (1920*1200 @30Hz) 1xVGA (1920*1200 @30Hz) | ||
Expansion: MINI-PCIE, Audio: 1×Mic-in, 1x Line-out | ||
Input Voltage | Input Voltage | 12V DC(3 Pin Phoenix Connector), optional 9V-36V DC |
Control SW/LED | Power Button, AT & ATX Model | |
LCD Display | Display Type | 21.5inch TFT LED Panel( LED Backlight) |
Max. Resolution | 1920*1080 / 16:9 | |
Luminance(cd/㎡) | 300nits / 1000nits | |
Touchscreen | Touch Type | Capacitive Touch |
OS Support | OS Support | Windows 7/ Windows 8/ Windows 10/ Linux |
Environment | Operating Temperature | 0℃～50℃ (extend temperature optional) |
Storage Temperature | -20℃～60℃ | |
Front Panel Protection | IP65 compliant | |
Mechanical | Color | Black |
Material | Aluminum | |
Certification | CE / UL / RoHS | |
Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |
CESIPC Certifications
Our products have passed the certifications of ISO9001, CE , RoHS etc. We own computer software copyrights such as embedded system trusted platform modular software, embedded airborne software security analysis system, embedded service strategy management software, QT embedded graphical user interface design system, and embedded software management system.
Recommend Products
FAQ
Q1: Can we accept sample order ?
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: Whether your industrial panel pc support the OEM / ODM?
A2: Yes. The motherboards are all designed and produced by ourselves. So the customization include size, IO ports, structure design are welcome.
Q3: Are you real factory?
A3: We are real factory with PCB factory and whole product assembling production lines.
Q4: What is our the warranty policy ?
A4: 24 months warranty lifetime free maintainance except the human damage and force majeure factor.
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: Whether your industrial panel pc support the OEM / ODM?
A2: Yes. The motherboards are all designed and produced by ourselves. So the customization include size, IO ports, structure design are welcome.
Q3: Are you real factory?
A3: We are real factory with PCB factory and whole product assembling production lines.
Q4: What is our the warranty policy ?
A4: 24 months warranty lifetime free maintainance except the human damage and force majeure factor.
