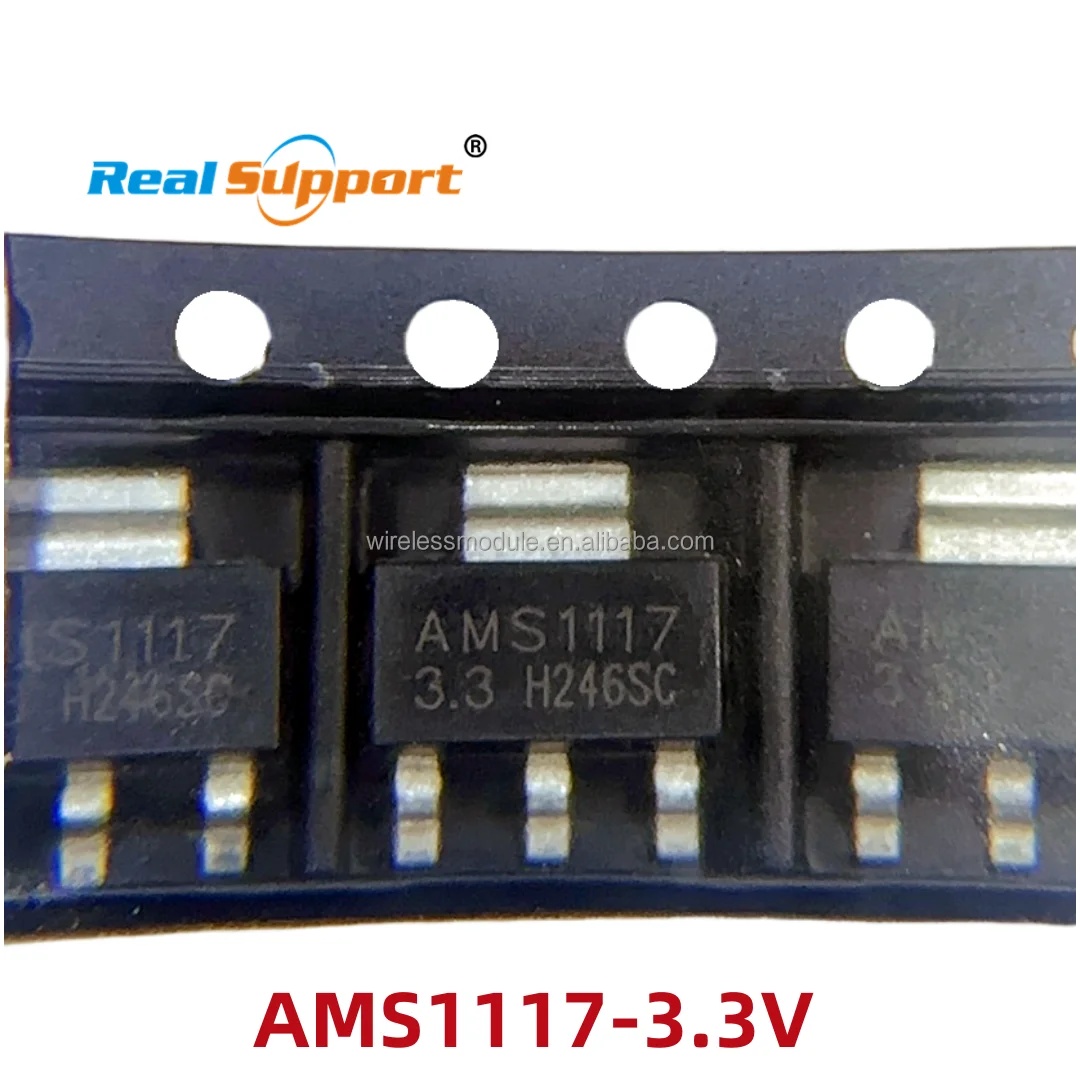

Original AMS1117 3.3 AMS1117 3.3V 1A LDO regulated power supply chip Voltage regulator IC SOT 223
- Category: >>>
- Supplier: Real Support Electronic Co. Ltd.
Share on (1600829928829):
Product Overview
Description
Product Description
AMS1117-3.3V
The The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry.

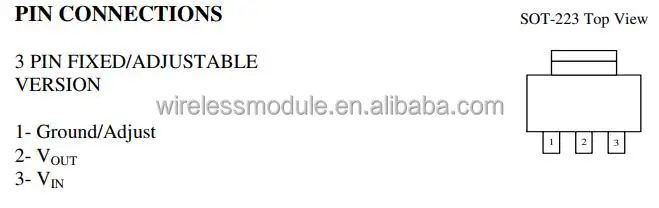

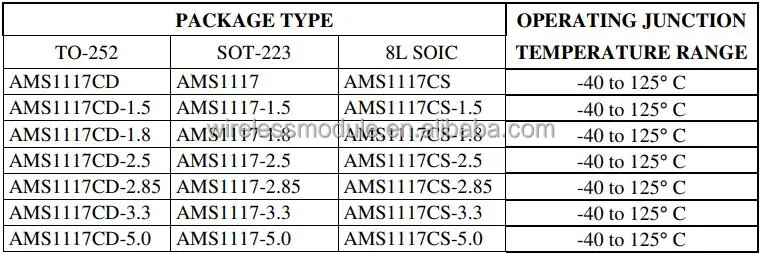

The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT 223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Characteristic:
• Three Terminal Adjustable or Fixed Voltages*
The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT 223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Characteristic:
• Three Terminal Adjustable or Fixed Voltages*
1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
• Output Current of 1A
• Operates Down to 1V Dropout
• Line Regulation: 0.2% Max.
• Load Regulation: 0.4% Max.
• SOT-223, TO-252 and SO-8 package available
• Output Current of 1A
• Operates Down to 1V Dropout
• Line Regulation: 0.2% Max.
• Load Regulation: 0.4% Max.
• SOT-223, TO-252 and SO-8 package available
Application：
• High Efficiency Linear Regulators
• Post Regulators for Switching Supplies
• 5V to 3.3V Linear Regulator
• Battery Chargers
• Active SCSI Terminators
• Power Management for Notebook
• Battery Powered Instrumentation
• Post Regulators for Switching Supplies
• 5V to 3.3V Linear Regulator
• Battery Chargers
• Active SCSI Terminators
• Power Management for Notebook
• Battery Powered Instrumentation
