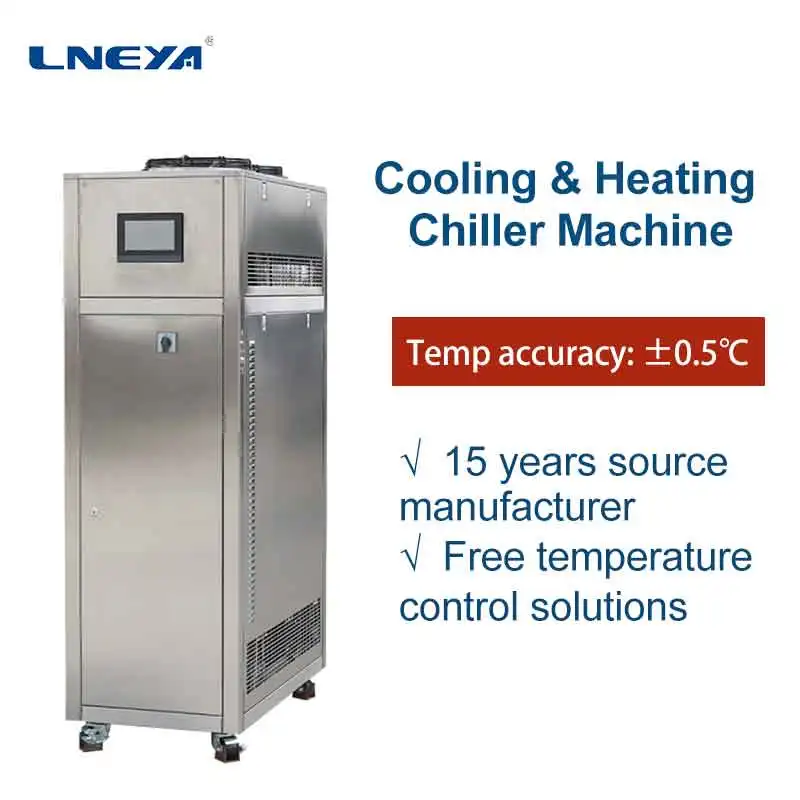

Custom Chiller & Heater Units Circulation Heating and Cooling Temperature Control Systems TCU
- Category: >>>
- Supplier: Wuxi Guanya Refrigeration Technology Co. Ltd.
Share on (1600829951550):
Product Overview
Description
Products Description

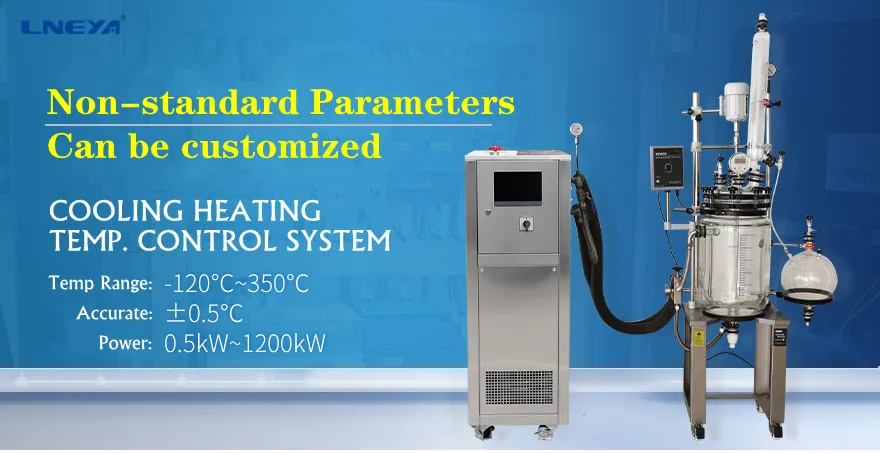

SUNDI are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, Miniplant/Pilot systems, reactor blocks and calorimeters. SUNDI temperature control systems with their unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change. Environmentally and economically SUNDI stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs.

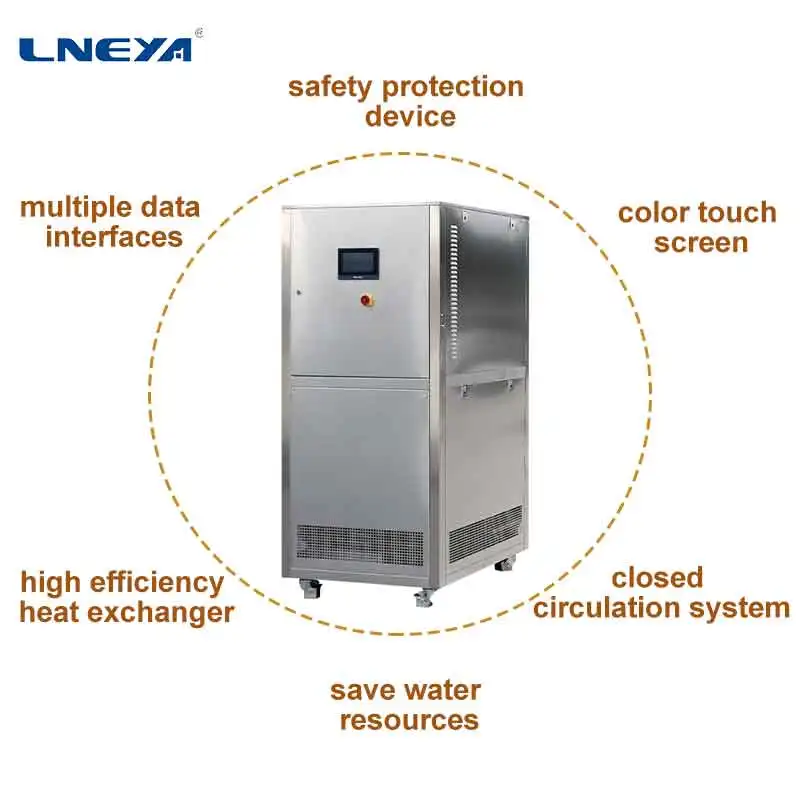

Features of refrigeration and heating chiller

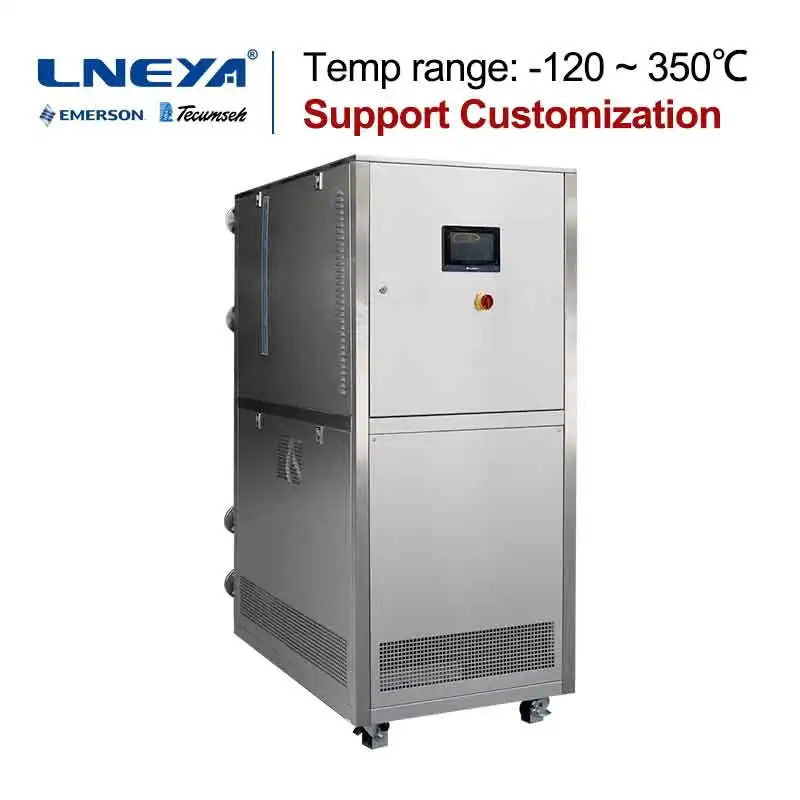

* Temperature range: - 120 ~ + 350 °C
* Superior performance, high precision and intelligent temperature control

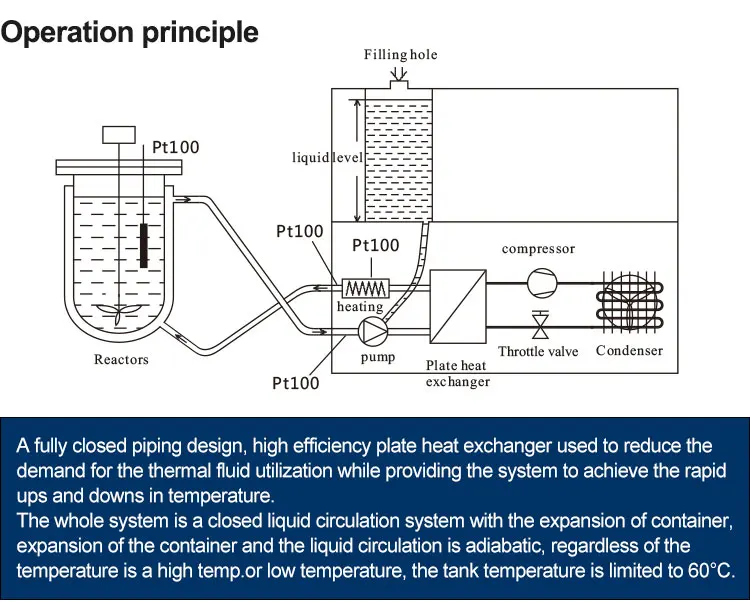

* Plate heat exchanger and pipe heater are used to improve the heating and cooling rate
* Refrigerating power: 0.5 ~ 1200kW
* There is no need to replace the liquid medium
* Fully closed system to prolong the service life of heat conducting liquid

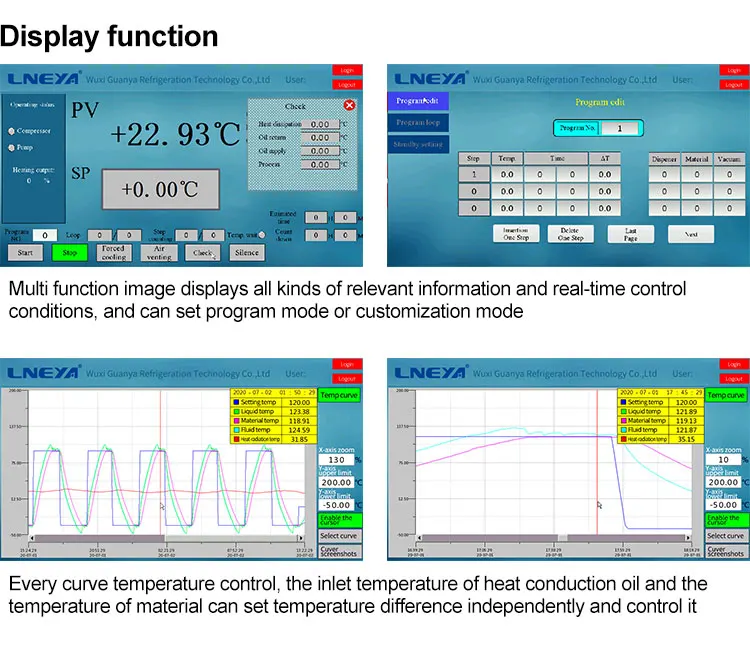

* Graphic display of 7-inch and 10 inch color FTF touch screen
* Multifunctional alarm system and safety device
* Superior performance, high precision and intelligent temperature control
* Plate heat exchanger and pipe heater are used to improve the heating and cooling rate
* Refrigerating power: 0.5 ~ 1200kW
* There is no need to replace the liquid medium
* Fully closed system to prolong the service life of heat conducting liquid
* Graphic display of 7-inch and 10 inch color FTF touch screen
* Multifunctional alarm system and safety device
Product Paramenters
Model-1 | SUNDI- 535 | SUNDI- 555 | SUNDI- 575 | SUNDI- 5A10 | SUNDI-5A15 | SUNDI- 4A25 | ||
Heating power (KW) | 3.5 | 5.5 | 7.5 | 10 | 15 | 25 | ||
Cooling capacity (KW) AT | 250℃ | 3.5 | 5.5 | 7.5 | 10 | 15 | 25 | |
20℃ | 3.5 | 5.5 | 7.5 | 10 | 15 | 25 | ||
0℃ | 3 | 5 | 7 | 10 | 15 | 25 | ||
-20℃ | 1.5 | 2.9 | 4.2 | 6 | 11 | 16 | ||
-40℃ | 0.45 | 0.9 | 1.5 | 2 | 3.8 | 4.7 | ||
Circulation pump max L/min bar | 35 | 35 | 50 | 60 | 110 | 150 | ||
2 | 2 | 2 | 2.5 | 2.5 | 2.5 | |||
Connection size | G3/4 | G3/4 | G3/4 | G1 | G1 | DN32 | ||
Dimension cm | 55*100*175 | 55*100*175 | 55*100*175 | 70*100*175 | 80*120*185 | 80*120*185 | ||
Weight kg | 180 | 195 | 260 | 320 | 390 | 620 | ||
Power max 380V 50HZ | 6.5KW | 9KW | 11.5KW | 16KW | 23KW | 36KW | ||
Model-2 | SUNDI- 4A38 | SUNDI- 4A60 | SUNDI- 4A95 | SUNDI- 4A130 | SUNDI-4A200 | ||
Heating power (KW) | 38 | 60 | 95 | 130 | 200 | ||
Cooling capacity (KW) AT | 250℃ | 38 | 60 | 95 | 130 | 200 | |
20℃ | 38 | 60 | 95 | 130 | 200 | ||
0℃ | 38 | 60 | 95 | 130 | 200 | ||
-20℃ | 26 | 34 | 50 | 70 | 120 | ||
-40℃ | 9 | 12 | 18 | 24 | 43 | ||
Circulation pump max L/min bar | 200 | 250 | 400 | 400 | 600 | ||
2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||
Connection size | DN50 | DN50 | DN65 | DN65 | DN65 | ||
Dimension cm | 100*170*185 | 205*145*205 | 205*145*205 | 245*145*205 | 300*160*225 | ||
Weight kg | 820 | 1100 | 1350 | 1680 | 2250 | ||
Power max 380V 50HZ | 55KW | 89KW | 135KW | 180KW | 280KW | ||
Product Accessories | ||||||||
Temp. range | -45 ~ 250℃ (optional: -120 ~ 350℃) | |||||||
Pump | German magnetic drive pump / LNEYA magnetic drive pump | |||||||
Compressor | Emerson, Danfoss, Italy Dorin,French Tecumseh. | |||||||
Expansion valve | Emerson thermal expansion valve/danfoss thermal expansion valve. | |||||||
Evaporator | DANFOSS/KAORI Plate heat exchanger | |||||||
Refrigerant | R404A/R507C, optional: R448A | |||||||
Operation Panel | 7-inch touch screen，show temp curve\\EXCEL data output | |||||||
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
