Compact Wastewater Treatment Mbbr Plant Mmbr Reactor Mbbr System And Media Mbbr Moving Bed Biofilm Reactors For Ammonia Removal
- Category: >>>
- Supplier: Shandong Jinlicheng Environmental Technology Co. Ltd.
Share on (1600829968658):
Product Overview
Description

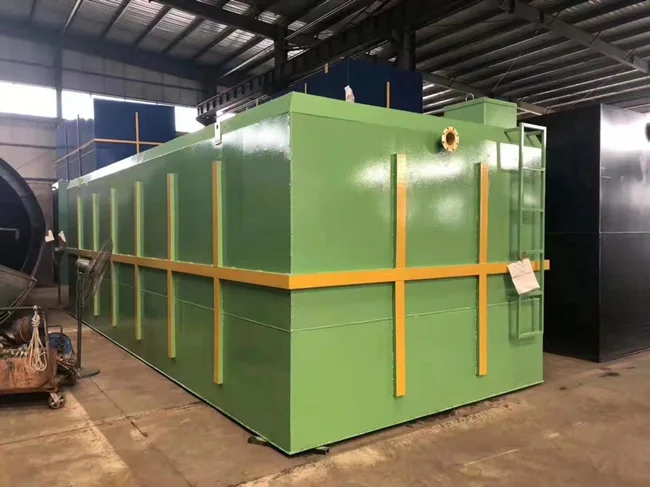

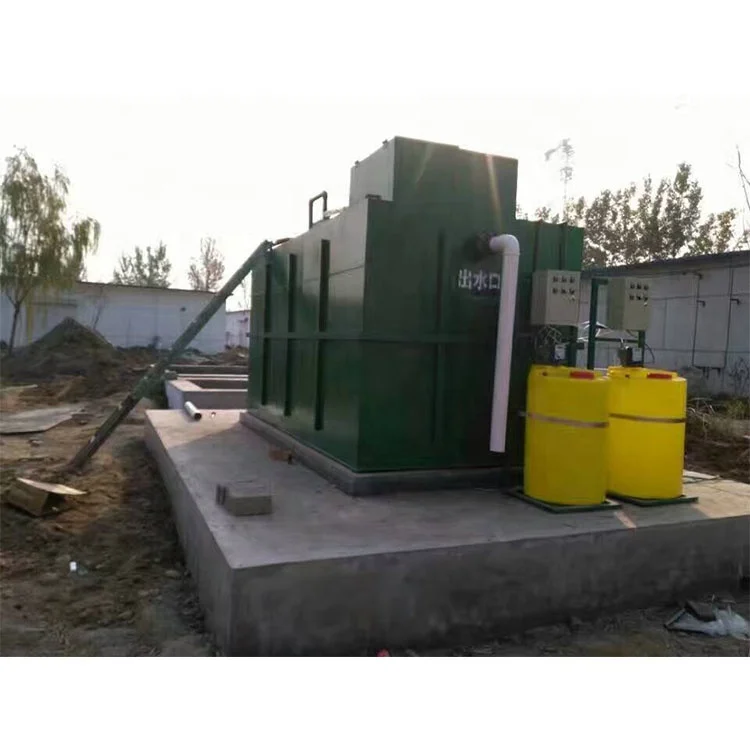

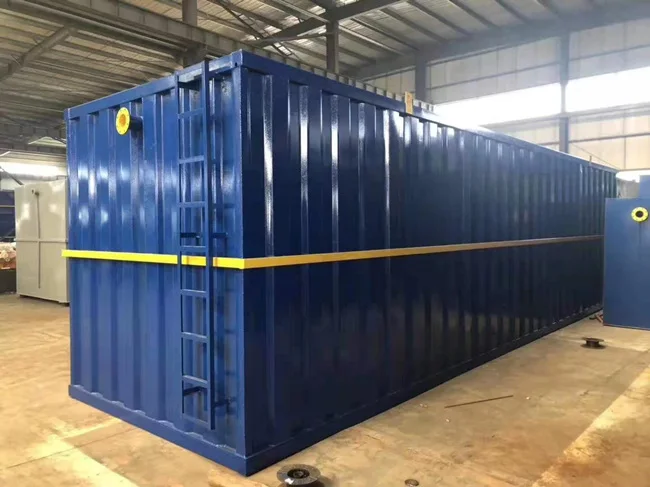

Equipment Can On the ground
Removable and beautiful
Equipment Can On the ground
Removable and beautiful

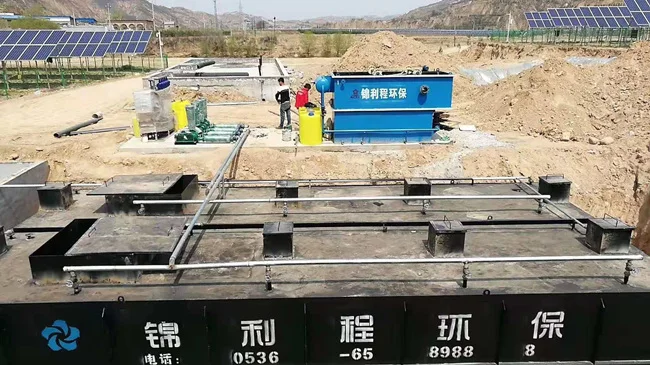

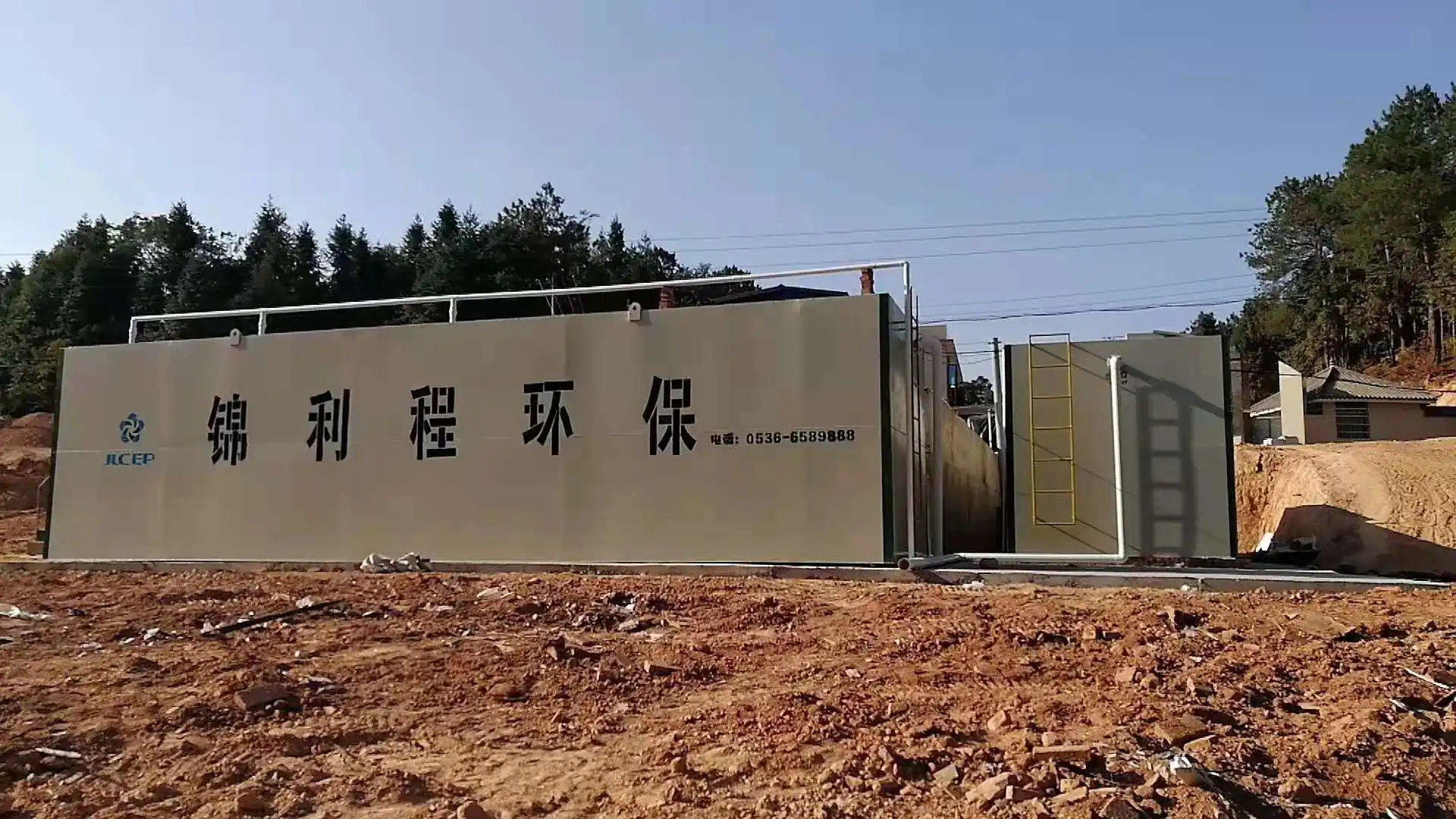

Equipment can underground
Does not occupy the above-ground area
Equipment can underground
Does not occupy the above-ground area

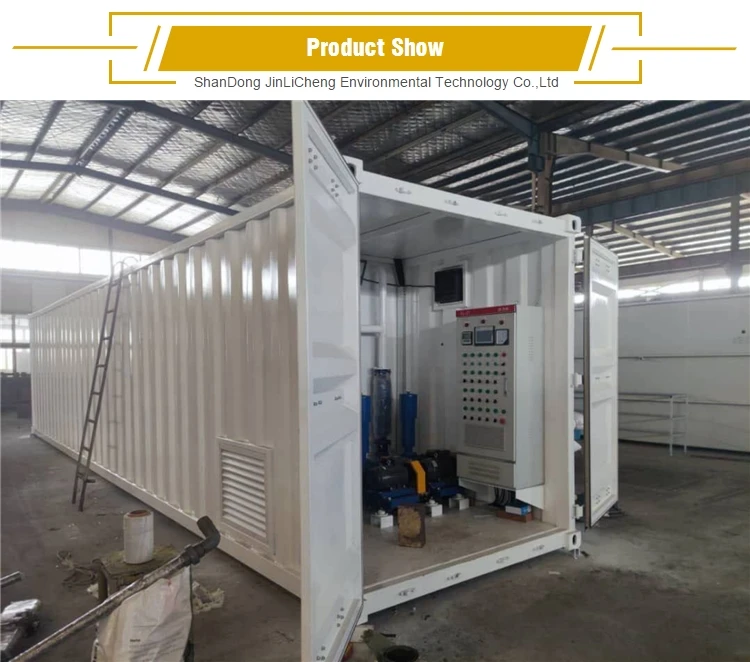

The equipment introduce

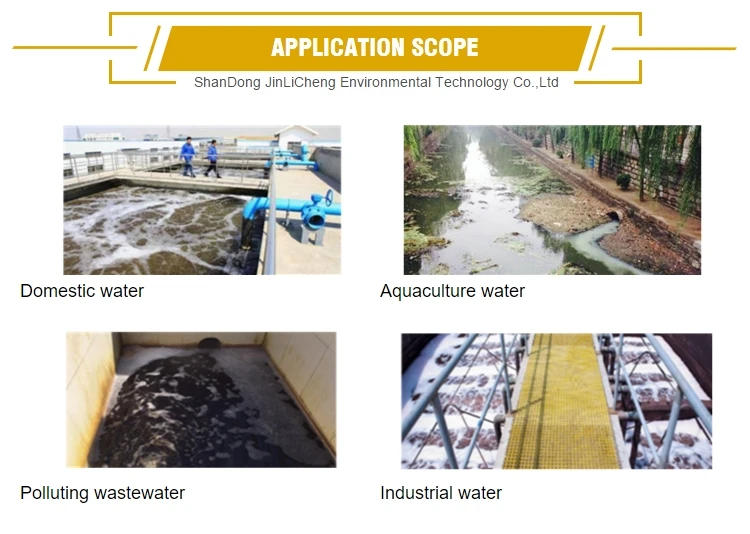

Package wastewater treatment plant , Sewage Treatment Plant reusing for irrigation which adopts the advanced Biological technology and the company’s scientific research and engineering practice result, it can effectively remove BOD5,COD and NH3-N. The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. There is no need for construction, neither heating and heat preservation.The surface can be used as green land or square land.It also can be placed on ground based on client's requirement. As the most efficient sewage treatment device, it is widely used in treating the sewage in the area of senior Chemical industry, paper making, printing and dyeing, leather, food processing, aquaculture factory, medical treatment, slaughter, pharmaceutical, new villa community, coal mine, steel, oil field, hotel etc. The sewage water after treatment would meet the national emission standards or can be used to irrigation based on clients' requirement of water standards.
Thailand Treatment Project
Domestic Sewage Treatment Project.
Project scale: 140 T/D
Project Overview: This project adopts BT mode, and the project adopts A2/O activated sludge + advanced treatment process.
Outlet water quality: grade A standard.
Philippines Treatment Project
Industry Sewage Treatment Project.
Project scale: 80 T/D
Project Overview: BOT mode is adopted in this project. Hydrolytic acidification +A/O+ advanced treatment process is adopted in the project
Outlet water quality: grade A standard
Malaysia Treatment Project
Farmed Sewage Treatment Plant
Project scale: 220 T/D
Project Overview: This project adopts TOT+BOT mode, 170,000 T/D sewage treatment plant
Sewage treatment process: A2/O+ advanced treatment process
Outlet water quality: grade A standard

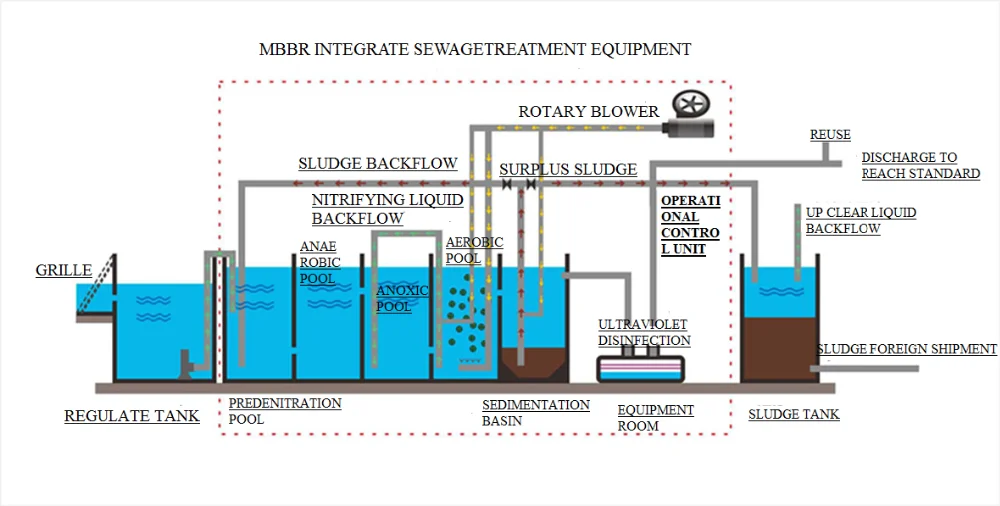

Work Process
The sewage enters the grid well first, and after removing the particulate matter from the grille, it enters the regulating tank,adjusts the water quality and quantity, and then is pumped to the primary sedimentation tank by the lift pump. The wastewater flows to the Class A biological contact oxidation tank for acidification hydrolysis and nitrification. Denitrification, reduce the concentration of organic matter, remove part of ammonia nitrogen, and then enter the O-level biological contact oxidation tank for aerobic biochemical reaction. Most of the organic pollutants are degraded by biooxidation, and the effluent flows to the secondary sedimentation tank for solid-liquid treatment. After separation, the supernatant of the sedimentation tank flows into the clear water tank, and the disinfection equipment is used to kill the harmful bacteria in the water and reach the standard discharge.
Model | A-0.5 | A-1 | A-3 | A-5 | A-10 | A-20 | A-30 | ||||||||
Treatment capacity (m3 / h) | 0.5 | 1 | 3 | 5 | 10 | 20 | 30 | ||||||||

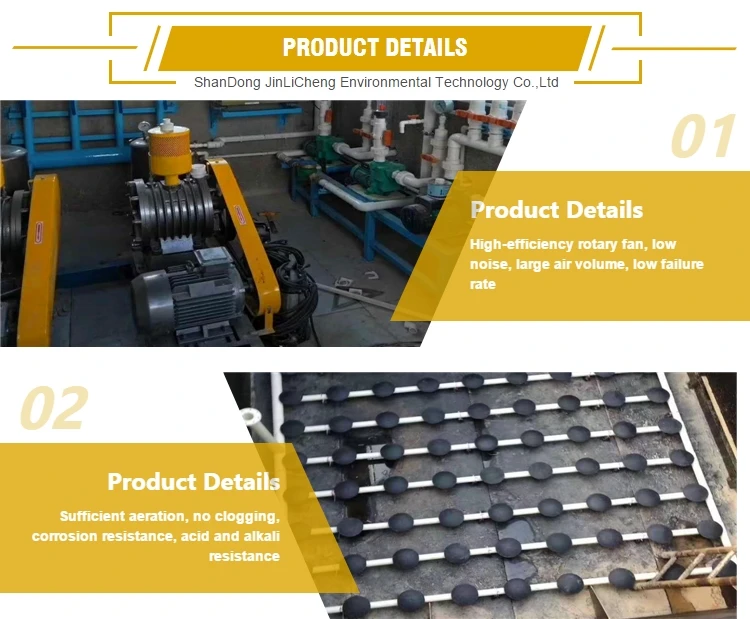

Blower | Model | L13LD | L21LD | L22LD | L23LD | L32LD | |||||||||
Power (kw) | 0.75 | 1.5 | 2.2 | 4 | 7.5 | ||||||||||
Water pump | Model | AS10-CB | AS20-2CB | ||||||||||||
Power (kw) | 0.75 | 1.5 | |||||||||||||
Flow rate (m3 / h) | 0.5 | 1 | 3 | 5 | 10 | 20 | 30 | ||||||||
Water(in) | COD mg/l | 150-400 | |||||||||||||
Water(out) | COD mg/l | 10-60 | |||||||||||||
Size | Customer's wishes | ||||||||||||||
Excellent management team
9000 square meters manufacturing workshop 500 square meters of development laboratory
There are 246 employees,
There are 37 engineers and technicians
There are 37 engineers and technicians
Senior Researcher
There are 6 senior professional titles, There are 10 senior
professional titles, There are 6 people with intermediate professional titles, There are 3 doctors and postdoctors.
Perfect After-sales Service
By the end of 2020, The total assets of the company is 100 million yuan. From 2018 to 2020, the average annual growth rate of revenue and total profit will be 34.6% and 40.5% respectively. In
Q1: Do you provide on-site installation service?
Yes, we will provide on-site installation, debugging, training and other services.
Q2: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged?
Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.
Q7: What if the product breaks down in the future?
Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
Q2: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged?
Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.
Q7: What if the product breaks down in the future?
Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
