Product Overview

Description



Product Description

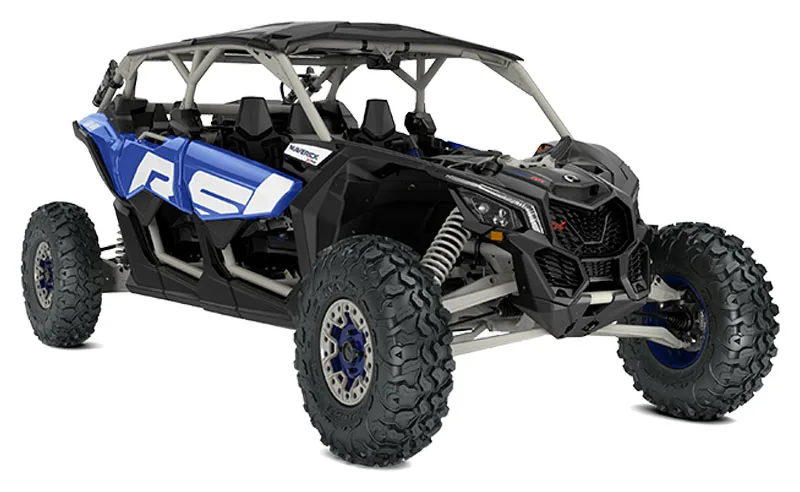

 2000000003 (1).jpg





GENERAL INFORMATION





Manufacturer

Can-Am



Model Year

2023





Model

Maverick X3 Max X RS Turbo RR 72



Model Code

9NPJ





Color

Intense Blue / Carbon Black / Chalk Gray




BRAKES/WHEELS/TIRES





Brakes


Front - Dual 262 mm disc brakes with hydraulic twin-piston calipers


Rear - Dual 248 mm disc brakes with hydraulic twin-piston calipers





Wheels

14 in. cast-aluminum beadlock





Tires

Front / Rear - Maxxis Carnivore† 32 x 10 x 14 in.




DIMENSIONS





Length

165 in. (419.1 cm)



Height

68.5 in. (174 cm)





Width

72.7 in. (184.7 cm)



Weight

Dry - 1,924 lb. (872.7 kg)





Ground Clearance

16 in. (40.6 cm)



Wheelbase

135 in. (342.9 cm)




DRIVETRAIN





Transmission

PDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P



Drive System


Lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry






ELECTRICAL





Instrumentation


Gauge - 7.6 in. wide digital display with keypad


Magneto - 850 W


DC outlet (10-A)





Lighting

LED Headlight LED Signature LED tail lights




ENGINE





Engine

Rotax ACE (Advanced Combustion Efficiency) Turbocharged



Cooling

Liquid with integrated intercooler and high-perfomance air filter





Cylinders

3



Horsepower

200 hp





Displacement

900 cc



Fuel System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)





Fuel Capacity

10.5 gal. (40 l)




OPERATIONAL





Frame

Chassis Cage - Dual-phase 980 steel



Front Suspension


Double A-arm with sway bar / 22 in. (55.9 cm) travel / Trophy truck inspired arms


Front Shocks - FOX† 2.5 PODIUM RC2† Piggyback with bypass, dual speed compression and rebound adjustments







Rear Suspension


4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) travel


Rear Shocks - FOX† 3.0 PODIUM RC2† remote reservoir with bypass, dual speed compression and rebound adjustments





Steering

High torque Tri-Mode Dynamic Power Steering (DPS™)




OTHER





Additional Colors


Triple Black


Desert Tan / Carbon Black / Magma Red


Intense Blue / Carbon Black / Chalk Gray





Load Capacity

Rack - 150 lb. (68 kg) with LinQ™ quick-attach





Capacity


Total storage - 3 gal. (11.4 l)





Safety Features


RF Digitally Encoded Security System (D.E.S.S.™) with Start / Stop button


Integrated front bumper, Quarter-doors, Full roof, 4-point harness with shoulder pads, HMWPE full skid plate, Rear tow hook







Warranty


Factory - 6-month BRP Limited


Extended - B.E.S.T. term available up to 30 months
