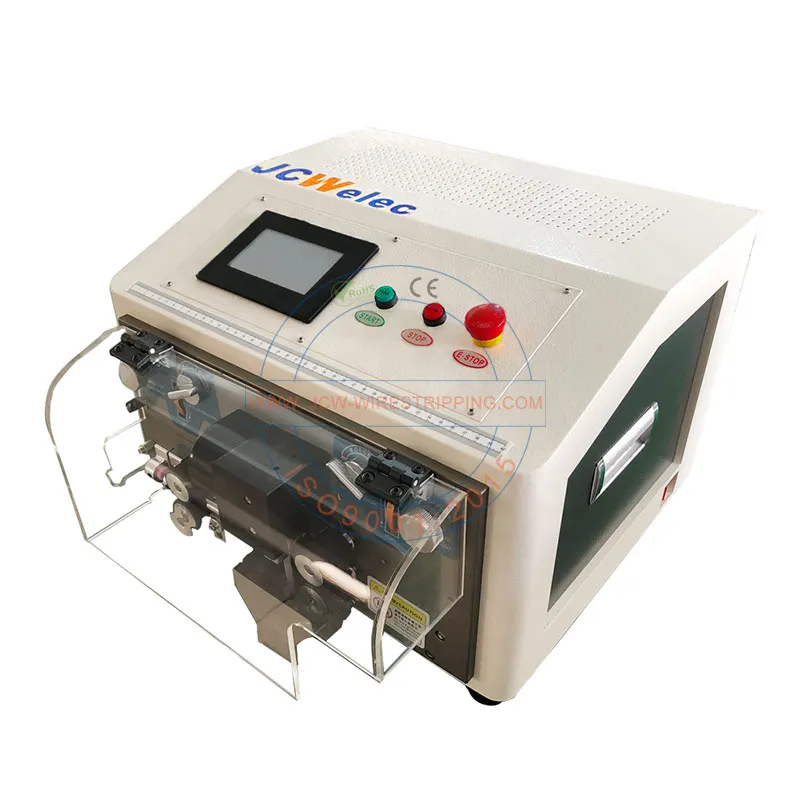

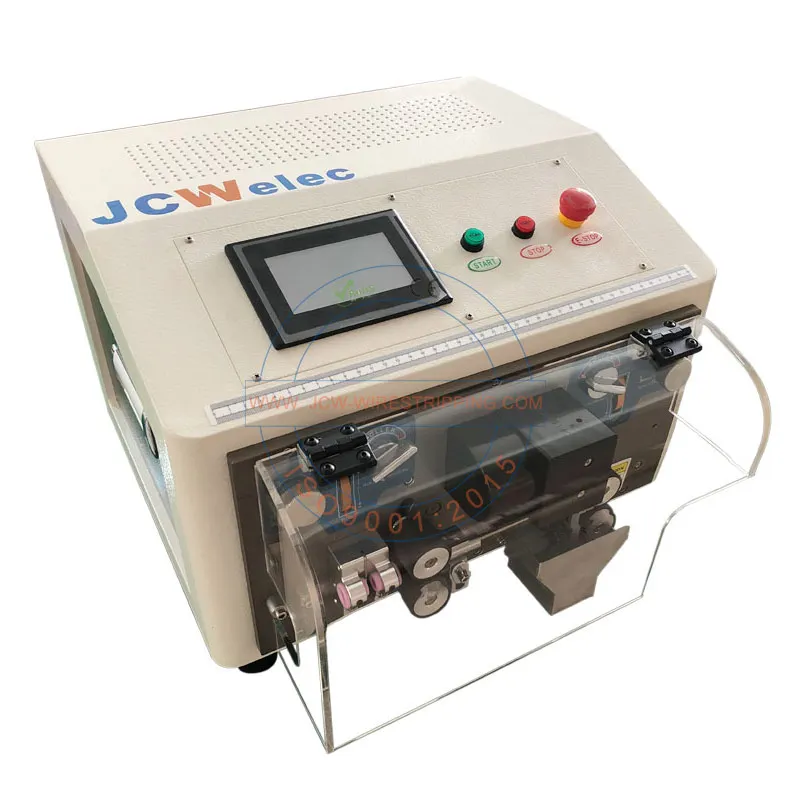

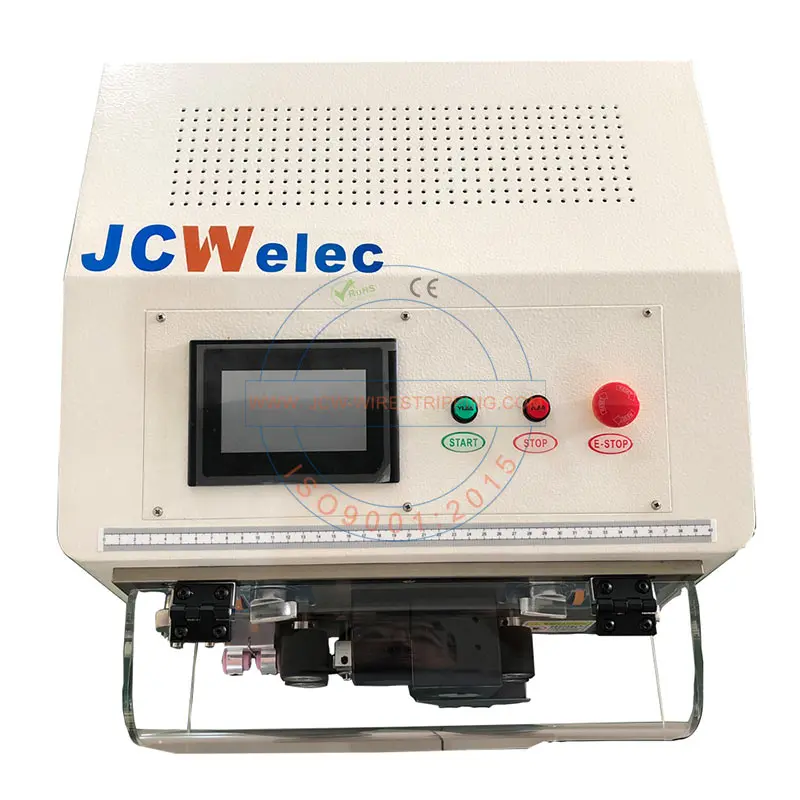

Multi functional usb wire length cut and strip electric twin cable splitting cutting stripping pliers machine JCW CS03Z

Function

Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat
cable slitting, Wire lack sensor, Length correction, Thermal transfer printer

Raw material

PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections

0.03 - 6 mm²

Cutting length ( L )

0.1 - 999999 mm

Stripping length

Front ( right ) side: 50 mm

Rear ( left ) side: 30 mm

Middle strip

13 sections

Production rate

4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ]

Display

4.3" color touchscreen, English / Chinese [ other languages on request ]

Compatible peripherals

Cable splitter, wire pre feeder, robot arm, conveyor belt

Power supply

AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ]

Air supply

0.4 - 0.7 MPa ( clean and dry air )

Dimensions

L 460 x W 470 x H 350 mm. 35KG
