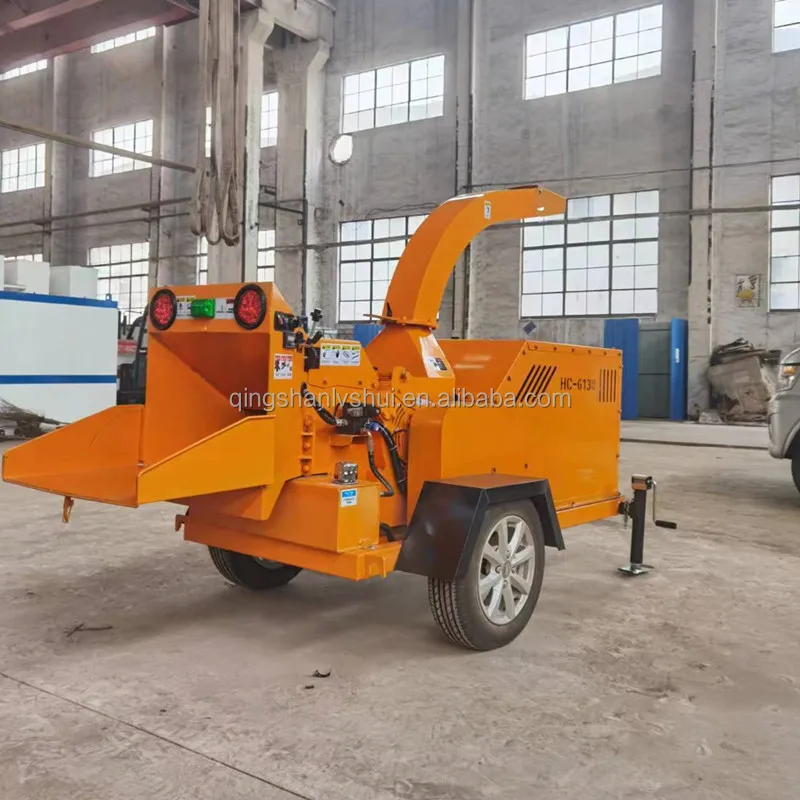

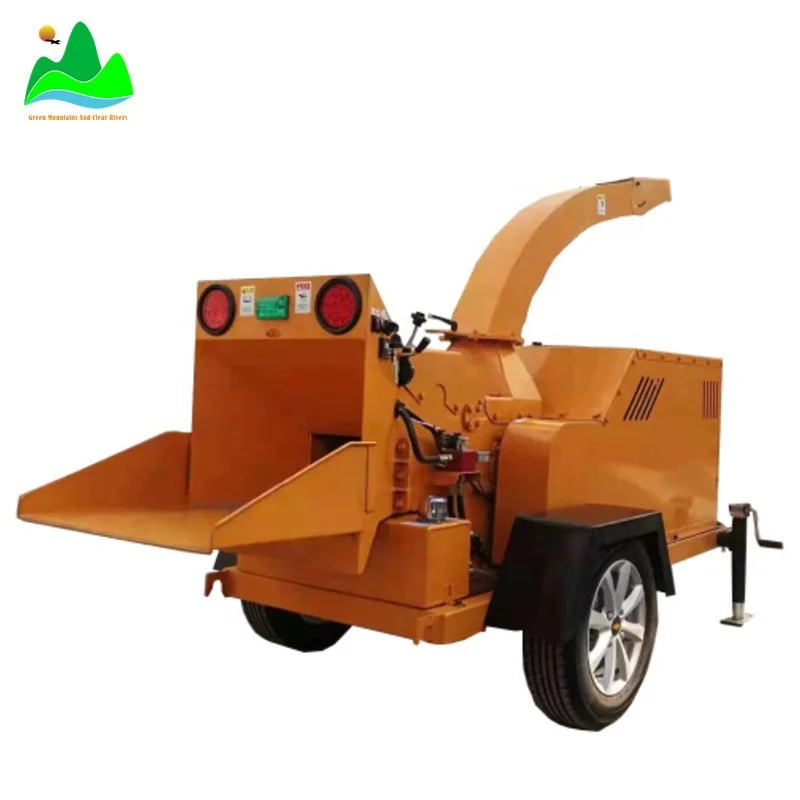

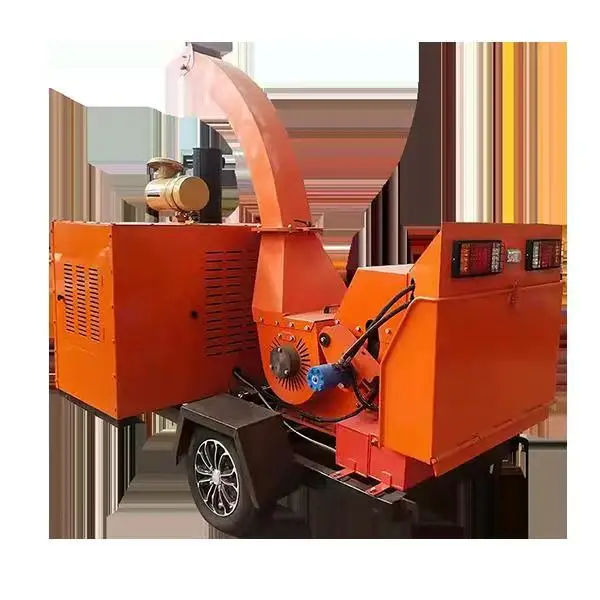

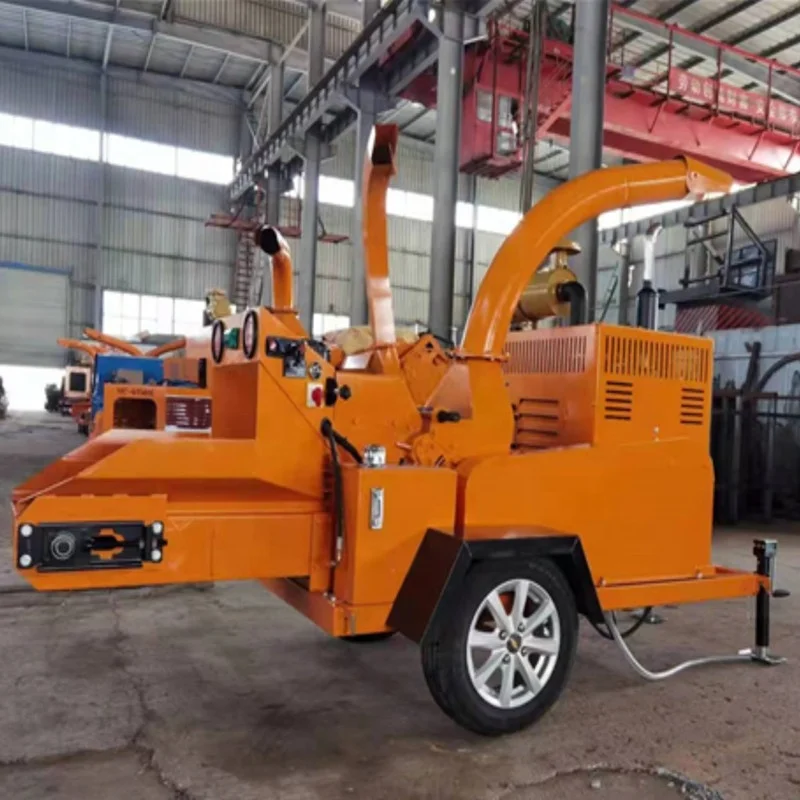

Forestry crusher wood chipper branch crushing machine for sale
- Category: >>>
- Supplier: Henan Qingshan Lvshui Electromechanical Equipment Co. Ltd.
Share on (1600830051692):
Product Overview
Description
Product Description
Specification
Model | HC6130 |
Diesel Engine Power | |
Capacity | 2t/h |
Dimension（L×W×H） Feed Chain Plate Retracted | L2300×W1300×H1800mm |
Diameter of cutter roll plate | 300mm |
Power | 23.6kw Diesel Engine |
Starting Method | Battery Starting |
Revolving speed | 2600r/min |
Number of blades | Rotating blades 4pieces, Stationary Cutter 1piece |
Blade Length(mm) | 155 |
Feed Roll Diameter | 280mm |
Feed Roll Power | Hydraulic Motor |
Hydraulic oil tank | 20L |
Feed Gear | Enter one reverse one stop three gear manual control |
Feed port size（mm） | 600*500 |
Feed throat size | 300*180mm |
Maximum crushing diameter | ≦13cm |
Tire Size | 165/70r13 |
Hub Size | 13inch alumimum alloy wheels |
Wheel Number | 2 |
Generator Power | 600w |
Battery Specification | 12V 105aH |
Discharge port direction | 360degree quick adjustment device |
Other Devices | Taillight, feed light, foldable hand jack, adjustable traction height |
Accessories | A set of random tools |
Design Feature:
1.Scram button: Press feed press roll stop action, rightward reset
2.speed display, engine load high automatic stop feed, load reduction automatic start feed, manual automatic one-key switch, action range can be set freely
3.Engine protection function
High water temperature, high oil temperature, low oil pressure protection function
3.Engine protection function
High water temperature, high oil temperature, low oil pressure protection function
Application scope of garden special branch crusher:
1.Our company on the new research and development of the garden special branch shredder is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments, mainly used to crush and trim trees cut off all kinds of branches tree fork, whether branches or trunks, equipment operation is simple, a molding, After crushing, it can be used as mulch, garden bed base, organic fertilizer, edible fungus, biomass power generation, and can also be used for the production of high-density board, particle board, paper industry, etc. After crushing, it can be directly injected into the transport vehicle.
2.After crushing, the capacity can be reduced by 80%-90%, which not only reduces the transportation cost, but also saves manpower, material resources, energy saving and emission reduction. Our company's special garden branch crusher can be driven by diesel engine, and equipped with tires, platforms, traction devices, mobile flexibility, can crush branches anytime and anywhere, whether it is field work or roadside work is very convenient.
2.After crushing, the capacity can be reduced by 80%-90%, which not only reduces the transportation cost, but also saves manpower, material resources, energy saving and emission reduction. Our company's special garden branch crusher can be driven by diesel engine, and equipped with tires, platforms, traction devices, mobile flexibility, can crush branches anytime and anywhere, whether it is field work or roadside work is very convenient.
