Model | M210 | M419 | M625 | |||
Detector | ||||||
Detector Type | Uncooled detector | |||||
IR Resolution | 720*540 | 1280*960 | ||||
Spectral Range | 8 μm~14μm | |||||
Pixel Size | 12μm | 17μm | 12μm | |||
Optical Performance | ||||||
Focus length | 10mm | 19mm | 25mm | |||
Frame rate | 50Hz | |||||
FOV | 17.3°*13.1° | 20.4°*15.3° | 18°*13.5° | |||
Detection distance | 460m | 650m | 900m | |||
Image Presentation | ||||||
Digital Zoom | 1X/2X/4X | |||||
Display | LOCS 0.185 Inch | LOCS 0.4 Inch | ||||

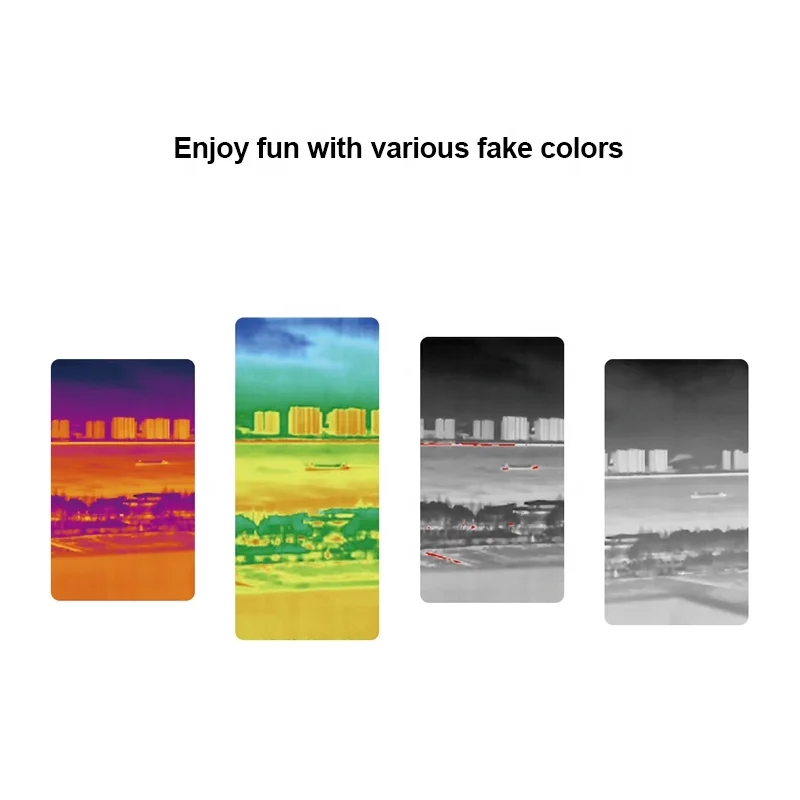

Image mode | White hot, black hot, red hot, false color, sky, stroke | |||||
Power | ||||||
Battery life | ≥8h | |||||
Power supply mode | 5 VDC, 0.3A | |||||
Battery capacity | 3350 mAh | |||||
Physical Characteristics | ||||||
IP Level | IP67 | |||||
Dimensions(only product) | 170.9mm×57.6mm×58.6mm | 187.5mm×66.5mm×68.5mm | ||||
Net Weight | 350g | 450g | ||||
Working Temp | -20℃ ~ +55℃ | |||||
Storage Temp | -20℃~+60℃ | |||||
