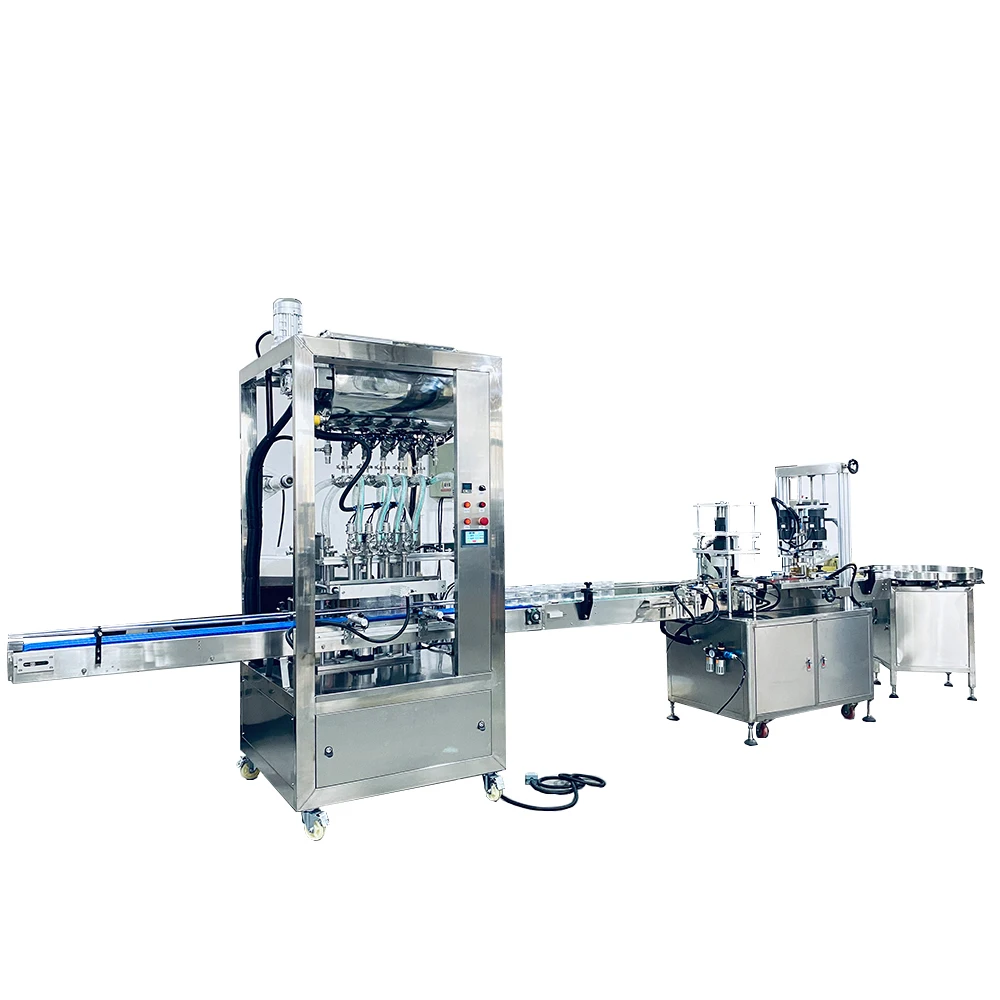

4 Nozzles Automatic Servo Piston Fill Syrup Honey Jar Fruit Jam Hot Chilli Sauce Heating Filling Capping Machinery
- Category: >>>
- Supplier: Wenzhou Chunlai Packing Machinery Co. Ltd.
Share on (1600830100981):
Product Overview
Description
Product Description
Automatic Filling Machine
Application:
Is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example liquid, shampoo, showergel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant, detergent，honey, not very sticky liquid or
other materials.
Operating principle
By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative
pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled
by a signal valve so as to adjust filing amount and to achieve accurate filling results.
With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316.
can install hopper. Hopper can be installed liquid level automatic control system
pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled
by a signal valve so as to adjust filing amount and to achieve accurate filling results.
Features:
The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines. This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316.
can install hopper. Hopper can be installed liquid level automatic control system
Model | ZX-2 | ZX-4 | ZX-6 | ||
Filling heads | Two Head | Four Head | Six Head | ||
Powe supply | 220/110V 50/60Hz | ||||
Power | 500W | 800W | 1000W | ||
Sir pressure | 0.4-0.6MPa (Inside the machine is equipped with gas storage barrels) | ||||
Filling speed | 4-16 bottles/min | 8-32 bottles/min | 12-48 bottles/min | ||
Filling accuracy | ≤±1 | ||||
Filling volumes range | 5-100ml 10-280ml 20-500ml 50-1000ml 500-2800ml 1000-5000ml | ||||
Conveyor line length | 2M | ||||
Details Images
Main Functions

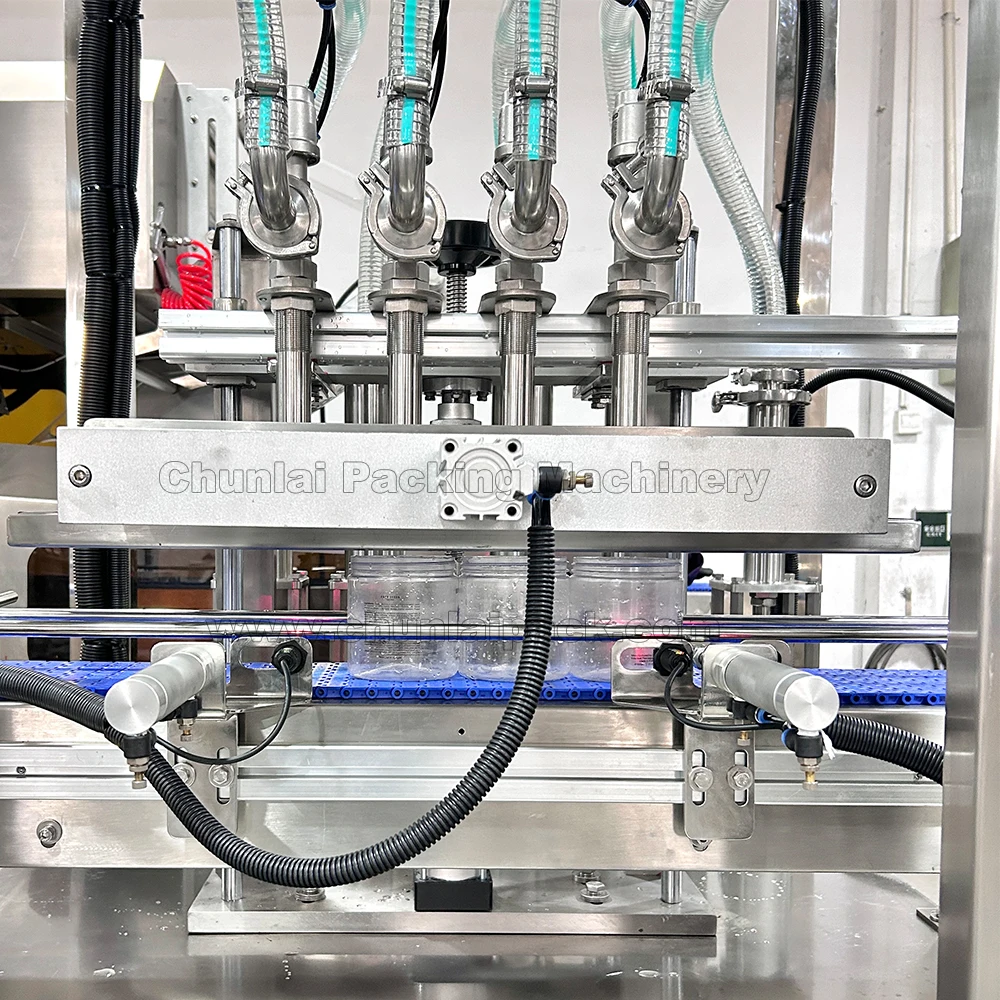

Automatic filling

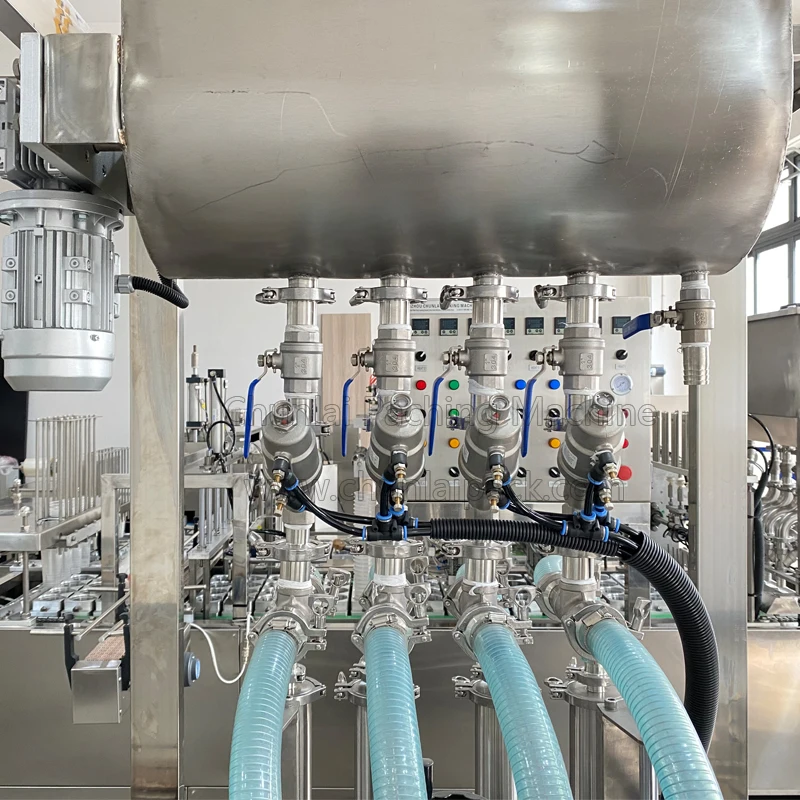

Hopper
Automatic filling

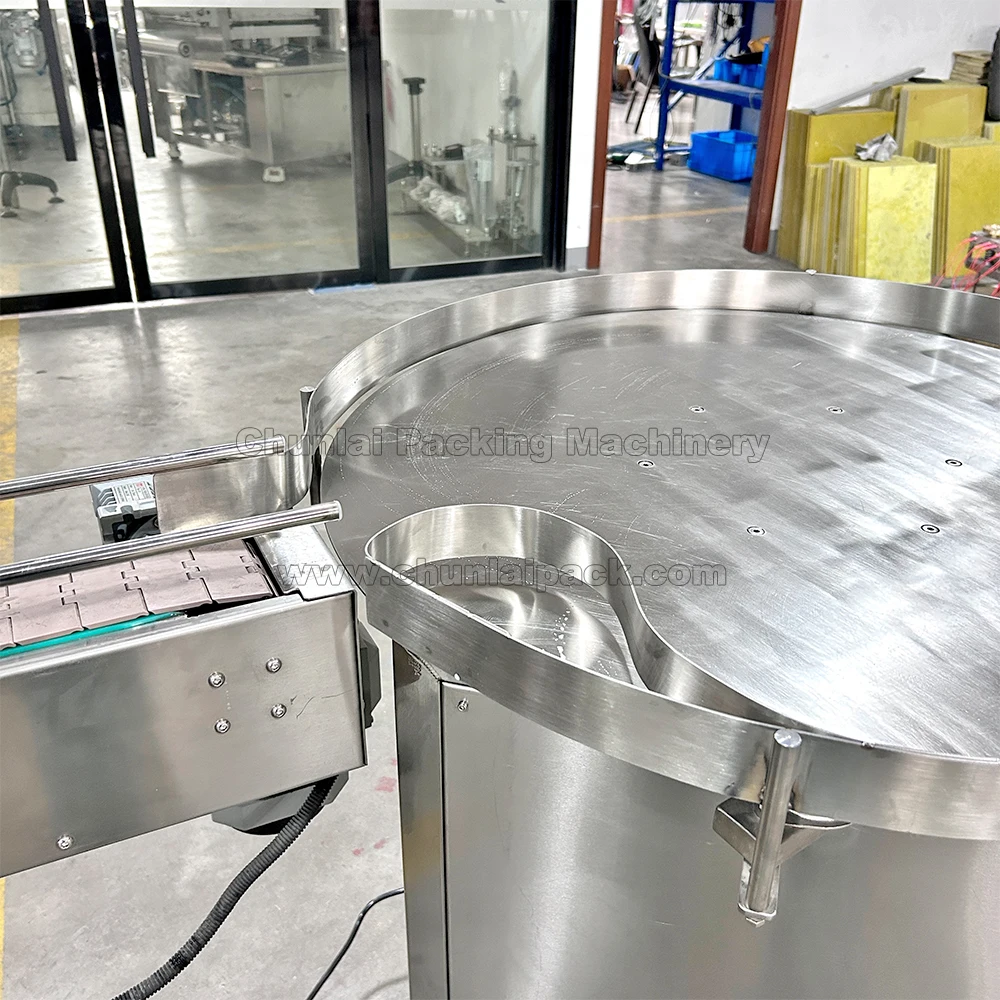

Automatic jar exiting
Optional Configuration
Options:
Mixing tank
Level control for tank
Double jacket tank

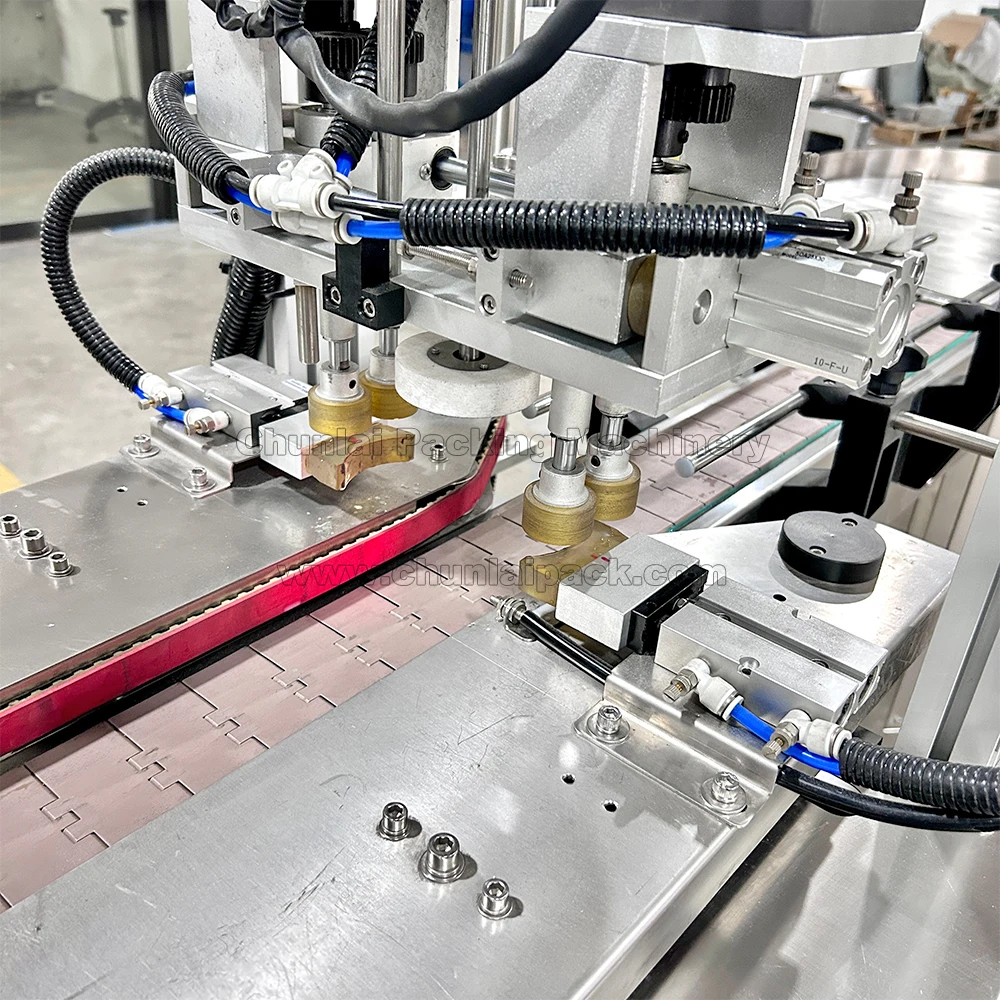

Plastic lid applicator or screw-on lid capper
Discharge conveyor
Inkjet coder for batch, lot number or date coding
Color ribbon date printer for roll film
Plexiglass cover
Servo-Drives
Clean-in-Place (CIP) system
Mixing tank
Level control for tank
Double jacket tank
Plastic lid applicator or screw-on lid capper
Discharge conveyor
Inkjet coder for batch, lot number or date coding
Color ribbon date printer for roll film
Plexiglass cover
Servo-Drives
Clean-in-Place (CIP) system
Can be equipped with bottle collection table and capping machine
