Tablet shape mold hydraulic press machine double press


Product Description




The working pressure, pressing speed and stroke of the machine can be adjusted within the specified parameters according to the process requirements. This machine has independent power mechanism and electrical system, and adopts button centralized control.


Specification




Advantage
1. Low energy consumption, high speed, low noise, high efficiency.
2. The slider controls the speed in two sections: fast no-load, slowly closing the mold, and stretching.
3.Activity crossbeam has safety limiter in both up and down directions.
4. Equipped with photoelectric protection device, could guarantee the safety of the operation.
5. With the function of automatic and manual, it's convertible.
6. Two operation model, viz. pressure regulation and stroke regulation which can be selected through operational panel, and has the character of pressure-keeping and time-delaying.





Model
100t-A
100t-B
200t-A
200t-B
315t-A
315t-B
315t-C
Nominal Force
(KN)
1000
1000
2000
2000
3150
3150
3150
Ejector Force
(KN)
250
250
350
350
630
630
630
Slide Stroke
(mm)
600
600
600
600
600
600
800
Ejection Stroke
(mm)
200
200
260
260
260
260
260
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
25
25
25
Maximum Opening Height
(mm)
1000
1000
1000
1000
1000
1000
1250
Effective Area of Table(mm)
700
(L-R)
560
(L-R)
800
(L-R)
1000
(L-R)
800
(L-R)
1000
(L-R)
1260
(L-R)
620
(Front and Rear Edges)
560
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
1200
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
30
(Slow Descent)
30
(Slow Descent)
25
(Slow Descent)
25
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
90
(Return)
90
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
5.5
5.5
7.5
7.5
15
15
15


Model
400t-A
500t-A
500t-B
630t
Nominal Force
(KN)
4000
5000
5000
6300
Ejector Force
(KN)
800
1000
1000
1000
Slide Stroke
(mm)
600
800
800
800
Ejection Stroke
(mm)
260
300
300
300
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
Maximum Opening Height
(mm)
1200
1200
1200
1200
Effective Area of Table(mm)
1200
(L-R)
1200
(L-R)
1400
(L-R)
1600
(L-R)
1200
(Front and Rear Edges)
1200
(Front and Rear Edges)
1400
(Front and Rear Edges)
1600
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
16
19
22
27




Application


This series of hydraulic presses is a general purpose hydraulic pressure, it is suitable for stretching, bending, flanging, cold extrusion, punching, and other processes of metal materials. It is also suitable for calibration, press fitting, molding and pressing of powder products, abrasive products, plastic products, and SMC materials.

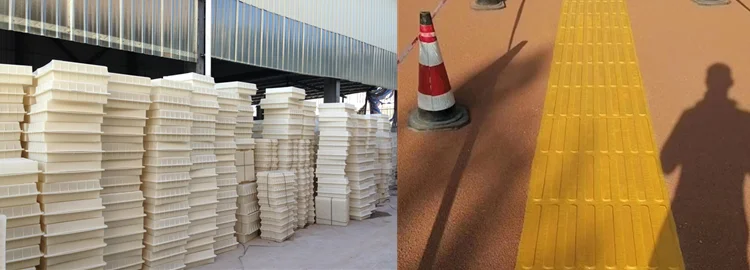

Finished products:




Packing & Delivery




Packing: The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.
Delivery: Delivery within 15 days after receipt of deposit.


Our Service


1. We have 24 hours team to solve the after sales problem.
2. We have free spare parts with the machine.
3. We supply long term spare parts for every customer.
4. We always up date the new technology to every customer.




Note: The machine can be customized according to your needs, and good products will satisfy customers. Please feel free to contact us for detailed information or special request.


Customer visit




Company Profile




Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise that integrates design, research and development, production, sales, and export, specializing in the production of clean energy equipment, energy-saving equipment, and waste recycling equipment. All products adopt international quality standards. Our company adheres to the corporate spirit of people-oriented, honest and trustworthy, technological innovation, and pioneering spirit. We always take technology as the driving force and market orientation to make our products first-class. In order to ensure customer satisfaction, our company uses service skills as a carrier to provide customized solutions for customers, continuously optimizing equipment and facilities, and relying on the most professional knowledge and comprehensive technical support, we strive to implement comprehensive quality testing measures in all aspects of production.


FAQ


What does need from me to quote a price?
1.Raw material
2.Production capacity per batch.
Can I do extraction test with my own raw material?
Yes, of course.We can do extraction test and send you videos and test report for your Reference.
How long does it take to produce the machine once I place my order?
Usually the delivery time is 5 working days after prepayment received.
