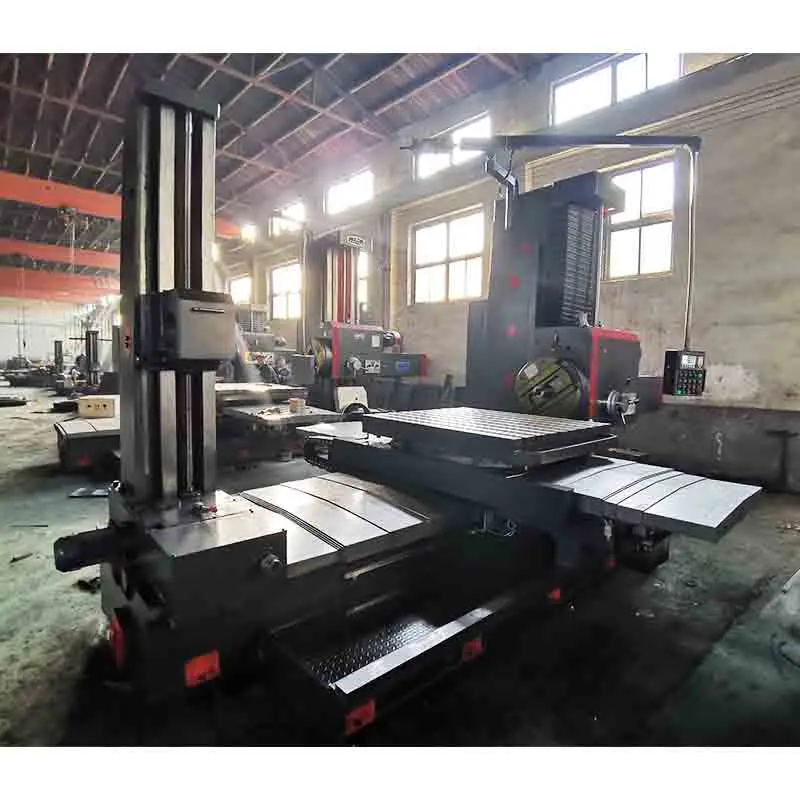

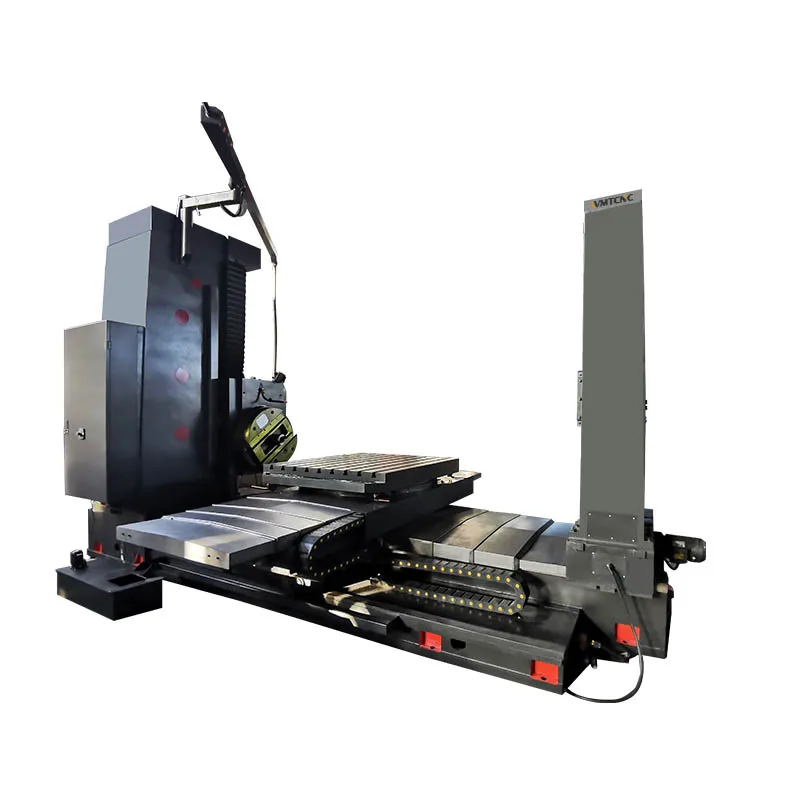

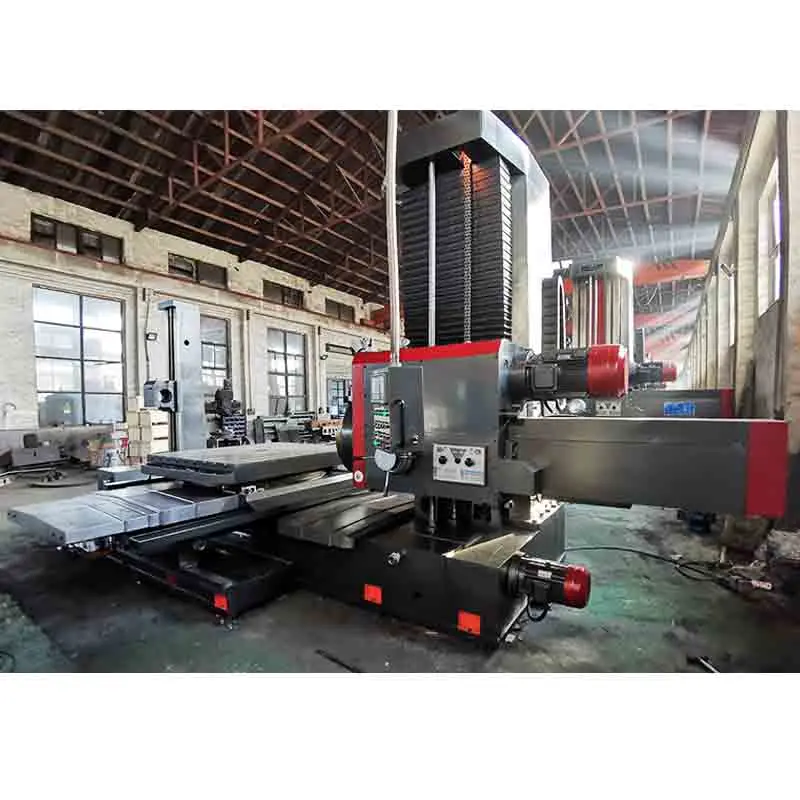

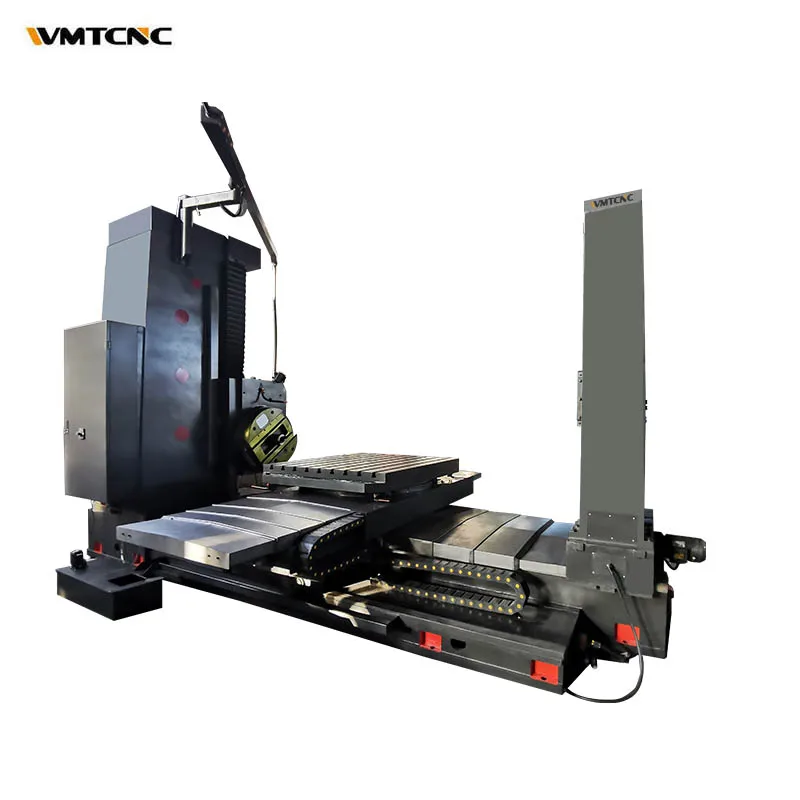

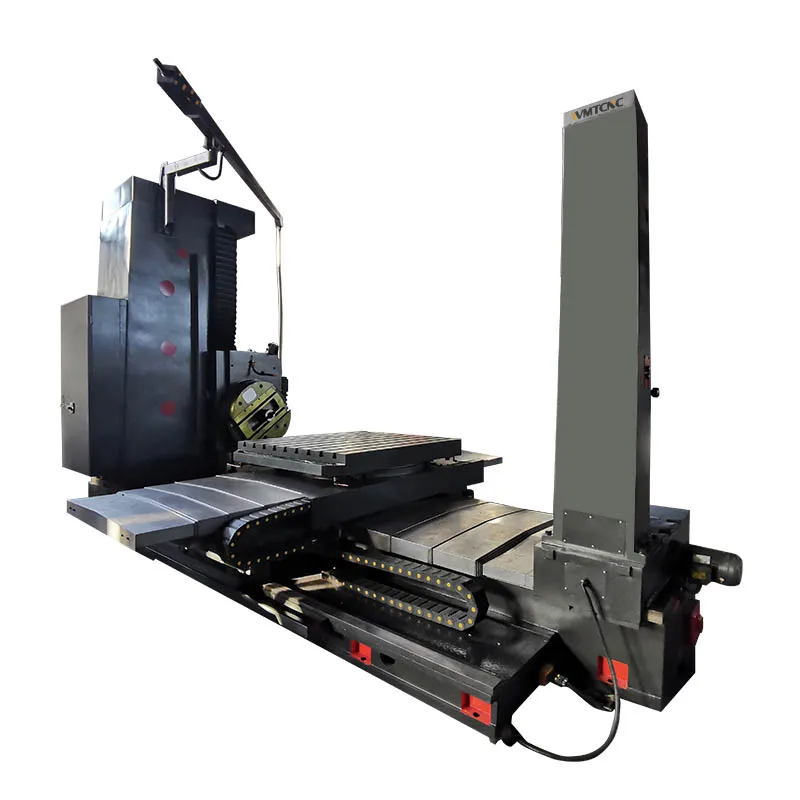

2023 New horizontal boring milling machine TPX6113B gantry type boring and milling machine
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600830146040):
Product Overview
Description
Product Description

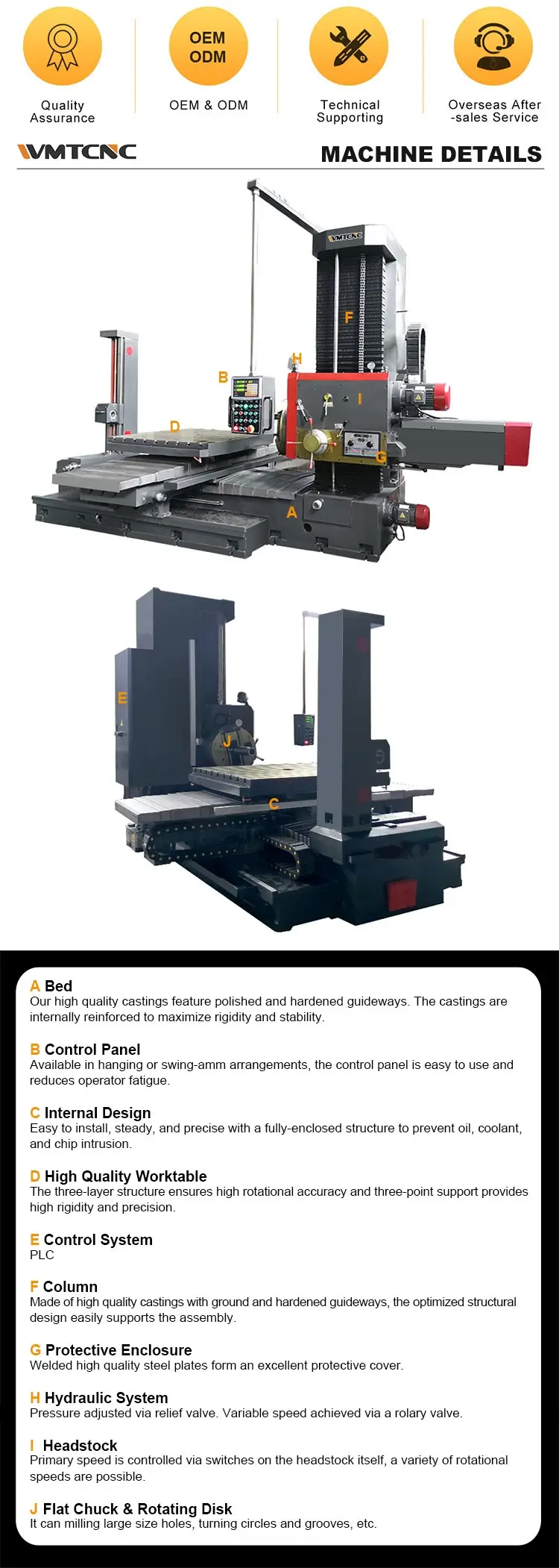

Main Features:
1 TPX611 series machine tools are ordinary horizontal milling and boring machines with single column, side hanging box and cross sliding table structure. They are reinforced boring bars of similar machine tools and are mainly suitable for plane milling and hole machining of box parts.2 Each guide rail of the machine tool adopts rectangular guide rail with wide cross section, PTFE special guide veneer, match with artificial fine scraping, wear resistance and pressure resistance, the rigidity and stability of the machine tool is good.
3 The end of the spindle box is equipped with a flat rotary disk, which can bore larger holes and planes.
4 The worktable is 4x90 degrees, and adopts four-point manual single-pin positioning structure, which ensures accurate and reliable positioning.
5 Each guide rail adopts centralized timing and quantitative lubrication system to ensure that all moving parts are flexible and reliable.
6 The machine tool is equipped with X and Y coordinate grating digital display, which is accurate and reliable.
7 You can choose a change gear bracket to cut threads and expand the machining range of the machine tool.
Specification | TPX6113B | ||
Spindle diameter | 130mm | ||
Max.torque of spindle | 2950N.m | ||
Max.torque of radial slide | 4694N.m | ||
Max.axial thrust of spindle | 31360N.m | ||
Boring spindle taper | MT6(Optional:ISO50 7:24) | ||
Max. travel of spindle | 900mm | ||
Max. travel of worktable | Longitudinal with boring stay | 1500mm | |
Longitudinal without boring stay | 2000mm(special supplied) | ||
Cross | 1600mm | ||
Distance from spindle axis to table surface | Max. | 1400mm | |
Min. | 0mm | ||
Max.travel of radial tool holder on facing head | 250mm | ||
the worktable is locating in the middle of the lower saddle | 8000kg | ||
the worktable is locating in the end of the lower saddle | 6300kg | ||
Worktable size (L×W) | 1600X1400 | ||
Range of spindle speed | 8-800r/min | ||
Range of facing head speed | 2.5-125r/min | ||
Rapid speed of spindle, headstock, table longitudinal and table cross | 1-2500mm/min | ||
Rapid rotary speed of worktable | 1.2r/min | ||
Range of spindle, headstock and table longitudinal & cross feeds | 1-2500mm/min | ||
Range of radial facing slide feeds | 1-1560mm/min | ||
Reading accuracy of measuring system | 0.01mm | ||
Boring accuracy | IT7 | ||
Boring roughness | |||
Boring diameter(Distance between spindle nose and tool tip ≤450mm) | φ50-φ240mm | ||
Main motor power | 18.5kw | ||
Rapid motor power | 3.5kw | ||
Overall dimension of machine(L×W×H) | 6995×3647×3442mm | ||
Weight of the machine(approx) | 24000kg | ||
