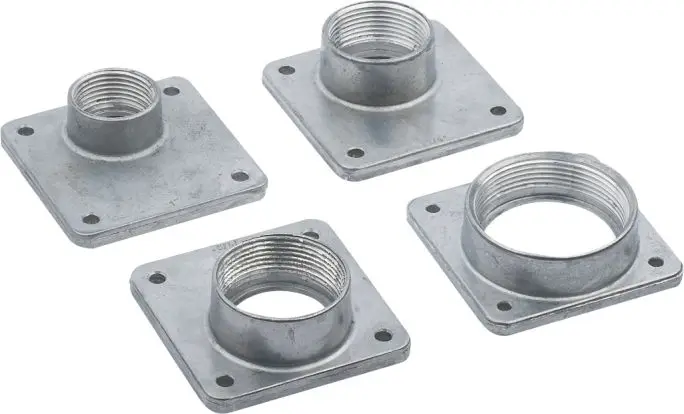

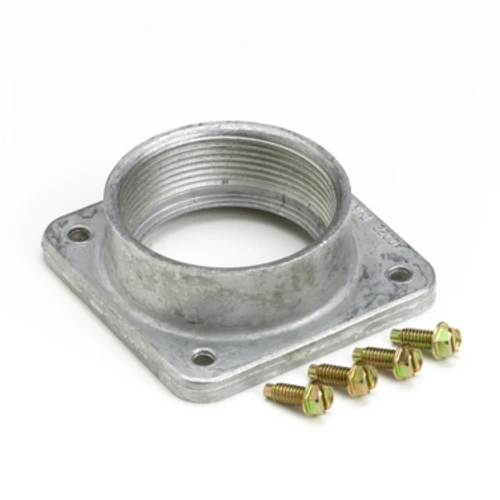

China Electrical Meter Base Parts / Metal Hub For Power Meter Socket

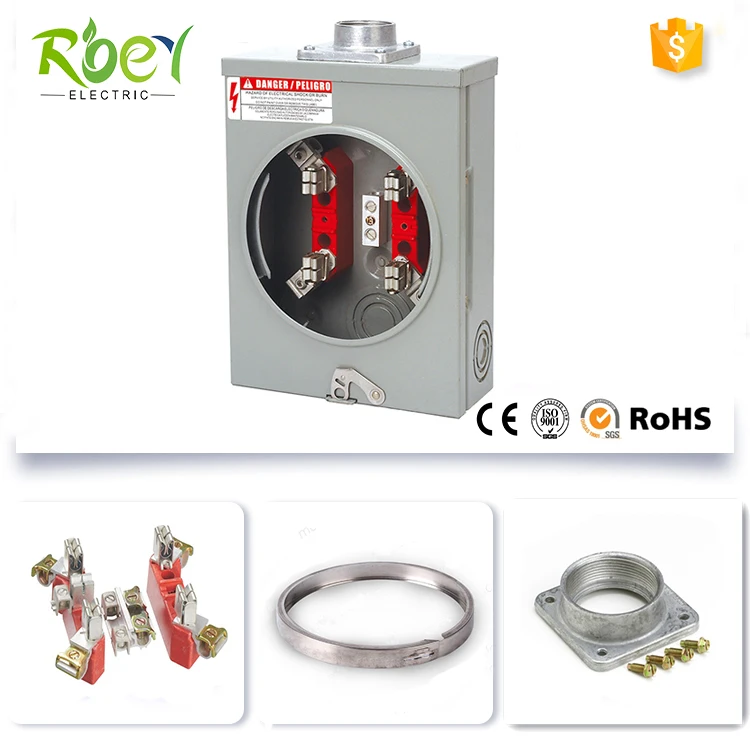

 Roey Electric offers hundreds of different types of single position, residential, self-contained meter sockets, as well as instrument-rated meter sockets. Applications range from a single-family house to a large industrial factory. There are hundreds of configurations available, including many sizes, knockout configurations, terminal configurations, hubs, locks and connectors

Feature :

• 100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector


• The Die-cast Aluminum enclosure.Electrostatically applied epoxy and polyester resins,which are baked on.Gray color exterior.


• The current carrying parts are made of phosphor copper.


• The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.


• Stainless steel sealing ring


• Fix hub size:1/2,3/4,1,1-1/4 for option

Parameter :

Product Model	Description	Fixed Hub Size	N.W
MH-01		1/2″	32
MH-02	1 Phase,100A,120/240Vac,4 jaws	3/4″	32
MH-03	1 Phase,100A,120/240Vac,4 jaws	1″	32
MH-04	1 Phase,100A,120/240Vac,4 jaws	1-1/4″	32

Dimension:



1.How to contral the quality?

A. All products will be strictly Quality Checked in house before packing;

B. All products will be well packed before shipping.

C. All products have warranty.

2.About making sample.

we can help provide samples for you to test before order if really needed. The sample is charge.

3. Minimum Order Quantity?

A.For the common model,MOQ 100pcs

B. For Custom models,MOQ 1000pcs

C. You can mix all items into one 100pcs

(If your order quantity is low,Pls kindly contact me and see if we have some at stock for this small order quantity).
