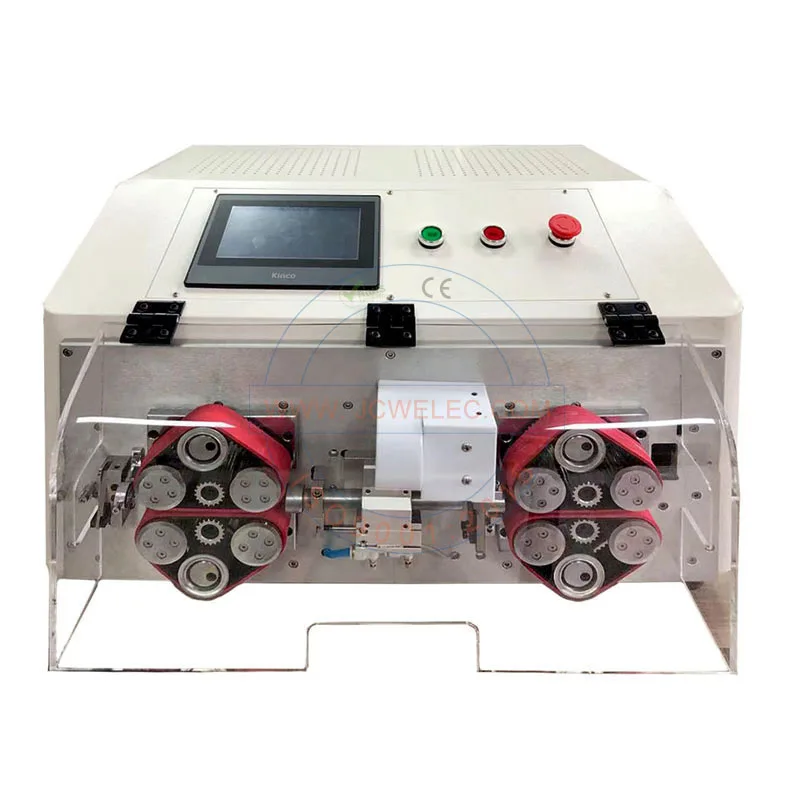

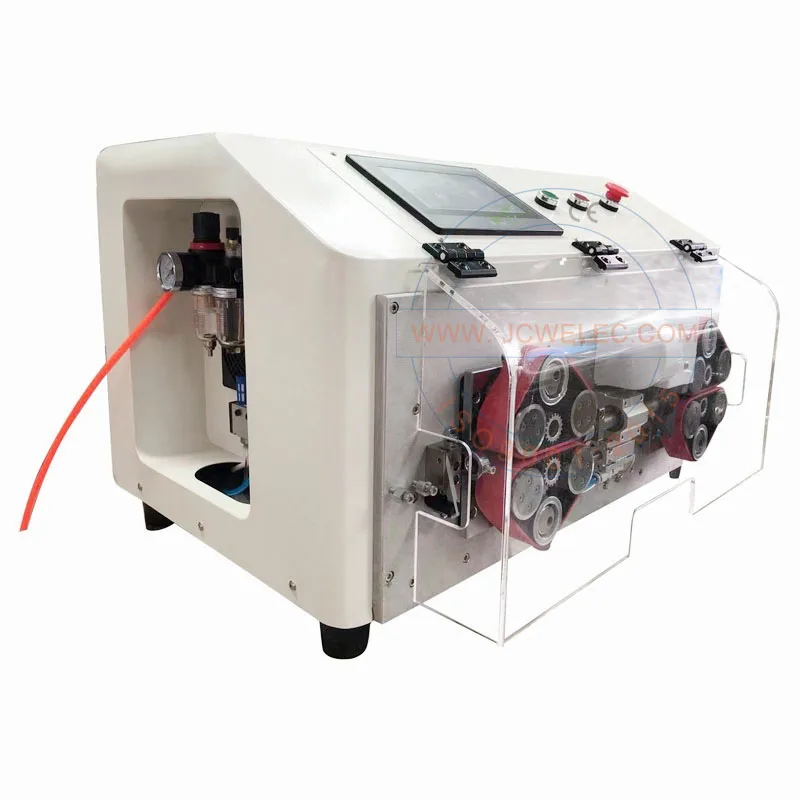

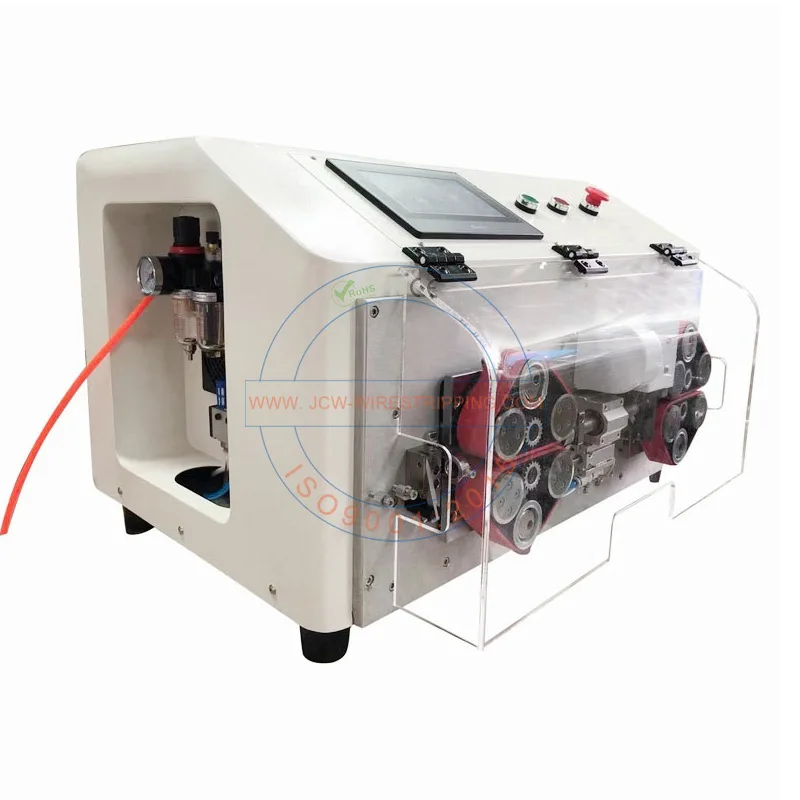

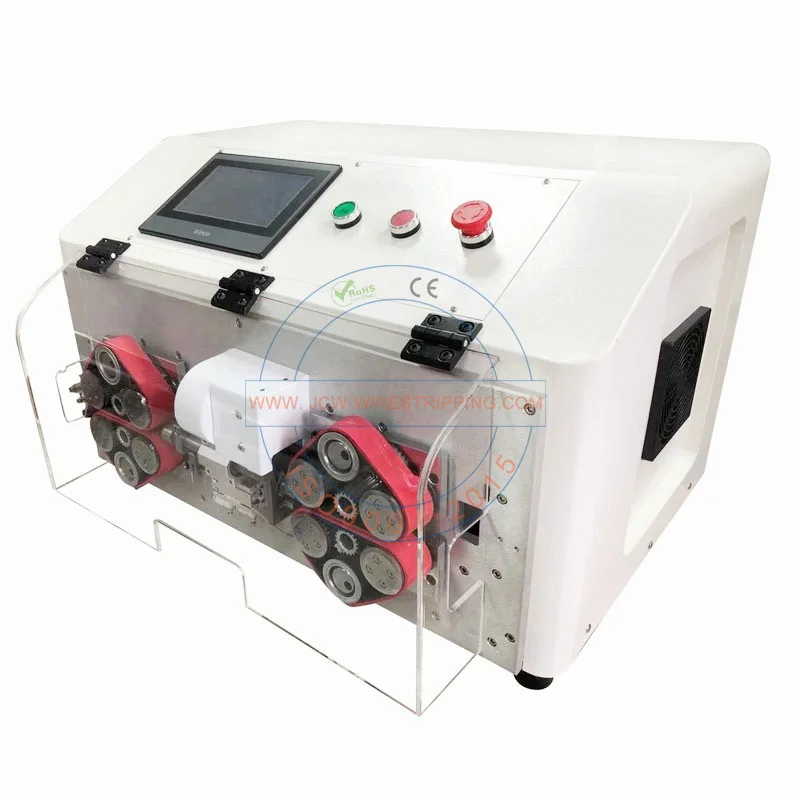

JCW CS07 14 mm power cable making machine positioning wire cutting stripping shielded twisted cable strip machine
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600830160232):
Product Overview
Description
Model | JCW-CS07 Servo Motorized Belt Feed Multicore Cable Cut & Strip Machine |

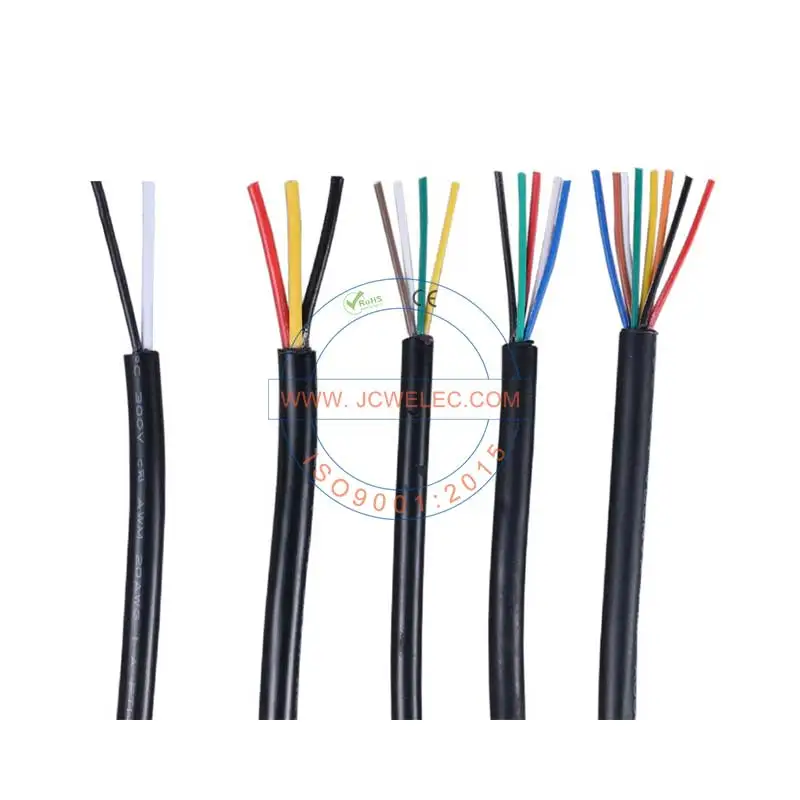

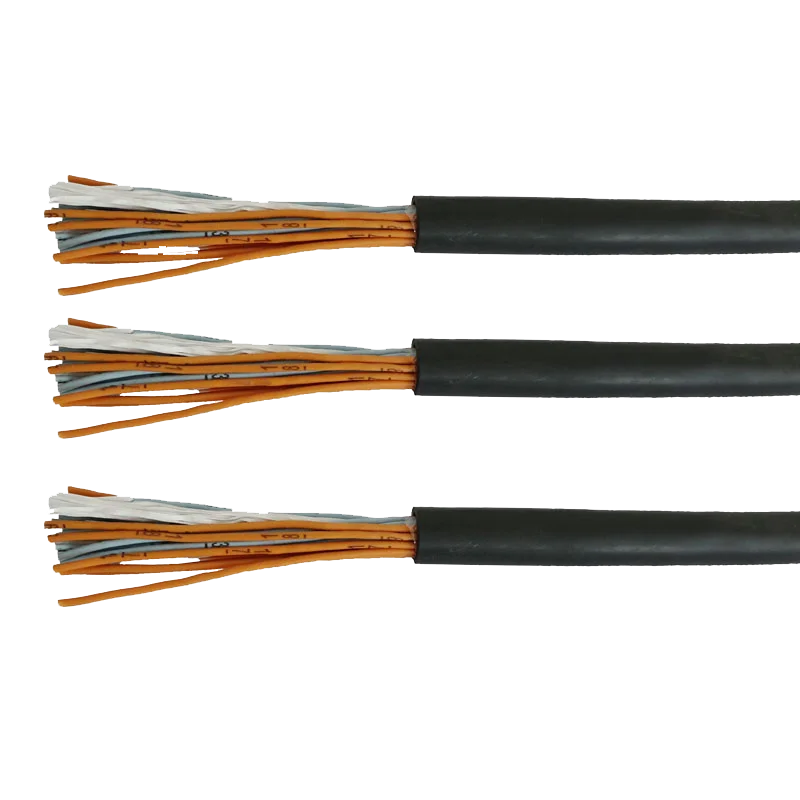

Function | Multicore cable, Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Wire lack sensor, Length correction |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Cable diameter | 14 mm |
Conductor cross-sections | 0.1 - 16 mm² [ AWG 28 - 6 ] |
Cutting length ( L ) | 0.1 - 999999 mm |
Cutting length accuracy | 0.002 x L |
Stripping length | Leading ( right ) side: 400 mm [ partial stripping ] |
Trailing ( left ) side: 180 mm [ partial stripping ] | |
Production rate | 1200 pcs/h |
Data library | 100 programs |
Feeding unit | Servo motorized belt system |
Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
Compatible peripherals | Cable prefeeder, robot arm, cable stacker |
Power supply | AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ] |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | Machine: L 700 x W 560 x H 450 mm |
Wire straightener: 350mm | |
Weight | 80 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
