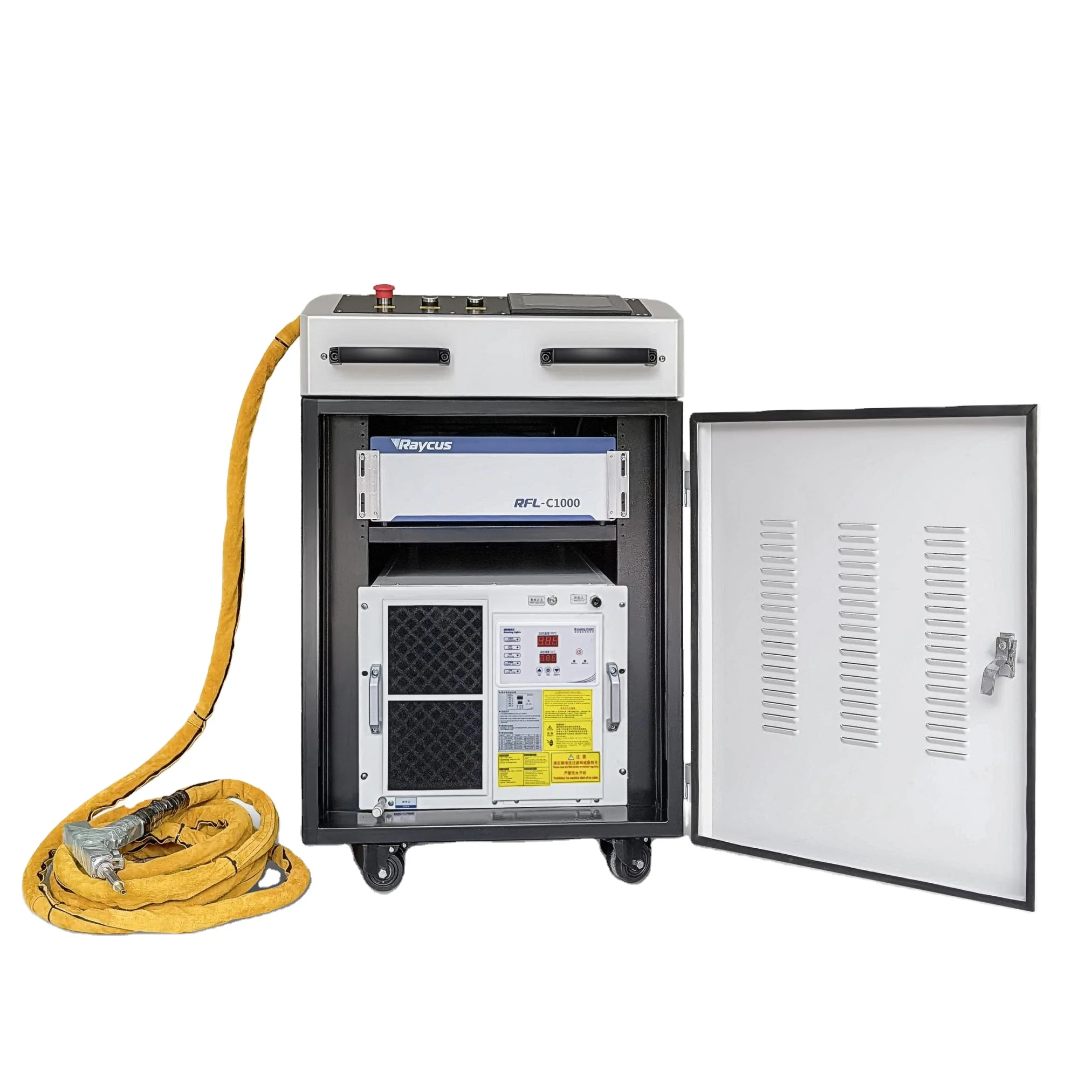

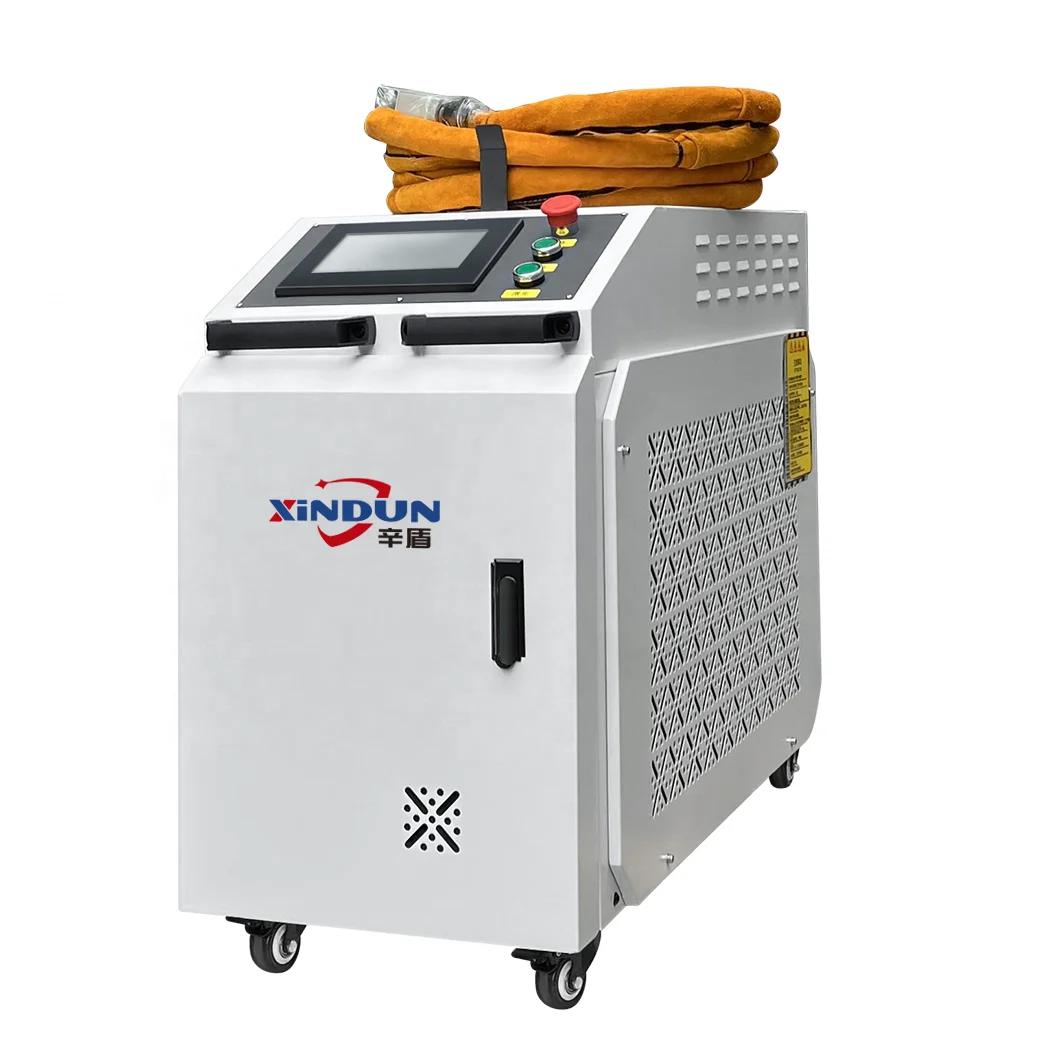

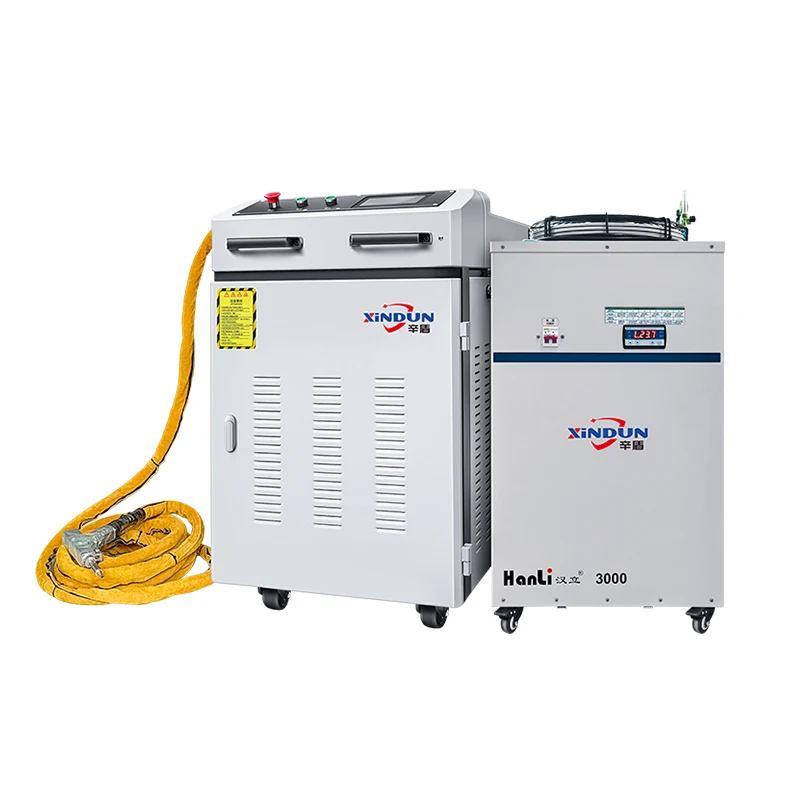

XD W2000RC 2000W laser welding machine laser cutting machine Laser Solder Welding Machine
- Category: >>>
- Supplier: Shanghai Xindun Automation Technology Co. Ltd.
Share on (1600830169124):
Product Overview

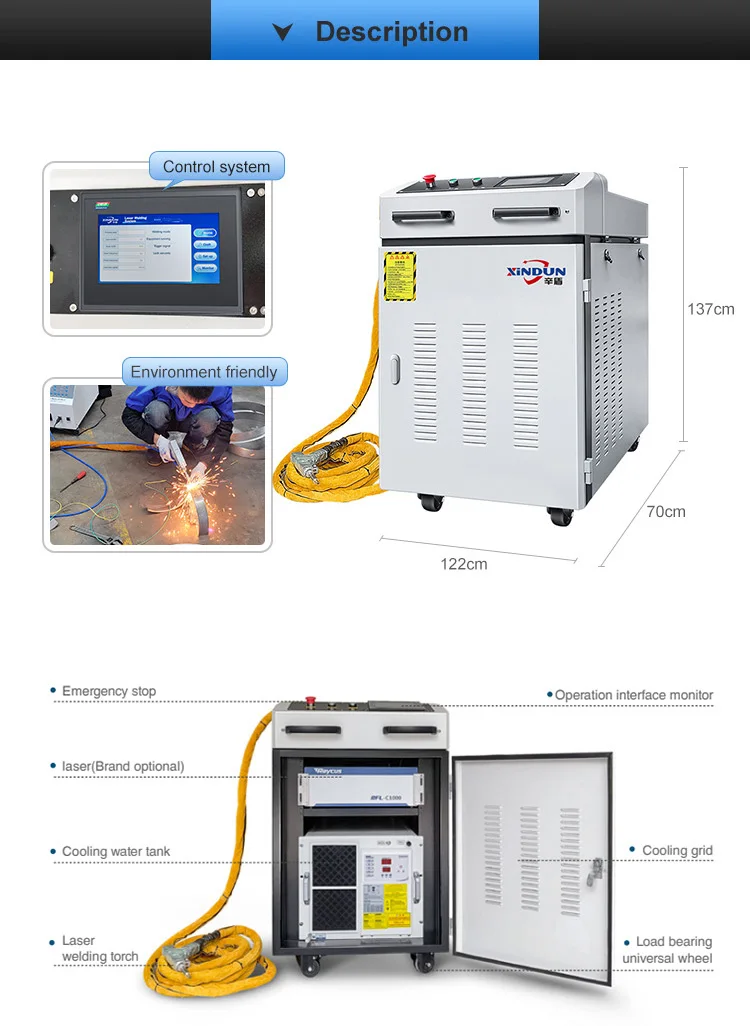

Description
Product Description

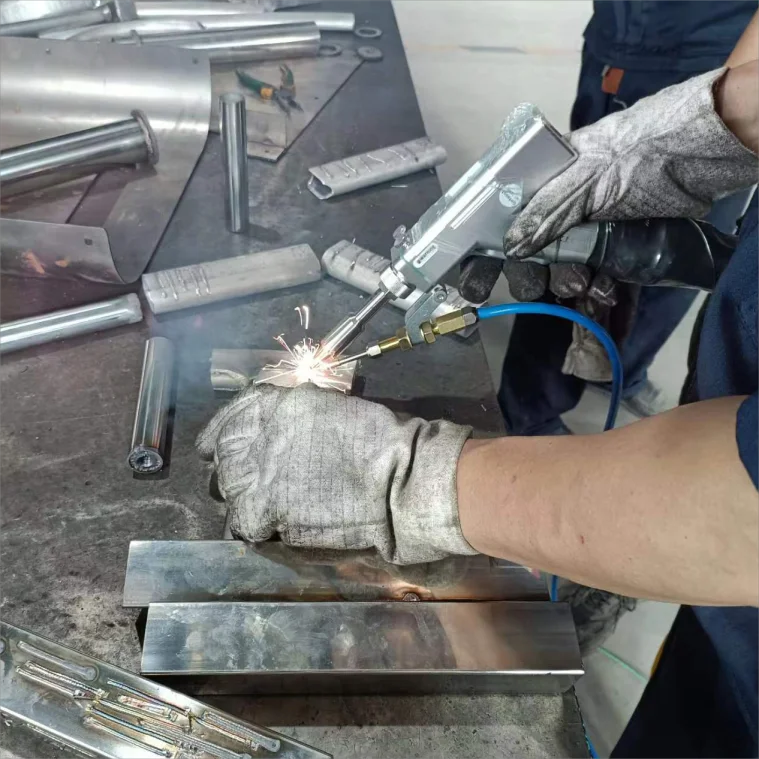

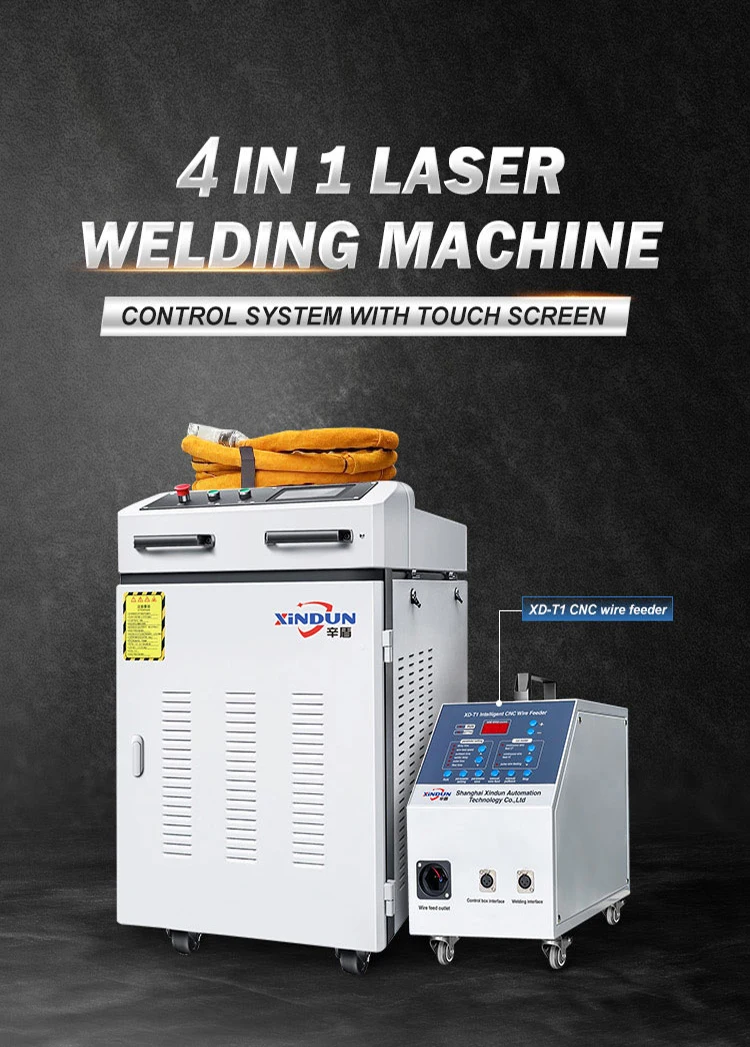

Handheld Laser Welding Machine
Handheld laser Welding Machine is widely used in battery shell, electronic components, communication, precision equipment, hardware products, automotive accessories, clocks, mold, wine pots, thermal cups, kitchens and other industries.
Xindun handheld fiber laser welding machine can cut, weld and clean. Using top-notch RECI / MAX / JPT laser, high photoelectric conversion rate, good quality, stable performance, consult more...

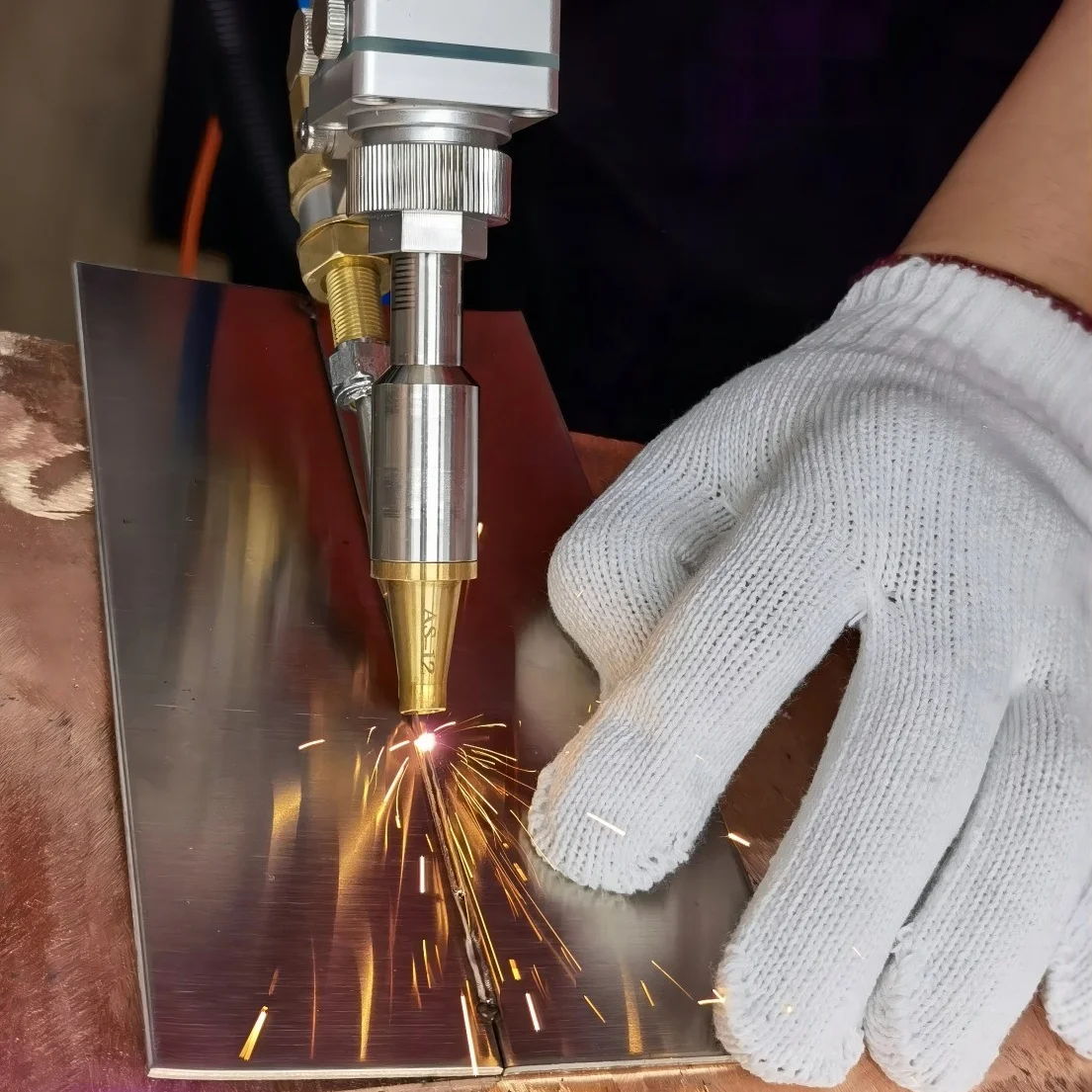

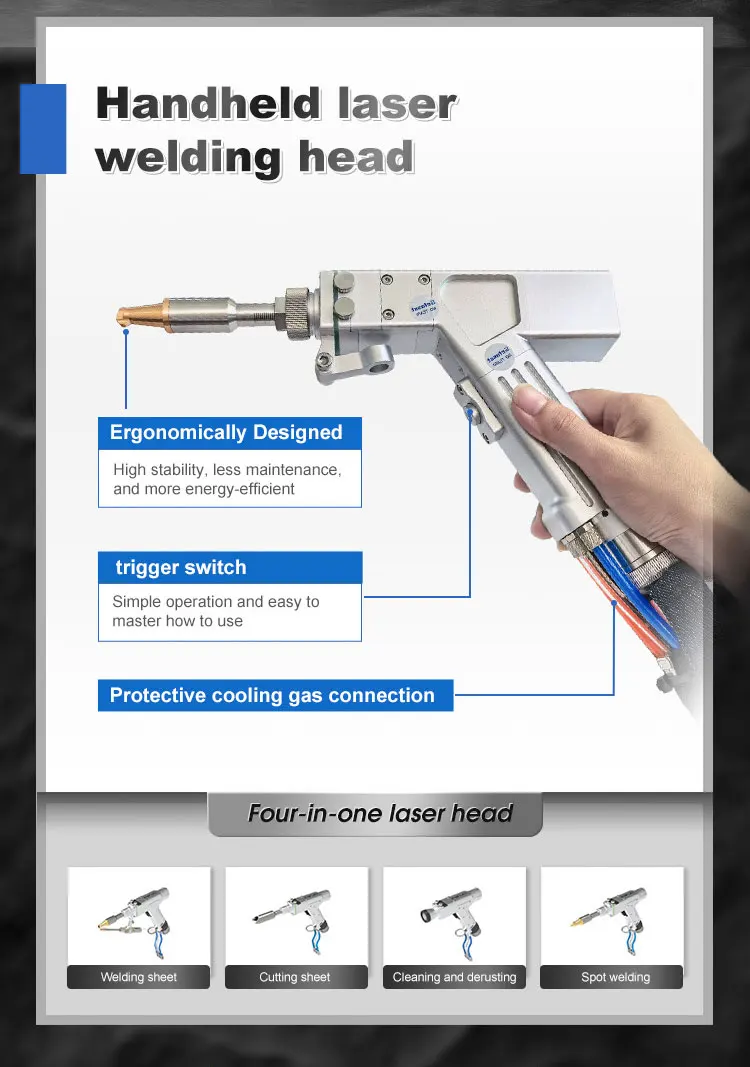

Professional high effective welding head
Smaller facula,better seam forming.
Welding torch weight is only 0.7KG
Simple operation and easy to master how to use
Welding torch weight is only 0.7KG
Simple operation and easy to master how to use
Hand-held laser rust cleaning welding gun
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Technical Parameters
Laser type | CW Fiber Laser | ||||||
Name | XD-1000W | XD-1500W | XD-2000W | XD-3000W | |||
Rated output power | 1000W | 1500W | 2000W | 3000W | |||
Laser center wavelength | 1080±10nm | ||||||
Output method | Continuous/Modulation | ||||||
Fiber core | 20-50 μm | ||||||
Fiber Length | 10 meters | ||||||

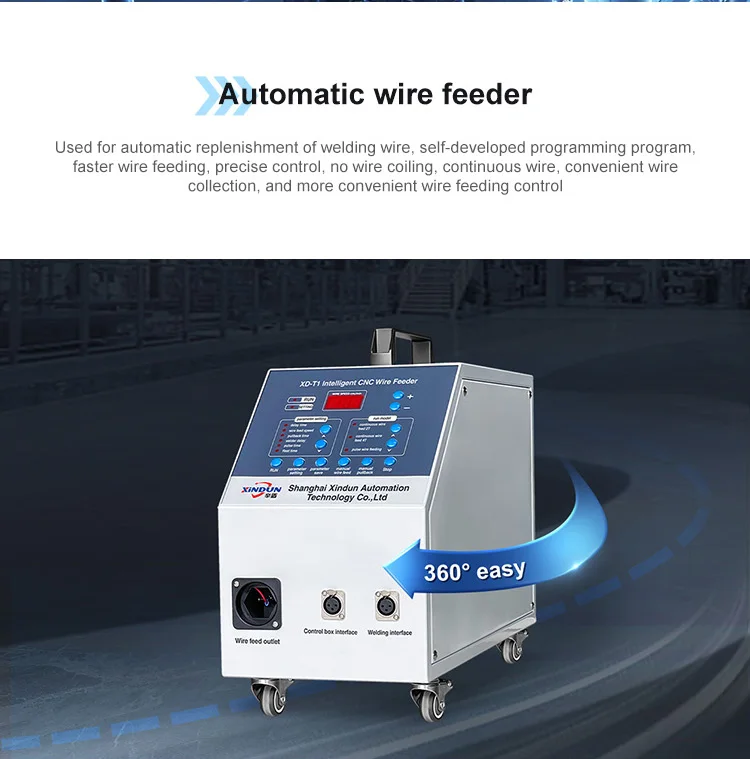

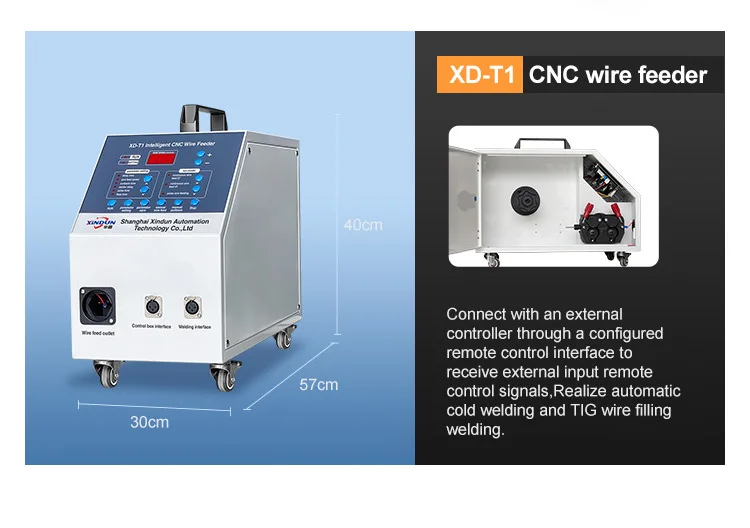

Wire diameter(mm) | 0.8/1.0/1.2/1.6 (double wire feeder) | ||||||
Protective gas method | Argon gas, Nitrogen, compressed air | ||||||
Weld gap width adjustable | 0.1-6mm | ||||||
Welding range | 0.2-10mm | ||||||
Working temperature | -20-55 °C | ||||||
Welding torch weight | 0.7 kgs | ||||||
Working Voltage | AC220V±50HZ/60HZ | AC380V | |||||
Total power | <6kw | <7kw | <9.5kw | <15kw | |||
Packing Size | 137x70x122cm | 137x70x122cm | 137x70x122cm | 137x100x122cm | |||
Gross Weight | 185kgs | 201kgs | 218kgs | 285kgs | |||
Reference data of welding penetration | ||||||||
Power | XD-1000W | XD-1500W | XD-2000W | XD-3000W | ||||
Stainless steel | 0.4-2.0mm | 0.5-3.7mm | 0.6-4.4mm | 0.7-6.3mm | ||||
Carbon steel | 0.4-2.3mm | 0.5-3.9mm | 0.6-4.6mm | 0.7-6.5mm | ||||
Galvanized sheet | 0.4-2.1mm | 0.5-3.8mm | 0.6-4.5mm | 0.7-6.2mm | ||||
Aluminum | 0.4-1.8mm | 0.5-3.3mm | 0.6-4.0mm | 0.7-6.0mm | ||||
Product Advantages
01 Cost saving
Achieved by increasing speed, lowering manual skill requirements and reducing grinding processes.
02 Fast welding speed
The welding speed is 3-5 times faster than traditional welding, and the same output requires with fewer operators.
03 Environment friendly
The traditional welding generates a large amount of smoke, the arc is dazzling and generates harmful gases. While Herolaser welding machine doesn’t have these disadvantages.
04 Small heat-affected zone
Concentrated welding heat into a particular point or place, no deformation of the workpiece, no welding scar and work out firmly welding.
05 Flexible extensibility
Can be connected to a manipulator and applied to CNC machine tools to meet various needs.
06 Fewer consumables & long lasting
Thin plate welding can be done without filler materials.

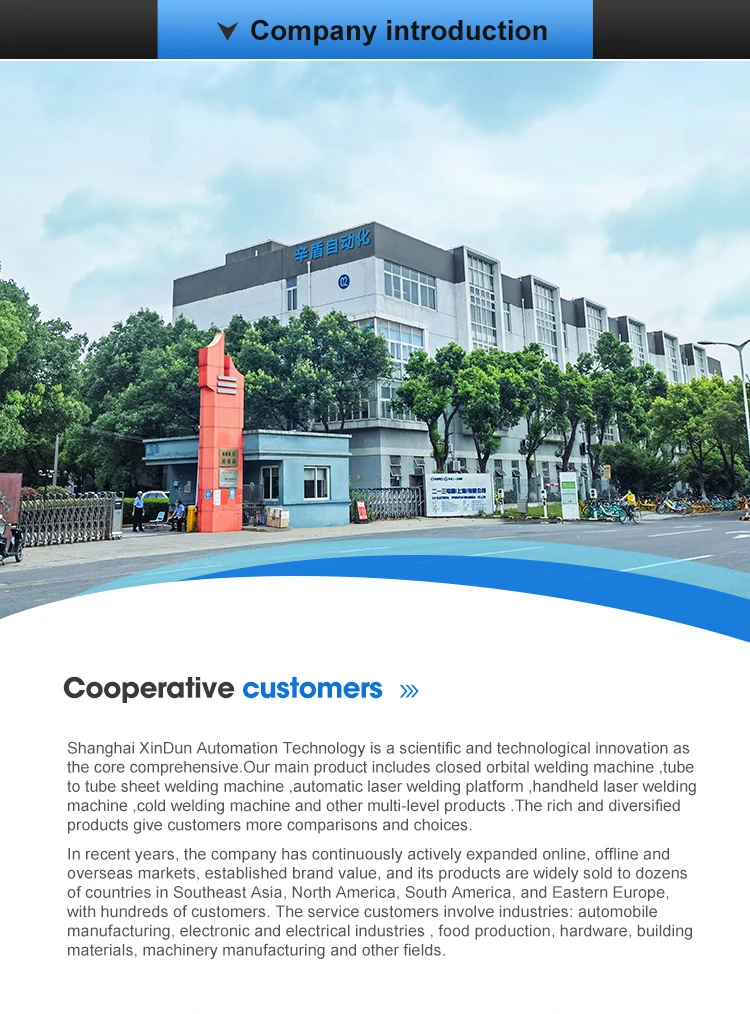

Company Profile
Certifications

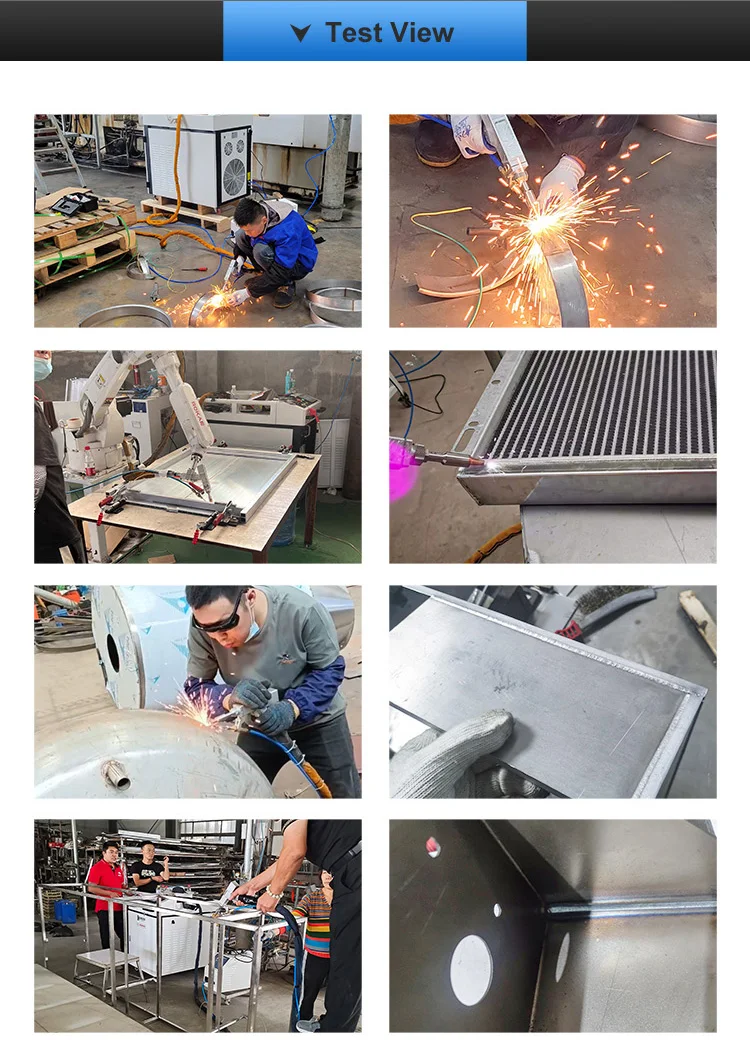

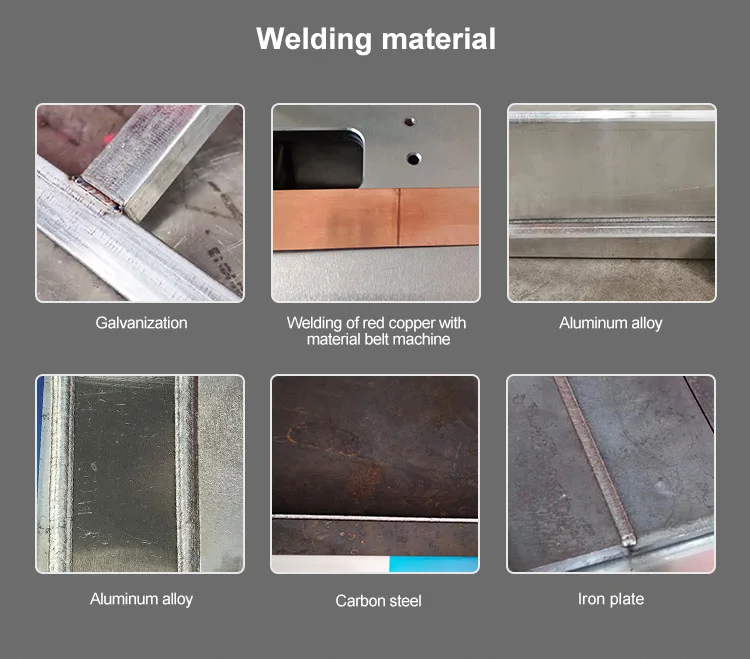

Welding Case
FAQ
01 Are you factory?
Yes, we are factory self-produced and exported, located in Shanghai.
02 Do you have CE?
Yes, we have CE,ISO9001,ISO45001.
03 How long is the delivery time?
Within 7 days after receiving payment
04 What are the advantages of pipe orbital welding machine, and what are the scenarios?
Pipe orbital welding machine is equipped with argon arc welding, torch water cooling,and all position welding. The appearance is uniform and beautiful, intelligent, and the finished welding product can meet the requirements of clean weld bead.The light and compact appearance of the pipe orbital welding machine is more convenient for on-site installation and piping. Such equipment is widely used in industries such as food, semiconductor, bioengineering, instrumentation, pipeline installation and construction operations.
05 What are the advantages of handheld fiber laser welding machine?
1. Small range reduces thermal stress and heat-affected area, extremely low dis-tortion
2. Narrow seam and smooth surface: reduce or even eliminate before processing
3. The welded workpiece can be subjected to bending or hydroforming
4. Easy to integrate
5. Only one side of the seam needs to be close
6. High process speed shortens processing time
6. High process speed shortens processing time
7. Especially suitable for automation technology
06 What other products does your factory provide?

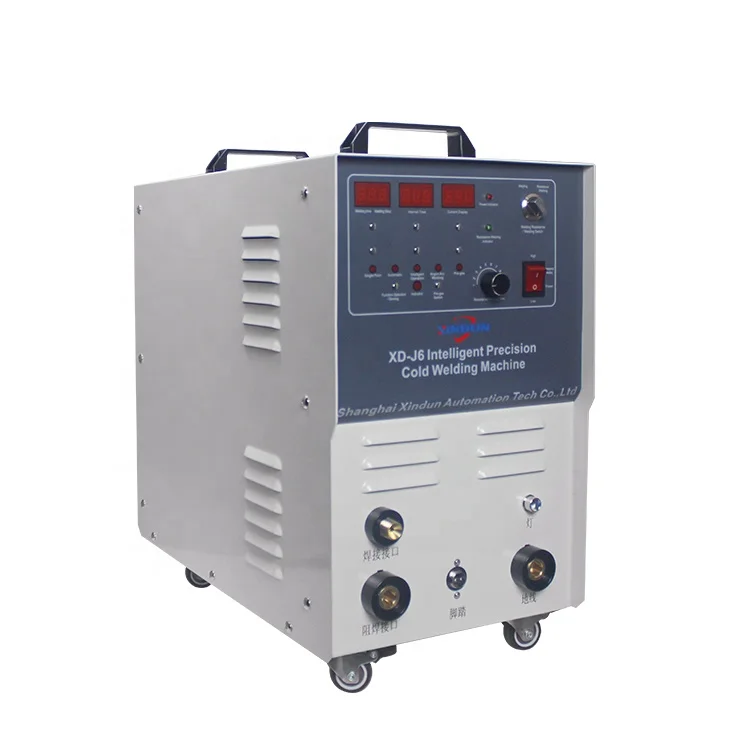

Our factory provides tig cold welding machine, pipe orbital welding machine, handheld laser welding machine, planetary orbital pipe cutting machine, wire feeder, spark butt welding repair and related product accessories.
07 What payment methods does your company accept?
We accept payment in any way, and you can also pay directly by Alibaba creditorder.
