Module Generator Wind Turbine Home 10Kw Power Kit Photovoltaic Hybrid Energy Off Grid Solar And Wind Power System
Solar wind energy systems is a new energy power generation system that utilizes wind energy and solar energy resources. It is wind power generator and solar cell phalanx two kinds of power generation equipment to generate electricity together.
The solar wind hybrid system uses solar cell arrays and wind generators (converting alternating current to direct current) to store the generated electrical energy in the battery pack. When the user needs electricity, the inverter converts the DC power stored in the battery pack into AC power and sends it to the user's load through the transmission line.
Technical Parameter
10KW solar wind energy systems | ||||||
Product | Model | Quantity | Description | |||
Wind turbine generator | ES-H 2kw/48v | 1 | Generator, blade, tail rudder, hood hub | |||
Solar energy panel | Single crystal solar panel 550w | 16 | Size: 2279*1134*35mm | |||
Solar energy support | 550w stent | 16 | Customer choice | |||
Wind power controller | 2kw/DC48v | 1 | DC: 48v AC: 110v/220v single phase | |||
Photovoltaic controller | 48v | 1 | DC: 48v; AC:110v/220v single phase | |||
Wind power off-grid inverter | 10kw/220v inverter | 1 | DC 48V input; MPPT intelligent control | |||
Colloid cell | 200ah/12v | 8 | Size：530*245*245mm | |||
Module Generator Wind Turbine Home 10Kw Power Kit Photovoltaic Hybrid Energy Off Grid Solar And Wind Power System

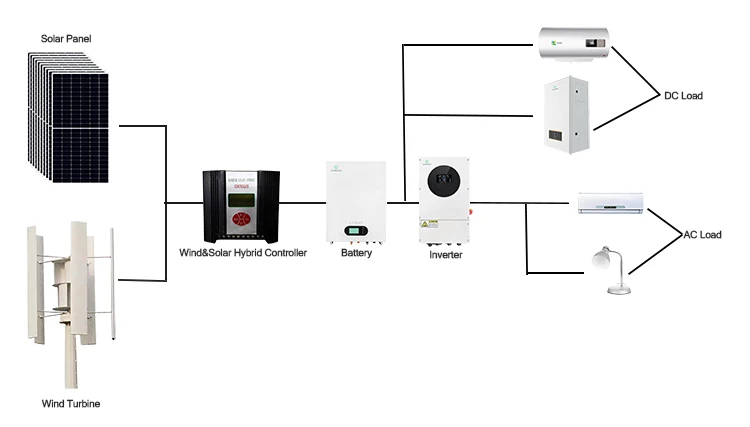

1. The solar wind hybrid system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy, battery and other energy power generation technologies and system intelligent control technology.
2. Utilizing the complementarity of wind energy and solar energy, a relatively stable output can be obtained, and the solar wind hybrid system has high stability and reliability.
Details Images

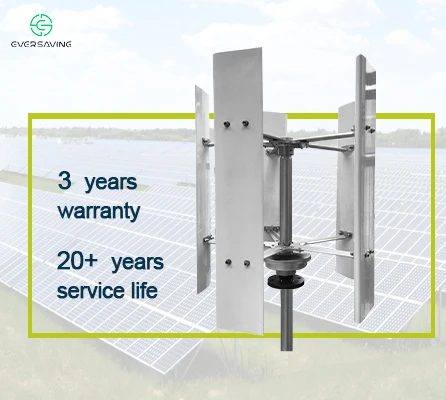

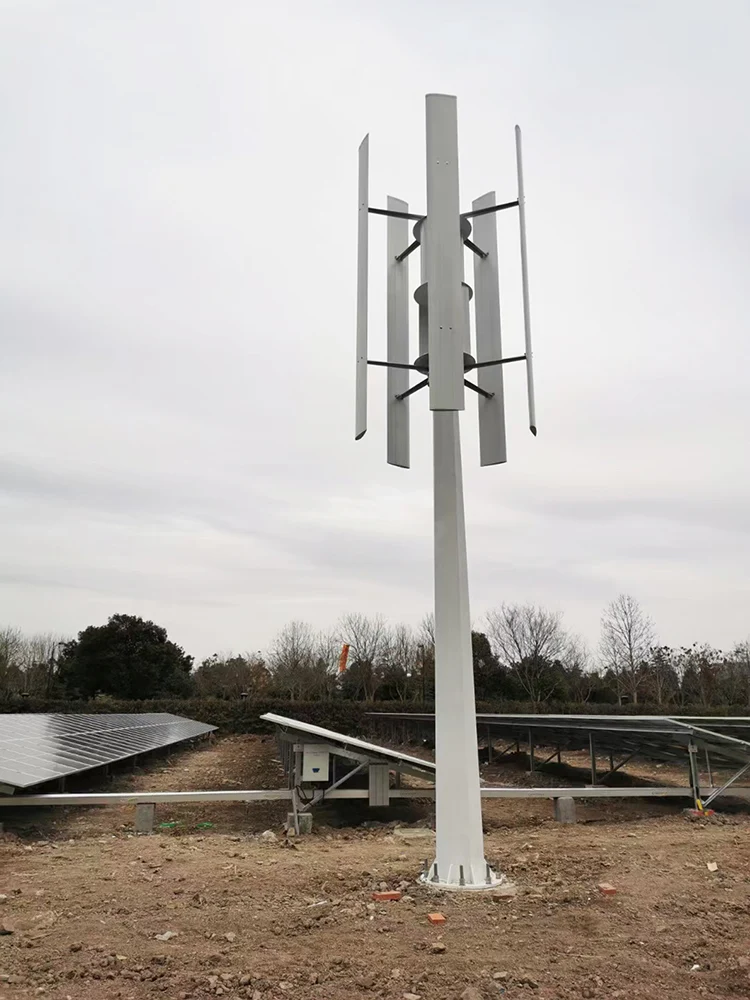

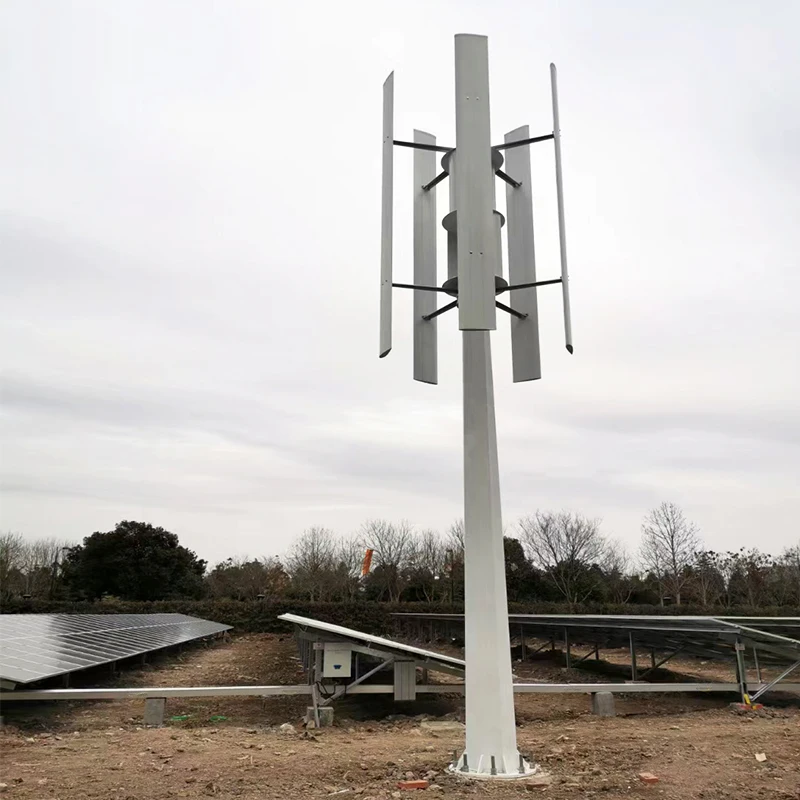

Wind Turbine
> 3 years warranty, 20+ year service life
> Advantage: light weight, small volume> Starting wind speed: 2m/s
> Rated wind speed: 12m/s
> Security wind speed: ≤50m/s
The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply power to the load through the inverter.

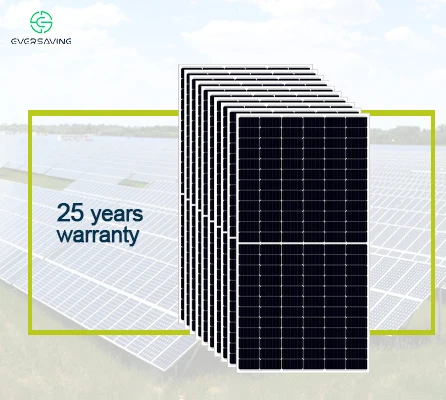

Solar Panel
> Max power: 550w
> Size: 2279*1134*35 mm
> Glass: 3.2mm Tem pered
> 25 years power output guarantee
> Size: 2279*1134*35 mm
> Glass: 3.2mm Tem pered
> 25 years power output guarantee
The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the load.

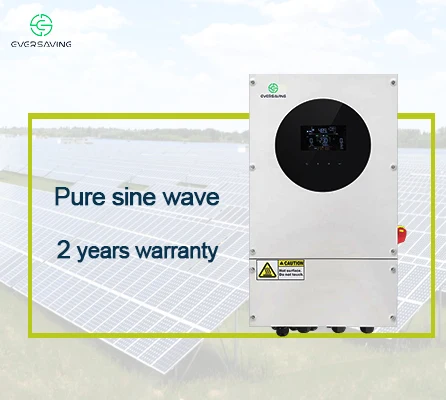

Inverter
> Pure sine wave output
> IP65 waterproof and dust proof makes the inverter suitable for various working environments
The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve the power supply quality of the wind-solar hybrid power generation system.

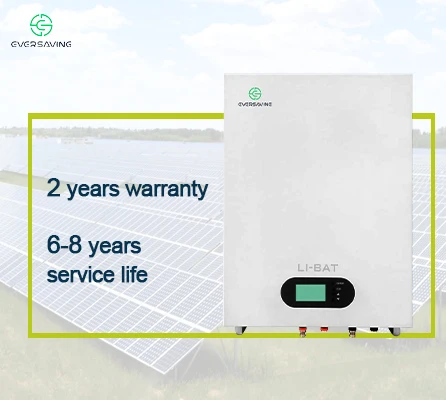

Battery
> Wall-mounted to save space
> Standard equipped with LED display, real-time understanding of battery status
> Standard equipped with LED display, real-time understanding of battery status
The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at the same time.
It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.

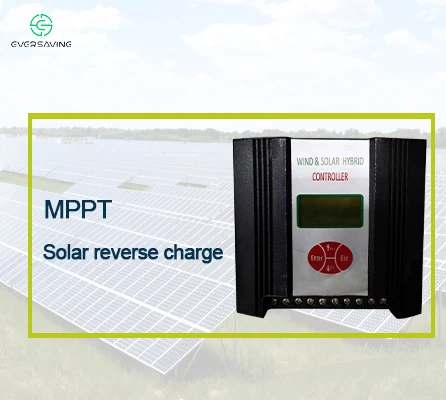

Controller
> DC 48V input; MPPT intelligent control
> Protection Function: Solar reverse charge
> protection: Solar reverse connection protection,
> Battery-over-charge-protection
> Battery-reverse connection protection
> Protection Function: Solar reverse charge
> protection: Solar reverse connection protection,
> Battery-over-charge-protection
> Battery-reverse connection protection
The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity of sunshine, wind force and load.

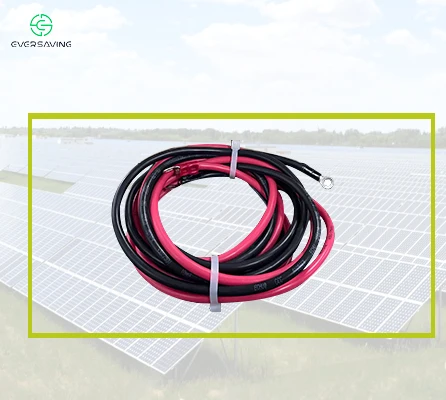

> 3 pcs 16mm2*35CM battery cable
4 pcs 16mm2*2M battery connect cable
> 4mm2 PV cable 20M
4 pcs 16mm2*2M battery connect cable
> 4mm2 PV cable 20M
6mm2 wind cable 50M
> terminals and MC4 + 1P63A Battery switch
> terminals and MC4 + 1P63A Battery switch

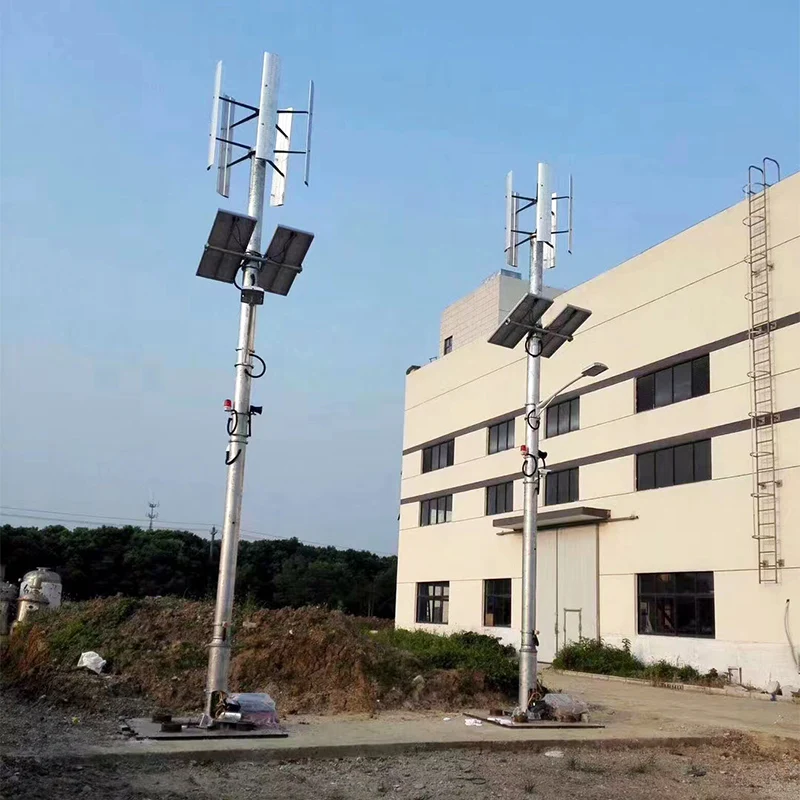

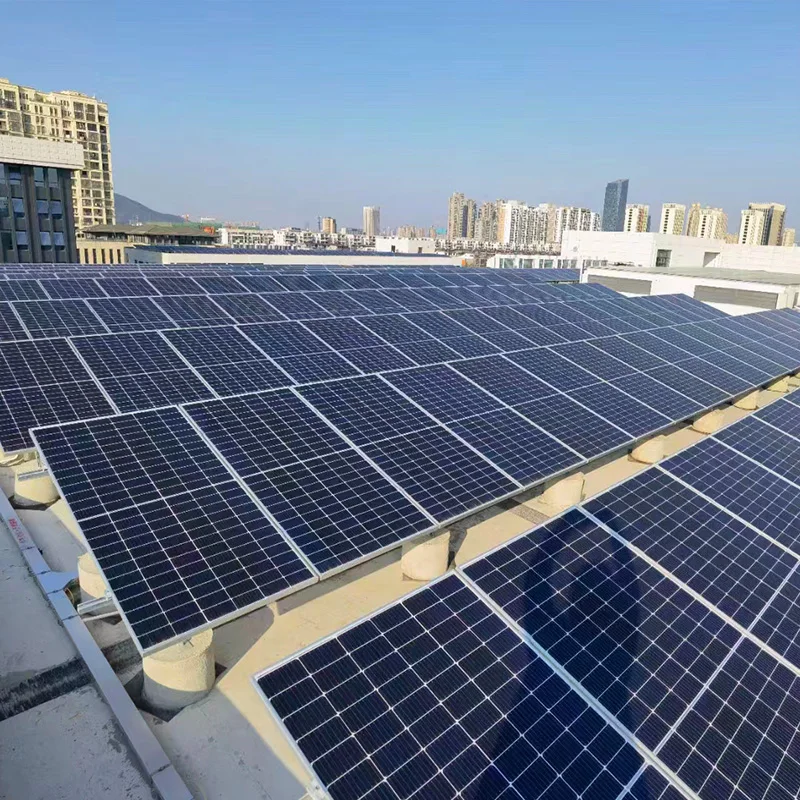

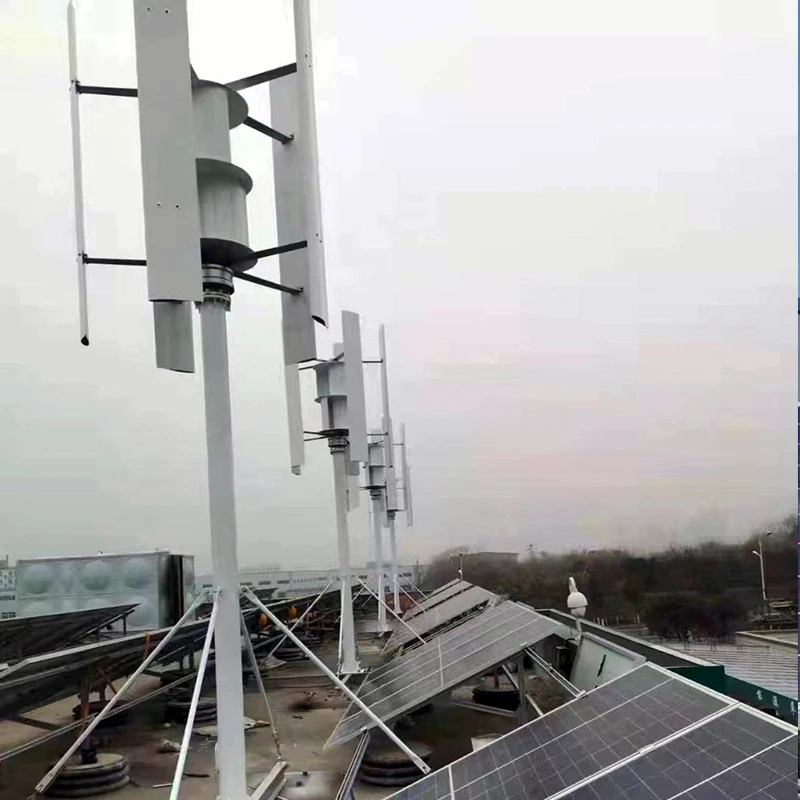

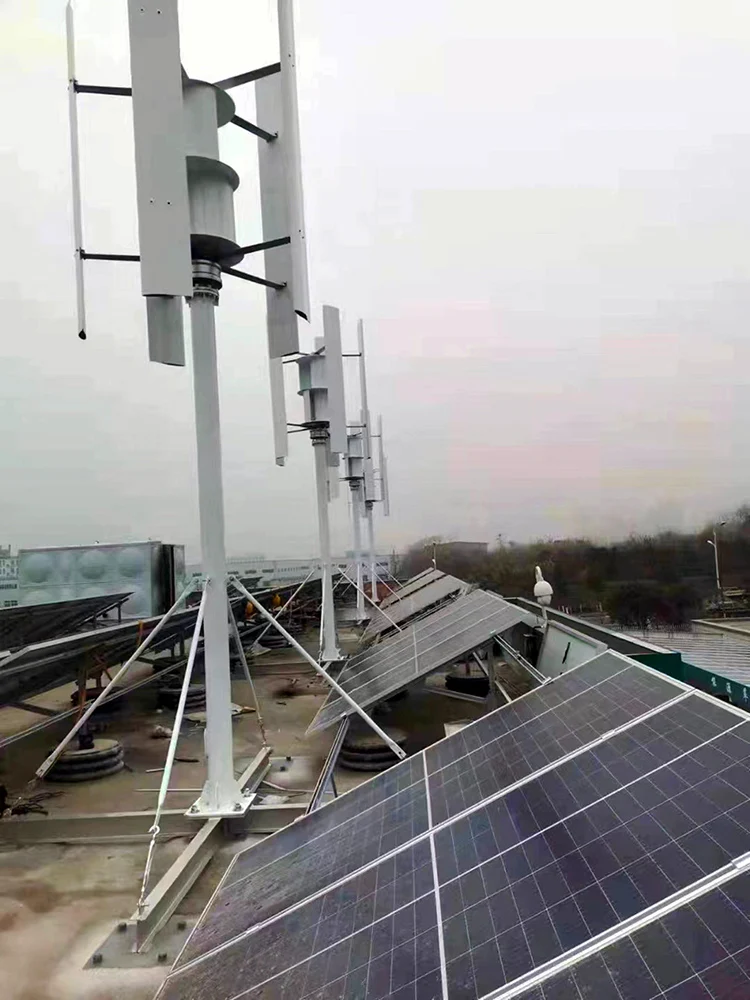

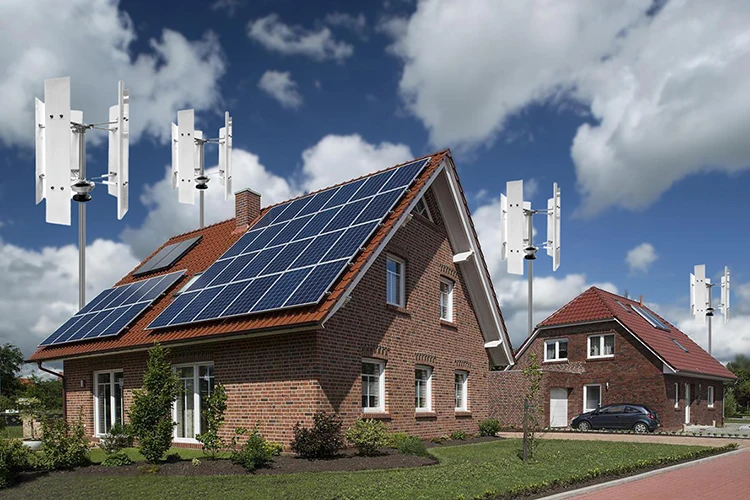

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
