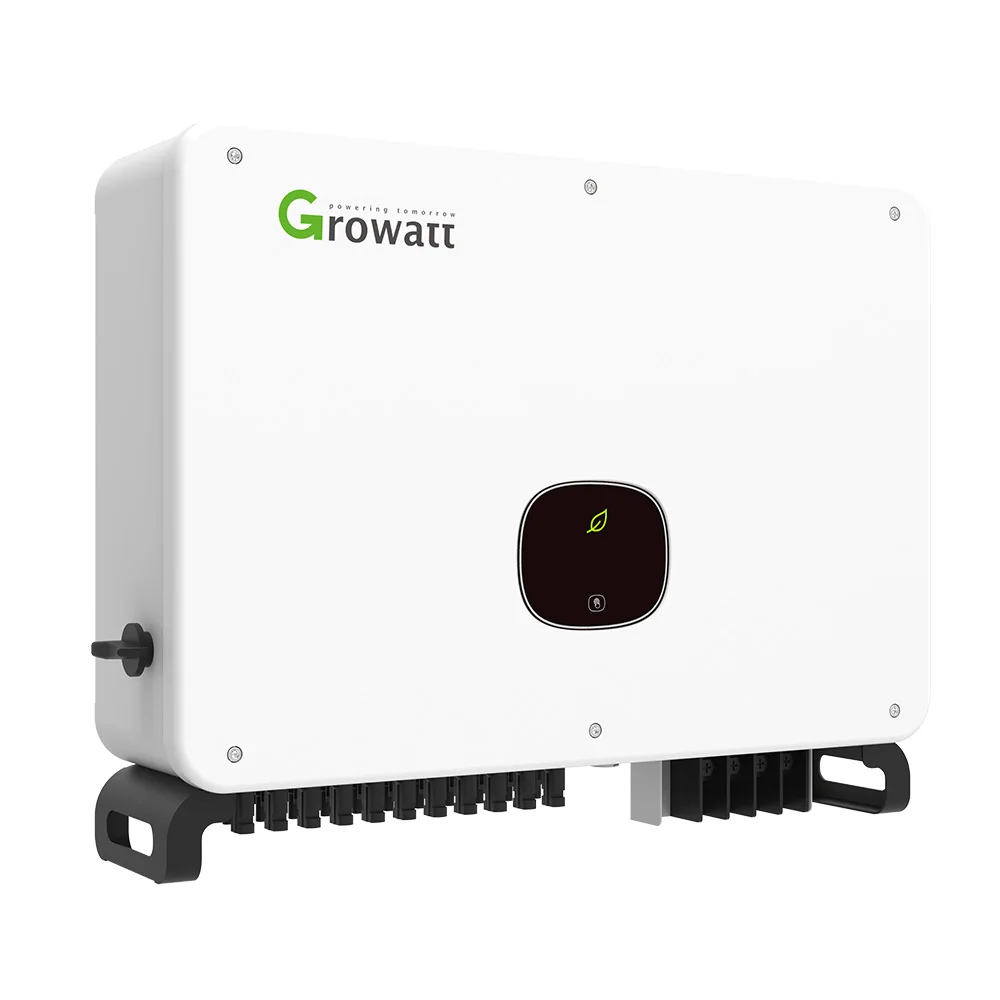

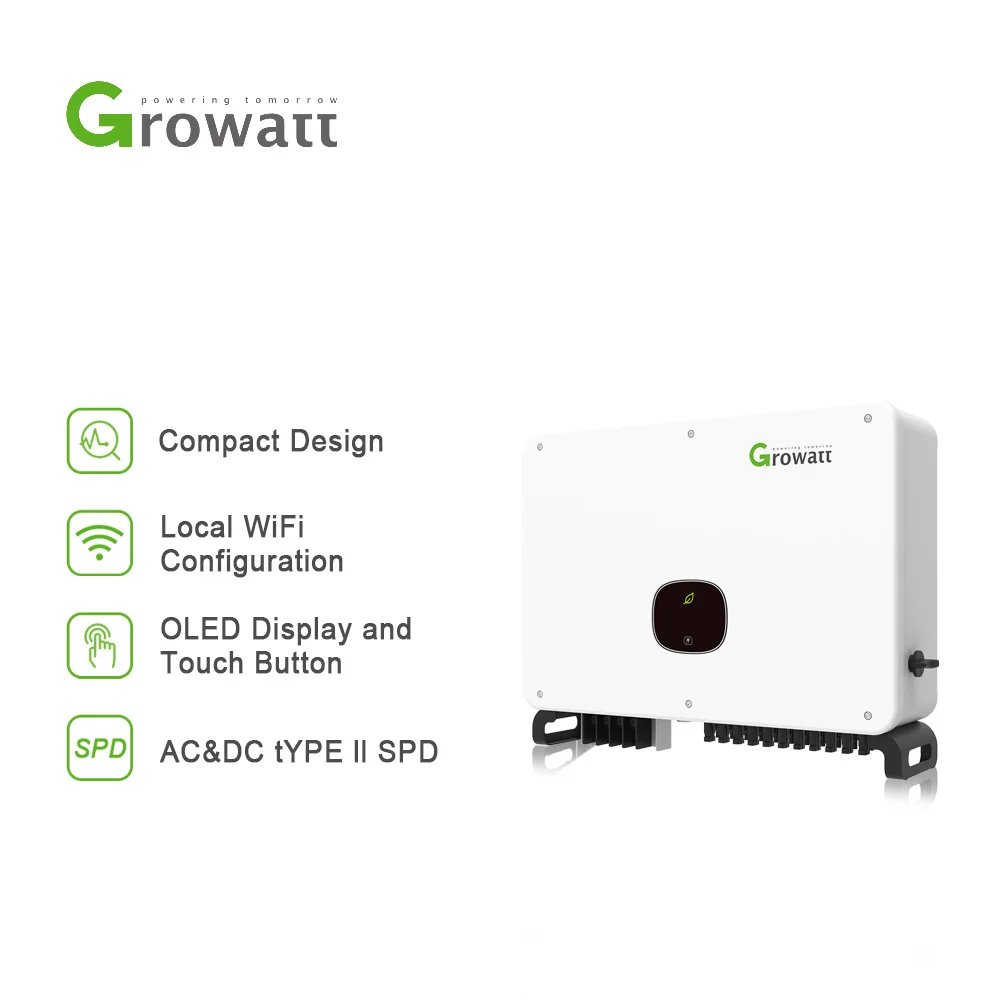

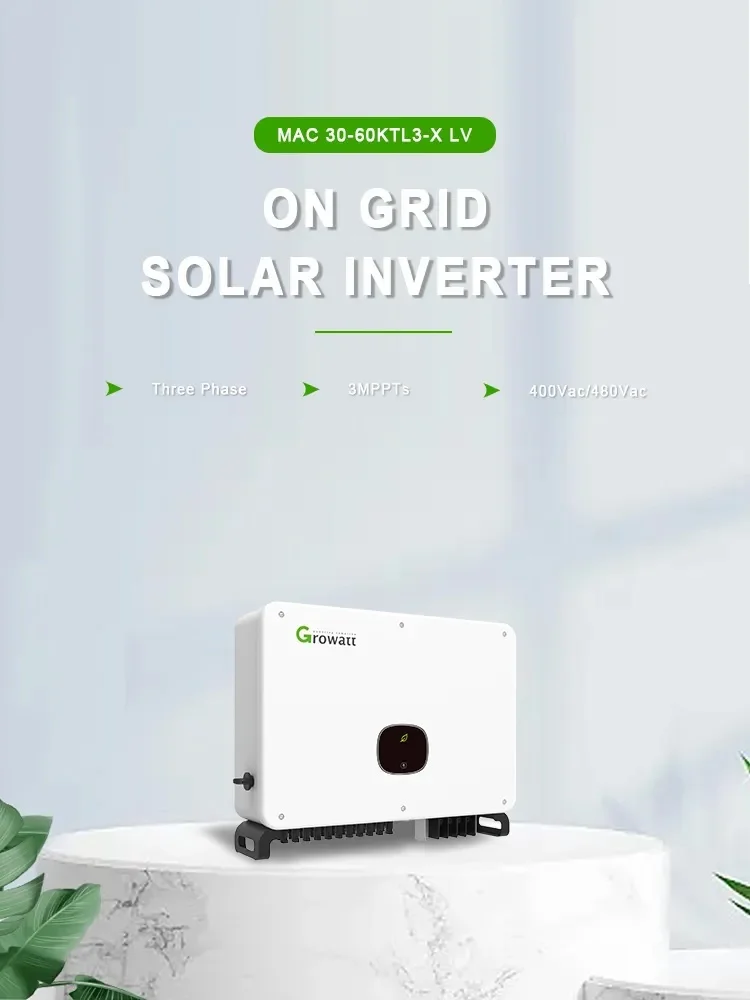

Growatt MAC 30KTL3-X LV,MAC 40KTL3-X LV,MAC 50KTL3-X LV,MAC 60KTL3-X LV is the most up-to-date smart inverter solution for rooftop solar systems. It's of compact design and an outstanding efficiency of up to 99.9%. It's ELEGANT YET POWERFUL!
Technical Specifications
Datasheet |
MAC 30KTL3-X LV |
MAC 40KTL3-X LV |
MAC 50KTL3-X LV |
MAC 60KTL3-X LV |
Input data (DC) |
Max. recommended PV power
(for module STC) |
45000W |
60000W |
75000W |
90000W |
Max. DC voltage |
1100V |
Start voltage |
250V |
Nominal voltage |
600V |
MPP voltage range |
200V-1000V |
No. of MPP trackers |
3 |
No. of PV strings per MPP tracker |
3/3/2 |
3/3/3 |
4/3/3 |
4/4/4 |
Max. input current per MPP tracker |
37.5A/37.5A/25A |
37.5A/37.5A/37.5A |
50A/37.5A/37.5A |
50A/50A/50A |
Max. short-circuit current per MPP tracker |
45A |
45A |
55A |
55A |
Output data (AC) |
AC nominal power |
30000W |
40000W |
50000W |
60000W |
Max. AC apparent power |
33300VA |
44400VA |
55500VA |
66600VA |
Nominal AC voltage(range*) |
230V/400V (340-440V) |
AC grid frequency |
50/60 Hz (45-55Hz/55-65 Hz) |
Max. output current |
48.3A |
64.4A |
80.5A |
96.6A |
Adjustable power factor |
0.8leading…0.8lagging |
THDi |
<3% |
AC grid connection type |
3W+N+PE |
Efficiency |
Max.efficiency |
98.7% |
98.7% |
98.7% |
98.8% |
European efficiency |
98.4% |
98.5% |
98.5% |
98.5% |
MPPT efficiency |
99.9% |
Protection devices |
DC reverse polarity protection |
Yes |
DC switch |
Yes |
AC/DC surge protection |
Type II / Type II |
Insulation resistance monitoring |
Yes |
AC short-circuit protection |
Yes |
Ground fault monitoring |
Yes |
Grid monitoring |
Yes |
Anti-islanding protection |
Yes |
Residual-current monitoring unit |
Yes |
String fault monitoring |
Yes |
AFCI protection |
Optional |
General data |
Dimensions (W / H / D) |
680/508/281mm |
Weight |
52kg |
Operating temperature range |
–25°C ... +60°C |
Nighttime power consumption |
< 1W |
Topology |
Transformerless |
Cooling |
Smart air cooling |
Protection degree |
IP65 |
Relative humidity |
0~100% |
Altitude |
4000m |
DC connection |
H4/MC4(Optional) |
AC connection |
Connector |
Display |
OLED+LED/WIFI+APP |
Warranty: 5 years / 10 years |
Yes /Optional |
