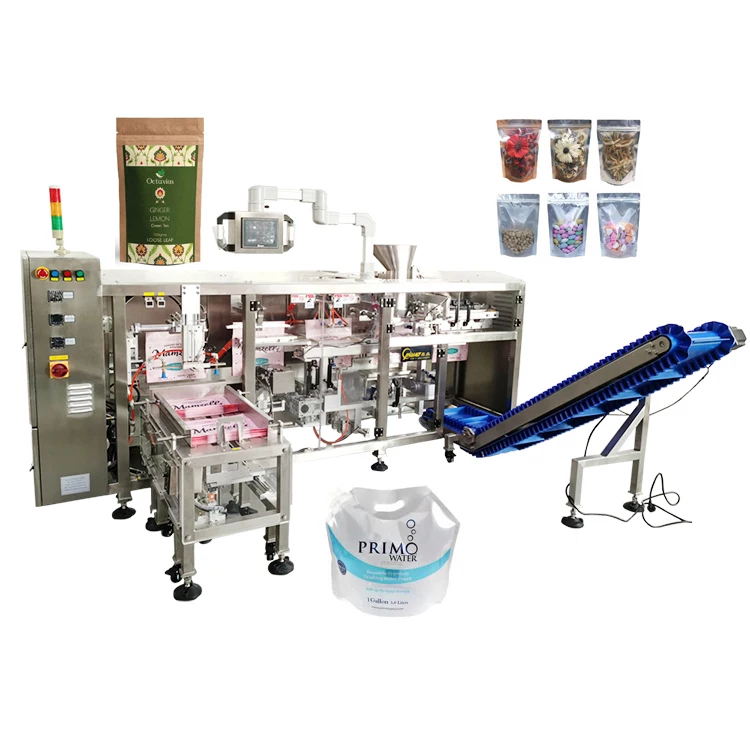

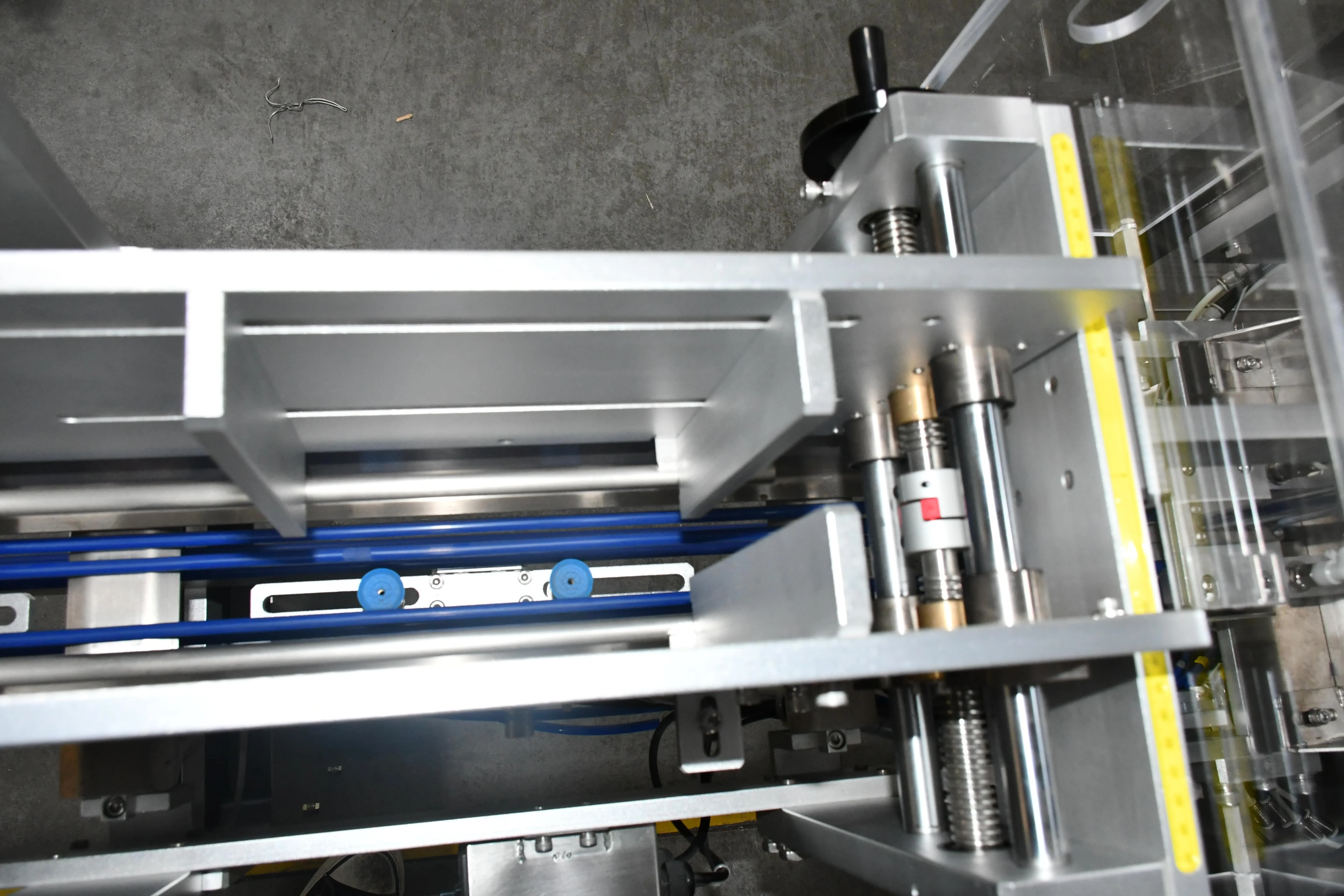

Automatic Soft Sweets Gummy Worms Candy Premade Pouch Linear Doypack Packing Machine
- Category: >>>
- Supplier: Top Y Machinery Co. Ltd.
Share on (1600830575403):
Product Overview
Description
Automatic Soft Sweets Gummy Worms Candy Premade Pouch Linear Doypack Packing Machine
Product Description

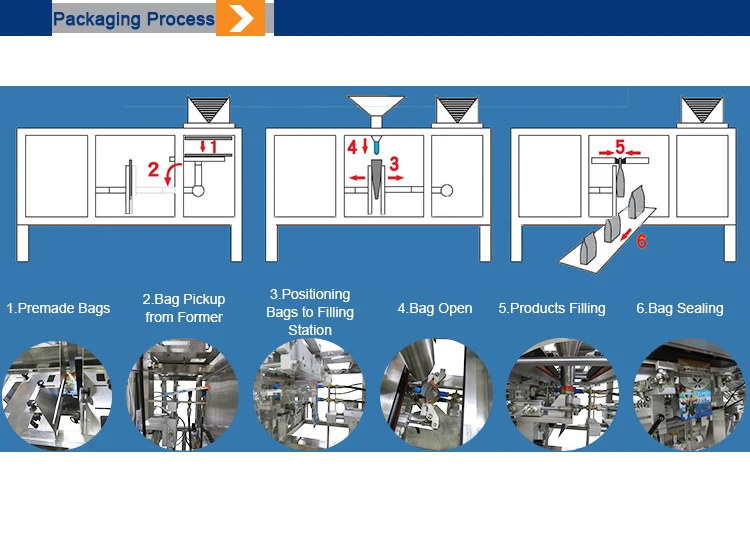

BAG OPENINHG
Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated
Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated
to the fill area and opened.

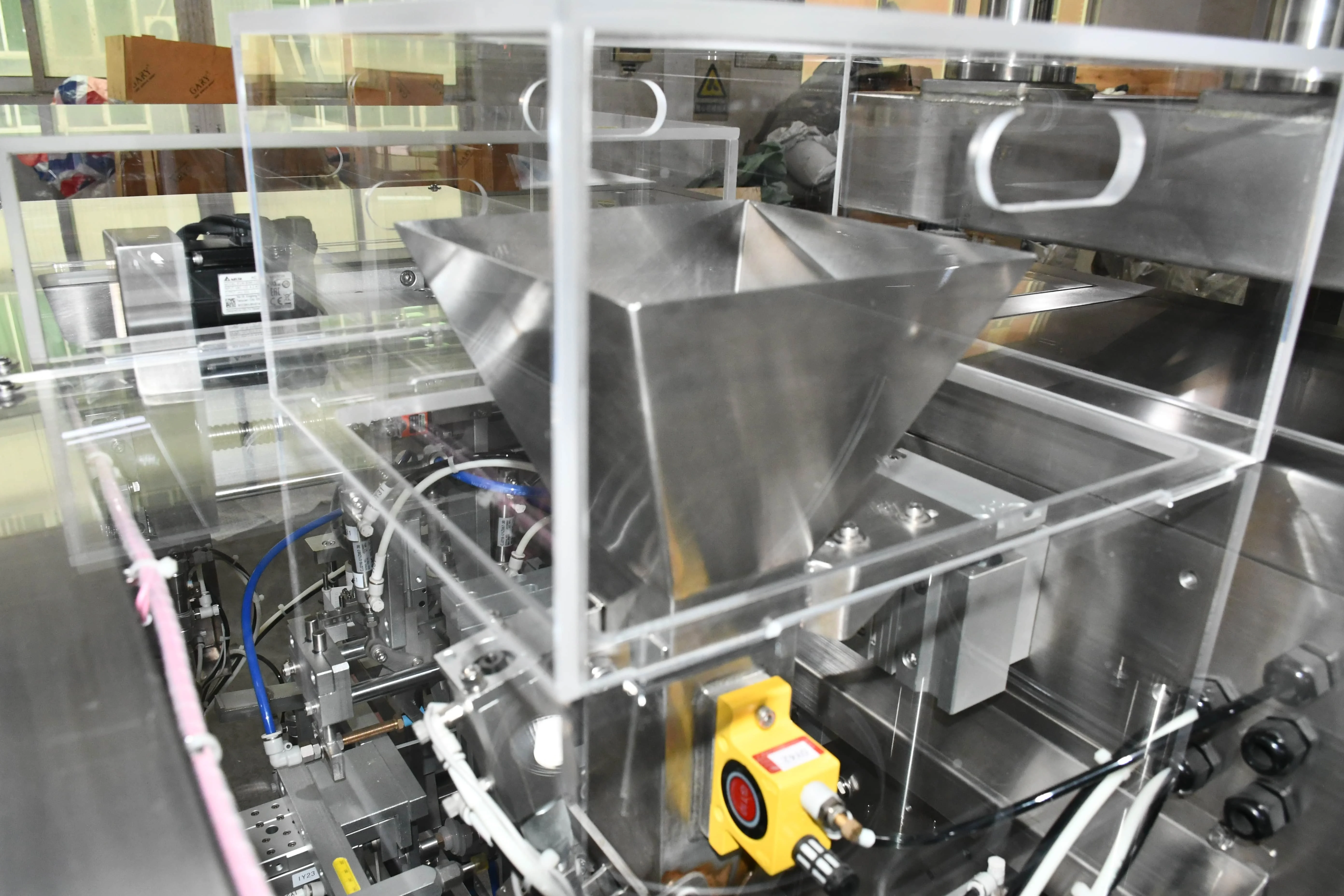

TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute
TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute
enters the bag and opens its gate. Product is dispensed immediately, without spillage and protecting the seal from contamination.
Difficult product that easily bridges is dispensed into the pouch directly from the filler, through the "open-gate''
FILLING
During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position
SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles,
FILLING
During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position
SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles,
folded corners and non aligned seals
MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal
MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal
all cycle processes for easy monitoring.
SPECIFICATIONS
Model No. | TOPY-MDP1 | TOPY-MDP2 |
Bag Width | 70-280mm | 70-280mm |
Bag Length | 80-320mm | 80-440mm |
Bag Type | Stand-up bag, pillow bag | Stand-up bag, pillow bag |
Power Supply | 220V, 50HZ | 220V, 50HZ |
Air Consumption | 7.0 CFM@80 PSI | 7.0 CFM@80 PSI |
Pneumatic Parts | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan |
Company Information
TOP Y MACHINERY Co., LTD was founded in October 2011 in Lunjiao Town, Foshan City, and then we moved to Qide Industrial Park, Beijiao Town. We are integrated company with R&D, building, marketing and providing after-sale services backup. We are dedicated in producing all packing machines:
1. MDP bag given mini doypack machine for preformed pouches.
2. VP vertical forming filling sealing machine for roll of film.
3. VW linear weigher for granules weighing and filling.
4. Powder packaging systems.
5. Granule packaging systems.
6. Liquid packaging systems.
7. Auxiliary conveyors.
and turnkey material handling, weighing, packaging and inspecting solutions for granule, powder and liquid. These products are widely used in foods, medicines, chemicals, toys and ironware industries.
TOP Y MACHINERY Co. believes in machine innovation and design. We gather up persistent efforts and technology to aim at customers’ satisfaction quality. We are keen to better detailed design and engineers work on every working stage in the drafts. In the working shop the workers assemble the whole machine by batches to make sure each batch works well first. "Customers First" to ensure customers get good quality machines and also let us win good reputation in customers. We are ready to provide quality machines and sincerely hope to have chances to cooperate with you.
Related products
FAQ
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200.
For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation.
Also our engineers are available to clients’ factory and technical training.
