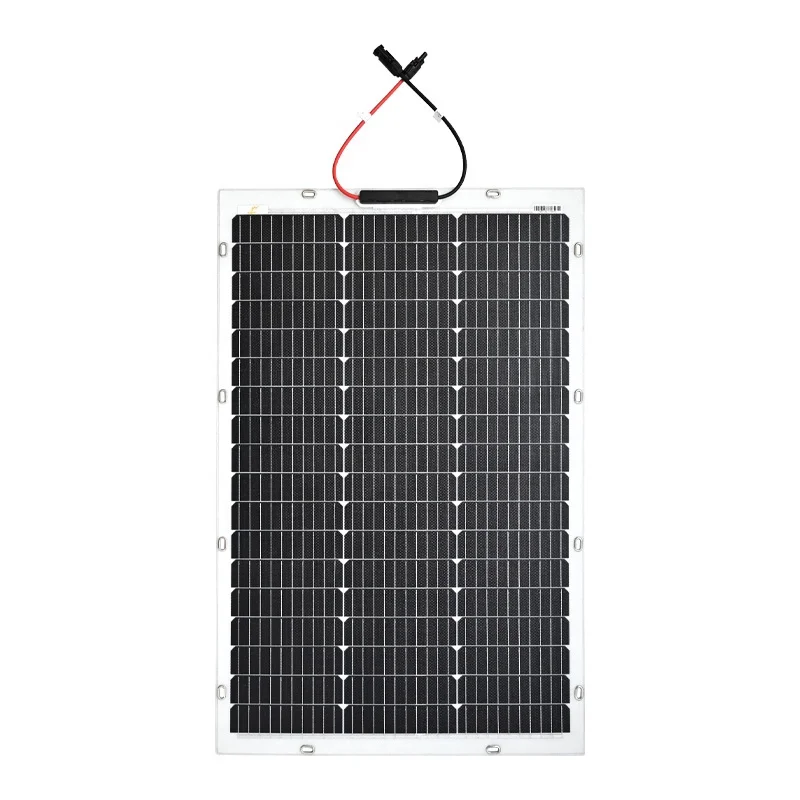

Model | HP-B-4*100W |
Maximum Power/Pmax(Wp) | 4*100W |
Cell Efficiency | >22.7% |
Number of cells | 216(3*18*4) |
Operating Voltage/Vmp(V) | 48.0 |
Operating Current/Imp(A) | 41.0 |
Open Circuit Voltage/Voc(V) | 10.24 |
Short Circuit Current/Isc(A) | 9.76 |
Veneer component dimensions | 920*600*2mm*4pcs |

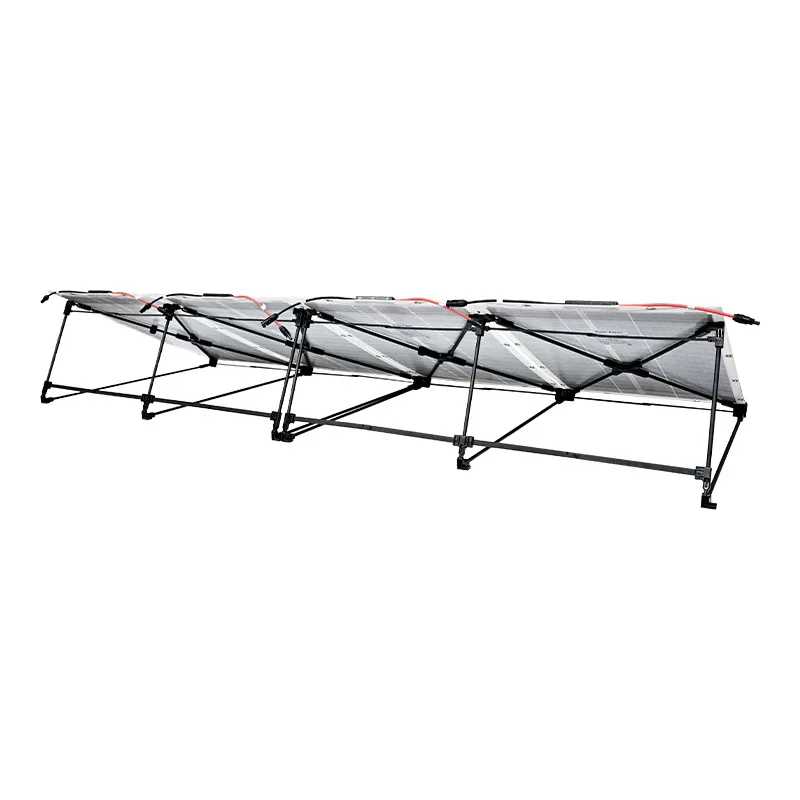

Expansion size | 925*1230mm*320*2pcs |
The maximum system voltage | 600V DC(IEC) |

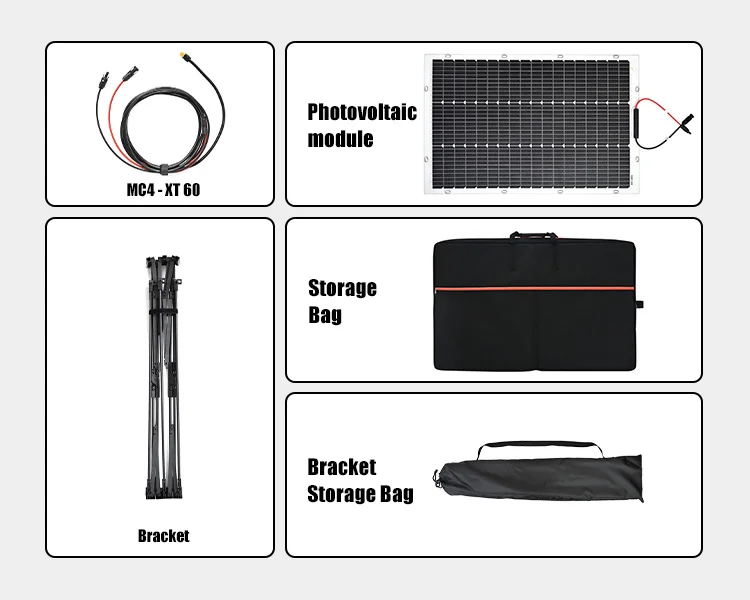

Output cable | MC4 to XT60 Adapter Cable 12AWG 5m |
Weight(set) | 8.86KG |
Output power tolerance | ±3% |
Operating Temperature | -20~70℃ |

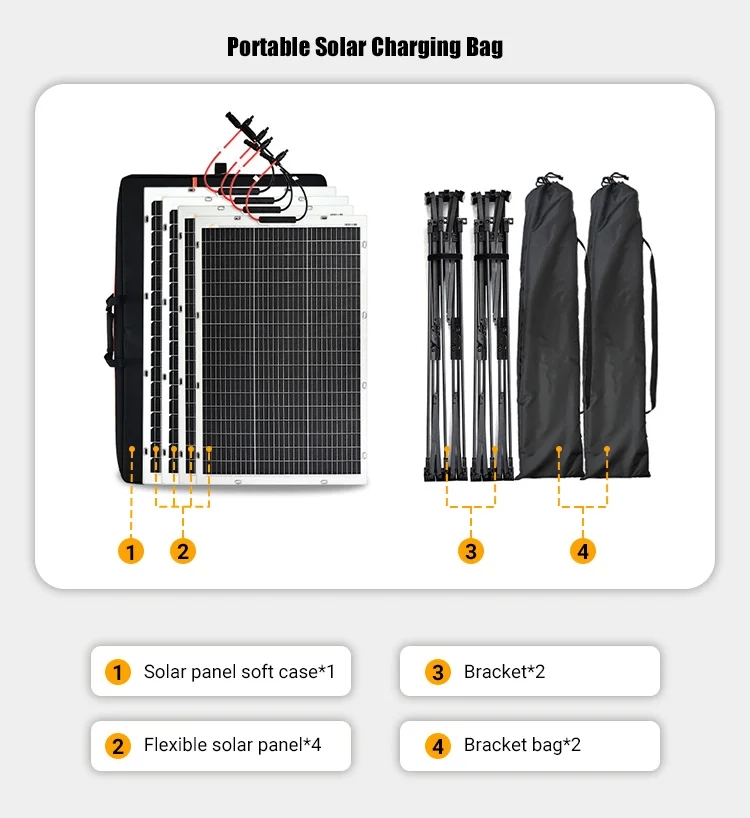

Packaging method | 10sets/master carton |
Warranty | (solar panel: 5-year warranty, 15-year lifespan) |
