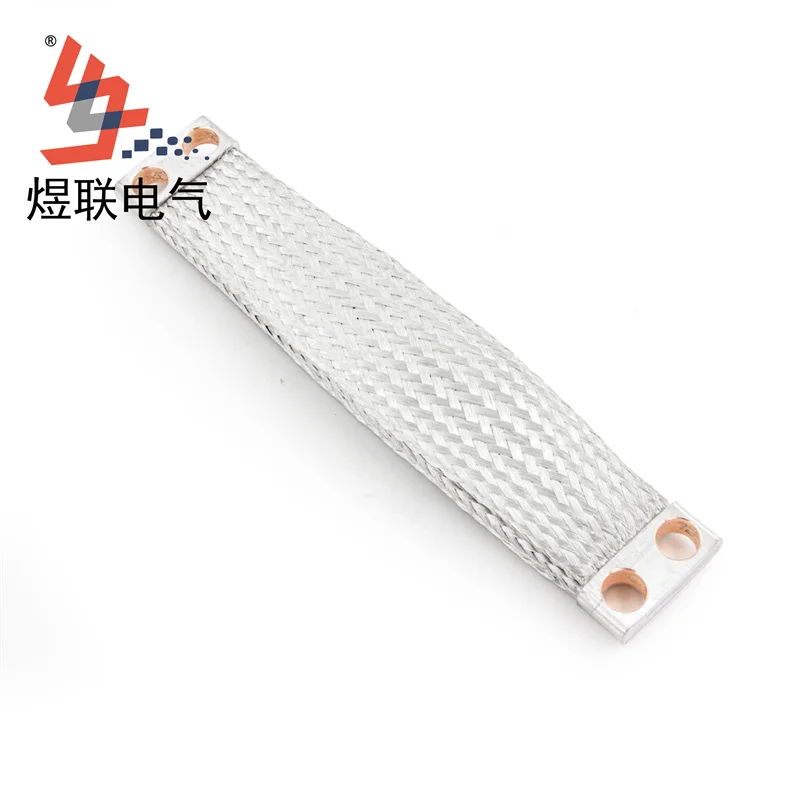

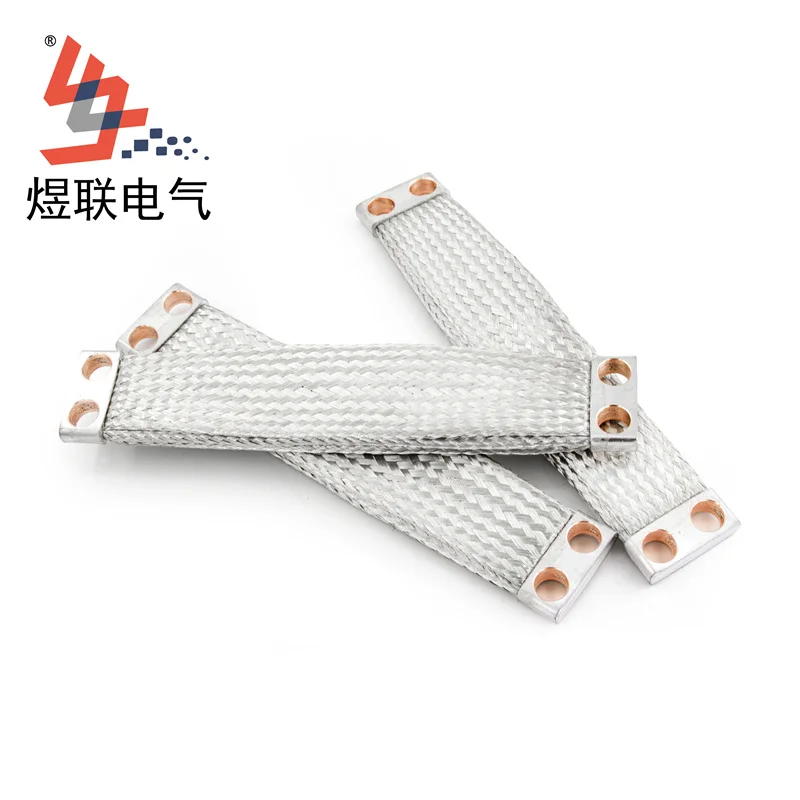

Manufacturer custom bonding leads jumper braided copper flexible connector busbar tinned braid earth shunt
- Category: >>>
- Supplier: Yueqing Yulian Electrical Technology Co. Ltd.
Share on (1600830665659):
Product Overview
Description
Products Description

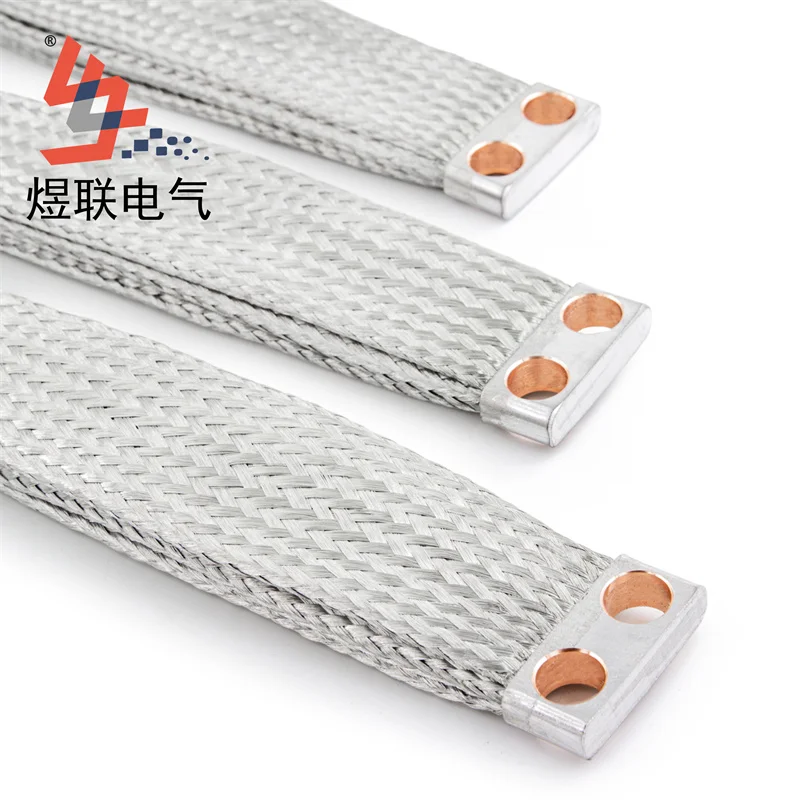

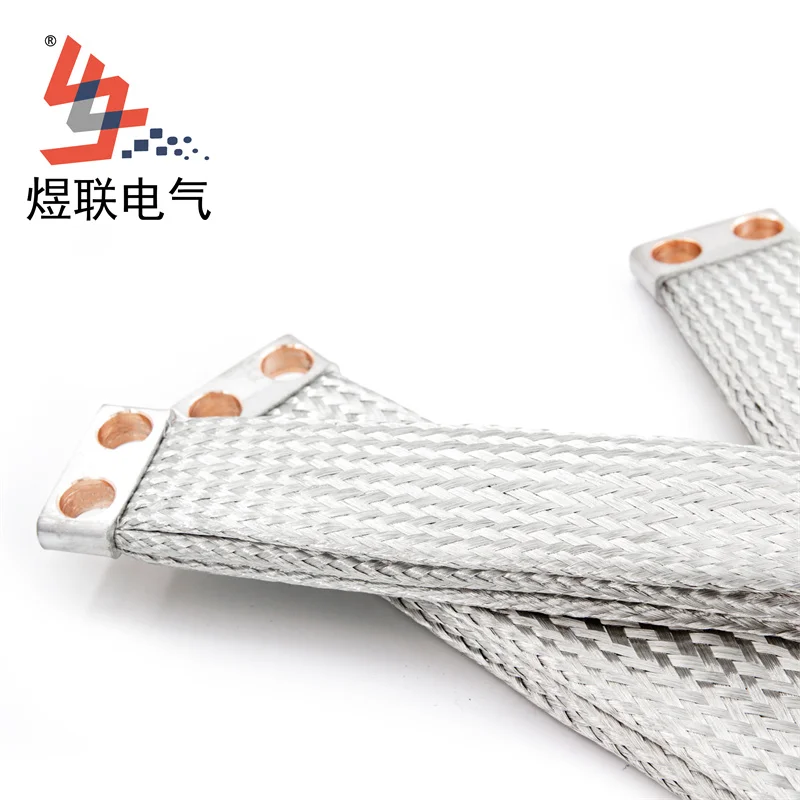

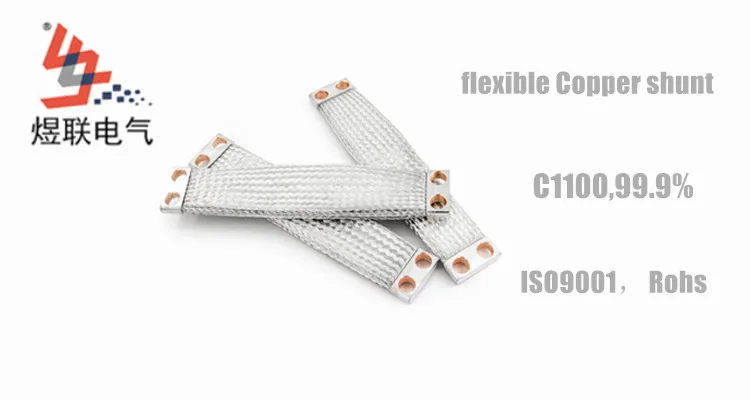

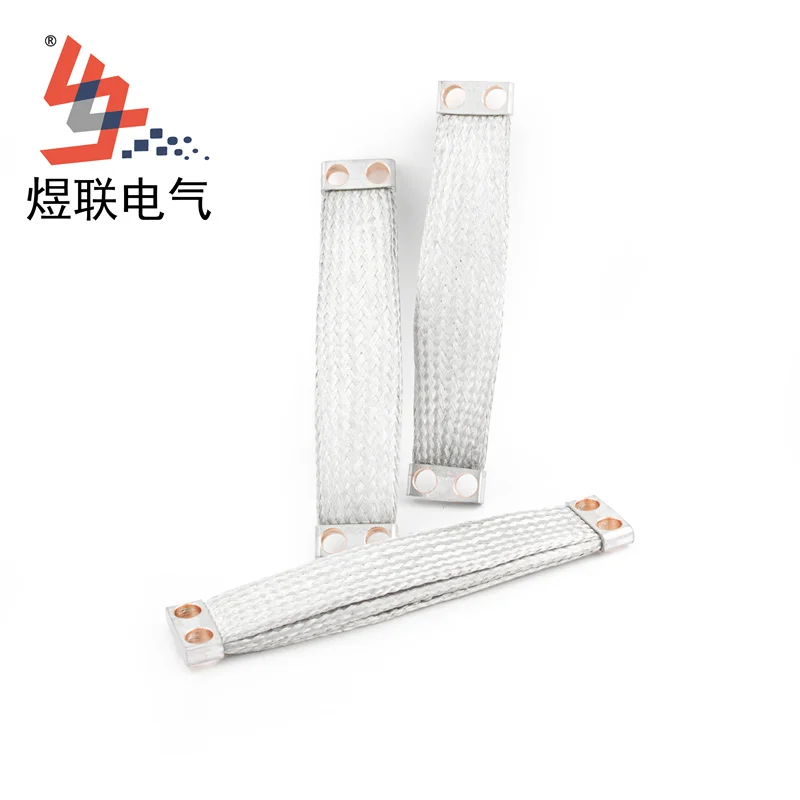

FLEXIBLE POWER BRAIDED SHUNTS
Flexible power braided connectors are used to transport high currents.These are copper connectors extremely flexible components and are manufactured out of 1 or more copper tapes
They shunts are used for example between busbars or between busbars ans transformers, busbars and other electrical contacts.
The purpose of power braids is to compensate vibrations, dimensional errors
The braids can be made of red copper or tinned copper wires.
Standard wires used for power braids have a diameter of 0,20mm
Other possible wires diameter are 0,10 – 0,15 mm
Contact areas are possible either with :
– Bare red copper contact areas
– Tinned copper contact areas
– Silver plated contact areas
– Nickel plated contact areas
Drilling of holes can be made with standard pattern or custom.
Cross section can be made up to 5000 mm²
You are free to enquire us for custom made parts.
Welcome to inquiry us now.
Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized The joints at both ends are crimped with high-quality copper pipes or Copper Lug Terminals. |
Copper Diameter | 0.15mm (conventional), can be customized 0.05, 0.07, 0.10, 0.12, 0.19, 0.20, 0.25, 0.39mm and other copper braided wires. Note: The thinner the copper wire, the softer the product, and vice versa. |
Surface Treatmentz | Copper braid part:Copper braided wire can be divided into bare copper and tin plated. Copper connection at both ends: can be silver plated, tin plated, zinc plated, nickel plated, gold plated. |
Salt Spray Testing | In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest |
Bending Testing | Bend 10000 times in 15 radian angle without breakage or fracture. |
Conventional copper braided wire cross-sectional area: | single layer 1.5mm2—150mm2 (multi-layer braided wire can be customized, stacking up to 30,000 square meters) |
FAQ
Q:Are you factory or trading company?
A: We are factory with 10-year exporting experience.
Q: Can I get sample before making order?
A: We can send you samples if you tell us the model and size you need, or you send us your drawing.
Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.
For customized model, we can send sample within 7-10 days.
Q: How do you control your quality of goods?
We have inspection department. All goods will be inspected before packing.
Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
For bulk order, payment is 30% TT before production 70% TT before delivery.
Q: Do you accept our design or OEM size? Could i print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.

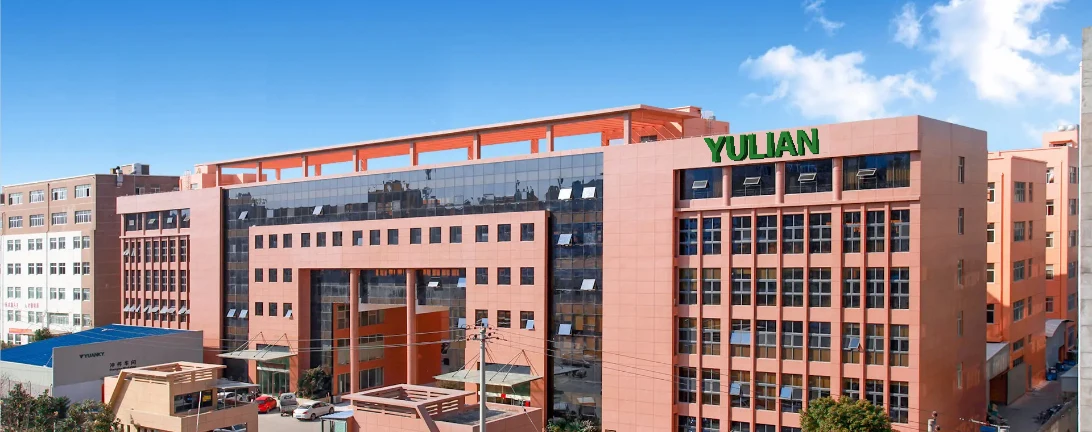

Company Profile
222
YULIAN is a scientific and technological enterprise specialized in the research, production and sale of various kinds of copper laminated foil busbar, copper braided/stranded flexible busbar, copper stranded wire, copper braided wire, expansion joint, copper shunt and related copper assemblies.
YULIAN is located in Yueqing Economic Development Zone, Zhejiang Province, with complete supporting facilities and convenient transportation and logistics. Now it already obtain the certificate of ISO 9001:2015 quality management system.
YULIAN products produced by the company are widely used in many industries, such as new energy vehicles, traditional cars, electric power, railway transit, medical devices and so on. All products are manufactured with high quality copper materials of grade T2 or above and other materials of the same grade. The raw materials of each batch of products can be traced back. All products are manufactured in strict accordance with the requirements of the quality system to ensure that the products meet the quality requirements and consistency requirements of customers. Since its inception, the company has introduced and trained a number of high-quality personnel, with strong design, development, production and quality assurance capabilities; the company now owns first-class production equipment, advanced production technology, complete testing equipment . can provide customers with a full service from product design to delivery.
In line with the tenet of "honesty-based, quality-oriented", the company always pays attention to the needs of customers and provides the best quality and services.
In line with the tenet of "honesty-based, quality-oriented", the company always pays attention to the needs of customers and provides the best quality and services.
Product Application
Battery energy storage systems
Outdoor Distribution Box
Charging Pile
New energy vehicles
Rail Transit
UPS Center
Contact Us
YUEQING YULIAN ELECTRICAL CO., LTD
Contact: Sarah Tang
Email: sales@yqyul.com
Tel: 0577-61510878
Fax: 0577-61510877
Whatsapp/Phone: +86 18066353027
Website: www.yqyul.com
