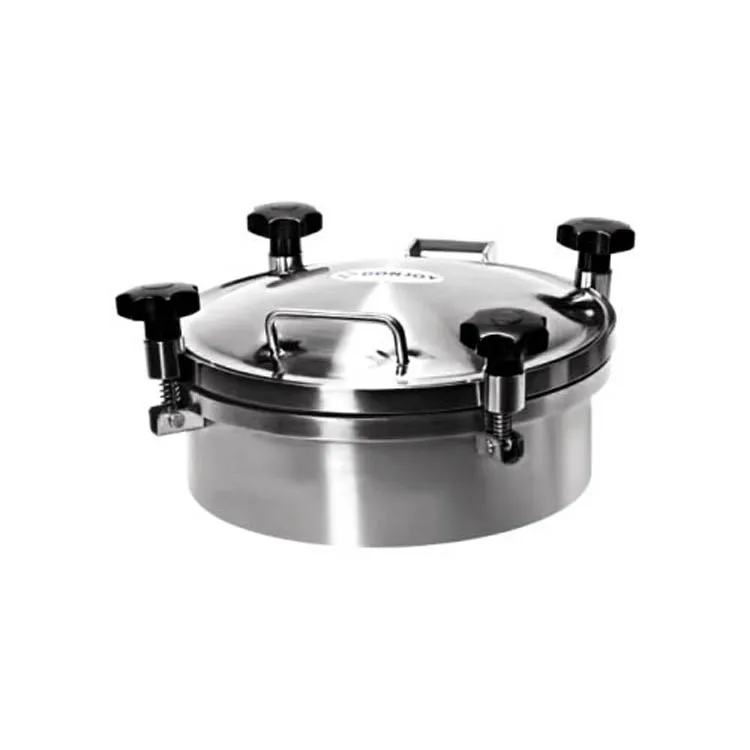

Sanitary food grade oil tanker round pressure manhole covers ss316L with handwheel

Product Overview

Description

Sanitary food grade oil tanker round pressure manhole covers ss316L with handwheel

Applications:
Manhole cover is mainly used for pressure vessel in the feilds of food, beverage, chemical,etc.

Design and feature:

• Outward opening manhole covers


• Plastic wheel or stainless steel wheer


• Can be with union sight glass


• Internal surface:Ra0.8um-Rs0.5um


• Outside surface:Matt finished or sand-blasting finished


• Working pressure:2-5 bar


• Gasket:EPDM,NBR,SILICON,FPM in accordance with FDA 177.1600


• Height≤100mm

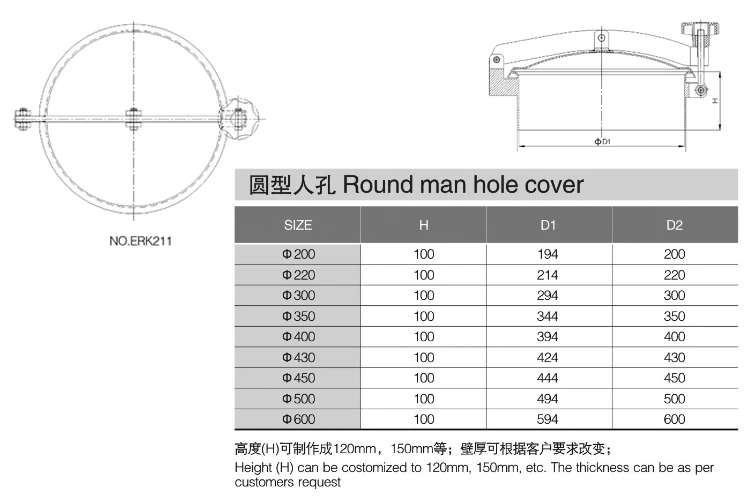

• Size:102mm,152mm,200mm,250mm,300mm,350mm,400mm,430mm,450mm,500mm,550mm,600mm,700mm,800mm


• Material:ANSI304(1.4301)/316L(1.4404)


• Working temperature-20-130 degree


• Thicknes:3mm-5mm


• Height can be customized


• Handwheel quantity can be customized

Internal surface	Ra0.8μm-0.6μm
Outside surface	Polishing finished,matt finished and sand-blasting finished
Gasket	EPDM,NBR,SILICON,FPM
Height	≤100mm
Material	304/316L
Applications	Mainly used for tanks in the fields of food,beverage,chemical,etc.
