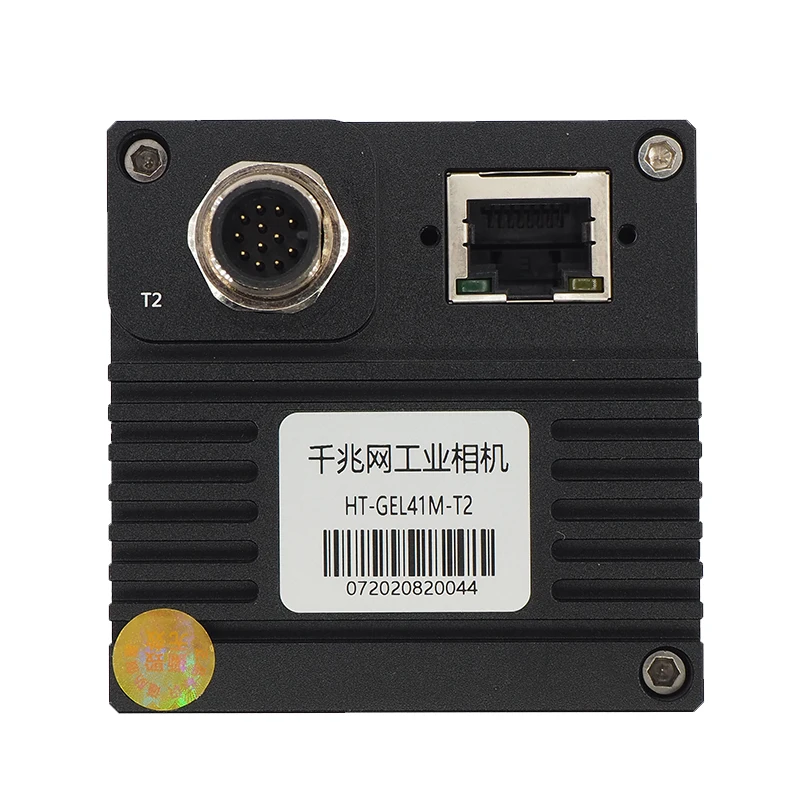

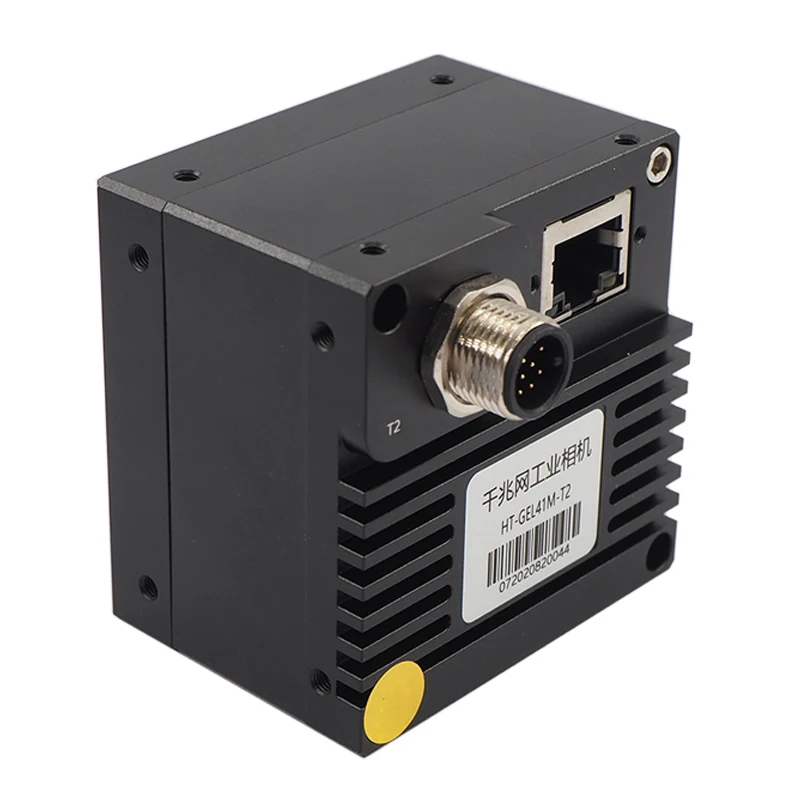

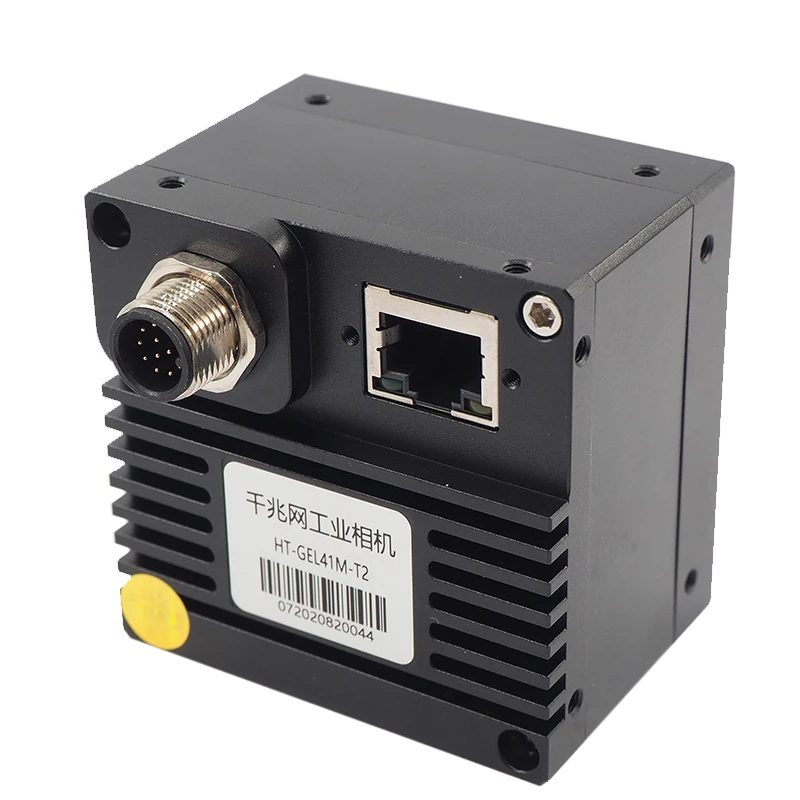

Line Scan Camera 4K Machine Vision Gigabit Ethernet M42 Mouth
- Category: >>>
- Supplier: Shenzhen Huateng Weishi Technology Co. Ltd.
Share on (1600830676342):
Product Overview
Description
GigE Line Scan Industrial Camera
Camera Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission;
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.
Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply
4K Camera Parameters:
Model | HT-GEM44C-T2 | HT-GEM44M-T2 |
Sensor | CMOS | |
Shutter Type | Global Shutter | |
Sensor Size | 28.6mm | |
Line Frequency | 8K | 28K |
Color | Color | Monochrome |
Pixel Size | 7.0 X 7.0μm | |
Resolution | 4096X4 | |
Pixel Depth | 8 Bit | |
Sensitivity | 27.7 V/lux*s | |
GPIO | GPIO Digital Input x2, GPIO Digital Output x2, General I/O x1 | |
Acquisition Mode | Via Free Run / Via Software Trigger / Via Hardware Trigger Via Encoder Trigger / Via Frame Trigger | |
Maximum Gain | 8 | |
Exposure Time | 0.002~1 ms | |
Framebuffer | 128MB | |
Video Output Format | RGB888 | mono8 |
Vision Standards Protocol | GigE Vision V1.2,GenICam | |
Lens Mount | M42*1.0 | |
Data Interface | RJ45 Gigabit Ethernet | |
Power Supply | 9-24V (POE Is Standard) | |
Power | <6W | |
Dimensions | 59.5 x 59.5 x 43.3mm | |
Weight | <500g | |
Operating Temperature | 0~50 | |
Operating System | Windows And Linux 32&64 bit System | |
Programming Language Pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java | |
Other Functions | Support ROI of any size Custom resolution, Contrast and gamma adjustment, Saturation adjustment, White balance correction, Black level correction,Custom dead point coordinate correction, ISP image processing acceleration,3D noise reduction, Custom LUT table, Frame rate adjustment, Custom camera name, Etc. | |

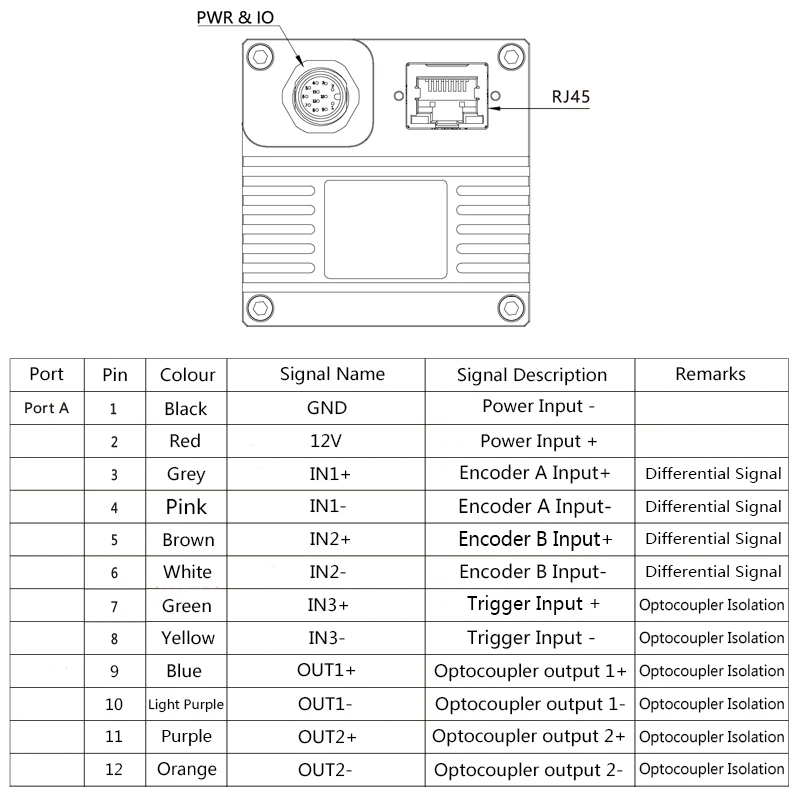

Hardware Trigger Line Sequence:

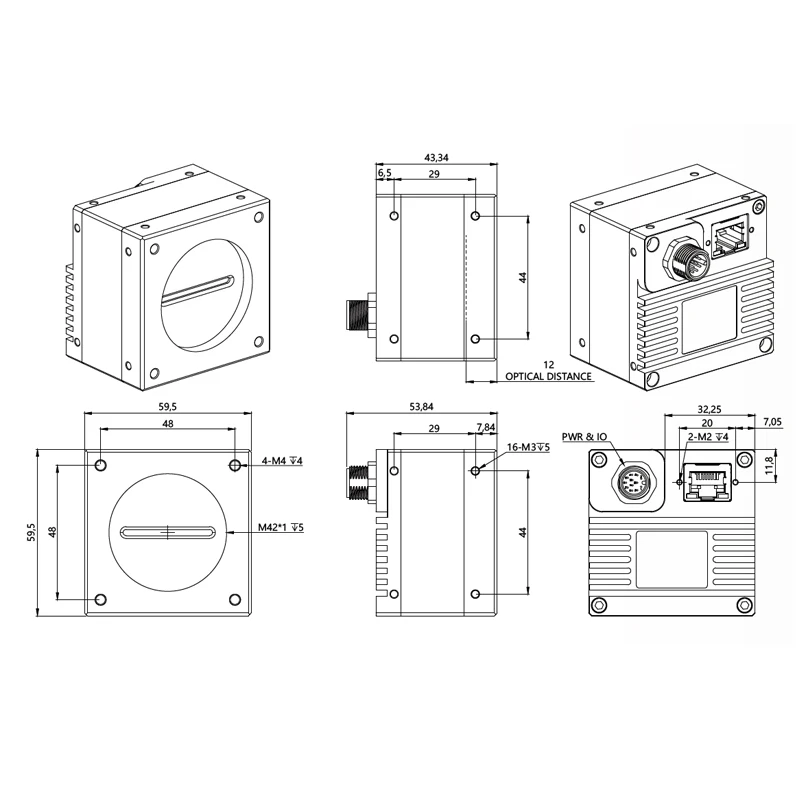

Camera Size:
