8 15t Fixed Dock Leveler Container Loading Unloading Dock Leveler
- Category: >>>
- Supplier: Xinxiang Zhongxiang Lifting Machine Co. Ltd.
Share on (1600830772802):
Product Overview
Description
Product Description
8-15t Fixed Dock Leveler Container
Loading Unloading Dock Leveler

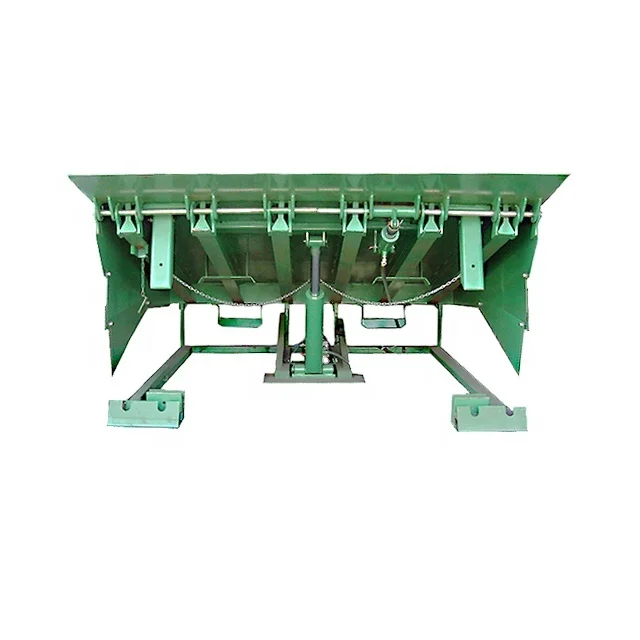

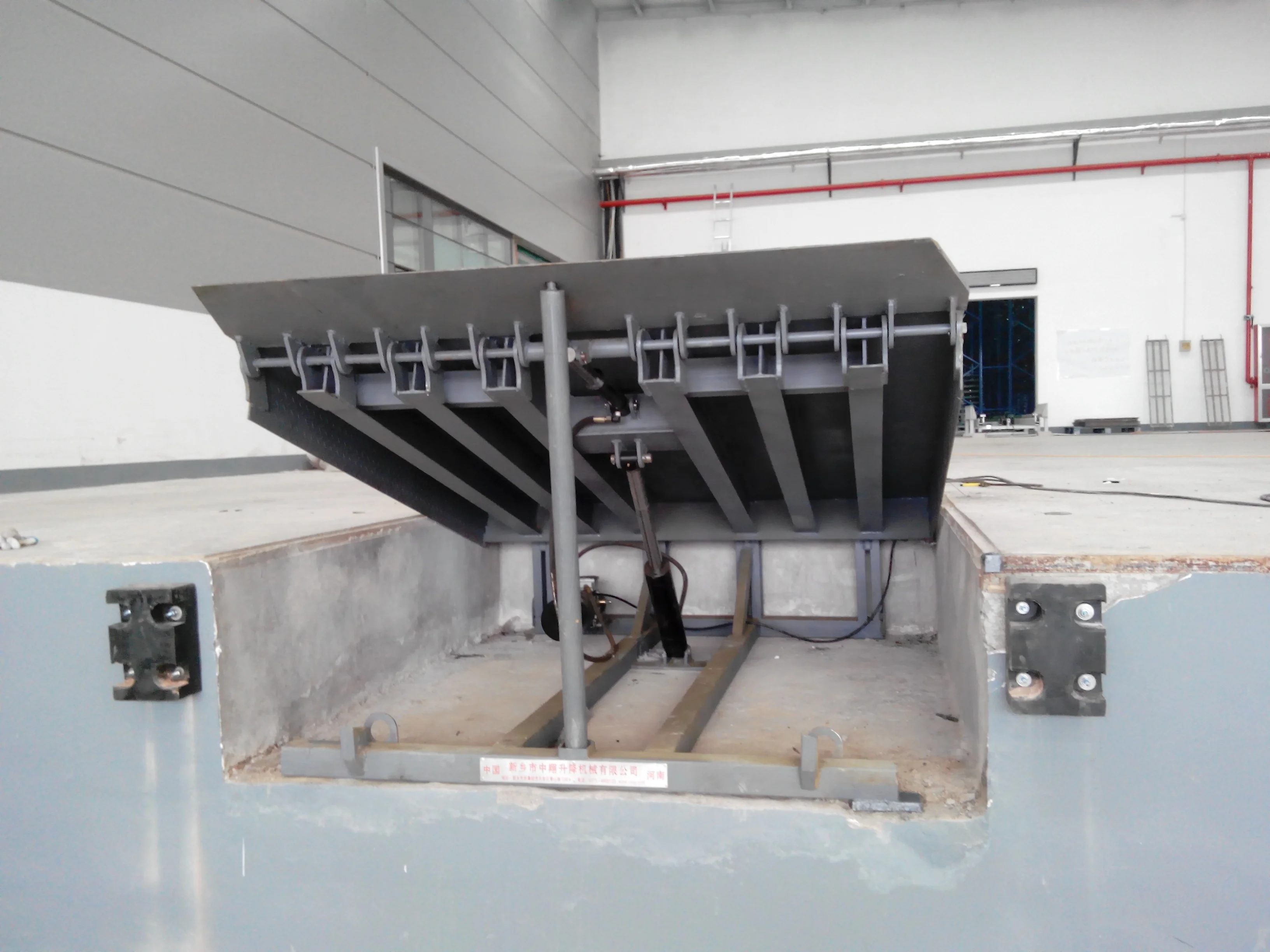

Stationary hydraulic dock leveler used hydraulic power unit through the main oil cylinder will discharge the main panel lift platform, small oil cylinder automatic strap will launch, and through the unloading platform weight drops, the small strap to the rear platform, complete the whole movement.
Can be customized according to customer size
8-15t Fixed Dock Leveler Container Loading Unloading Dock Leveler 8-15t Fixed Dock Leveler Container Loading Unloading Dock Leveler 8-15t Fixed Dock Leveler Container Loading Unloading Dock Leveler 8-15t Fixed Dock Leveler Container Loading Unloading Dock Leveler
model | DCQ0.55-6 | DCQ0.65-6 | DCQ0.7-8 | DCQ0.55-8 | DCQ0.65-10 | DCQ0.7-10 |
Rated load(kg) | 6000 | 6000 | 8000 | 8000 | 10000 | 10000 |
Platform size L*W((mm) | 2000*1800 | 2000*2000 | 2500*2000 | 2000*1800 | 2000*2000 | 2500*2000 |
Increase height A (mm) | 250 | 350 | 450 | 300 | 350 | 450 |
Lower height B (mm) | 300 | 300 | 250 | 250 | 300 | 250 |
| Own height(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| Lip height(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| voltage(v) | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 |
| Motor Power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |

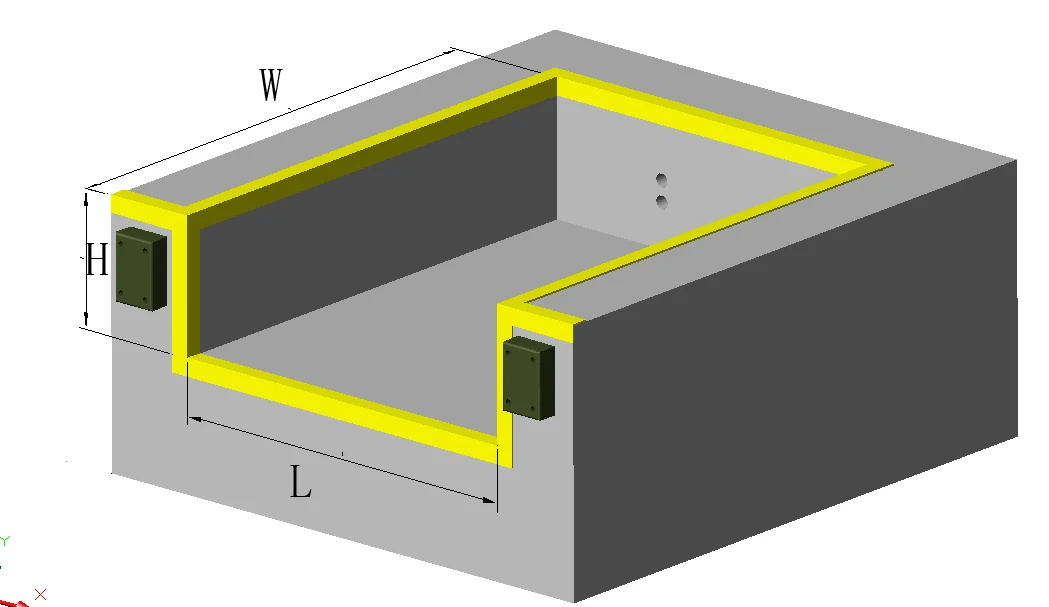

| Pit size L*W*H | 2160*1840*600 | 2160*2040 *600 | 2660*2040*600 | 2160*1840 *600 | 2660*2040 *600 | 2660*2040 *600 |
Main Features
1)Stable performance
2) easy to use
3) Running smoothly
Applications

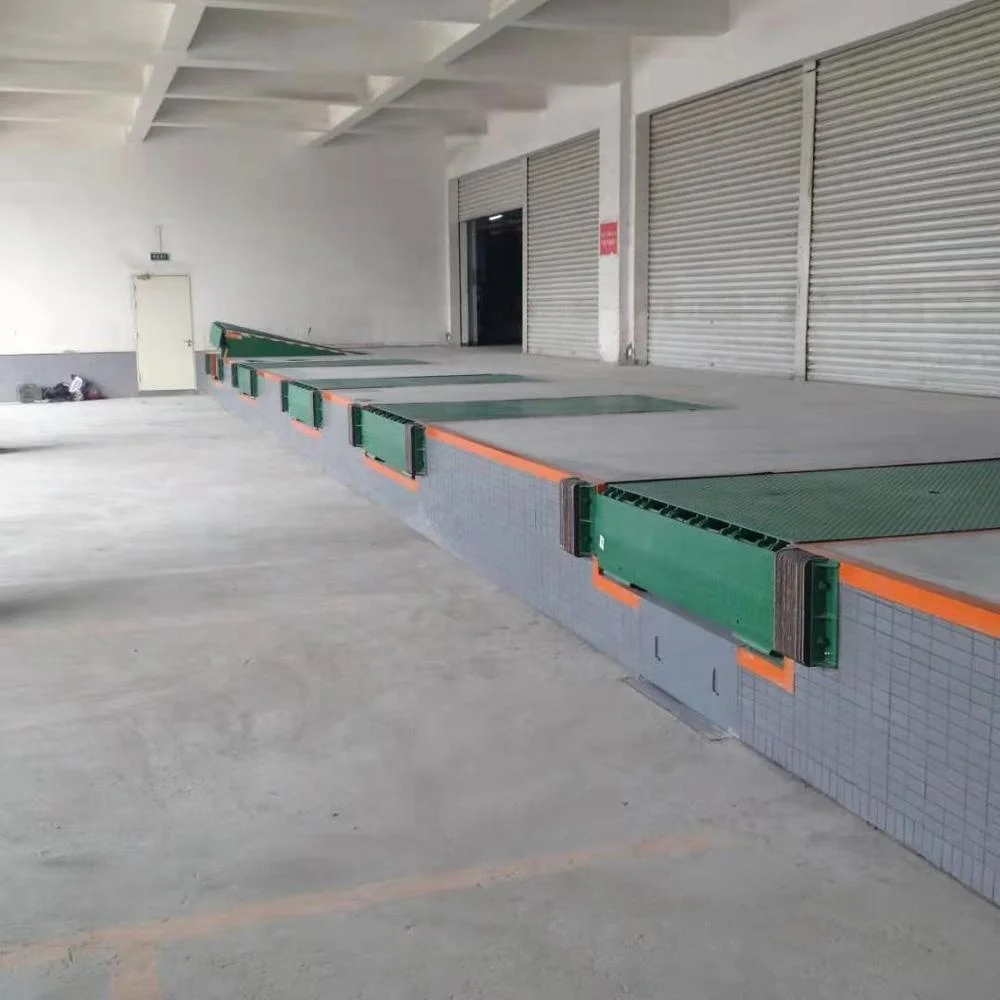

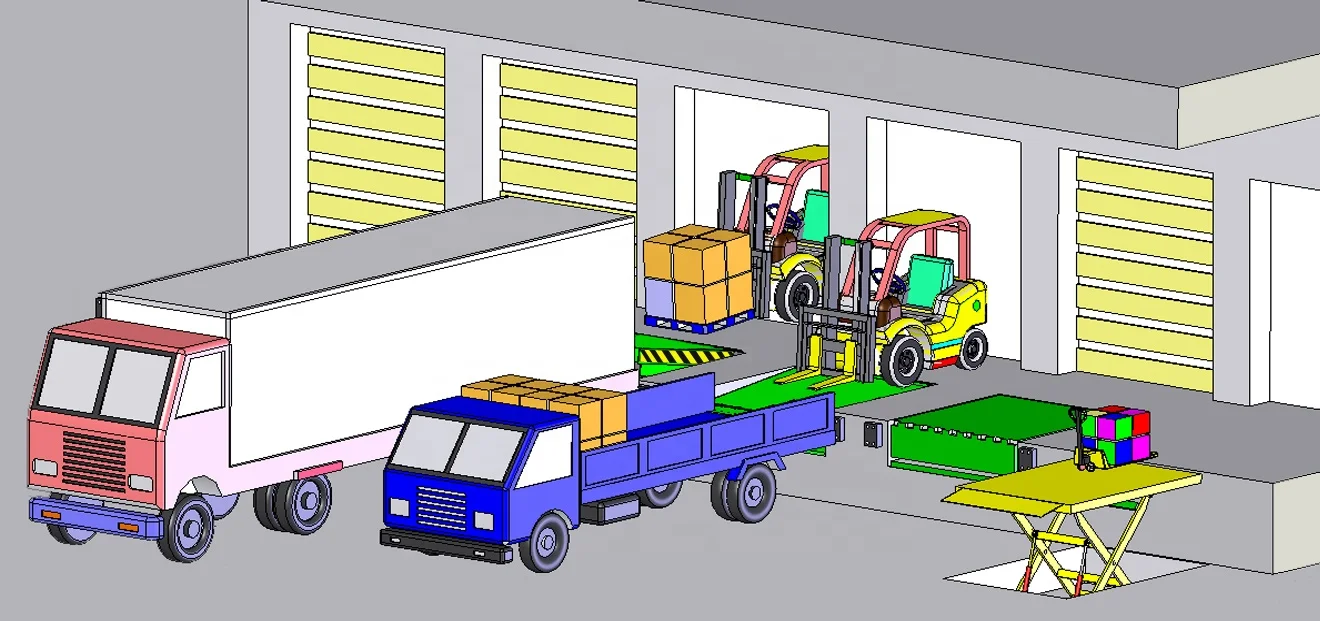

Truck used loading dock ramp

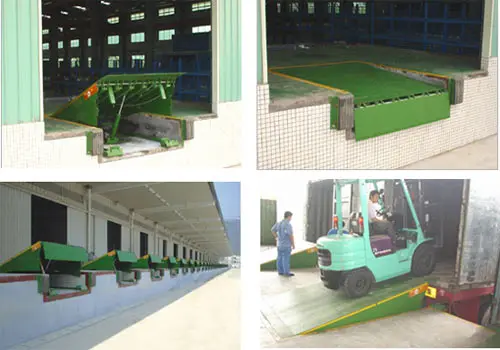

Stationary hydraulic dock leveler is the special auxiliary equipment to realize rapid loading and unloading of goods, its height adjustment function between the truck and warehouse loading bridge, such as forklift trucks carrying vehicles through which can directly into the van batch loading and unloading of goods, it takes only a single assignment can be realized fast loading and unloading of the goods. It reduces the number of workers in the workforce and improves productivity in order to achieve greater economic benefits .In general, It is the equipment necessary for the production of modern enterprise civilization and the speed of material circulation.

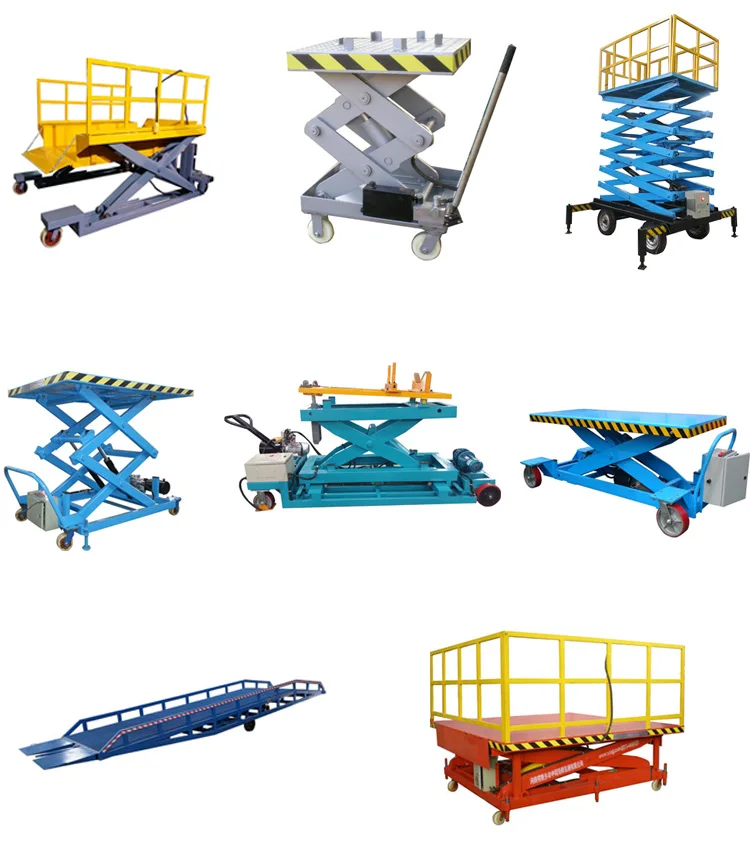

You may like
Packaging & Shipping
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our commitment
1. Respond to inquiries within 24 hours.
2. Professional pre-sales service technology to provide a full range of solutions.
3. We could offer professional use,installation and adjustment training.
4. The technician support remote or on site.
5.welcome to our factory and company.
