China cheap price Weichai electric generator 80kw silent 100 kva diesel generators for sale
- Category: >>>
- Supplier: Zhengzhou Leiming Power Equipment Manufacturing Co. Ltd.
Share on (1600830799317):
Product Overview
Description
Product Description

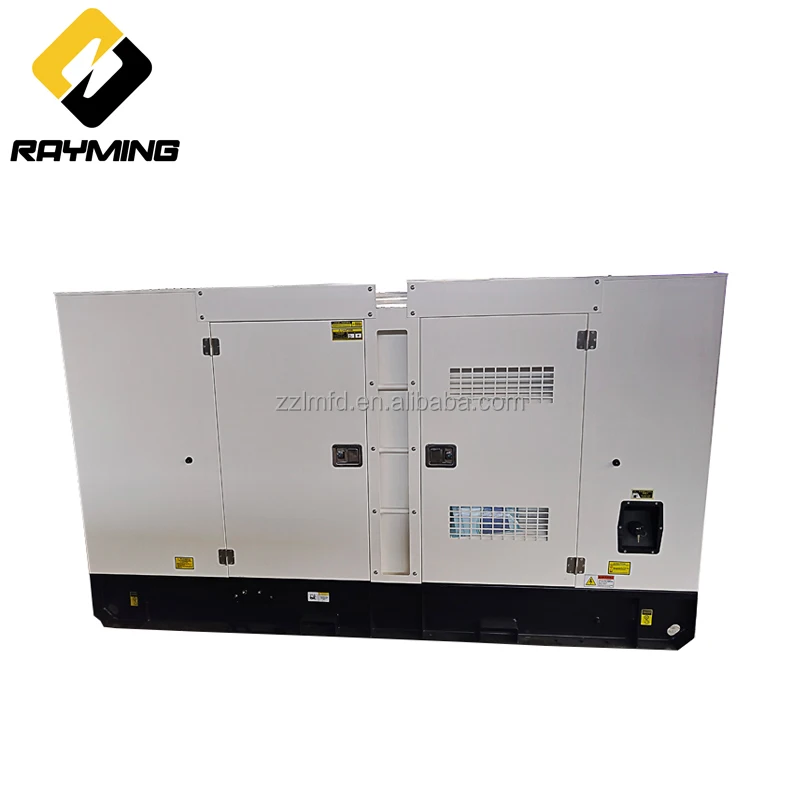

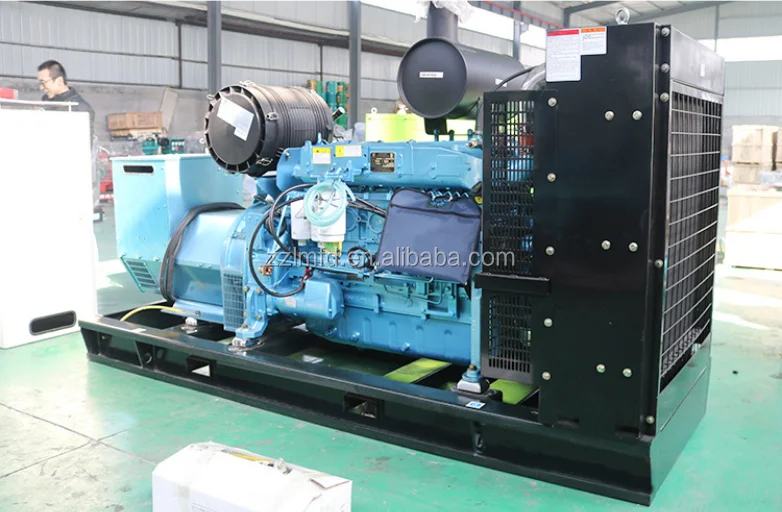

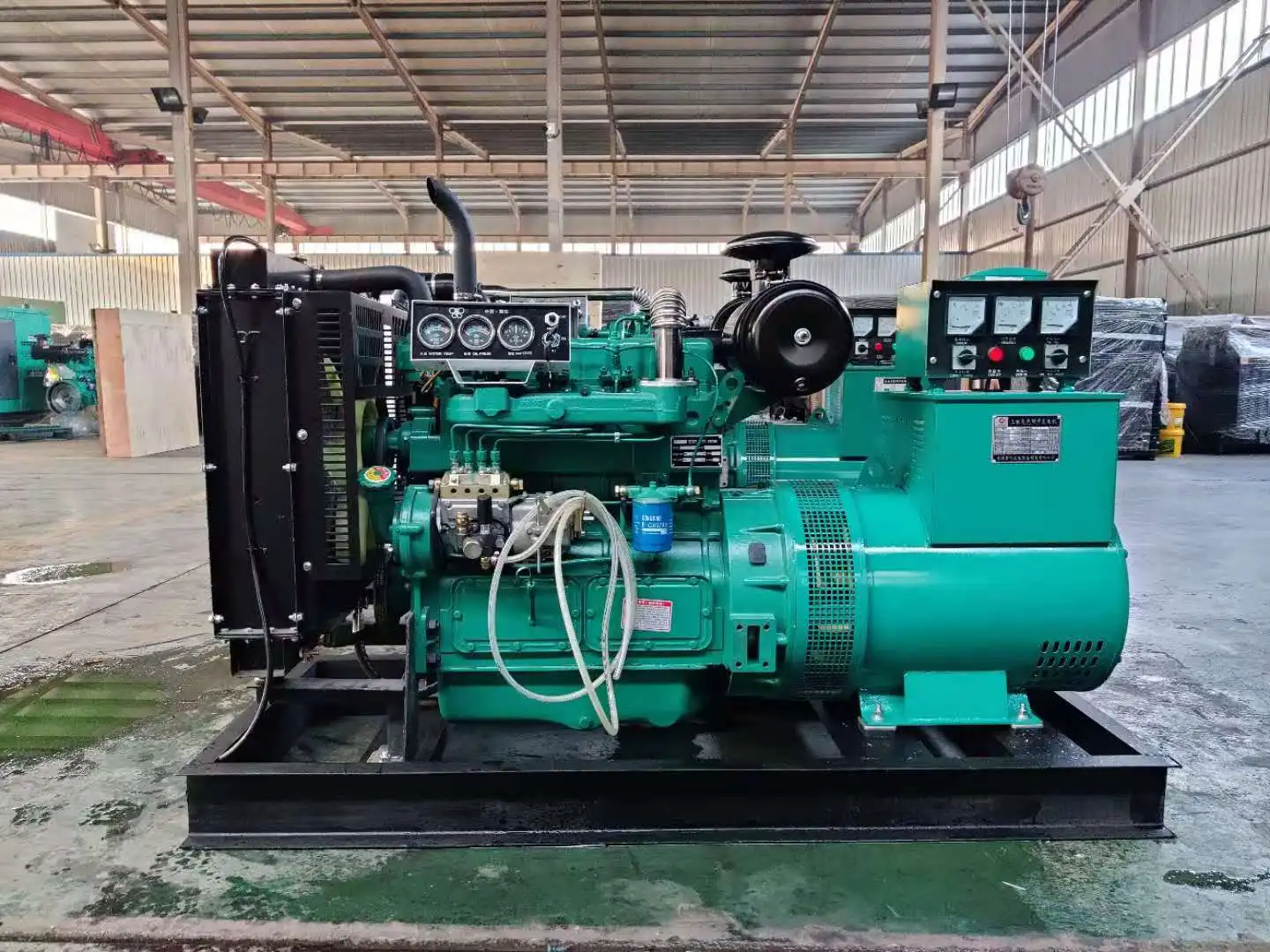

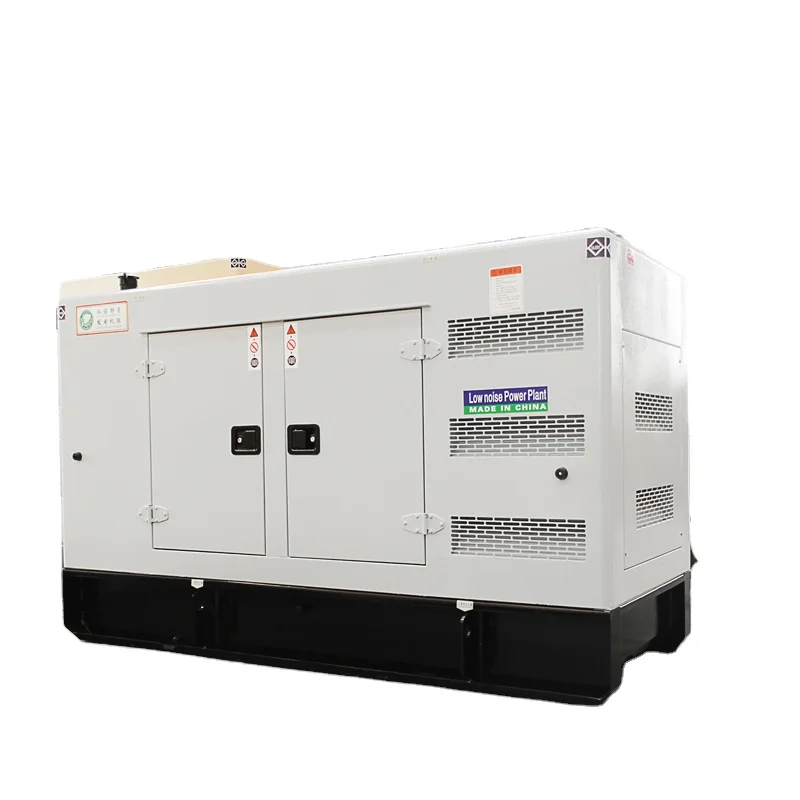

China cheap price Weichai electric generator 80kw silent 100 kva diesel generators for sale
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Standard configuration
Overall description:
● Engine
● Meet the environmental temperature 40 ℃
water tank radiator,Driving belt cooling
fans, with fan safety shield
● 24 V charging generators
● Generator:Single bearing generator,IP23
Grading Protection, H Insulation degree
● Shock absorber
● Dry air filter,Fuel filter,Oil filter
● Power output circuit breaker
● Standard control panel
● 12 V battery and battery connection cables
● Exhaust pipe,Bellows,Flange,Muffler set
● Documents and Manuals
Optional Accessories | ||||||
♦Auto startup control panel | ||||||
♦Automatic control panel(ATS) | ||||||
♦Split type daily fuel tank;Integrated base fuel tank | ||||||
♦Rainproof enclosure;Soundproof enclosure | ||||||
♦Mobile power station | ||||||
♦Mute power station | ||||||
Unit parameters | ||||||
Power: | 80kw/100kva | |||||
Rated voltage: | 400V/230V | |||||
Rated current: | 144A | |||||
Rated frequency: | 50Hz | |||||
The factor of rated power: | 0.8 | |||||
The regulating rate of instantaneous voltage: | ≤±15% | |||||
The regulating rate of steady voltage: | ≤±0.5% | |||||
The waving rate of voltage: | ≤0.5% | |||||
Voltage waveform distortion degree: | ≤5% | |||||
The time of steady voltage: | ≤1.5sec | |||||
The regulating rate of steady frequency: | ≤±2% | |||||
The regulating rate of instantaneous frequency: | ≤±5% | |||||
The time of steady frequency: | ≤3sec | |||||
The waving rate of frequency: | ≤±0.5% | |||||
The waste of fuel with full load: | 209g/kw.h | |||||
Size(mm): | 2200*810*1350 | |||||
Weight(kg): | 1400KG | |||||
The main parameters of the engine | ||||||
Brand: | WeiChai | |||||
Model: | WP4.1D100E200 | |||||
Standby power: | 88KW | |||||
Type: | four strokes, waste gas turbine boost,direct spurting type | |||||
Cooling way: | water cooling | |||||
With type: | Inline type | |||||
Bore*Trip: | 105*130mm | |||||
Cylinder: | 4 | |||||
Displacement: | 4.16L | |||||
Speed adjustment way: | Electronic speed governor | |||||
Rotating speed: | 1500r/min | |||||
Starting way: | starting with electricity | |||||
The main parameters of the generator | ||||||
Brand: | RAYMING | |||||
Model: | RM-80 | |||||
Type: | brushless (AVR automatic voltage regulating) | |||||
The connecting way of the phase: | three phases four lines | |||||
Insulation degree: | H degree | |||||
TIF: | <50 | |||||
THF: | <2% | |||||
The factor of rated power: | ≤±1% | |||||
Grading Protection: | IP23 | |||||
Genset Controllers
Main Products
Alternators
Genset Product Process
Certifications
You May Need
Mobile type
Open type
Slient type
About Us
FAQ:
Q:What are the payment terms?
A:T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
Q:What is the delivery time?
A:At least 10-15days after the deposit for most machines.
Q:How to pack the machine?
A:Standard packaging.
Q:What's the capacity you can do?
A:We always produce any capacity depend on customer needs.
A:T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
Q:What is the delivery time?
A:At least 10-15days after the deposit for most machines.
Q:How to pack the machine?
A:Standard packaging.
Q:What's the capacity you can do?
A:We always produce any capacity depend on customer needs.
