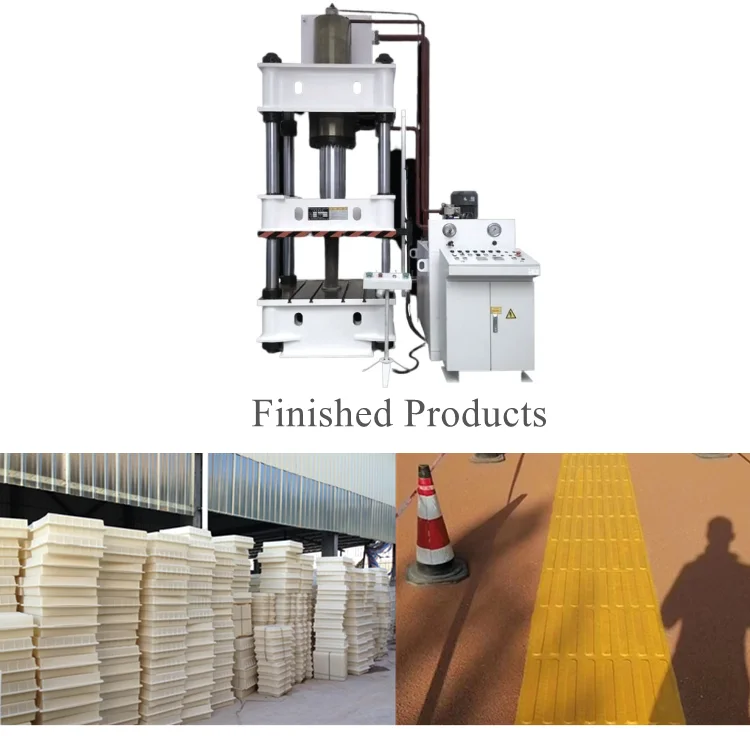

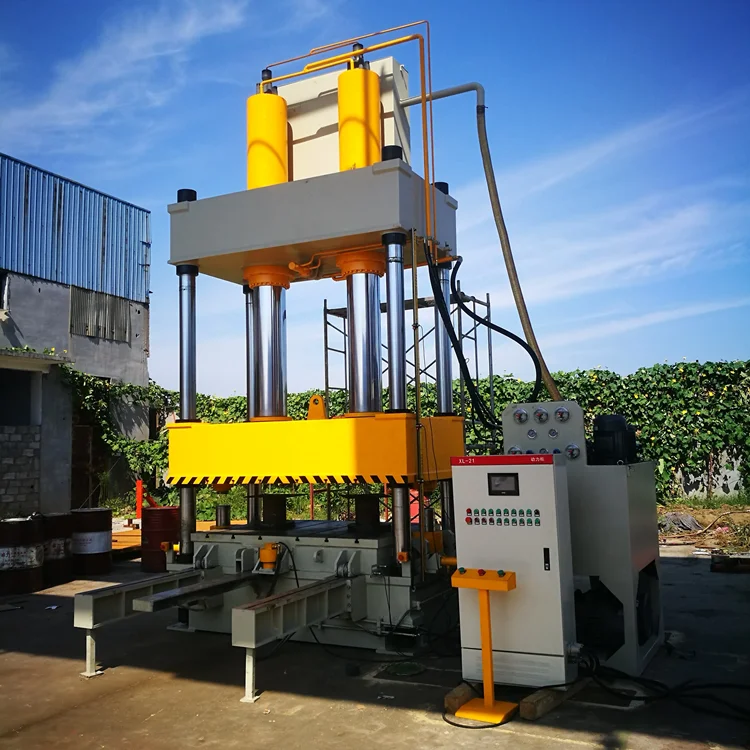

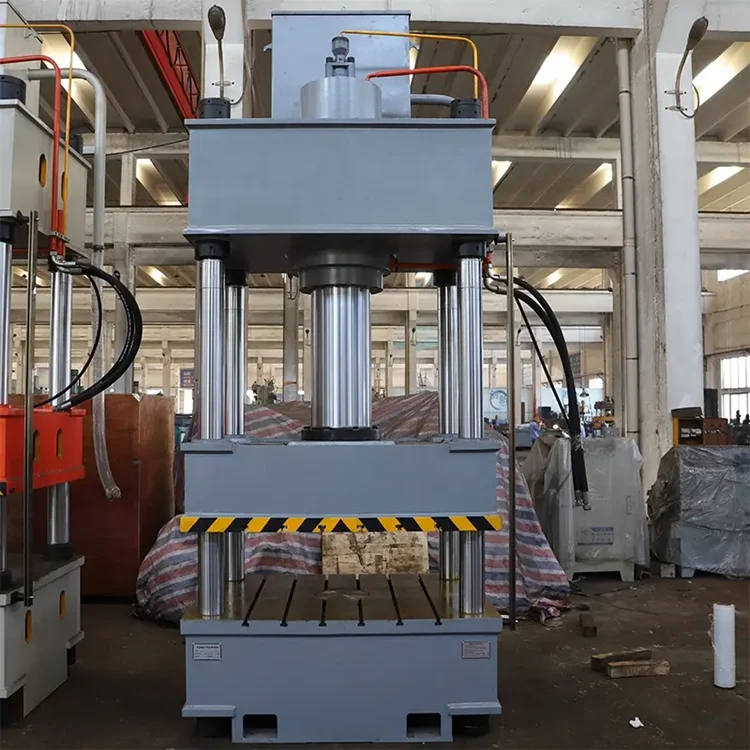

Commercial rubber plastic hydraulic press


Product Description




1. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting.
2. Hydraulic press machine mainly applies to the fields of plastic bricks, machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy.
3. Hydraulic press machine is suitable for the molding of plastic products, such as DMC and BMC.
4. The machine is highly automatic, especially suitable for mass production of parts. And it can be used as assembly line with several such equipment.


Specification




Advantage

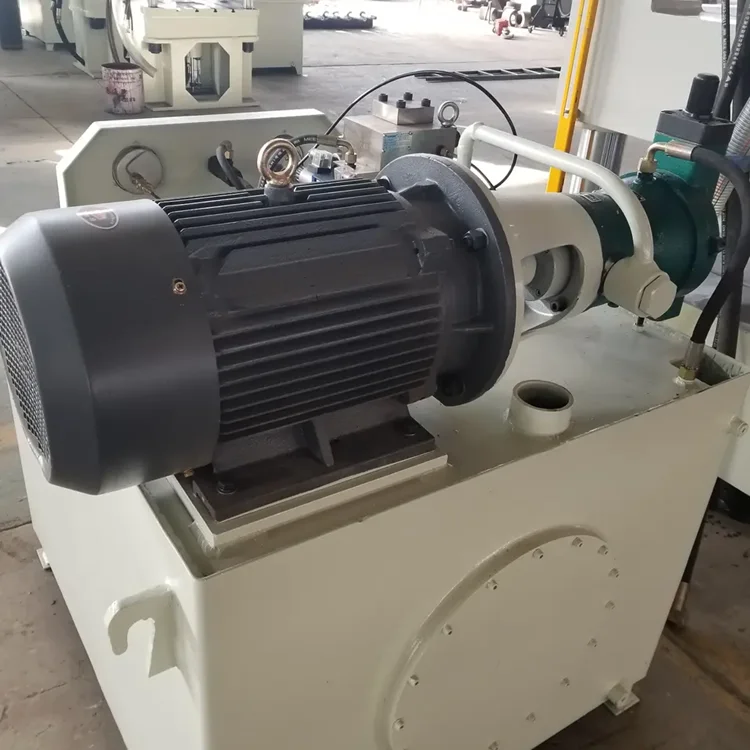

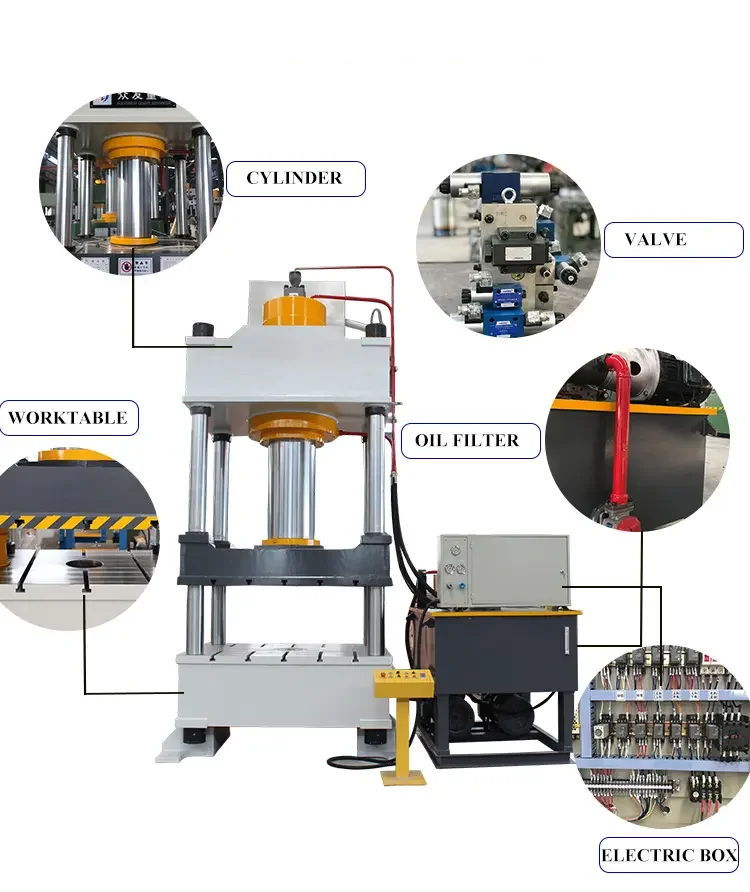

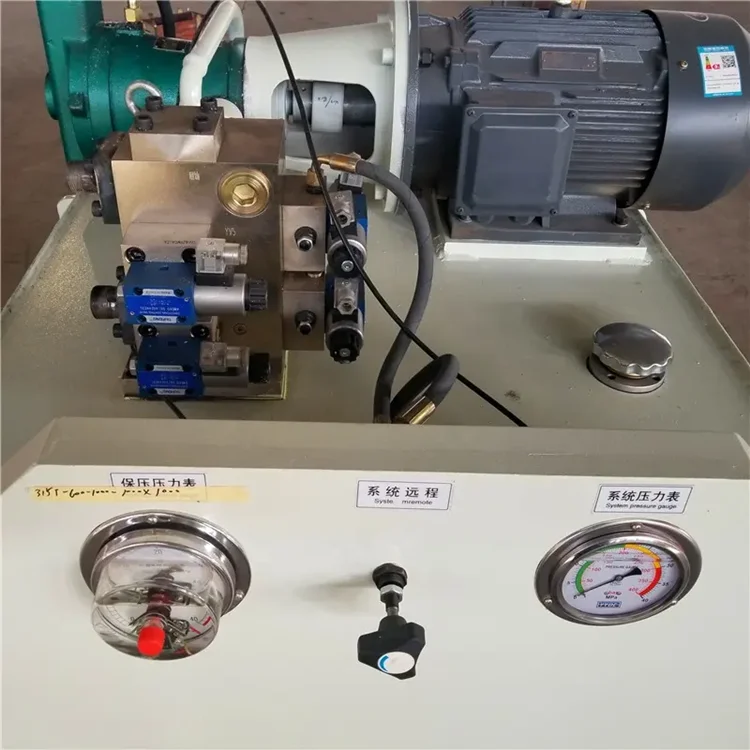

1. The hydraulic control system adopts integrated cartridge valve system and reliability, long life.
2. The hydraulic impact is small, reducing the connection between the pipe and the leak point.
3. Independent electrical control system, reliable, intuitive, easy to maintain.
4. Centralized control design, two operation modes.
5. Setup can be easily implemented.
6. Work pressure, according to the technical requirements within the scope of adjustment.







Model
100t-A
100t-B
200t-A
200t-B
315t-A
315t-B
315t-C
Nominal Force
(KN)
1000
1000
2000
2000
3150
3150
3150
Ejector Force
(KN)
250
250
350
350
630
630
630
Slide Stroke
(mm)
600
600
600
600
600
600
800
Ejection Stroke
(mm)
200
200
260
260
260
260
260
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
25
25
25
Maximum Opening Height
(mm)
1000
1000
1000
1000
1000
1000
1250
Effective Area of Table(mm)
700
(L-R)
560
(L-R)
800
(L-R)
1000
(L-R)
800
(L-R)
1000
(L-R)
1260
(L-R)
620
(Front and Rear Edges)
560
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
800
(Front and Rear Edges)
1000
(Front and Rear Edges)
1200
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
30
(Slow Descent)
30
(Slow Descent)
25
(Slow Descent)
25
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
90
(Return)
90
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
5.5
5.5
7.5
7.5
15
15
15


Model
400t-A
500t-A
500t-B
630t
Nominal Force
(KN)
4000
5000
5000
6300
Ejector Force
(KN)
800
1000
1000
1000
Slide Stroke
(mm)
600
800
800
800
Ejection Stroke
(mm)
260
300
300
300
Maximum Working Force of Liquid
(Mpa)
25
25
25
25
Maximum Opening Height
(mm)
1200
1200
1200
1200
Effective Area of Table(mm)
1200
(L-R)
1200
(L-R)
1400
(L-R)
1600
(L-R)
1200
(Front and Rear Edges)
1200
(Front and Rear Edges)
1400
(Front and Rear Edges)
1600
(Front and Rear Edges)
Speed
(mm/s)
120
(Descent)
120
(Descent)
120
(Descent)
120
(Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
35
(Slow Descent)
75
(Ejection)
75
(Ejection)
75
(Ejection)
75
(Ejection)
100
(Return)
100
(Return)
100
(Return)
100
(Return)
Motor Power
(kw)
16
19
22
27




Application




1. This machine applies to cut edge for plastic or rubber products.
2. It has a wide application in many industries like packing, light industry, hardware electron and so on.

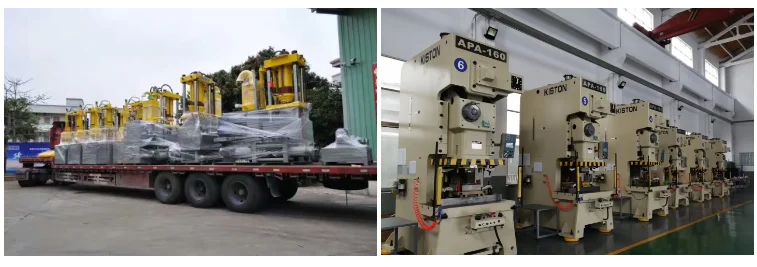

Packing & Delivery




Packing: The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.
Delivery: Delivery within 15 days after receipt of deposit.


Our Service




Pre-sale service:
Act as a good adviser and assistant of clients,enable them to get rich and competitive from the returns of their investment.
1. Select suitable equipment model.
2. Design and manufacture products according to clients’ special requirements.
3. Train technical personnel for clients.
4. Professional suggestion for customer.
After-sale service:
Provide considerate service to minimize clients worries.
1. Provide civil engineering drawings of the equipment.
2. Free training(including installation, maintenance) to every customer.
3. Install and debug the equipment,ensure the dryer running smoothly.
4. Examine the equipment regularly.




Note: The machine can be customized according to your needs, and good products will satisfy customers. Please feel free to contact us for detailed information or special request.
