Product Overview
Description
Product Description
GWSP Oil free Scroll Vacuum Pump
Working principle.
GWSP oil free scroll vacuum pump is constructed with pump head assembly, crank pin assembly, bracket assembly, air flush assembly,and exhaust valve assembly.Two spiral cylinders, one offset and orbiting against the other fixed with an offset of 180° to form several crescent-shaped pockets of different sizes. By means of an eccentric drive, the orbiting scroll is made to orbit about the fixed scroll, reducing the volume of the pockets and compressing gas from outside towards the inside thereby pumping the gas from vacuum chamber.
Basic informations

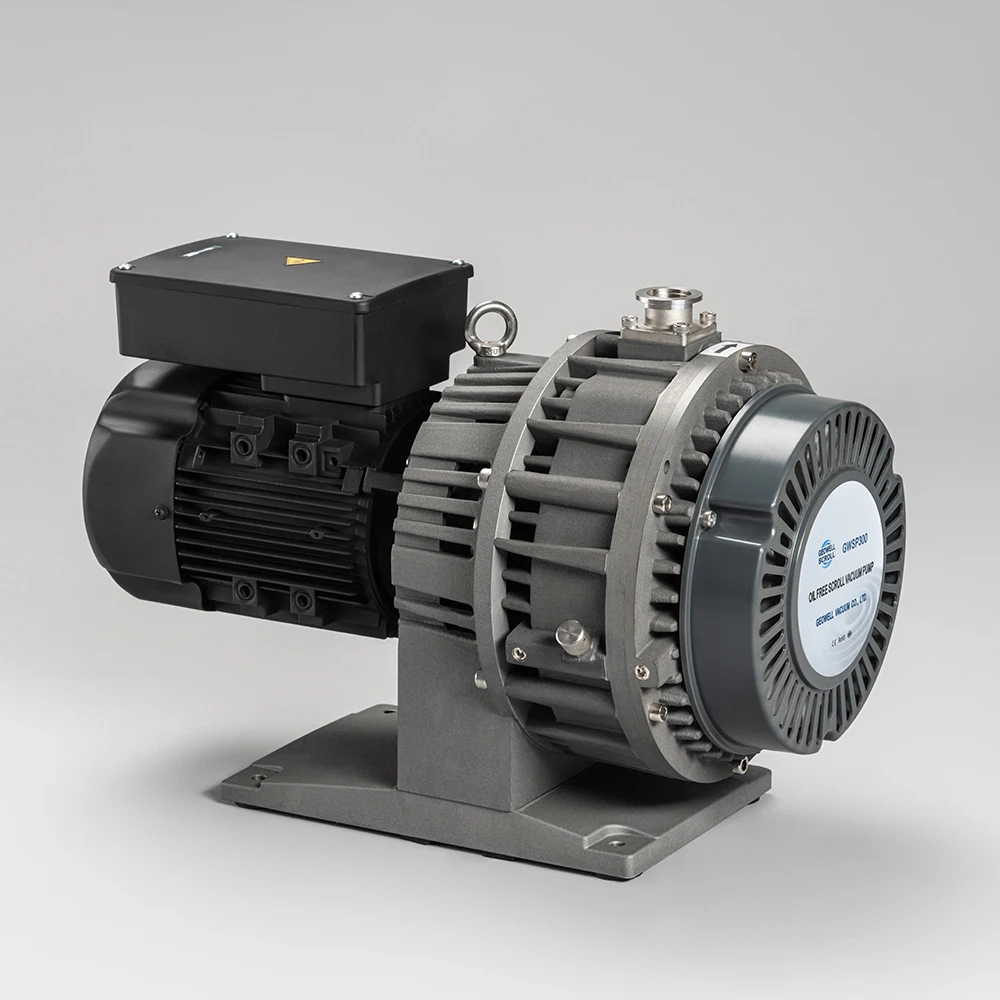

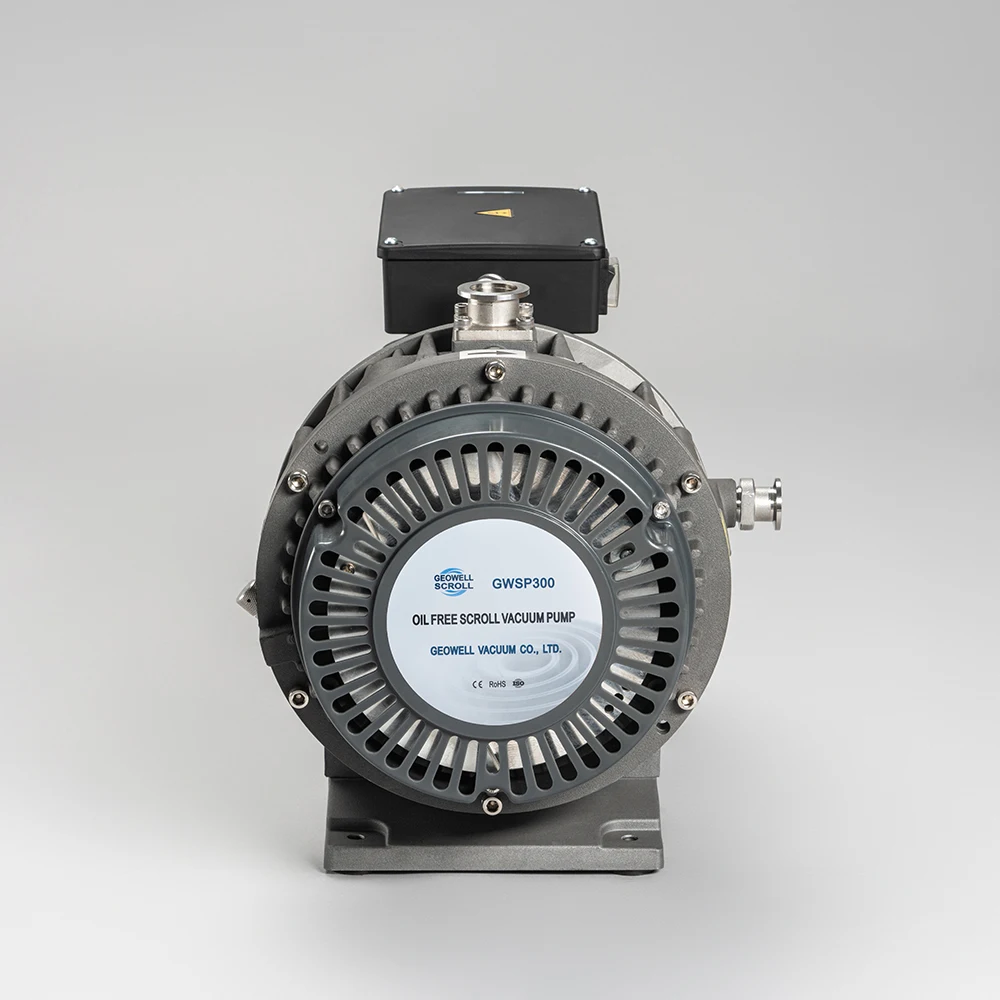

1) Model: GWSP300 Oil free scroll vacuum pump
2) Ultimate vacuum pressure: 2.6Pa/0.026 mbar (abs.)
3) Max suction capacity: 50Hz-4.3L/s 60Hz-5.1L/s
2) Ultimate vacuum pressure: 2.6Pa/0.026 mbar (abs.)
3) Max suction capacity: 50Hz-4.3L/s 60Hz-5.1L/s

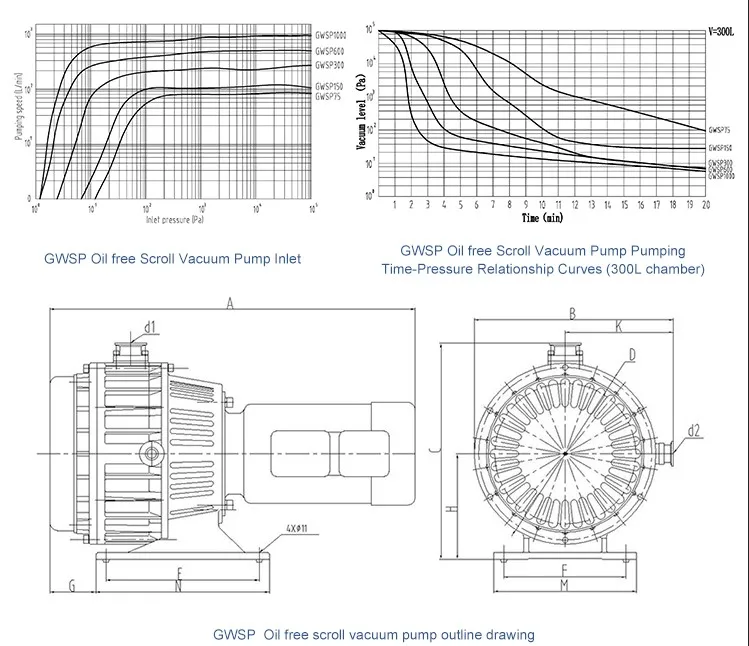

Technical Specifications
Model | GWSP75 | GWSP150 | GWSP300 | GWSP600 | GWSP1000 | |||||||
Pumping Speed | L/s | 1.0 | 2.0 | 4.3 | 8.7 | 16.6 | ||||||
L/min | 60.0 | 120.0 | 258.0 | 522.0 | 996.0 | |||||||
m3/h | 3.6 | 7.2 | 15.5 | 31.3 | 59.8 | |||||||
cfm | 2.1 | 4.3 | 9.3 | 18.7 | 35.8 | |||||||
L/s | 1.2 | 2.4 | 5.1 | 10.4 | 20.0 | |||||||
L/min | 72.0 | 144.0 | 310.0 | 626.0 | 1195.0 | |||||||
m3/h | 4.3 | 8.6 | 18.3 | 37.4 | 71.6 | |||||||
cfm | 2.5 | 5.1 | 10.9 | 22.3 | 42.8 | |||||||
Ultimate Pressure | Pa | ≤8 | ≤6 | ≤2.6 | ≤1 | ≤1 | ||||||
mbar | ≤8.0*10-2 | ≤6.0*10-2 | ≤2.6*10-2 | ≤1.0*10-2 | ≤1.0*10-2 | |||||||
Torr | ≤6.0*10-2 | ≤4.5*10-2 | ≤1.9*10-2 | ≤7.5*10-3 | ≤7.5*10-3 | |||||||
psi | ≤1.2*10-3 | ≤9.0*10-4 | ≤3.8*10-4 | ≤1.5*10-4 | ≤1.5*10-4 | |||||||
Noise Level | dB(A) | ≤57 | ≤57 | ≤60 | ≤61 | ≤65 | ||||||
Leakage | mbar·l/s | 1*10-7 | ||||||||||
Max. Inlet/Exhaust Pressure | MPa | 0.1 / 0.13 | ||||||||||
Ambient Operation Temp. | ℉ | 41～104 | ||||||||||
Cooling Type | Air cooled | |||||||||||
Inlet/Exhaust Flange | KF25/KF16 | KF40/KF16 | KF40/KF16*2 | |||||||||
Power | kW | 0.55 | 0.55 | 0.55 | 0.75 | -- | ||||||
Voltage | V | 110～115 (60Hz)，200～230 (50Hz) | -- | |||||||||
Speed | rpm | 1425(50Hz)，1725(60Hz) | -- | |||||||||
Plug | North America, Europe, UK/Ireland, India | -- | ||||||||||
Motor 3 phase | Power | kW | 0.55 | 0.55 | 0.55 | 0.75 | 1.50 | |||||
Voltage | V | 200～230 or 380～415 (50Hz)，200～230 or 460 (60Hz) | ||||||||||
Speed | rpm | 1425 (50Hz)，1725 (60Hz) | ||||||||||
Dimensions | 1 phase | mm | 450*260*296 | 455*260*296 | 493*297*334 | 538*315*348 | -- | |||||
3 phase | mm | 450*260*296 | 455*260*296 | 493*297*334 | 538*315*348 | 576*450*402 | ||||||
Net Weight | 1 phase | kg | 21 | 22 | 29 | 36 | -- | |||||
3 phase | kg | 20 | 21 | 28 | 31 | 54 | ||||||
Others | With air flush | |||||||||||
Features & Benefits
No oil clean vacuum.
No oil back-diffusion, no oil mist exhaust, provide clean vacuum environment
No oil back-diffusion, no oil mist exhaust, provide clean vacuum environment
Wide product lineup.

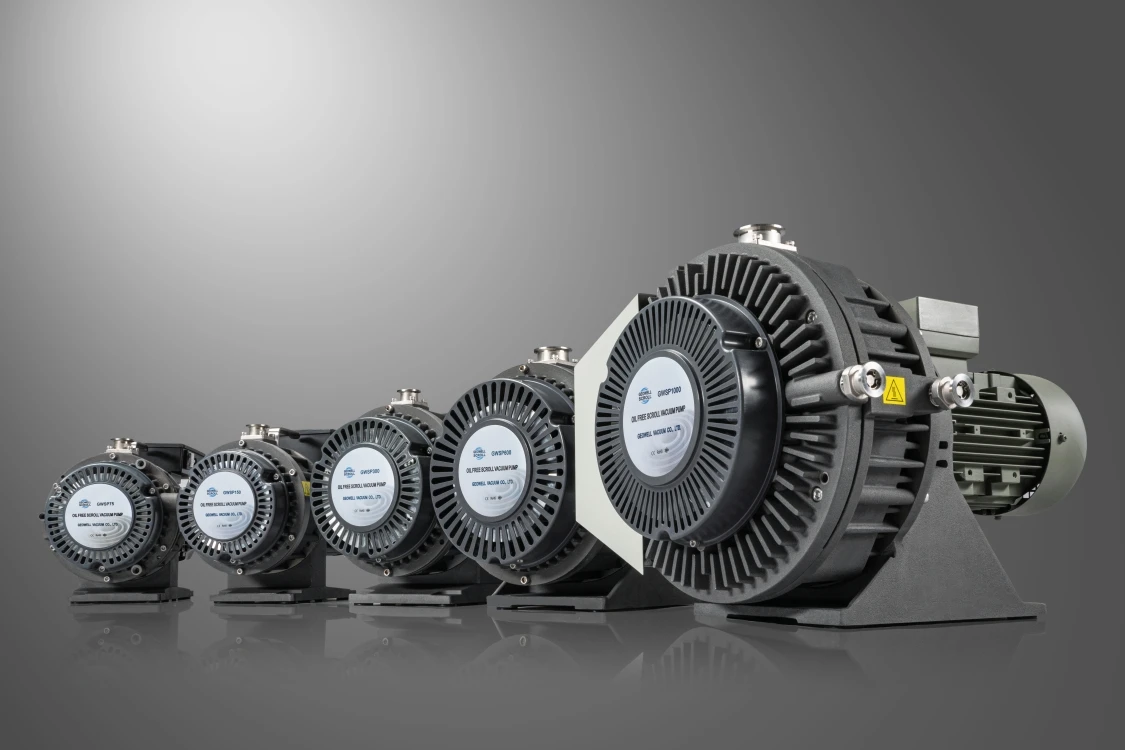

Pumping speed covers 3~60 m3 /h, limited vacuum level 1~8 Pa
Suitable for all type of power supply around the world.
110/220/380/460V, 50/60Hz for choose
Low vibration, low noise.
57~65 dB(A), smooth operation
High efficiency, ease of maintenance.
No water cooled, no oil lubricated, no daily maintenance
Product details

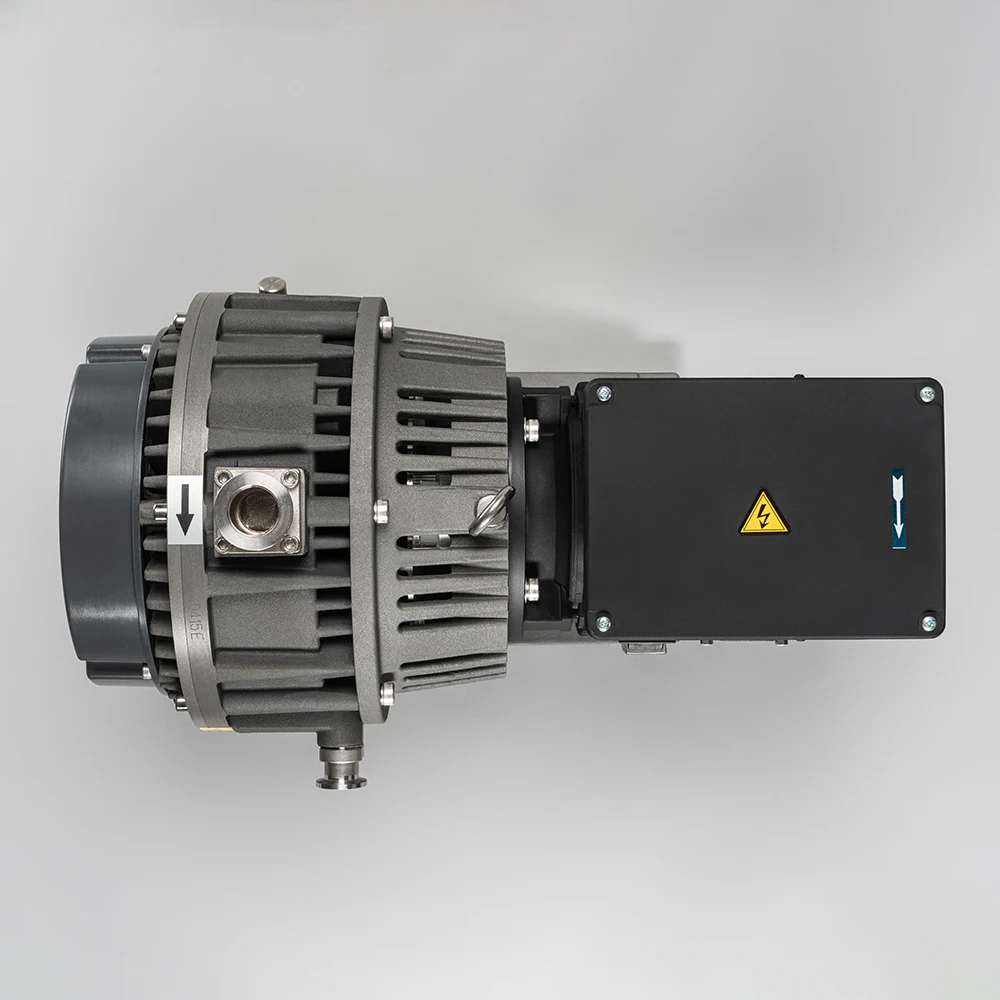

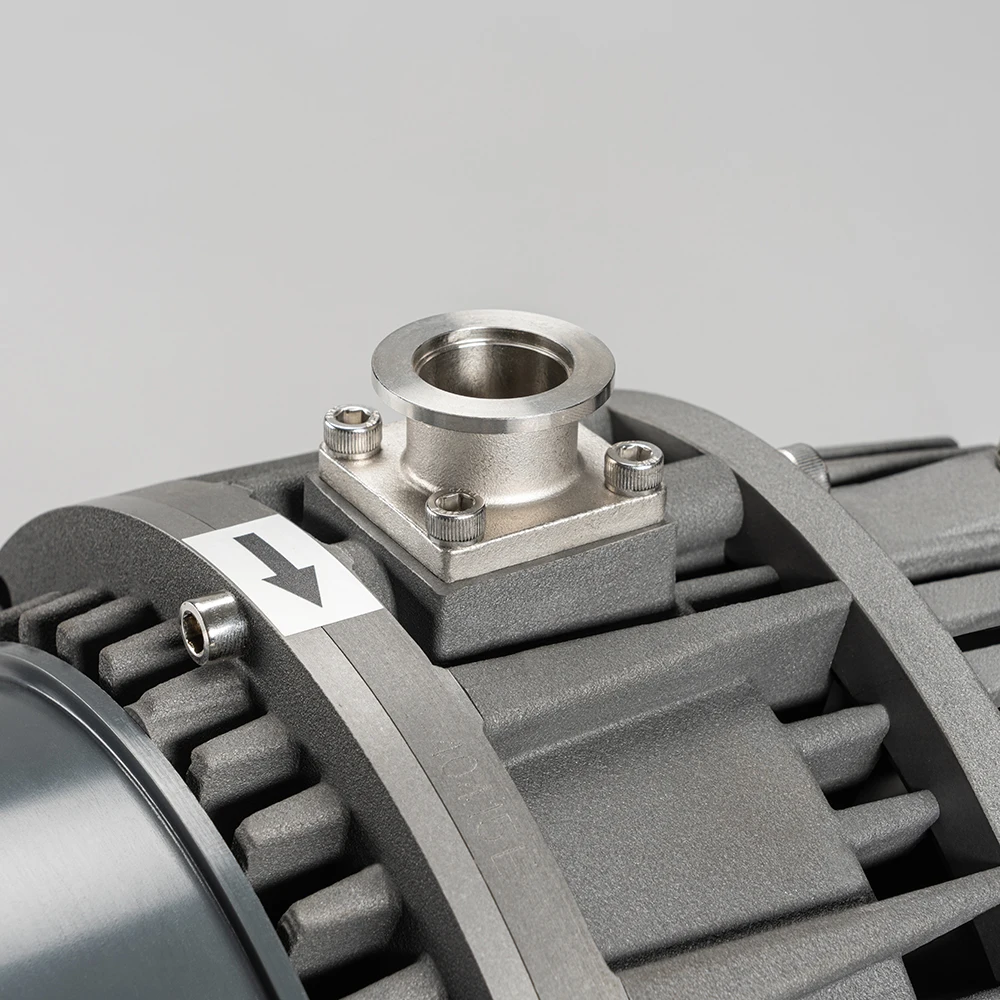

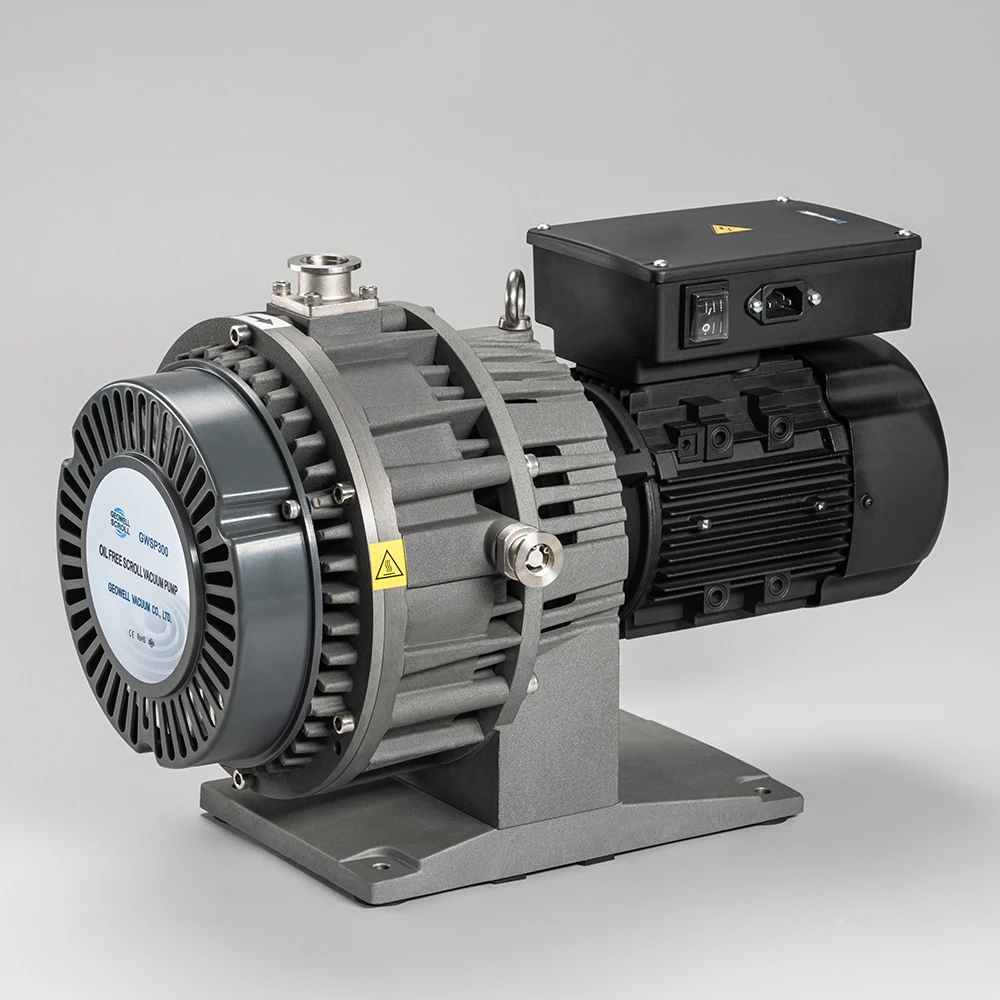

GWSP300 Inlet flange KF25.
GWSP300 Exhaust flange KF16.

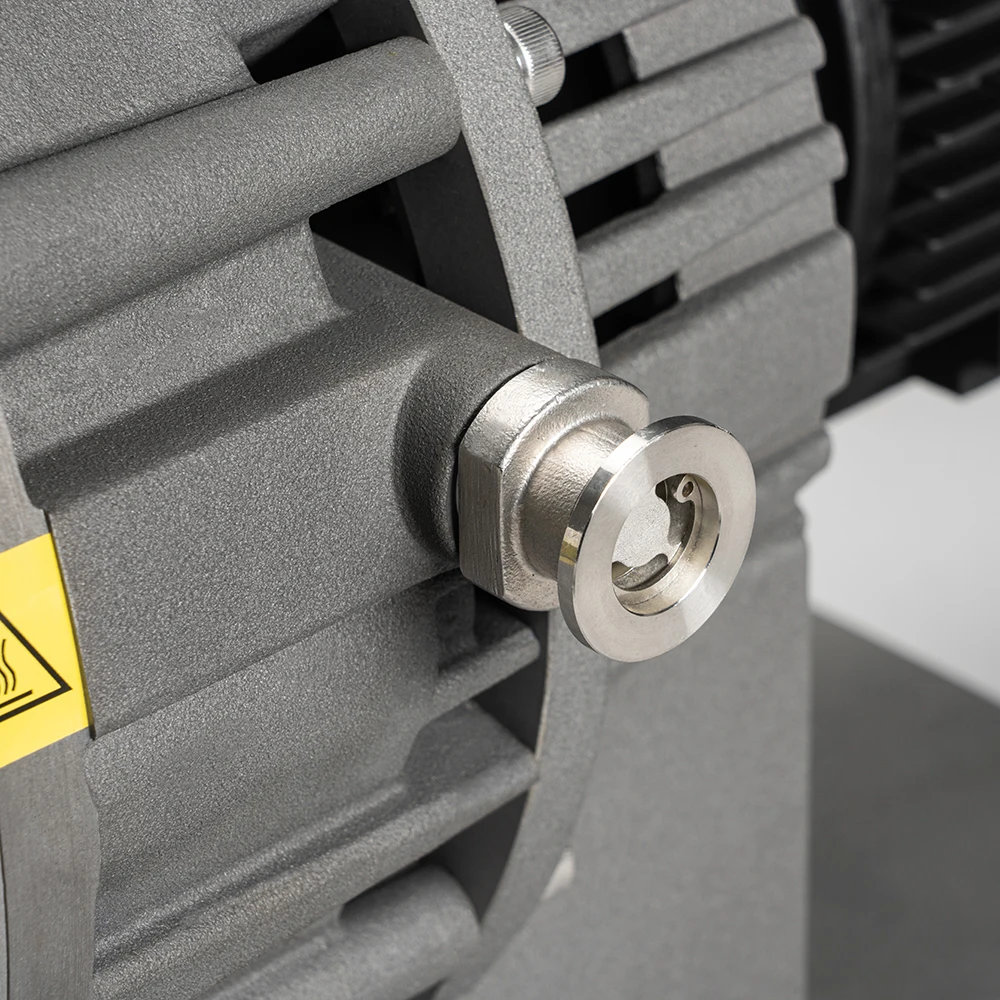

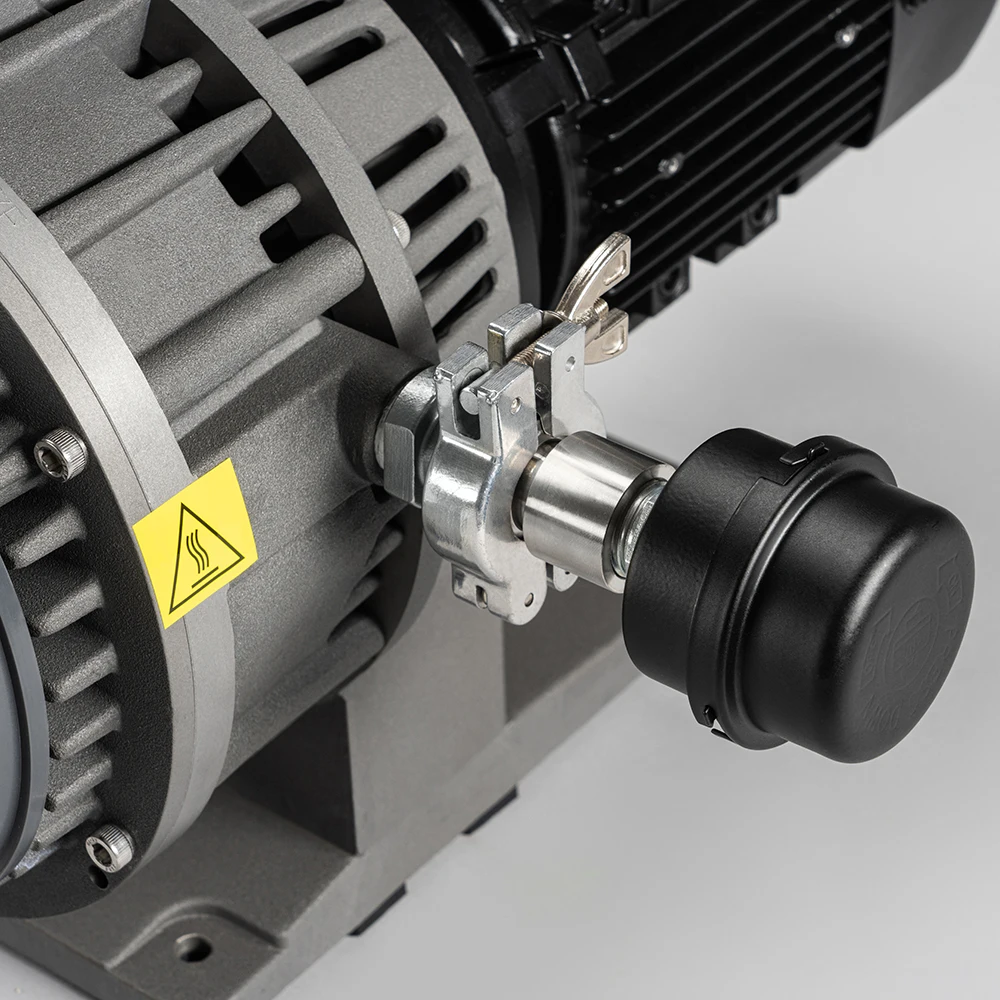

GWSP300 Air ballast valve.

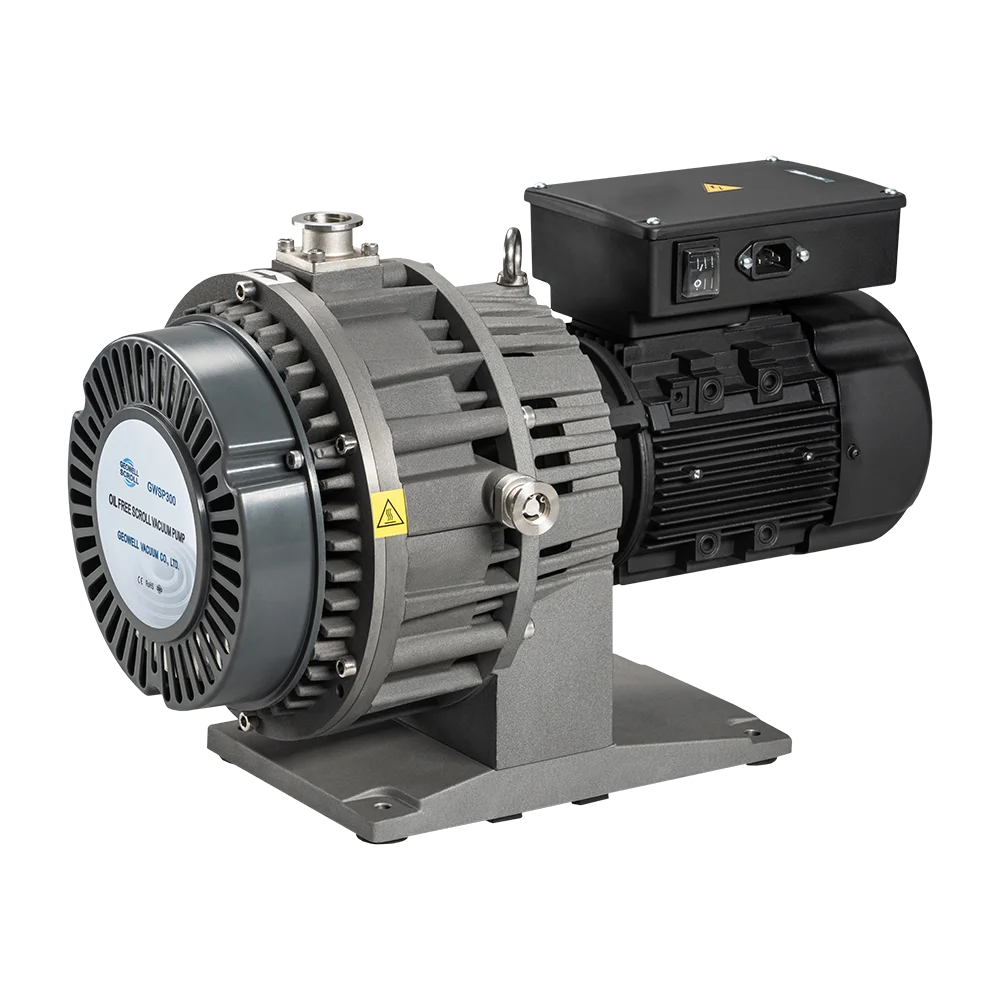

GWSP300 Power outlet(Motor:1 phase).
GWSP300 Power outlet(Motor:3 phase).
GWSP300 Mounting hole.
Related products

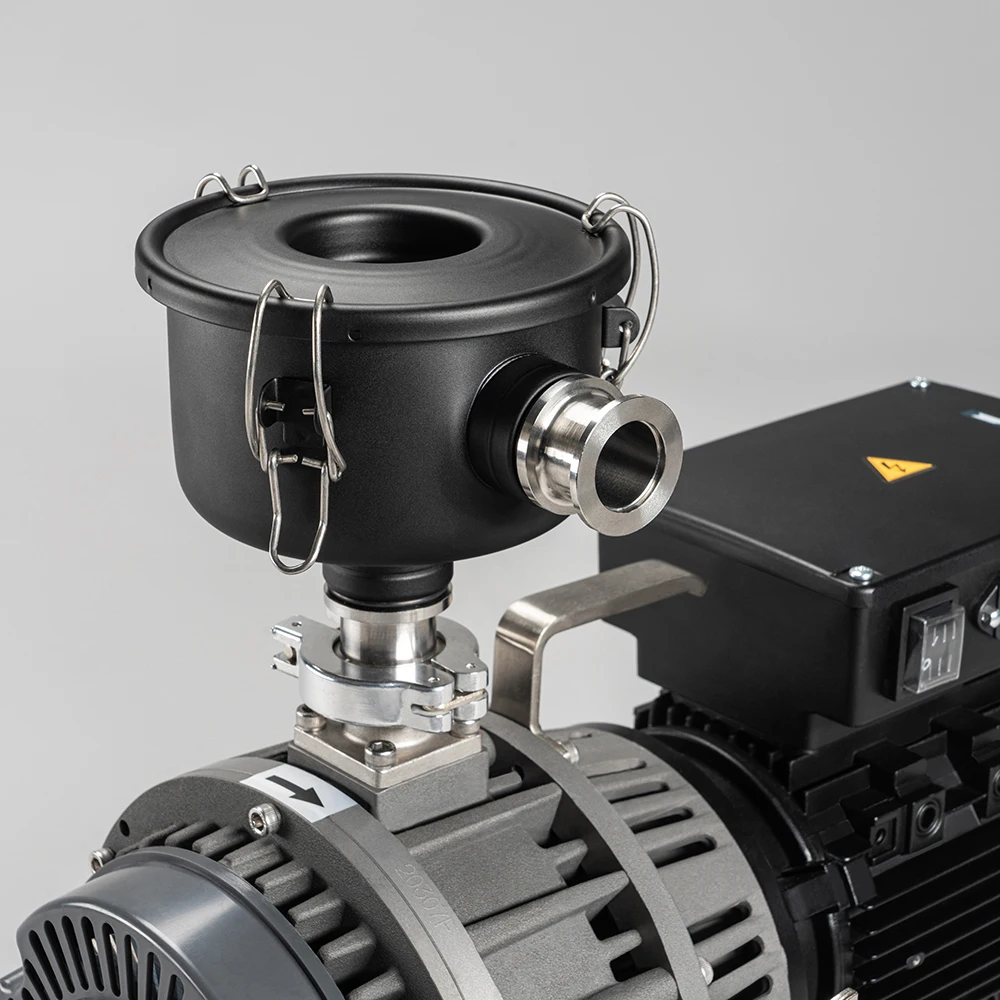

Foreline Filter GWT25.
1)Performance:Filter out the dust particles contained in the intake gas.
2)Application:Vacuum coating, food and drug processing, ceramic and glass manufacturing, vacuum furnace and vacuum packaging systems.
Exhaust Silencer GWS16.
1)Performance:Reduce exhaust noise from oil-free vacuum systems.
2)Application:Installation of oil-free scroll vacuum pumps requires a quiet vacuum system.

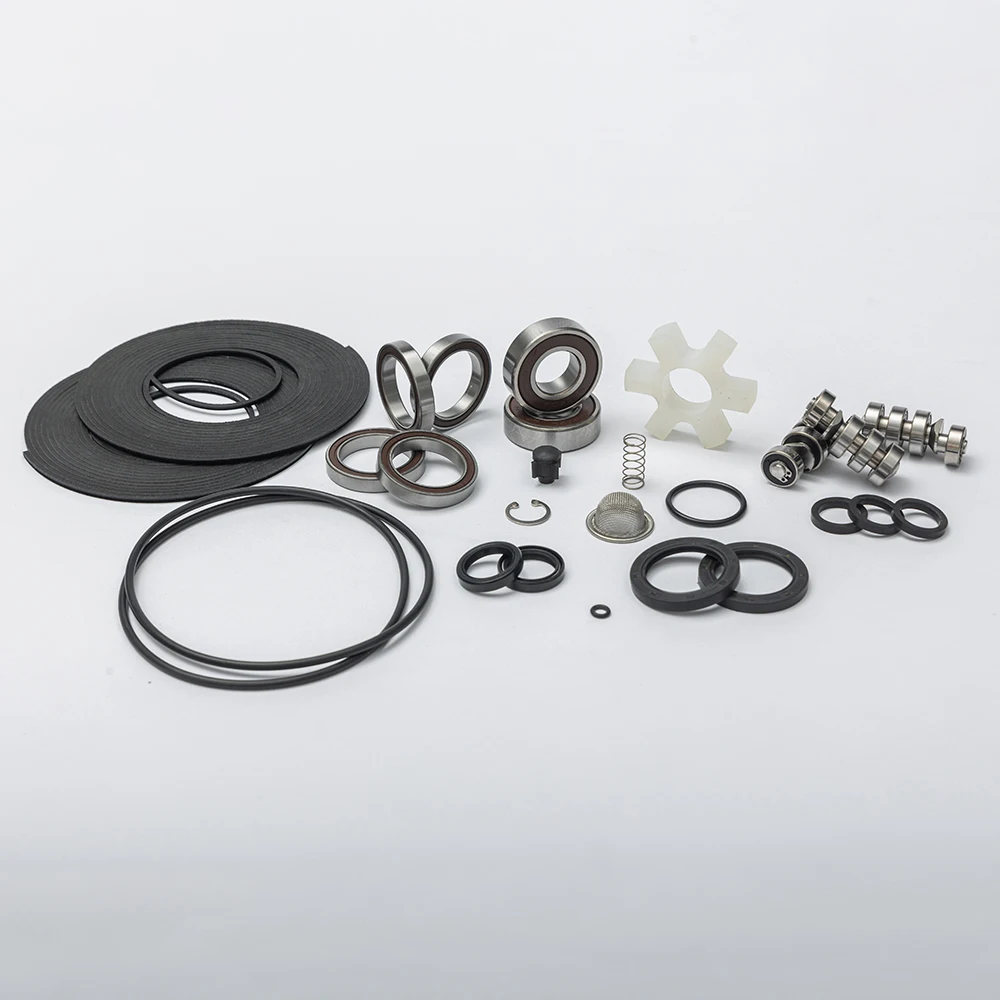

Major Maintenance Kit GWMMK300.
1)Performance:Prolong the service life of the product.
2)Application:For the major maintenance of oil free scroll vacuum pump GWSP300.
Quality Control
Oil free Scroll vacuum pump
Manufacturing of scroll plate milling

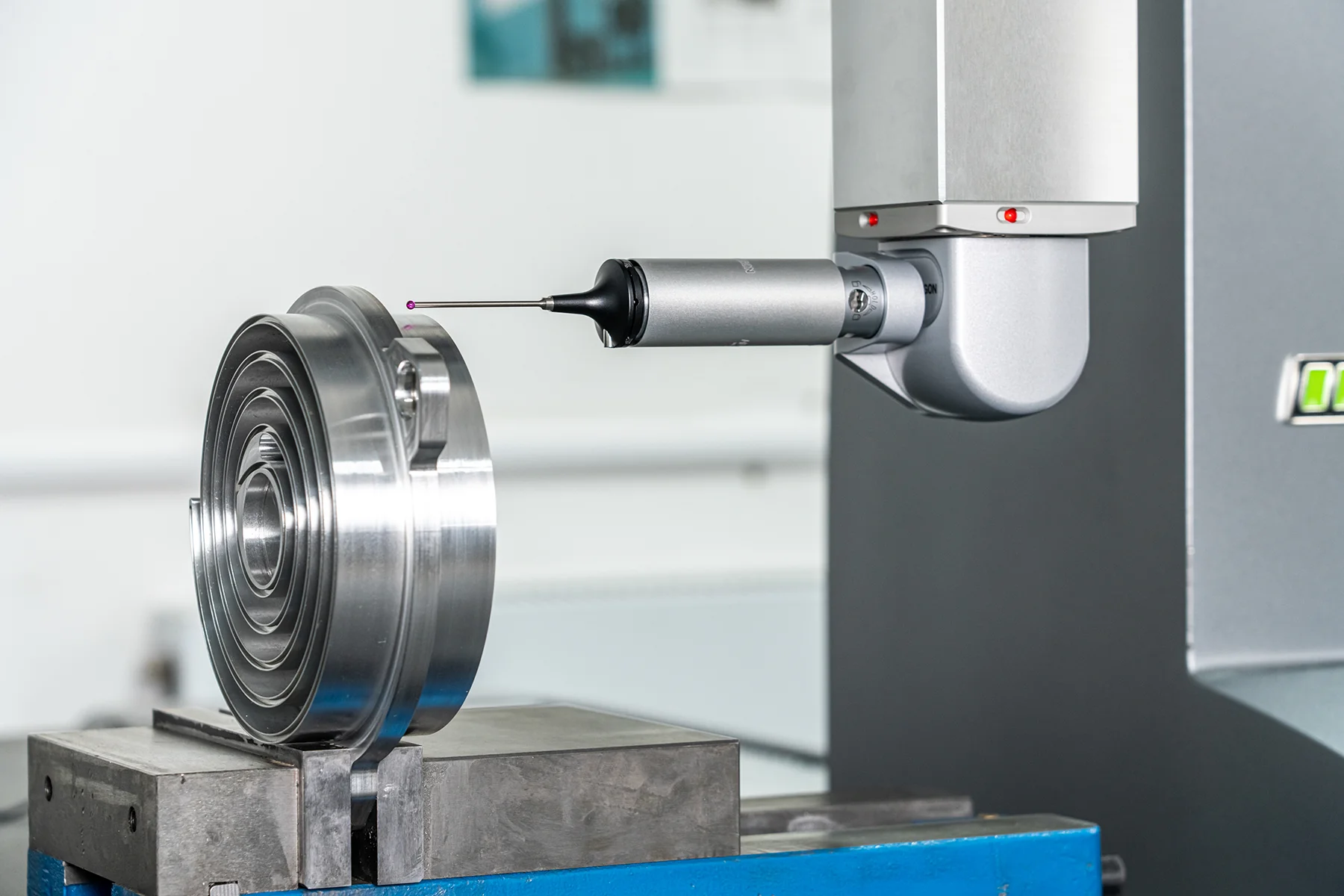

CMM inspection system assures fixed tolarance on dimension&shape

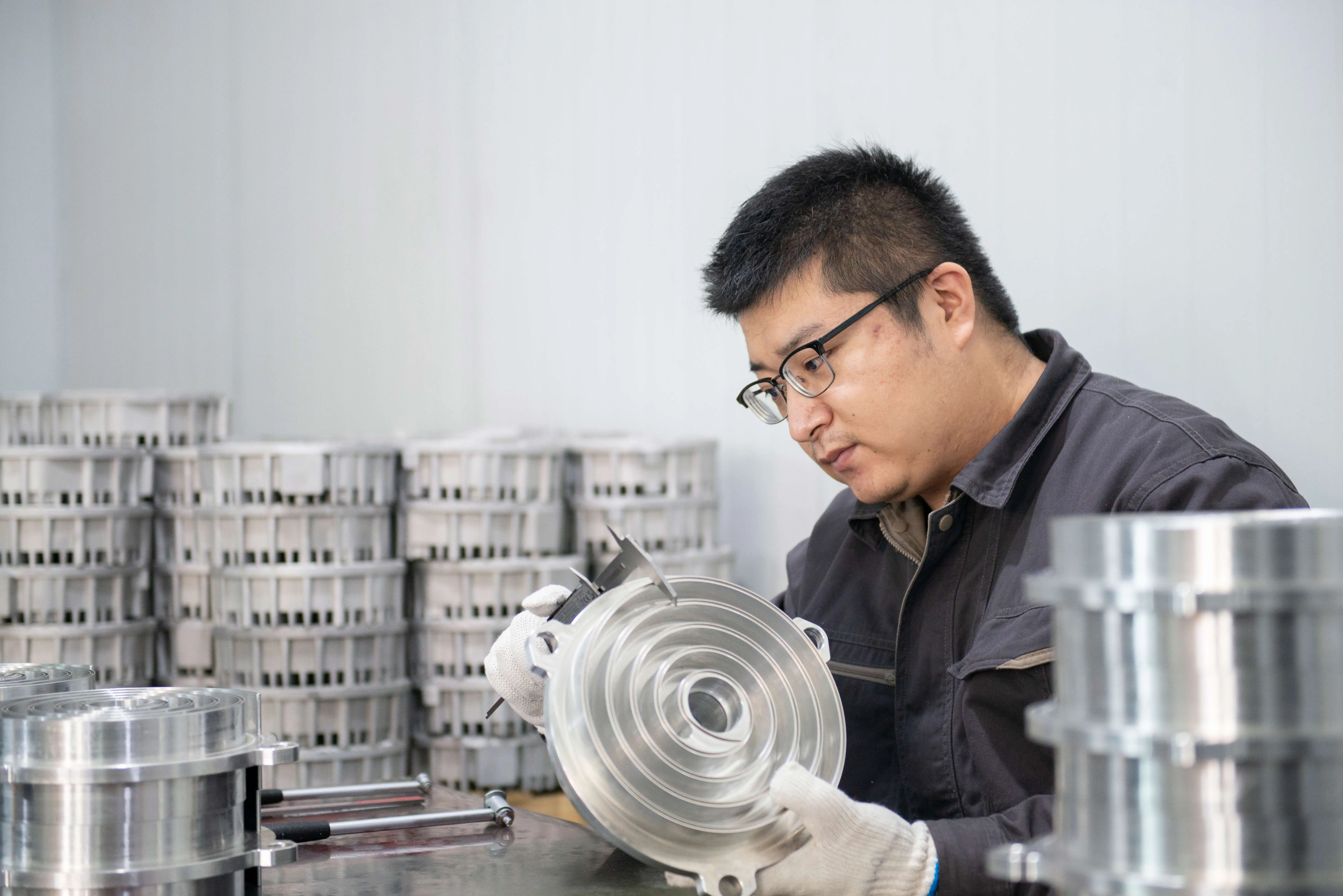

We strictly control the quality of every link

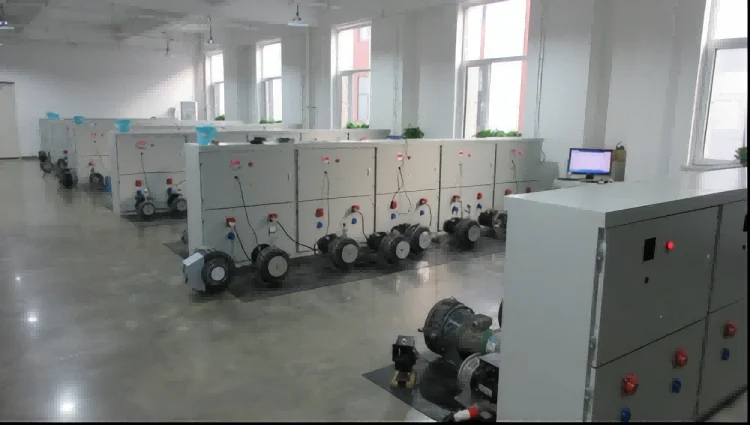

Pump Test
Photographic Record

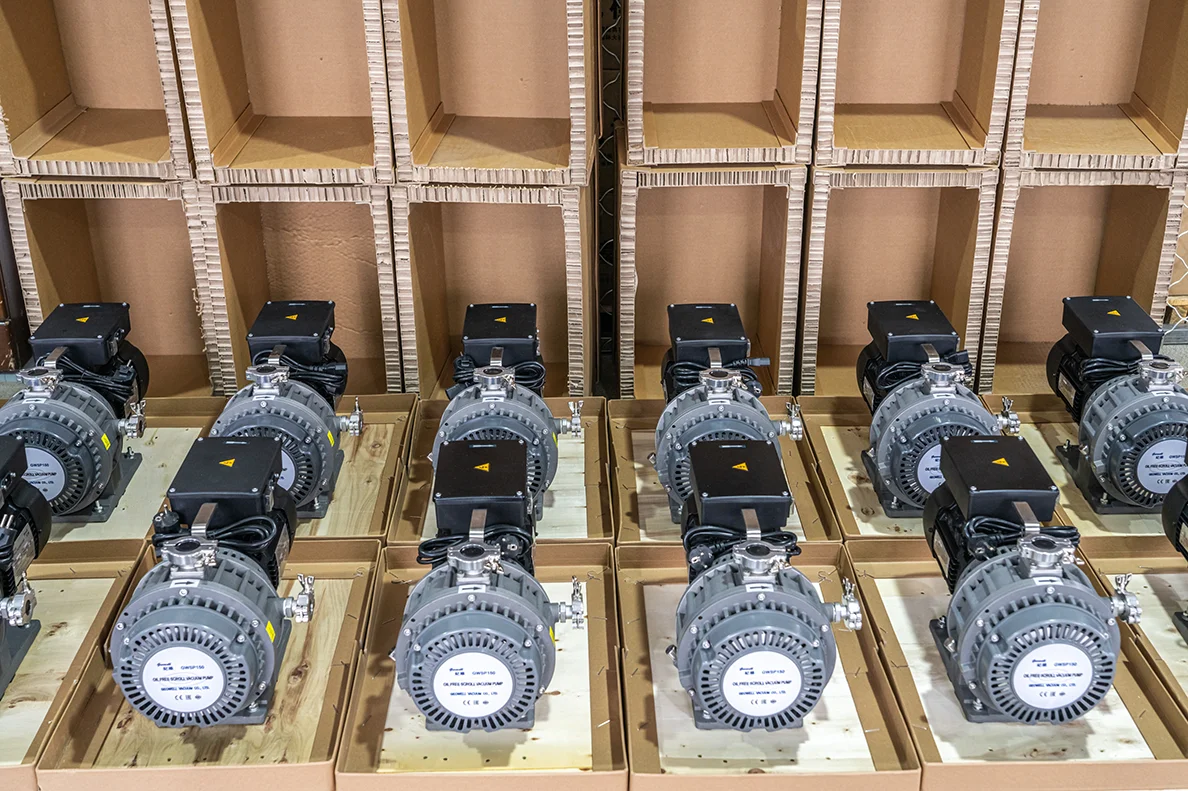

Ex-factory packaging
Application Field
Applications
Semiconductor industry.
Vacuum sputtering machine.
IC plasma cleaning machine.
IC plasma polishing machine.
IC packaging machine.
IC transmission chamber.
IC plasma cleaning machine.
IC plasma polishing machine.
IC packaging machine.
IC transmission chamber.
Photoelectric industry.
LED vacuum annealing furnace.
Load lock/transfer chambers.
Glove box.
LED packaging machine.
Liquid crystal injection and packaging.
Load lock/transfer chambers.
Glove box.
LED packaging machine.
Liquid crystal injection and packaging.
Analyzing instrument and device.
Spectroscopy/scanning electron microscopy.
Space environment simulation machine.
Helium Leak detector.
Mass spectrometer.
Cryopump regeneration.
Accelerators/synchrotrons.
Space environment simulation machine.
Helium Leak detector.
Mass spectrometer.
Cryopump regeneration.
Accelerators/synchrotrons.
Food and drug industry.
Freezing dryer.
Vacuum storage.
Medical equipment
Low temperature plasma sterilizer.
Vacuum storage.
Dental equipment.
Vacuum storage.
Medical equipment
Low temperature plasma sterilizer.
Vacuum storage.
Dental equipment.
Material industry.
Vacuum annealing furnace.
Vacuum diffusion oven.
3D metal printing.
Single crystal growth furnace.
Microwave drying machine.
E-beam/Laser melting.
Vacuum degassing.
Vacuum gas substitution.
Vacuum diffusion oven.
3D metal printing.
Single crystal growth furnace.
Microwave drying machine.
E-beam/Laser melting.
Vacuum degassing.
Vacuum gas substitution.
Vacuum equipment.
Oil free ultrahigh vacuum unit
Oil free vacuum unit
Oil free vacuum unit
Safety Precautions.
The GWSP series oil free scroll vacuum pumps are suitable for clean processes only.
Do not pump toxic, explosive, flammable or corrosive substances or substances which contain chemicals, solvents or particles.GEOWELL will not perform maintenance work on pumps which have used special gases or other hazardous substances.
Be sure the inlet gas temperature must be lower than 122 °F.
Do not pump toxic, explosive, flammable or corrosive substances or substances which contain chemicals, solvents or particles.GEOWELL will not perform maintenance work on pumps which have used special gases or other hazardous substances.
Be sure the inlet gas temperature must be lower than 122 °F.
