150L/200L/280L/400L/500L JIBIMED horizontal autoclave Hospital lab industrial steam sterilizer with good price
- Category: >>>
- Supplier: Jiangyin Binjiang Medical Equipment Co. Ltd.
Share on (1600831563323):
Product Overview
Description
Products Description

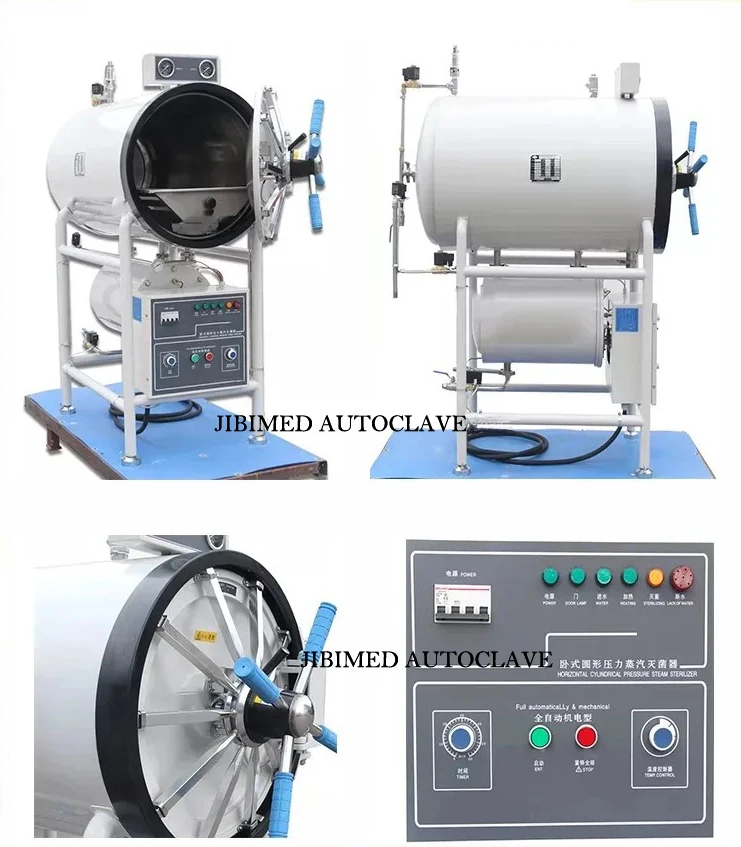

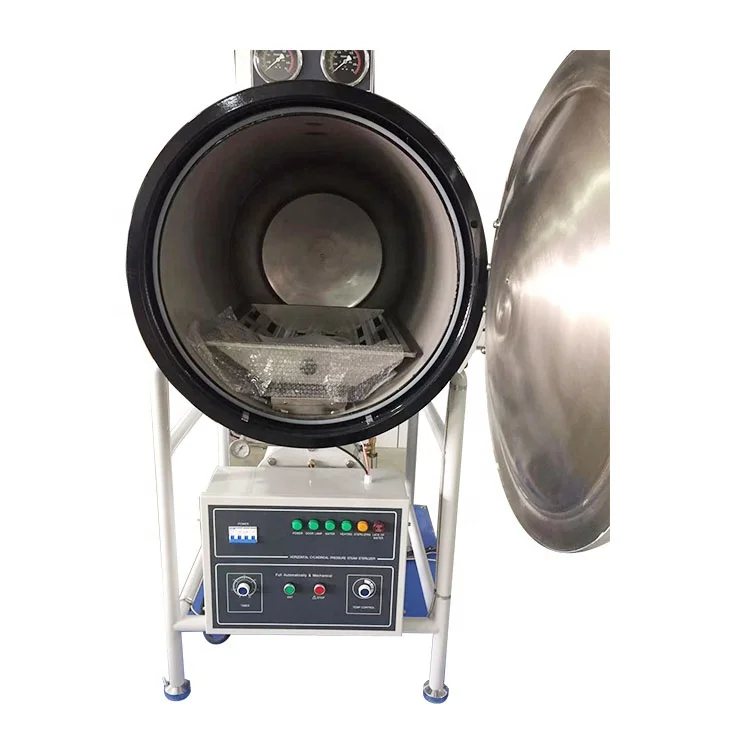

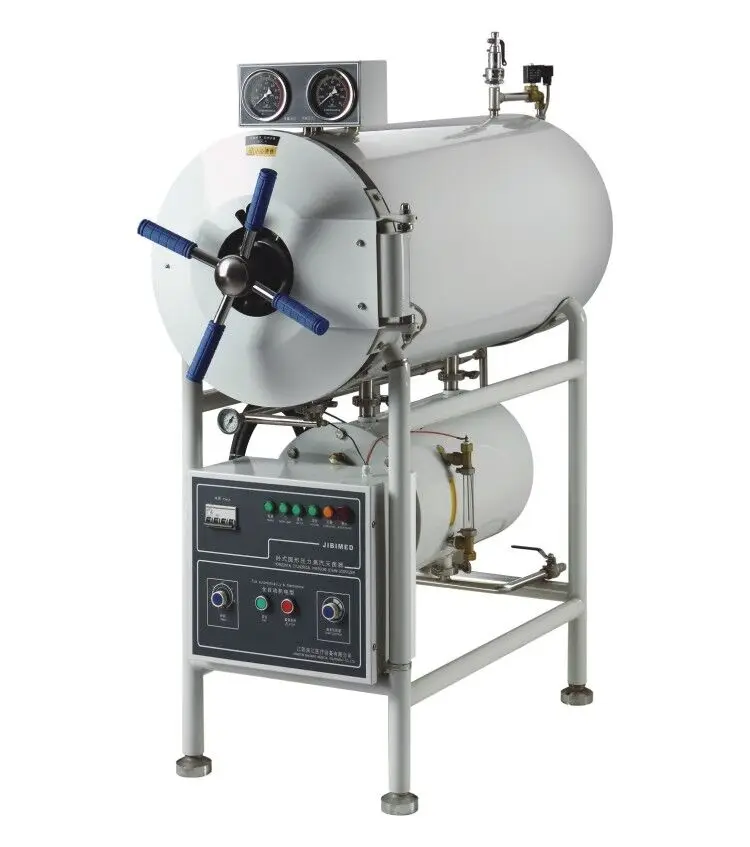

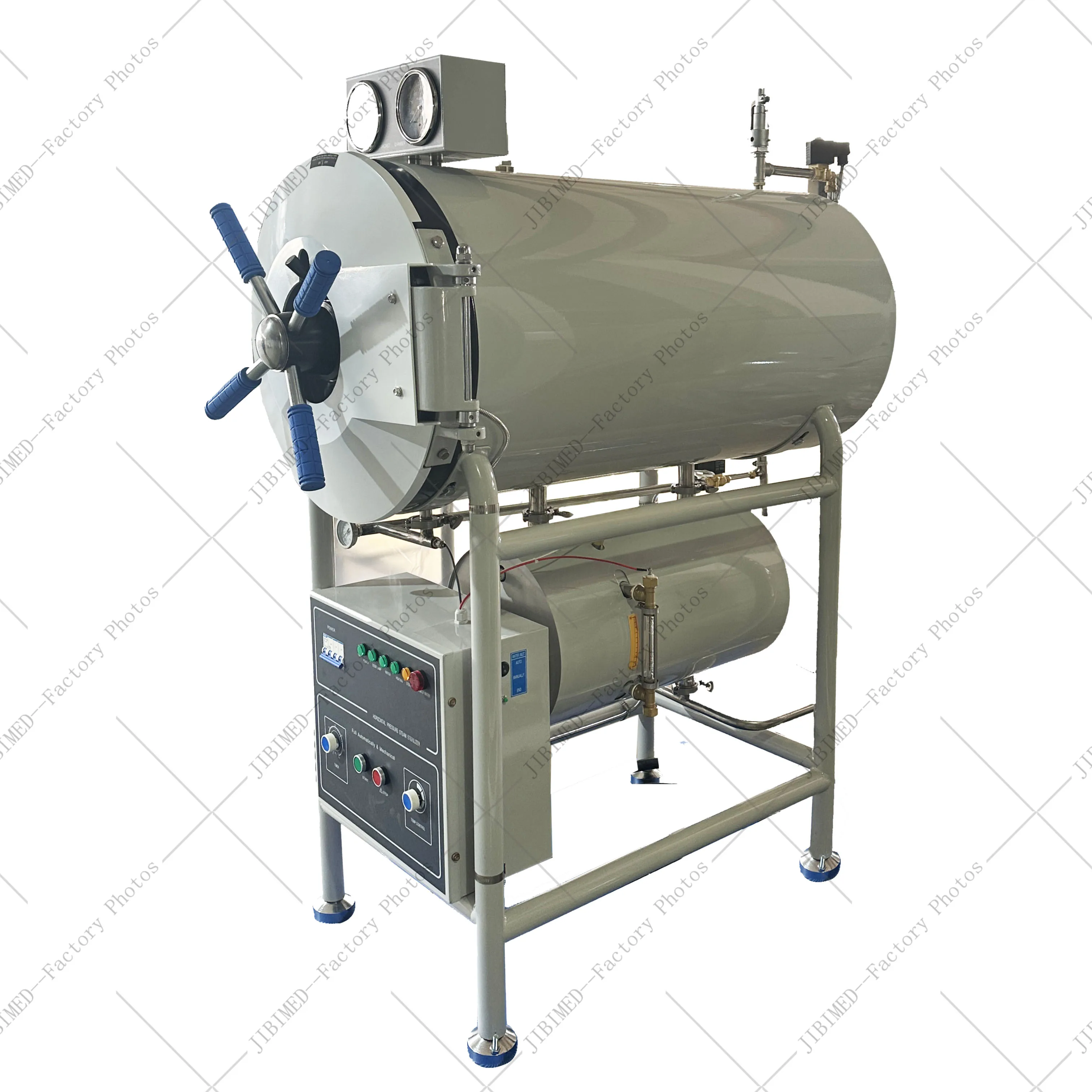

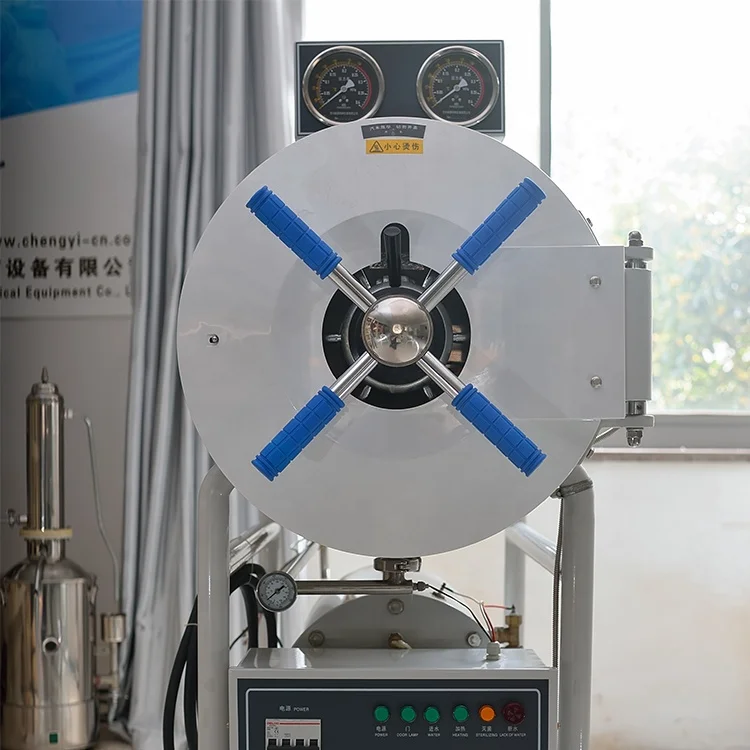

Horizontal Pressure steam sterilizer
Characteristics
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.

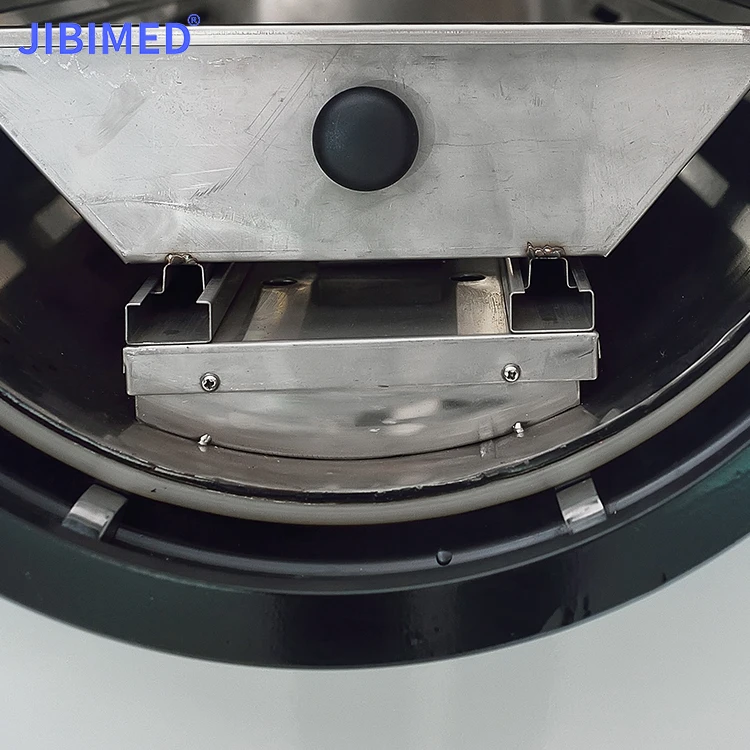

• The chamber of the sterilizer is made of stainless steel.

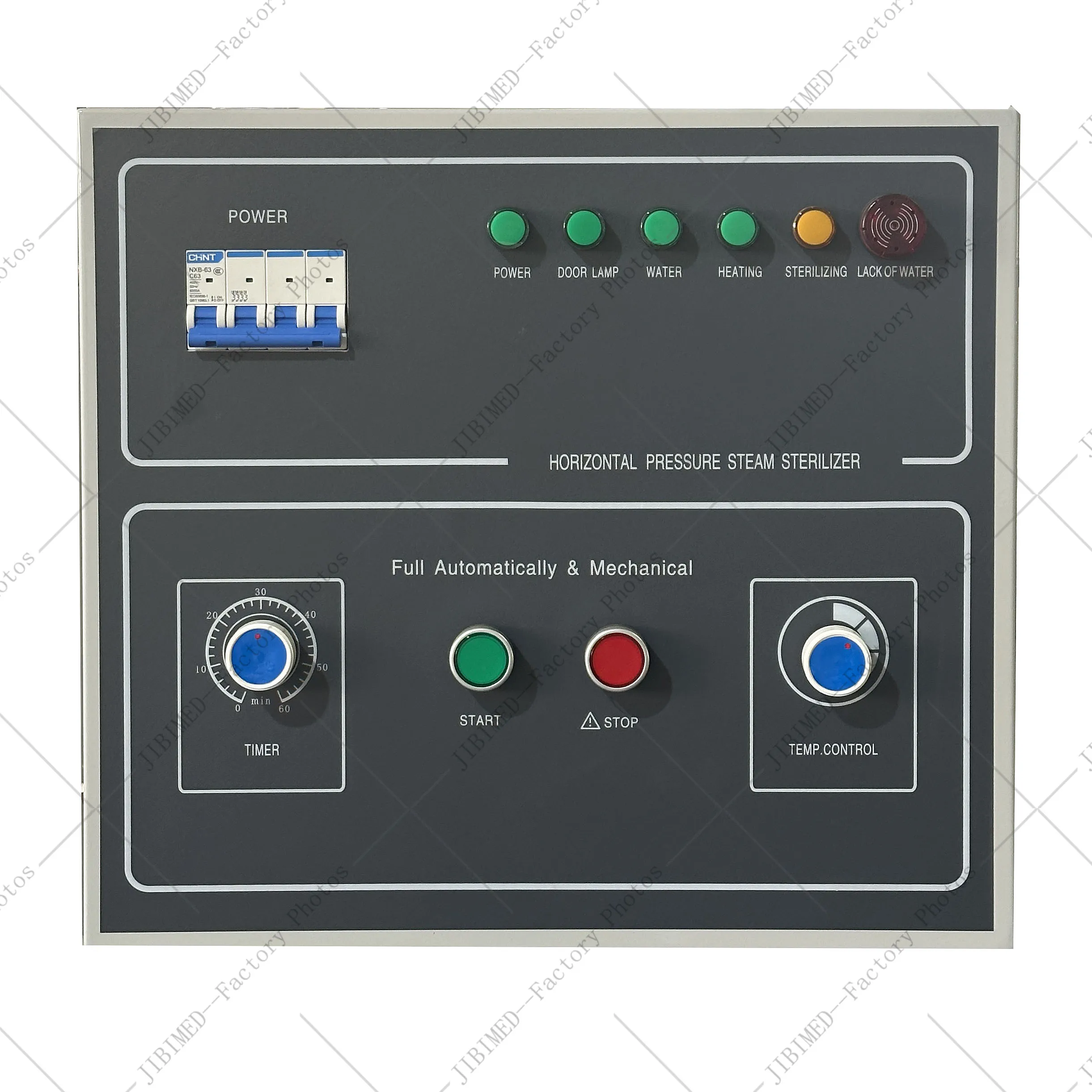

• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
Use to
This horizontal pressure sterilizer adopts a gravity displacement method to eliminate the cold air in the inner chamber, reducing the content of steam cold air in the inner chamber and making sterilization more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the inlet and outlet steam based on the indoor temperature. Mainly applicable to hospital supply rooms, operating rooms, pharmaceutical factories, and research unit laboratories, for sterilization treatment of medical and experimental cloth items, surgical instruments, and utensils.
MODEL | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA | ||||
Technical Data | |||||||||
Stenilizing chamber volume | 150L φ440×1000 | 200L φ515×1000 | 280L φ600×1000 | 400L φ700×1100 | 500L φ700×1300mm | ||||
Working pressure | 0.22Mpa | ||||||||
Working temperature | 134℃ | ||||||||
Temperature adjust range | 40℃-134℃ | ||||||||
Time for sterilization | 0-60min | ||||||||
Time for drying | 0-60min | ||||||||
Heat average | ≤±2℃ | ||||||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz | ||||
Dimension（mm） | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 | ||||
Exerior package dimension（mm） | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 | ||||
G.W/N.W | 320/240kg | 350/260kg | 465/365Kg | 530/420Kg | 580/470Kg | ||||

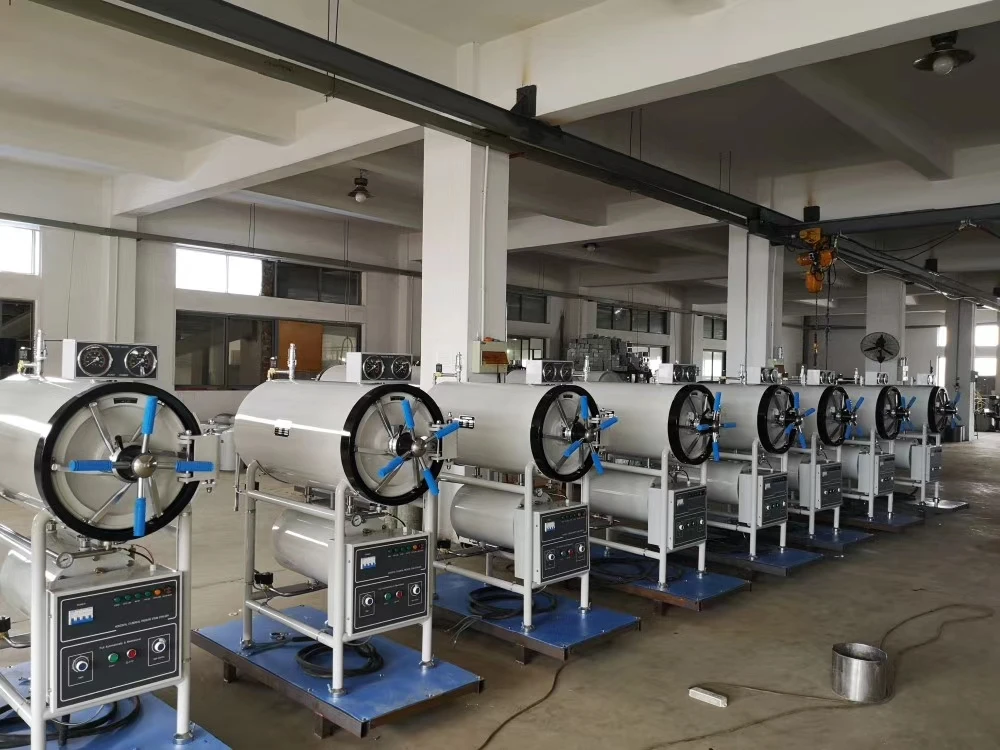

Factory park

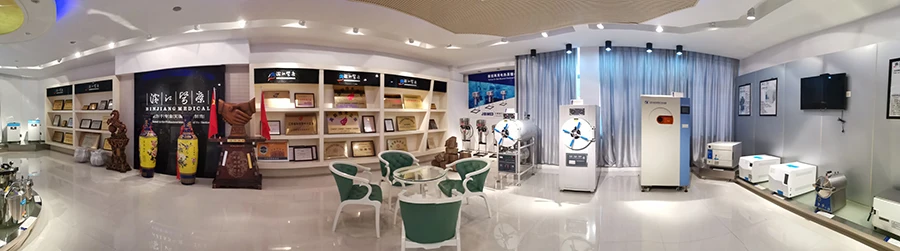

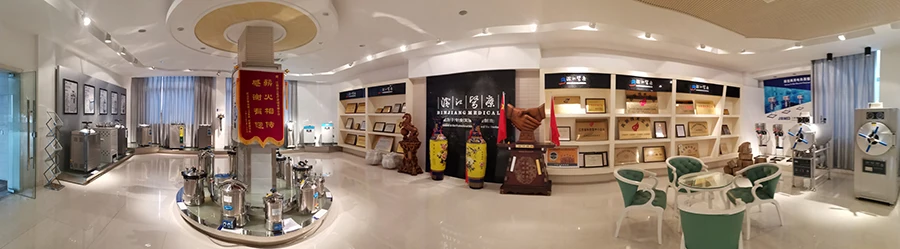

Exhibition hall

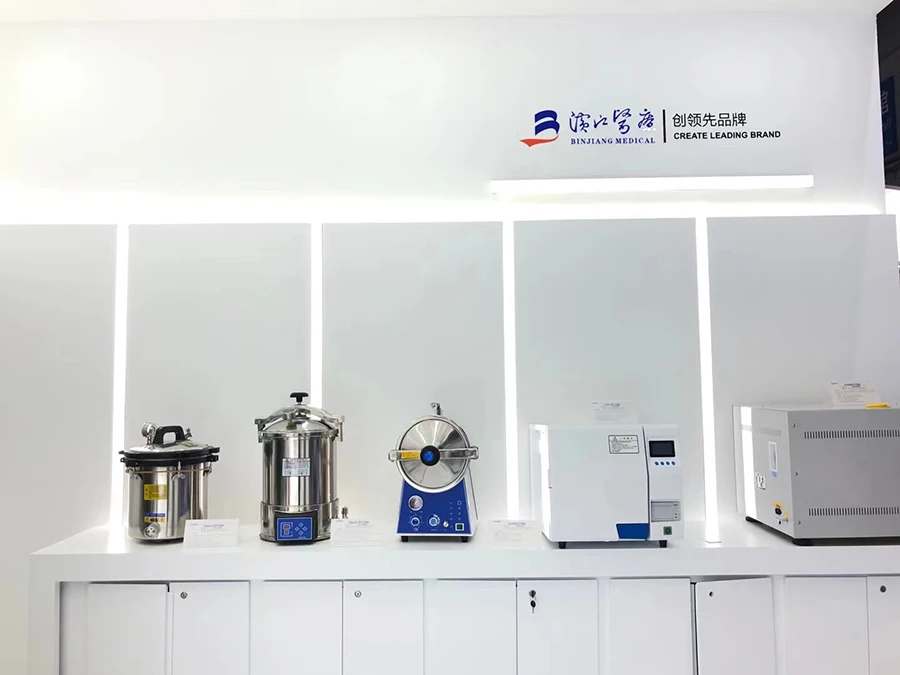

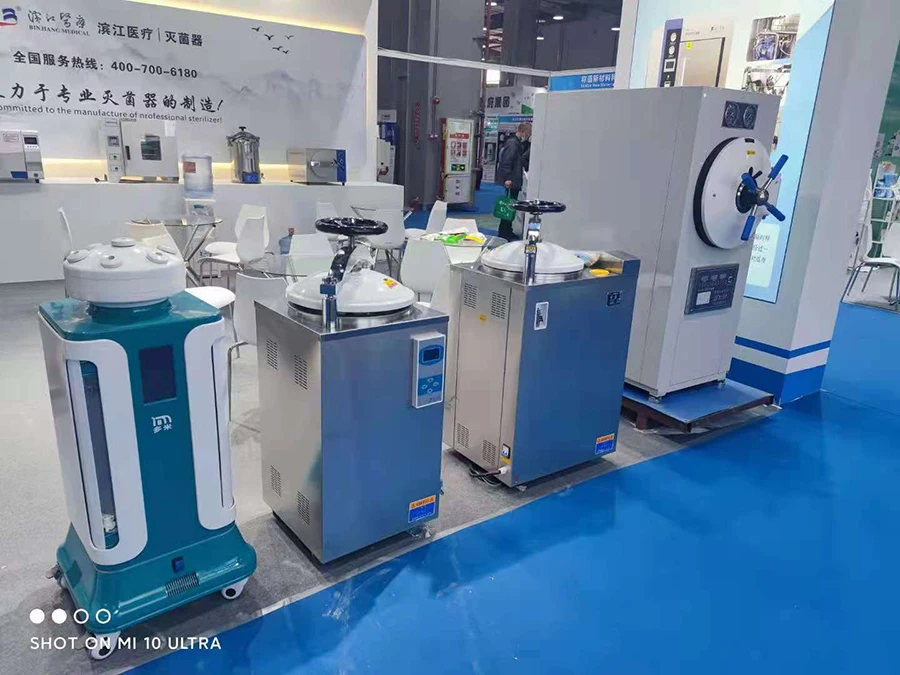

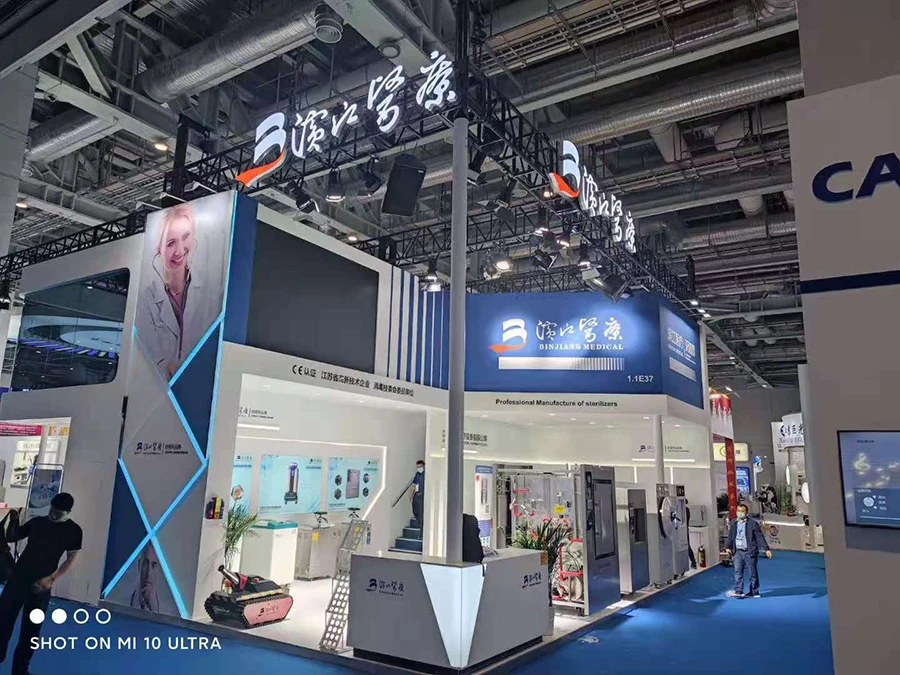

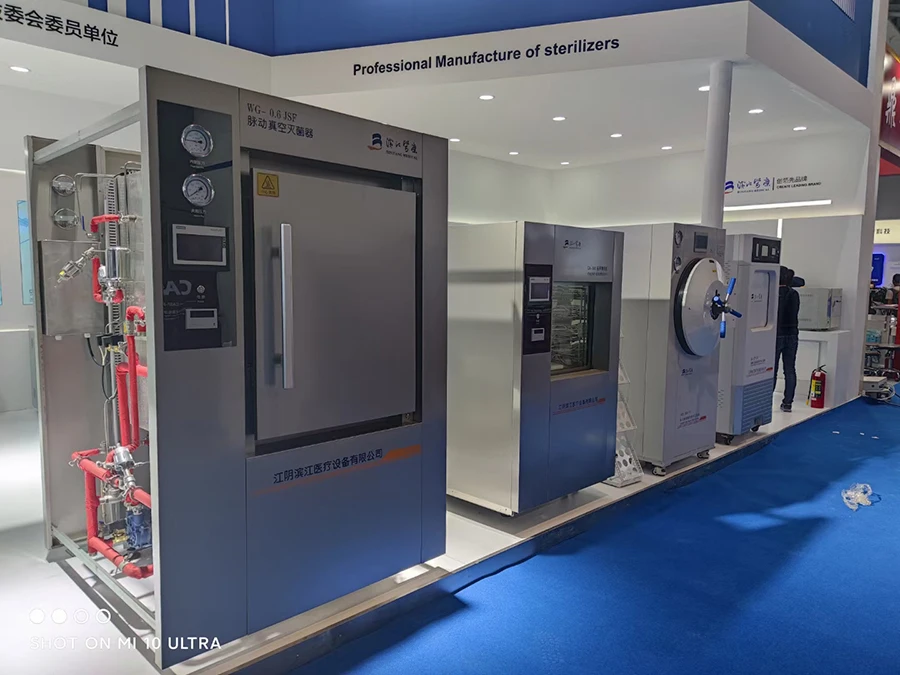

CMEF Exhibition
Our Advantages
1.Manufacturer
2.Best price3.Fast delivery
4.Top quality
5.First class after-sales service
6.Long cycle life
Customer praise
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
