Varnish printing UV Printer BYT 2513P G6 Wood Glass Metal Acrylic Ceramic Tiles Printing
- Category: >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (1600831606717):
Product Overview
Description

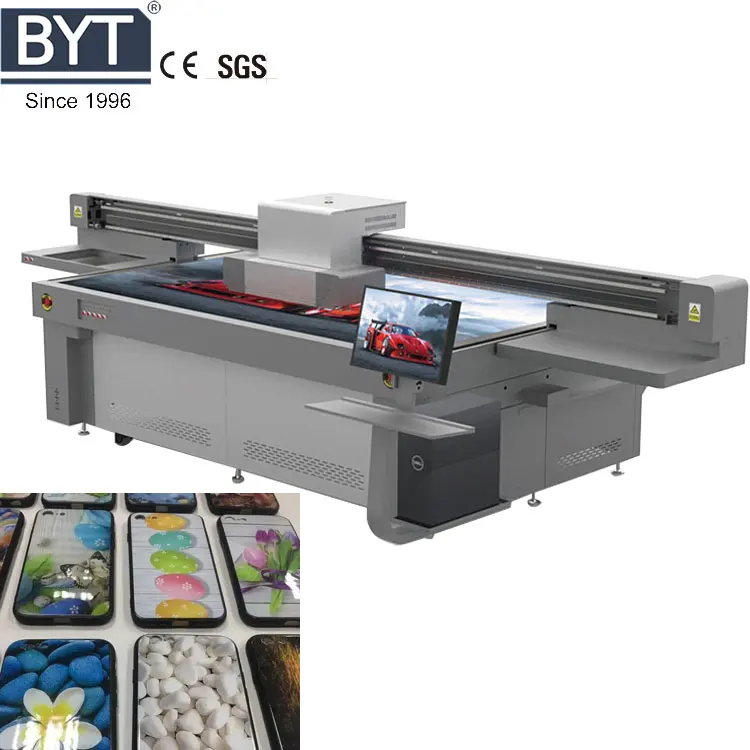

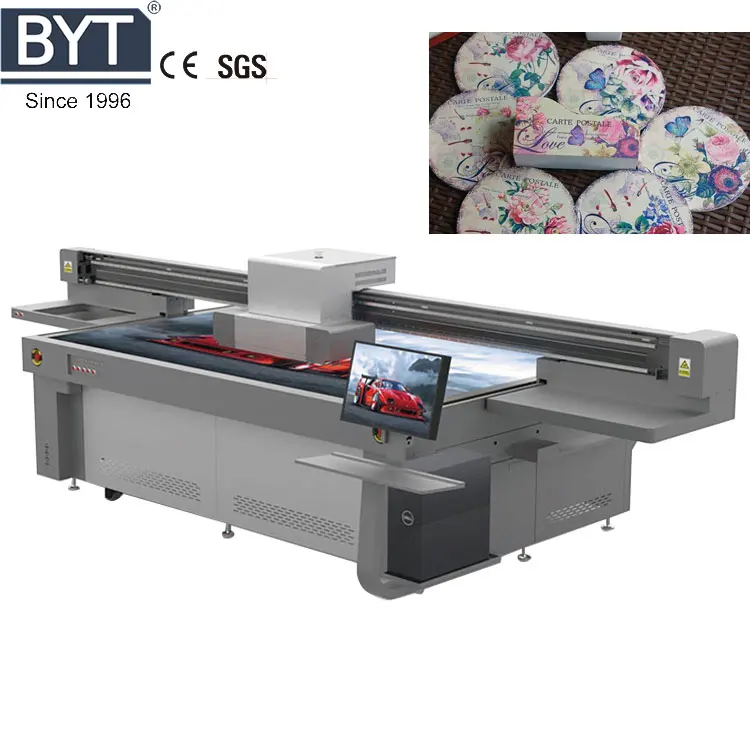

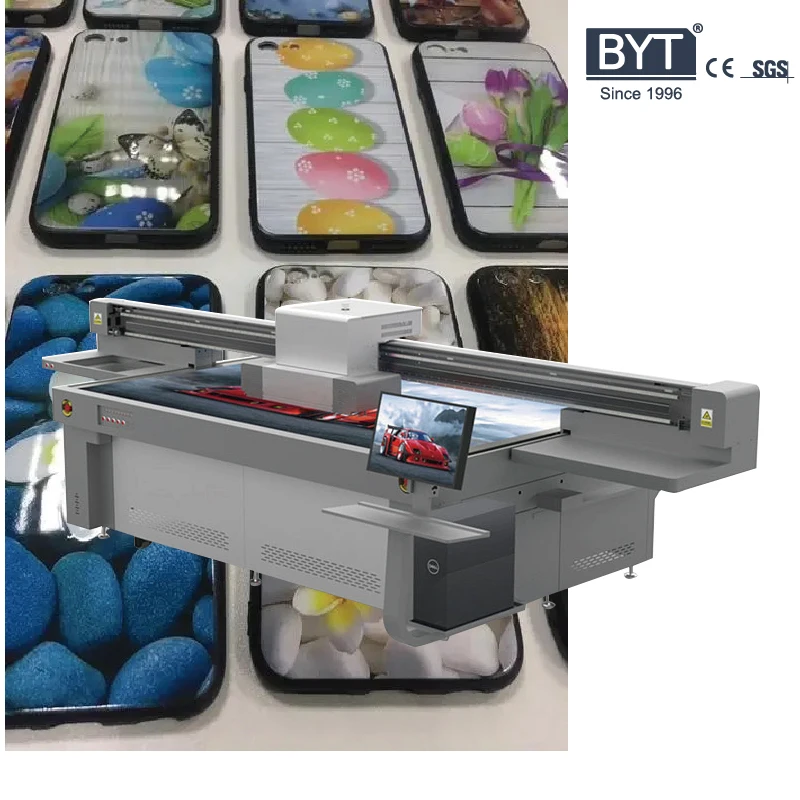

BYT-2513P-G6 New Digital Ceramic Tile Printing Machine UV Flatbed Printer
Products Information

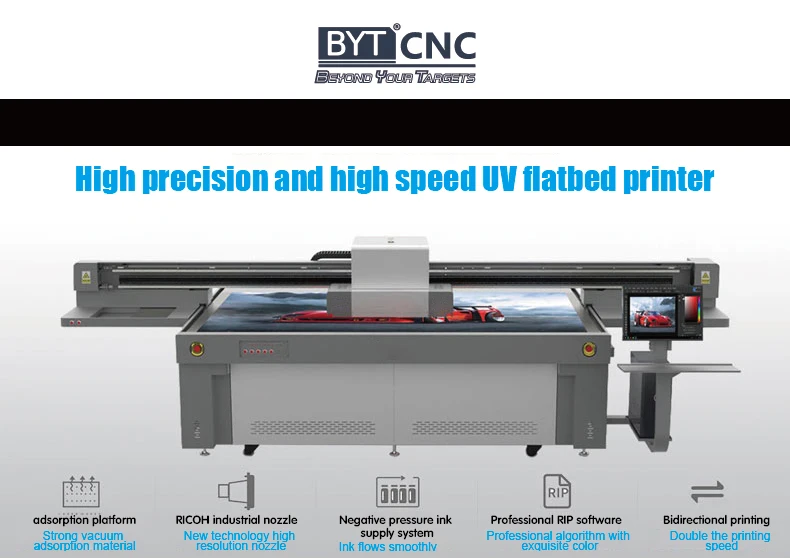

Adsorption platform
Strong vacuum adsorption material
RICOH industrial nozzle
New technology high resolution nozzle
Negative pressure ink supply system
Ink flows smoothly
Professional RIP software
Professional algorithm with exquisite color
Bidirectional printing
Double the printing speed
Strong vacuum adsorption material
RICOH industrial nozzle
New technology high resolution nozzle
Negative pressure ink supply system
Ink flows smoothly
Professional RIP software
Professional algorithm with exquisite color
Bidirectional printing
Double the printing speed
Machine model | BYT-2513P-G6 |
Nozzle model | Ricoh G6 Industrial Print Head |
Print size | Width 2500mm* length 1300mm |
Print thickness | 100mm (150mm/450mm can be customized) |
Jet height | Special concave-convex material 0-15mm (optional) |
Additional features | Color printing, embossed printing, varnish printing, supporting plate-free bronzing |
Print mode | one-way/two-way |
nozzle protection | Nozzle collision avoidance system |
lift function | Ink car lifting electronic automatic/manual intelligent induction detection to adjust the height |
software | Color Gate RIP/PP/PE;Variety of printing software |
Image format | TIFF(RGB/CMYK)、BMP、PDF、EPS、JPEG |

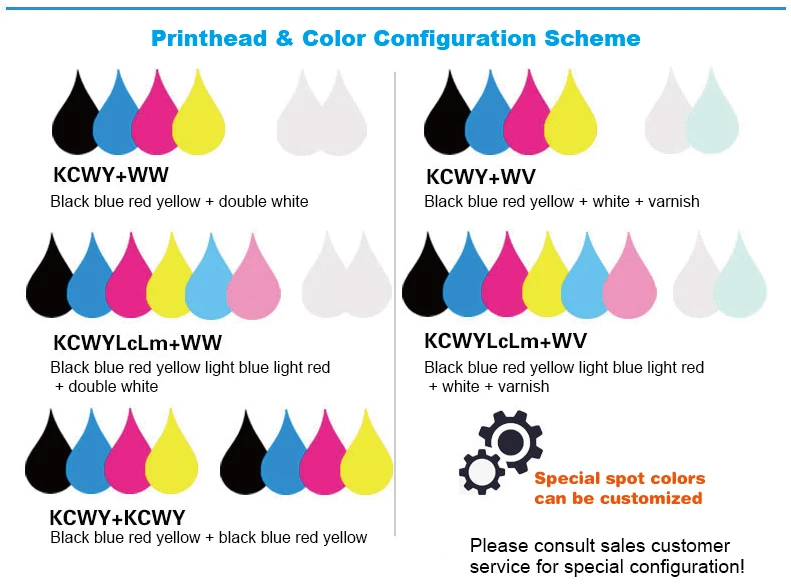

Ink color | CMYK+LCLM+W+V(Can be multiple color combinations) |
Chromatic Aberration Stabilization control | Built-in ICC color control curve |
Intelligent ink constant temperature system | |
Anti-clogging nozzle function | Ink timing stirring system,automatic cleaning and fast inkjet function |
American Poole medical grade permeation filtration device | |
Power consumption | 1-1.5 KWh |
Rated Voltage | AC220 50HZ |
Electricity requirements | AC220V(±10%);50HZ; P:600W(Main motor) |
operating environment | Temperature: 20°C~32°C/ Humidity: 40~70% |
Ink supply method | Industrial grade negative pressure ink supply system |
Safety control | Platform vacuum adsorption function |
Nozzle anti-collision function | |
Environmental standard | No VOC emission, the ink has been certified by SGS and MDS |
Equipment structure | Frame: The main body is all steel structure, quenched and milled |
Beam: front steel material, quenched and milled | |
Transmission configuration | X-axis: linear motor (maglev) + double THK silent guide rail |
Y axis: precision servo + double screw drive + double linear guide | |
Z axis: precision stepping + trapezoidal screw | |
Equipment net weight | 1500KG |
Equipment size | 4230mm*2050mm*1310mm(length*width*height) |
Product Advantage
Sample by customer
Customer Feedback

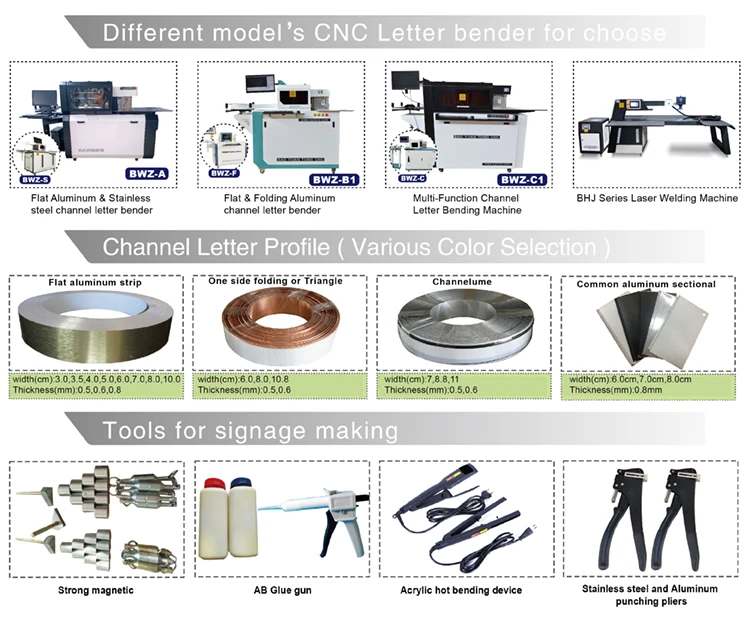

Click below picture you will find letter bender detail video ,it is our customer recently feedback our CNC letter bending machine and laser welding machine. it is our duty to provide good service to our every customer .
Related products
Our Service
Keep Quality and Service Be Our First Responsibility
Sales Service
Sales Service
1.Technical people have professional english ability and directly with customer communication.\\
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.
Our Company
FAQ
How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 1year warranty for all the electronic parts including the main board,
driver board, control board, motor, etc.
What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 1year warranty for all the electronic parts including the main board,
driver board, control board, motor, etc.
What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
