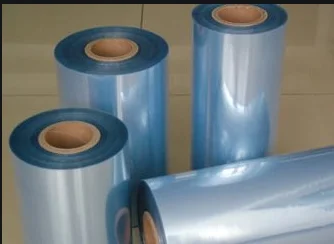

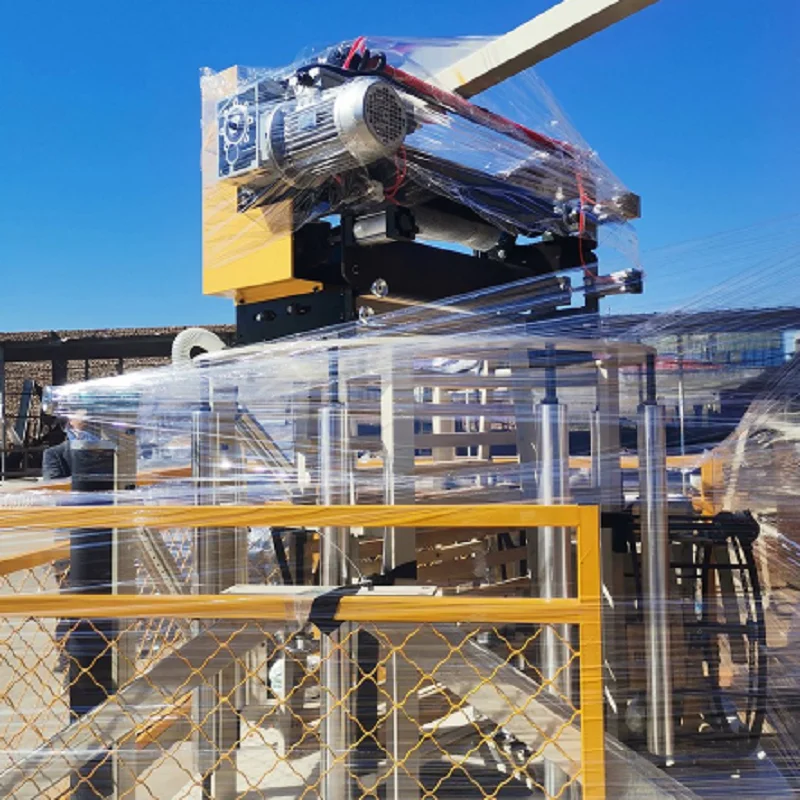

1200mm Seven layer PA EVOH Tie glue EVA LDPE LLDPE High Barrier Film Extruder Pe Blown Film Machine
- Category: >>>
- Supplier: Hebei Chengheng Plastic Machinery Technology Co. Ltd.
Share on (1600831693909):
Product Overview
Description
Product Overview

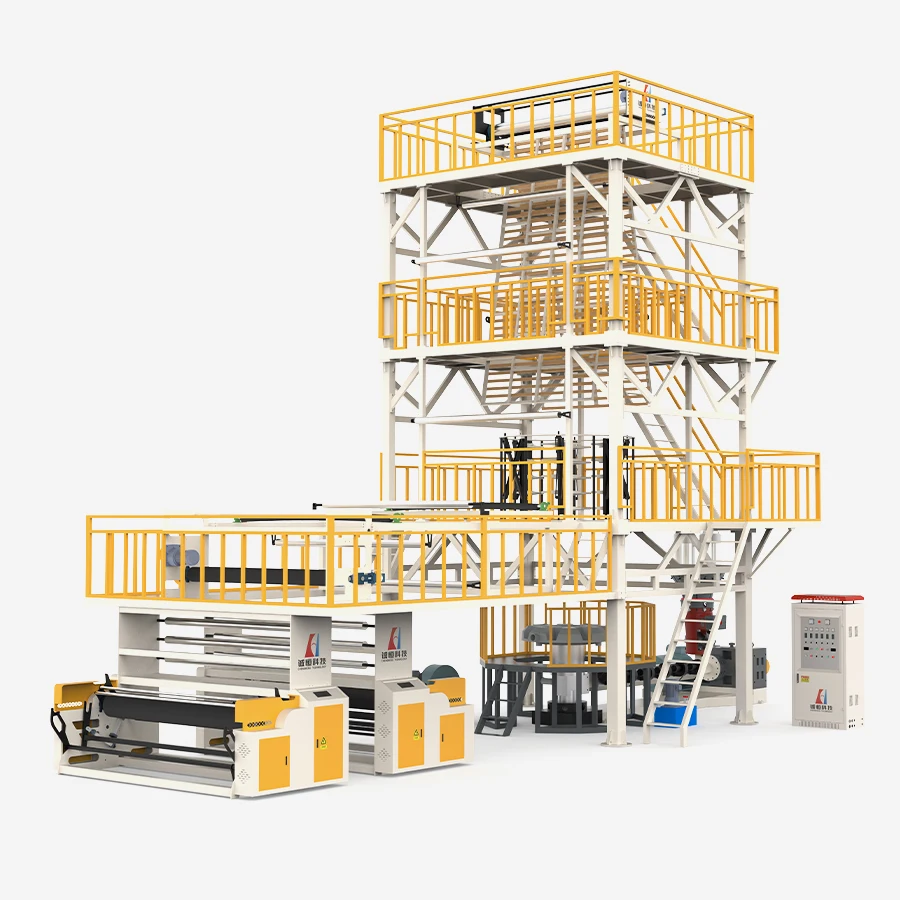

seven-layer co-extrusion blown film unit
Purpose:
The main feature of the seven-layer co-extrusion blown film unit newly developed by our company Chengheng Plastic Machinery Co., Ltd. is that it adopts a plane stacked head, which is divided into seven layers. There is no dead point, and there is a heat insulation layer between the plates, which can individually control the temperature of each layer of the machine head. The temperature difference between adjacent layers is between 50°C (degrees). The entire machine head is compact and the machine The head also adopts a rotary upper traction and constant control fully automatic winder. The products produced by this unit have the characteristics of high strength, many layers and good uniformity.
The extruder adopts a vacuum automatic feeding device, the hopper is made of stainless steel, the screw, barrel and screen changer, and the filter is made of 38CrMoAI (chrome-molybdenum-aluminum) material, which has good thermal mechanical stability , It also meets the hygienic and environmental protection requirements of the products. The motor adopts frequency conversion control, which can accurately adjust the speed of the main machine and control the feeding amount.
The machine head of this unit adopts a double-channel multi-layer plane stacking head, and the plane stacking head is made of disc-shaped sheets, and each layer of disc-shaped sheets has two layers.
Two layers of film can be extruded, each layer is evenly heated, which effectively improves the material flow performance, side feeding, less inflection points in the flow channel in the head, and no dead angle
The extruder adopts a vacuum automatic feeding device, the hopper is made of stainless steel, the screw, barrel and screen changer, and the filter is made of 38CrMoAI (chrome-molybdenum-aluminum) material, which has good thermal mechanical stability , It also meets the hygienic and environmental protection requirements of the products. The motor adopts frequency conversion control, which can accurately adjust the speed of the main machine and control the feeding amount.
The machine head of this unit adopts a double-channel multi-layer plane stacking head, and the plane stacking head is made of disc-shaped sheets, and each layer of disc-shaped sheets has two layers.
Two layers of film can be extruded, each layer is evenly heated, which effectively improves the material flow performance, side feeding, less inflection points in the flow channel in the head, and no dead angle
The whole machine head is made of 42CrMo (chromium molybdenum) material, after a special heat treatment process, the internal electroplating and polishing processing methods ensure a smoother film surface, and the mouth film of the machine head can be adjusted to reduce the uniformity of film thickness The precise internal structure design greatly improves the uniformity of material extrusion.
The operation part of the machine is all completed by the touch screen, and all the operation buttons and display instruments are all completed by the touch screen. The three touch screens can realize the man-machine dialogue very conveniently. The main control part adopts the Austrian B&R computer programmable controller (PCC).
The operation part of the machine is all completed by the touch screen, and all the operation buttons and display instruments are all completed by the touch screen. The three touch screens can realize the man-machine dialogue very conveniently. The main control part adopts the Austrian B&R computer programmable controller (PCC).
FEATURES AT A GLANCE
Product model:
Scope of supply of equipment;
1. Host:
⑴ There are seven single-screw plastic extruders SJ-50×30, which are of barrier type.
⑵Barrel aperture; 50mm, material: 38CrMoAIA. (chromium molybdenum aluminum) ceramic heater,
⑶ The gearbox adopts ZLYJ173, the gear material is 20CrMnMo (Luo manganese molybdenum), the hardness is HRC54-62° forced lubrication, and the steel filter screen.
⑷Main motor, variable frequency motor, 22Kw, air volume 22 cubic meters/min.

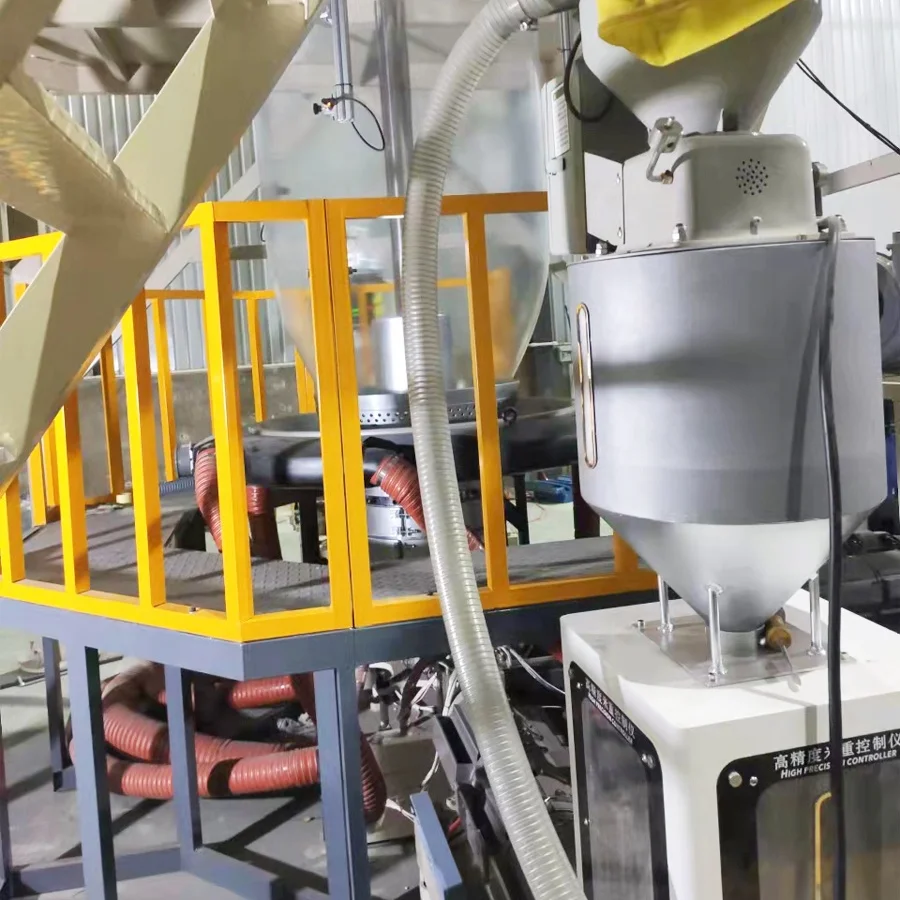

2. The host feeding device; use the weight-increasing feeding device to carry out proportional mixing and feeding of materials, and accurately control the addition ratio of main materials and auxiliary materials. This system contains a total of 7 sets of hoppers. Each extruder contains a set of weighing sensors, intermediate silos and automatic feeding devices.
3. A set of automatic air ring thickness online detection device
4. One set of IBC internal cooling system control system
5. Orientation device: adopt vertical lifting transmission device (vertical lifting distance is 1000mm.

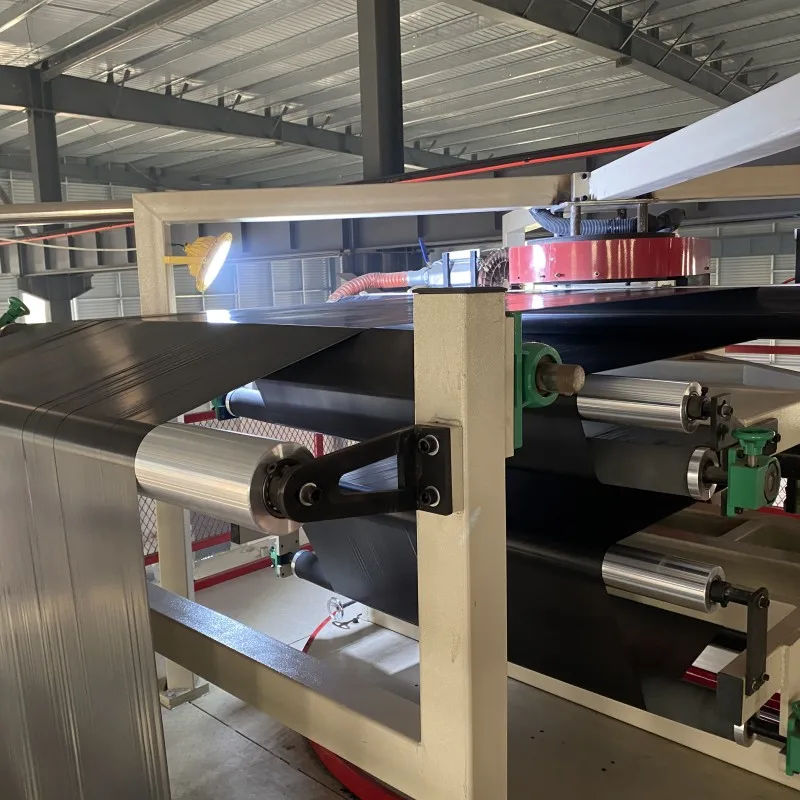

6. One set of upper traction device
7. A set of herringbone boards
8. A set of rotators
9. A set of 4-story 11-meter towers
10. A set of corona treatment machine (the corona treatment device is to increase the adhesion tension of the film surface, so as to improve the adhesion, coating and compounding characteristics of printing ink on the surface).
11. A set of automatic cutting and winding machine
12. One set of heat exchanger
13. One set of refrigeration system
Scope of supply of equipment;
1. Host:
⑴ There are seven single-screw plastic extruders SJ-50×30, which are of barrier type.
⑵Barrel aperture; 50mm, material: 38CrMoAIA. (chromium molybdenum aluminum) ceramic heater,
⑶ The gearbox adopts ZLYJ173, the gear material is 20CrMnMo (Luo manganese molybdenum), the hardness is HRC54-62° forced lubrication, and the steel filter screen.
⑷Main motor, variable frequency motor, 22Kw, air volume 22 cubic meters/min.
2. The host feeding device; use the weight-increasing feeding device to carry out proportional mixing and feeding of materials, and accurately control the addition ratio of main materials and auxiliary materials. This system contains a total of 7 sets of hoppers. Each extruder contains a set of weighing sensors, intermediate silos and automatic feeding devices.
3. A set of automatic air ring thickness online detection device
4. One set of IBC internal cooling system control system
5. Orientation device: adopt vertical lifting transmission device (vertical lifting distance is 1000mm.
6. One set of upper traction device
7. A set of herringbone boards
8. A set of rotators
9. A set of 4-story 11-meter towers
10. A set of corona treatment machine (the corona treatment device is to increase the adhesion tension of the film surface, so as to improve the adhesion, coating and compounding characteristics of printing ink on the surface).
11. A set of automatic cutting and winding machine
12. One set of heat exchanger
13. One set of refrigeration system

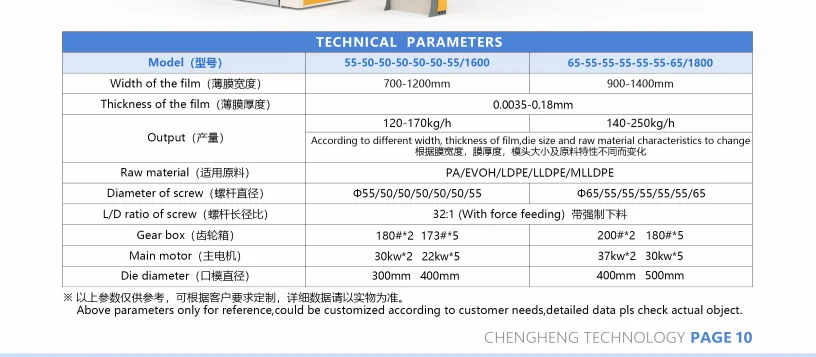

PRODUCT SPECIFICATIONS
Model(型号) | □S-40-45-40/900 □S-50-65-50/1400 □S-55-65-55/1600 □S-65-75-65/1800 | |||
Width of the film (薄膜宽度) | □250-700mm □300-1200mm □500-1400mm □500-1600mm | |||
Thickness of the film（薄膜厚度） | 0.006-0.15mm | |||
The max output（最大产量） | □115kg/h □135kg/h □155kg/h □175kg/h According to different width,thickness of film, die size and raw material characteristics to change （根据膜宽度、膜厚度、模头大小及原料特性不同而变化） | |||
Raw material（适用原料） | HDPE/LDPE/LDPE | |||
Weight（重量） | □3800kg □5200kg □9800kg □10200kg | |||
Overall dimension（L*W*H）m 外形尺寸（长*宽*高） | □6.5*2.7*5 □6.5*3*5.8 □6.5*3.8*6.2 □6.8*4*6.8 | |||
Extruder unit（主机部分） | ||||
Diameter of screw （螺杆直径） | □Φ40/45/40 □Φ50/65/50 □Φ55/65/55 □Φ65/75/65 38CrMoALA wearproof Alloy steel，five years guarantee （采用38CrMoALA耐磨合金钢，质保五年） | |||
L/D ratio of screw （螺杆长径比） | 30:1 | |||
Rotation speed of screw （螺杆转速） | 10-120r/m | |||
Barrel Fan （机筒冷风机） | Zone 3 barrels install over-temperature fan （机筒3区安装超温风机） | |||
Gear box（齿轮箱） | □146# □173# □200# □225# Extruder special hard gear reducer，tooth grinding teeth hardened, internal and external oil circulation system （挤塑机专用硬齿面减速机，齿面磨齿淬火处理，内外油循环系统） | |||
Main motor（主电机） | □15kw □22kw □30kw □37kw 100% Original three-phase variable frequency motor Equipped with inverter control （100%正品三相变频调速电机 配装变频器控制） | |||
Die head unit（模头部分） | ||||
Die diameter （口模直径） | □60mm □80mm □120mm □250mm □360mm With 40Cr steel forging finishing, eight feed trough runner，Uniform flow channel，blown plasticizing effect （采用40Cr钢锻打后精加工，8个进料流道槽，流道均匀，吹膜塑化效果好） | |||
Cool unit（风环类型） | ||||
Air ring type （风环类型） | □LDPE double vents vacuum air ring（□HDPE双风口负压风环） □HDPE Single outlet air ring（□HDPE单风口风环 ） | |||
Air ring material （风环材料） | High quality Taiwan cast aluminum alloy air ring （优质台湾铸铝铝合金） | |||
Bellow power （鼓风机功率） | □1.5kw □4kw □2.2kw □7.5kw □11kw Shanghai production of high-pressure mute fan （上海产高压静音风机） | |||
Traction unit（牵引部分） | ||||
旋转驱动 | 0.75KW低速电机 | |||
气浮换向辊 | 0.5kw漩涡增压风机 ×2 | |||
运动方式 | ±350° | |||
旋转塔架装置 | 由齿轮组合组成，无死角免维护。 | |||
Width of take up roller （夹棍宽度） | □900mm □1400mm □1600mm □1800mm | |||
Traction roller material (牵引胶辊材质) | □silicone roll(□硅胶辊) □NBR roller(□丁晴胶辊) | |||
Take up motor (牵引电机) | □1.5kw □2.2kw □3.0kw Installation of RV series reducer variable frequency motor inverter control (变频电机加装RV系列减速机 变频控制) | |||
Take up speed (牵引速度) | 100m/min | |||
恒张力牵引电机 | □1.5kw变频控制□10N.m力矩控制 | |||
牵引辊宽度 | □700mm □900mm □1200mm □1400mm | |||
Lambdoidal board (人字夹板) | Wooden flannel wrapped(木质绒布包裹) □Aluminum roller guide (□铝导辊 ) | |||
Gusset equipment (插边装置) | □Modular rack type (□组合式齿条式) □ Independent Split (□独立分体式) | |||
Bubble stabilizing ring (稳泡装置) | □Electric aluminum roller guide (□电动铝导辊 ) □Manual wood floor (□手动木质板) | |||
Guide roller(导辊) | Aluminum guide roller (HV300-HV700) surface treatment (铝导料辊 （HV300-HV700)表面处理加工） | |||
Winding unit（收卷部分） | ||||
Winding type （收卷方式） | Surface friction rewinding, manually change the volume （表面摩擦式收卷，手动换卷） | |||
Drive type（驱动方式） | Torque motor equipped RV reducer（力矩电机配装RV减速机） | |||
Film expanding roller（薄膜展开装置） | Smoothing roll（展平辊） | |||
二次牵引部分 | 独立力矩控制，恒张力控制 | |||
Electric control cabinet（电控柜） | low-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control table （低压电器为环宇电器、德力西电器、台湾阳明电器、汇邦温控表） | |||
Computer control type（电脑控制系统） | □7-inch touch screen + process control system（□7寸触摸屏+程序控制系统） □Automatic air supply device (□自动补气装置） | |||
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
The specifications of the produced products are between 0.05mm and 0.18mm in thickness, the film width (folding diameter) is 2000mm, the output reaches 350kg/h, and the film roll diameter is 2000mm. Applicable raw materials LDPE, LLDPE, HDPE, MLLDPE, PA, EV and adhesives. The speed of the production line is 3.3-33m/min. The utility index is: voltage 380V±10%, 50Hz. The installed capacity is 350Kw.
Compressed air, 0.6Mpa, air consumption, 6 cubic meters/h. Equipment environment, 10°—45°.
Compressed air, 0.6Mpa, air consumption, 6 cubic meters/h. Equipment environment, 10°—45°.
