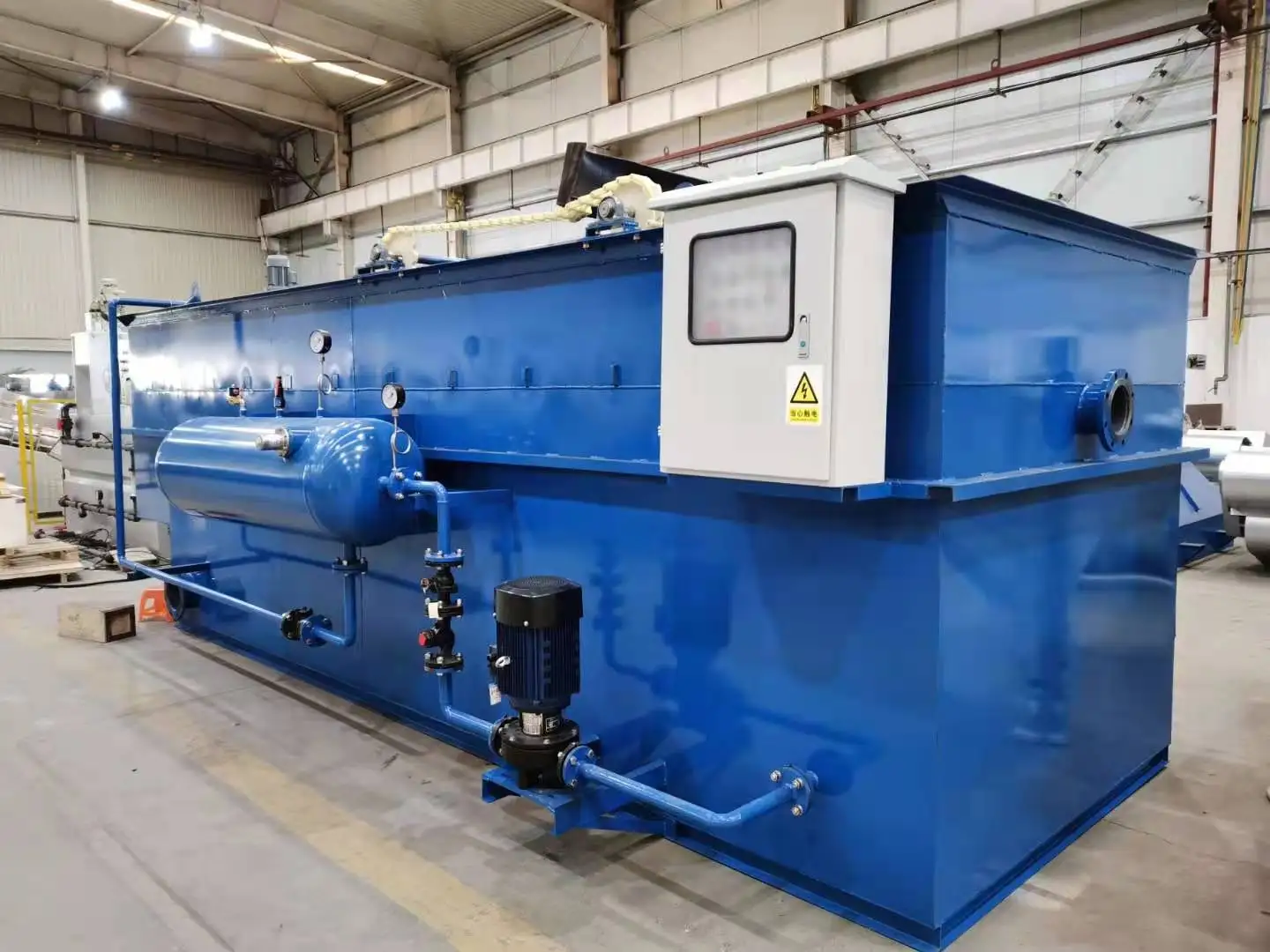

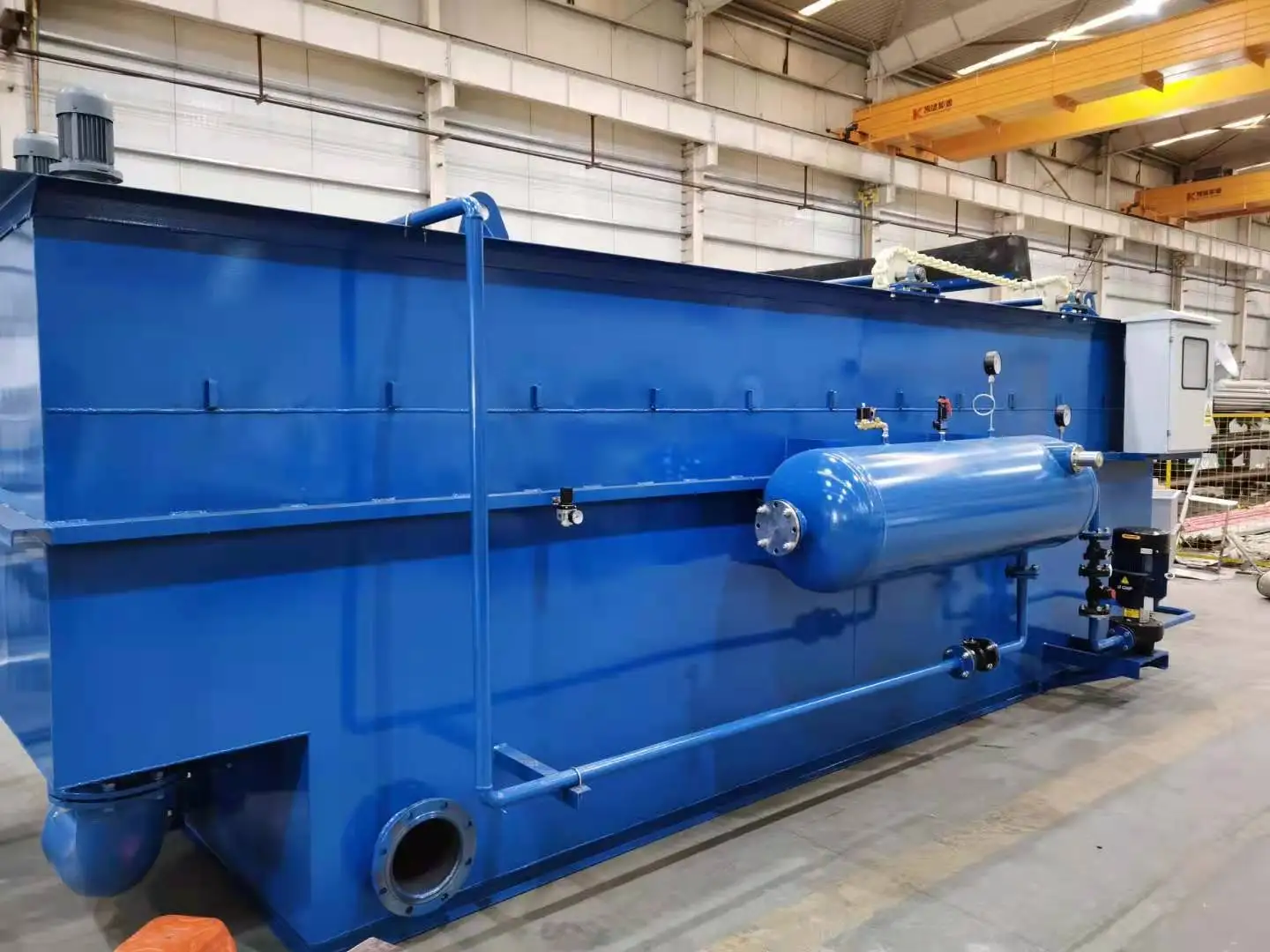

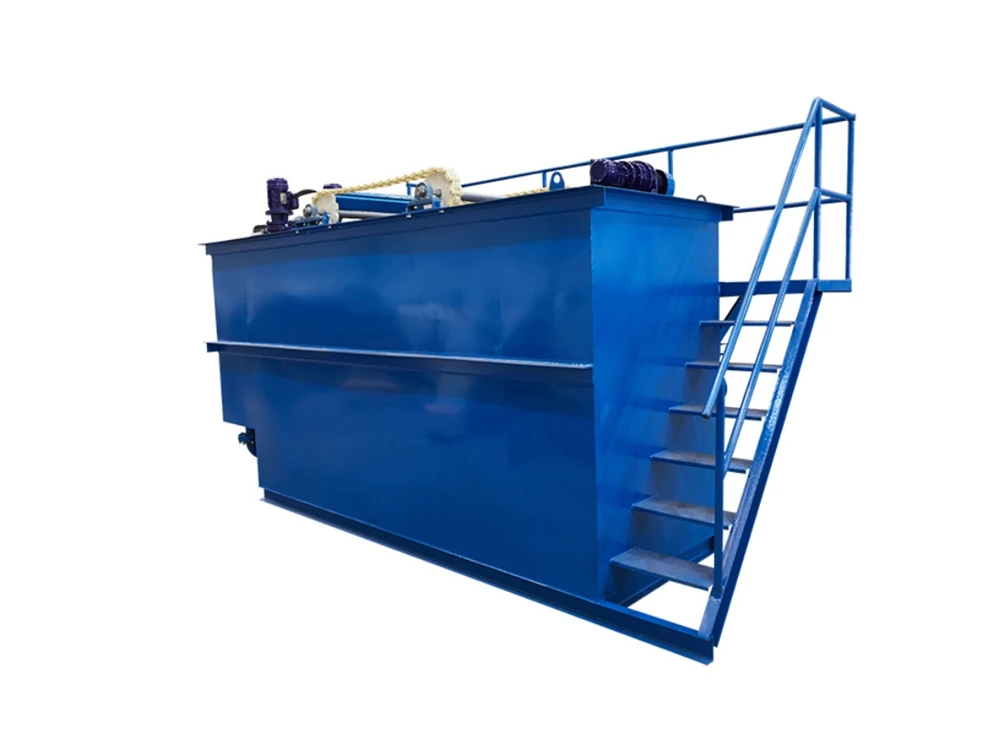

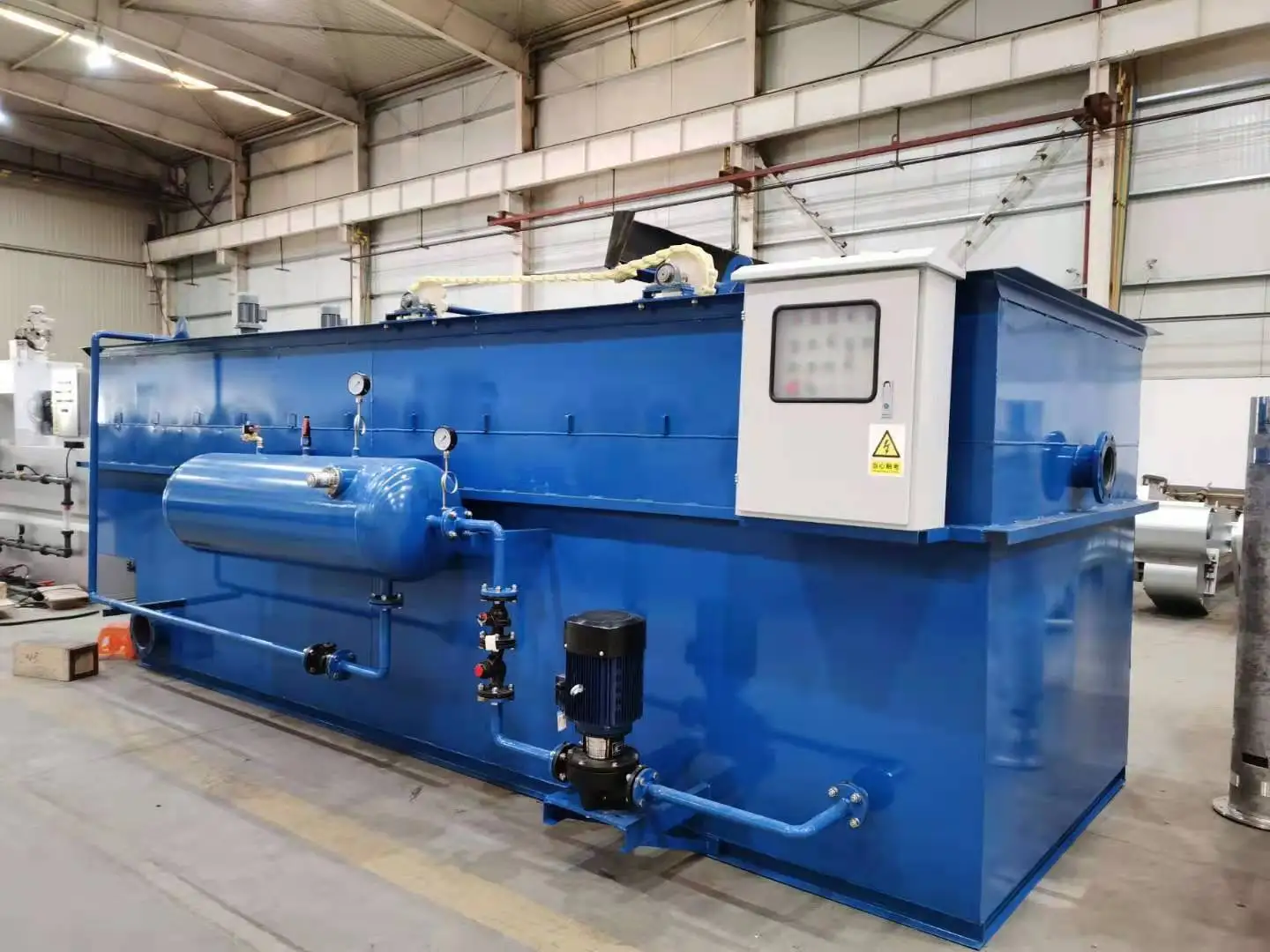

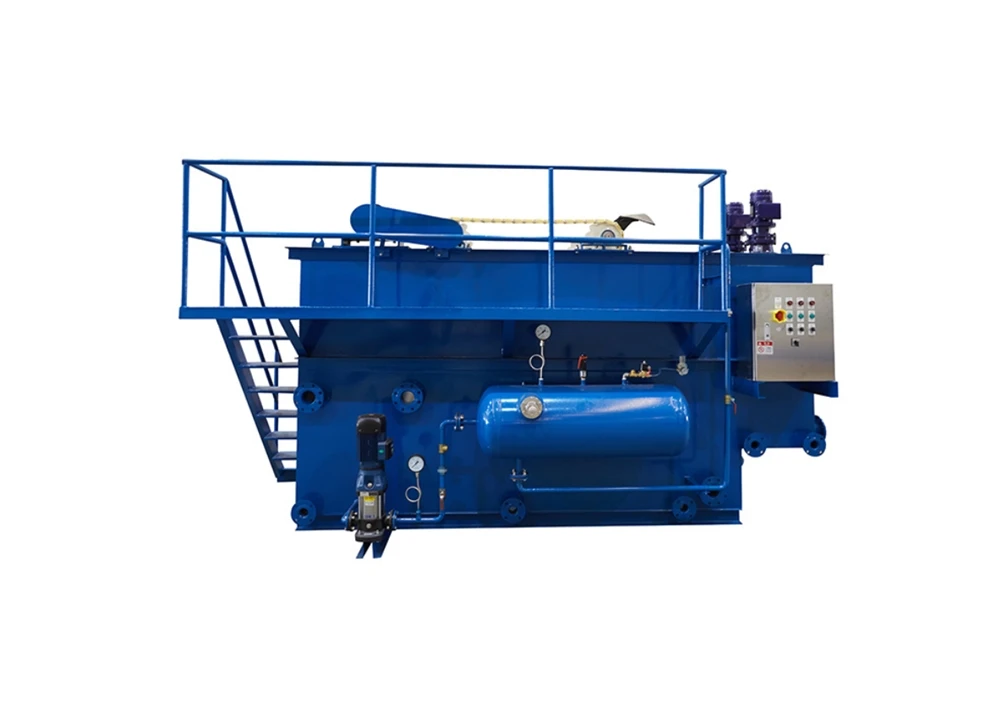

Automatic High Quality Dissolved Flat flow Type Air Flotation Machine Ozone Pump Micro Pump Filtration Nano Bubble Pump Parts
- Category: >>>
- Supplier: Yangzhou Maoyuan Environmental Protection Technology Co. Ltd.
Share on (1600831735629):
Product Overview
Description
Product Description
DAF Dissolved Air Flotation is one of the most important projects to separate solid and liquid and the most effective ways to remove tiny suspended particles whose specific gravity is close to water. This equipment is widely applied for water supply and drainage project.
Working Priciple
Air Flotation is composed of the air flotation tank, dissolved air system, retune pipe for dissolved air, release device for water with dissolved air, slag scraping device (type of combination, trussed or chain plate can be selected according to the requirements of the uses) and electric cabinet.
Function
The main function of Air Flotation is the separation of solid and liquid (decrease the COD, BOD and color at the same time).

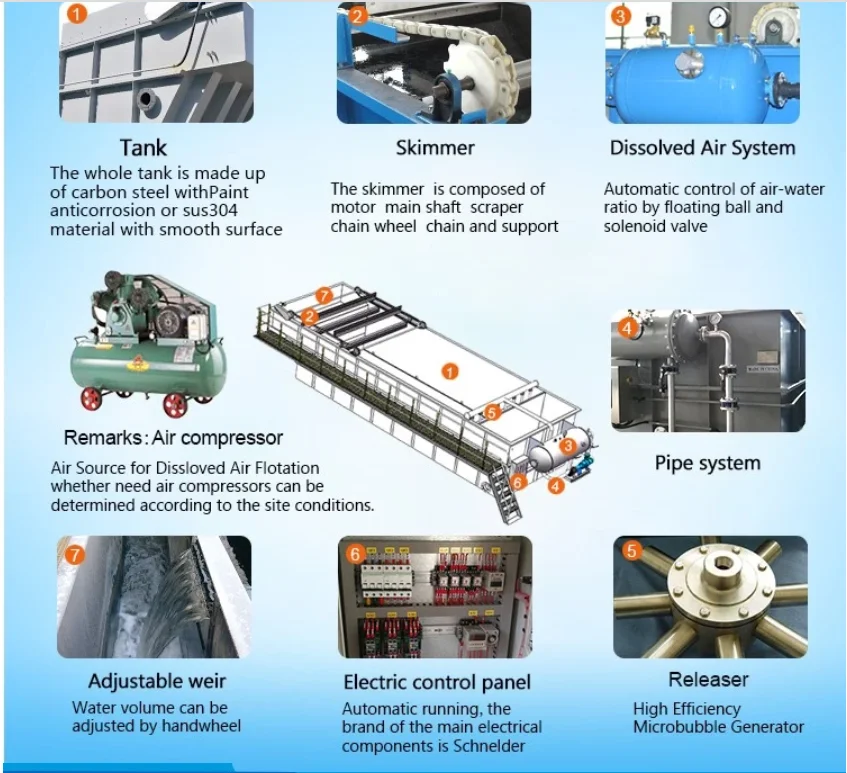

Components Display
Product Paramenters
Model | Capacity (m³/hr) | Motor Power (KW) | Dimension (L*W*H) |
MPQF-5 | 5 | 3 | 3300*1800*2200 |
MPQF-10 | 10 | 3 | 4000*2100*2200 |
MPQF-20 | 20 | 7.5 | 4600*2400*2200 |
MPQF-30 | 30 | 7.5 | 5200*2600*2400 |
MPQF-40 | 40 | 7.5 | 6000*2600*2400 |
MPQF-50 | 50 | 7.5 | 7000*2600*2400 |
MPQF-60 | 60 | 7.5 | 7600*2800*2400 |
MPQF-70 | 70 | 7.5 | 8400*2800*2400 |
MPQF-80 | 80 | 7.5 | 9200*2800*2400 |
MPQF-100 | 100 | 15 | 10000*2800*2600 |
Flowchart
Packing&Shipping

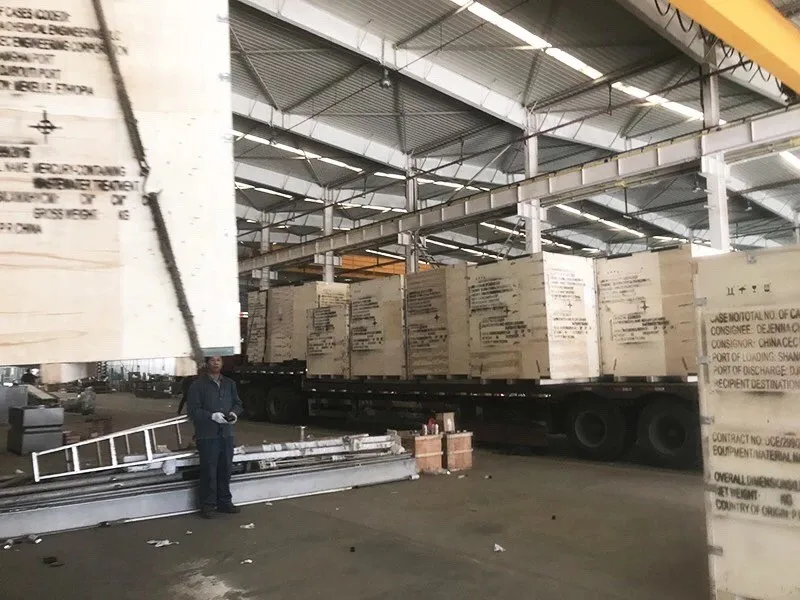

Package
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Delivery.
Delivery time: 3~45 days after confirming order, the detailed delivery date should be decided by the production season and order quantity.
