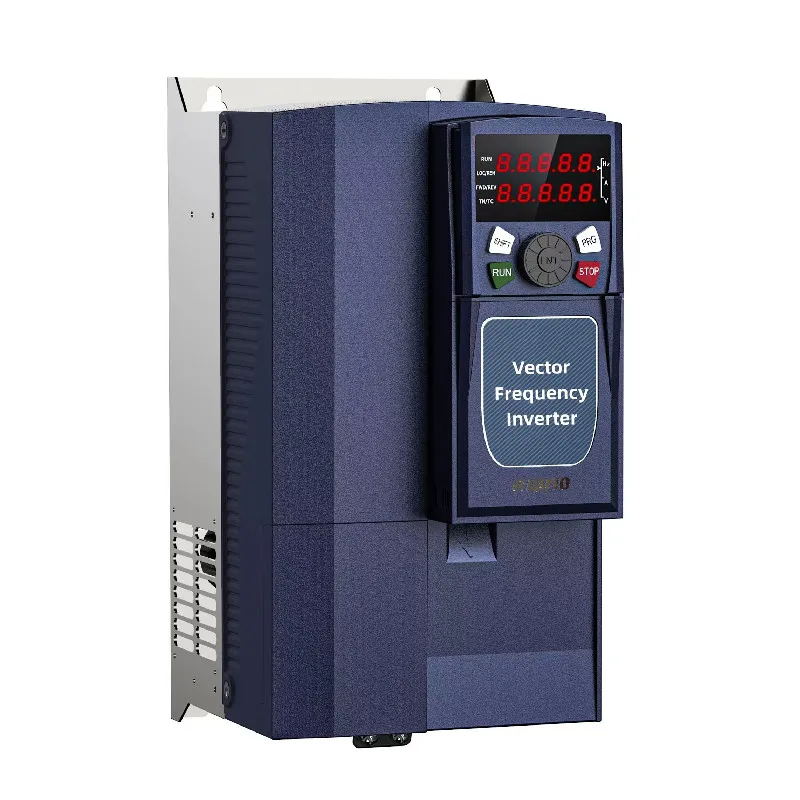

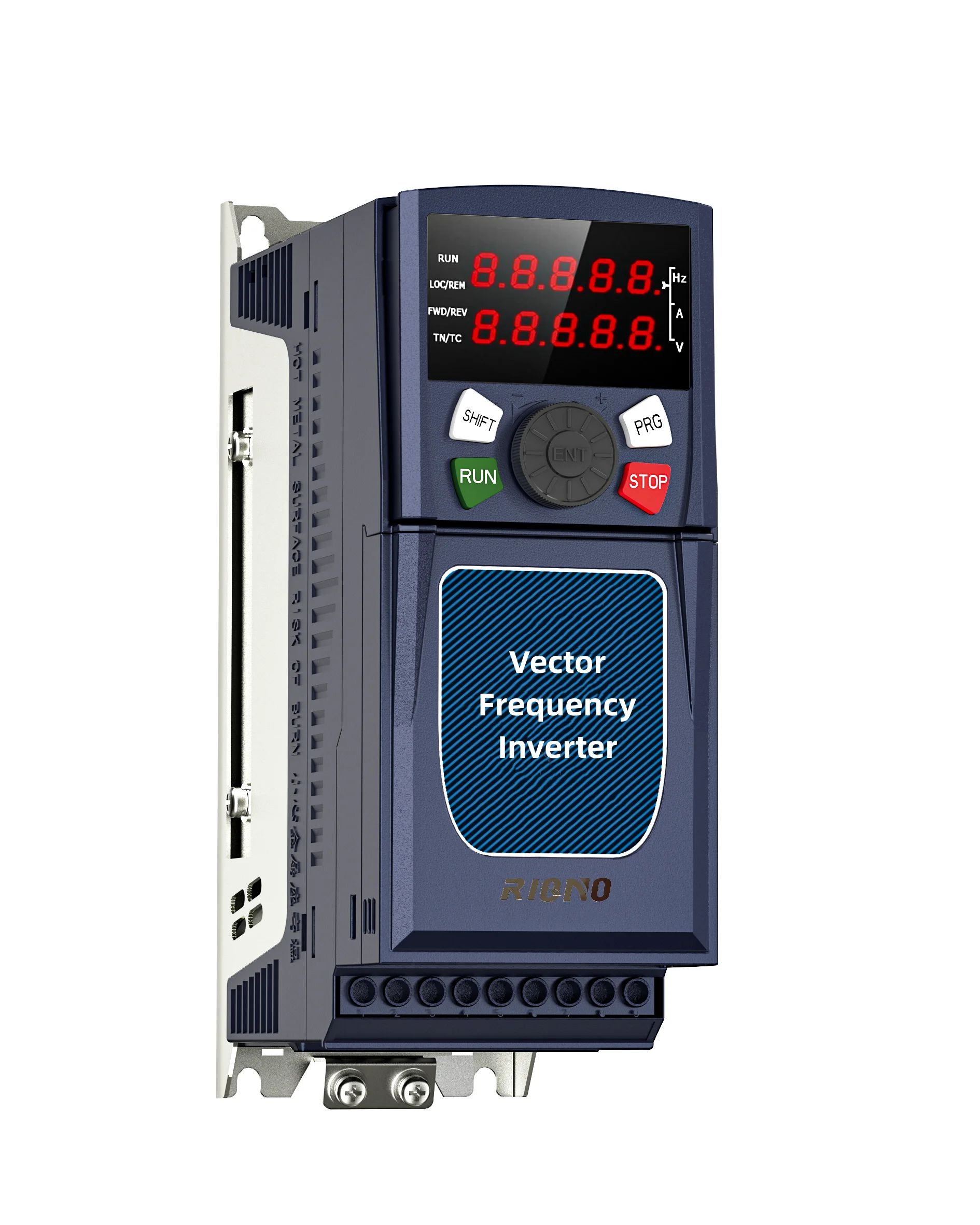

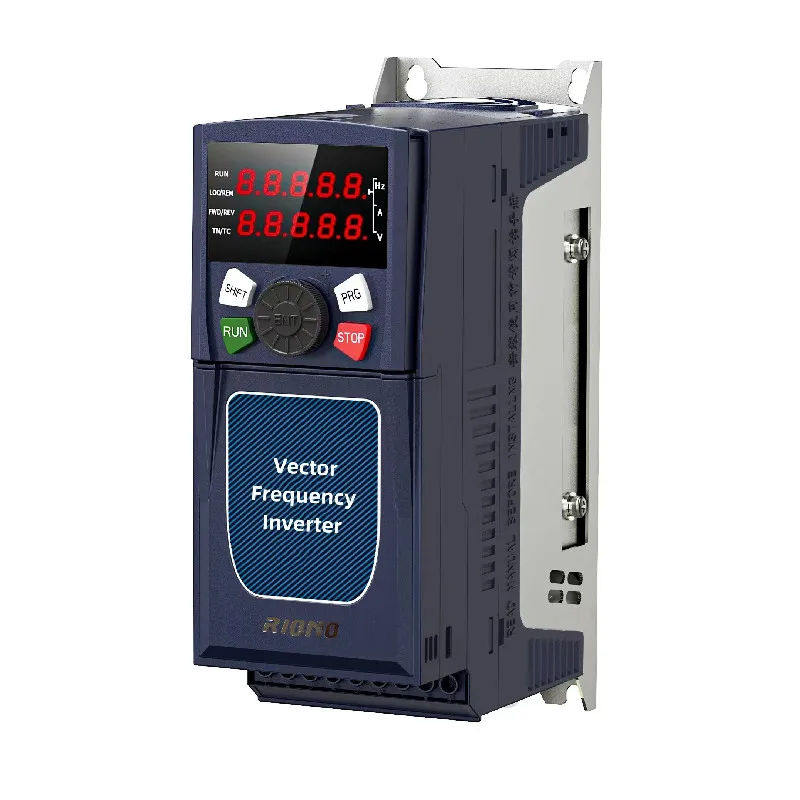

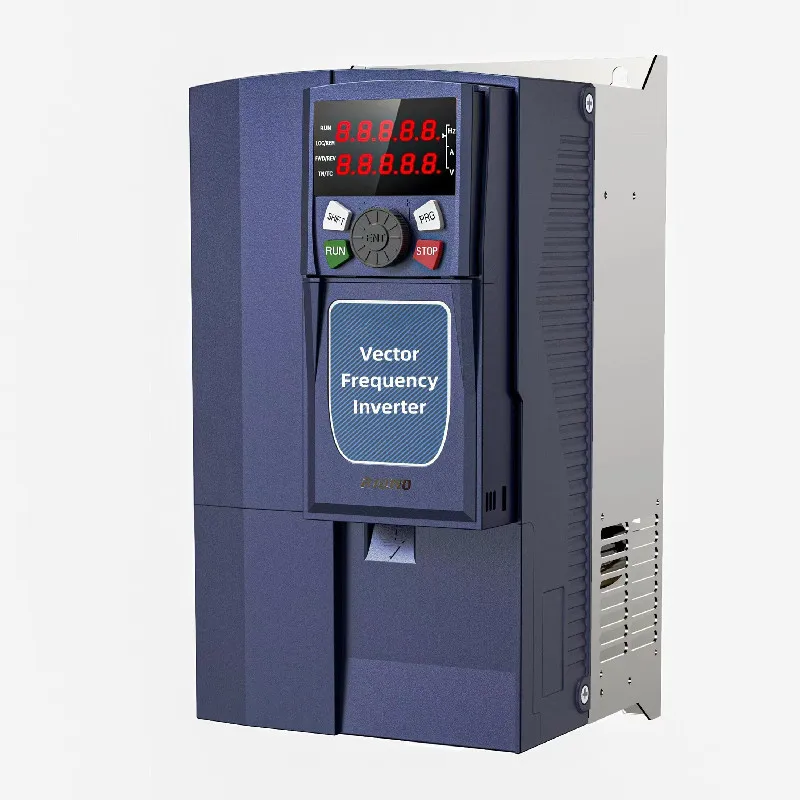

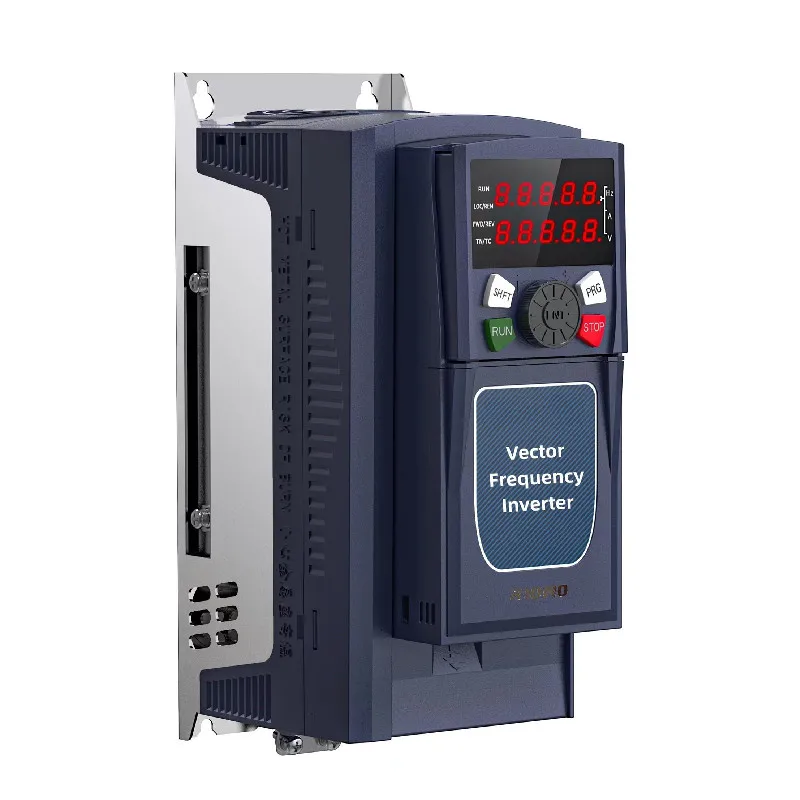

A800 10HP vfd inverter 380V frequency inverter/frequency converter /variable frequency drive 7.5kw vfd 7.5kw
- Category: >>>
- Supplier: Jiangsu Riqno Electric Co. Ltd.
Share on (1600831759252):
Product Overview
Description
Product Description

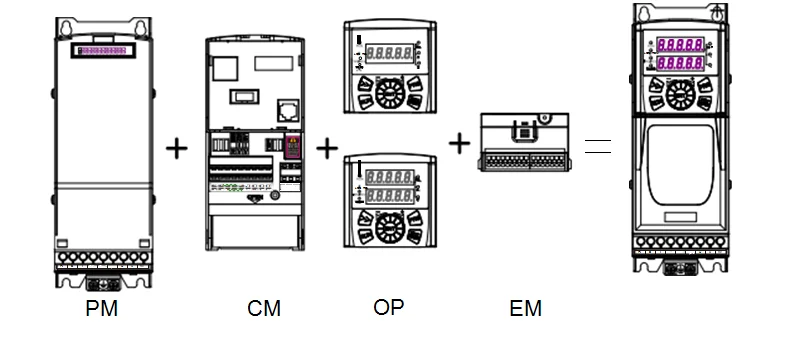

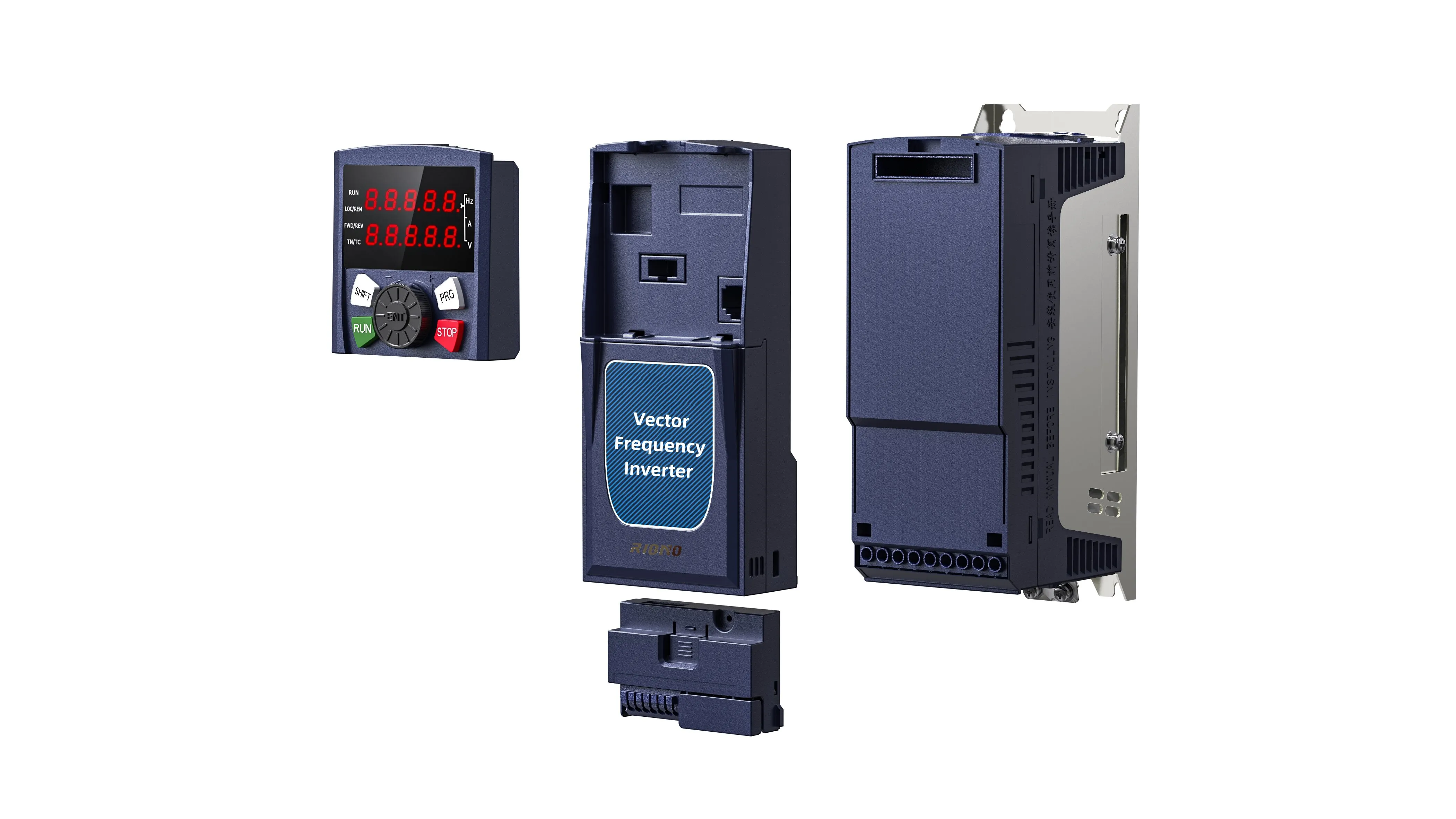

A800 Series High Performance Modular Design
AC Drive /VFD /Frequency Inverter
Specification
Item | Description |
Place of Origin | China |
Jiangsu | |
Brand Name | RIQNO |
Model Number | A800-7R5G/11RP-T4 |
Warranty | 18 months |
Type | AC/DC/AC |
Certification | OEM/ODM |
Size | 142*282.5*187mm |
Customized | Yes |
Control Mode | V/F or Vector Control |
Rated Power | 7.5kw |
Nominal Voltage | 380V |
power phase number | 3 Phase |
color | Black |
Package | Carton |
Output voltage | 380V |
Output phase | 3-phase |
Quality | High-quality |
Display | LED |
Motor Power | 7.5KW |
Rated current | 17/25A |
Product name | Frequency Inverter VFD AC Drive |
Inverter type | Vector Frequency Inverter Converter |

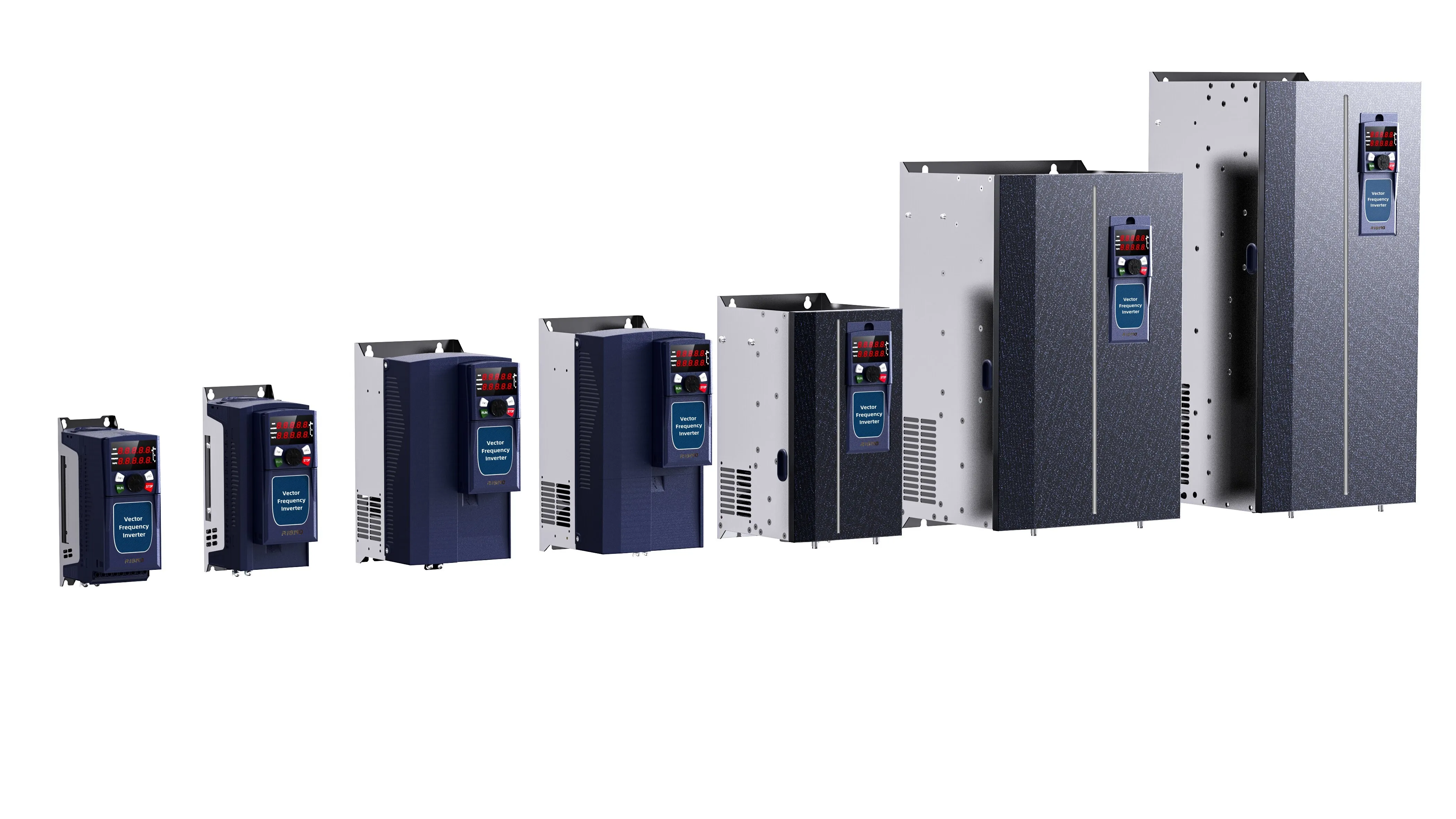

Product Paramenters
NO. | Model No. | Motor Power | Rated Current | Outline Dimensions | Package Dimensions | Gross Weight | ||||||
(kw) | (A) | (H*W*D) (mm) | (H*W*D) (cm) | (KG) | ||||||||
380V 3-phase input & 3-phase output (Voltage Range: -15% 380V~380 +15%) | ||||||||||||
1 | A800-0R7G-T4 | 0.75/1.5 | 2.1/3.8 | 78*203*145 | 23.6*11.6*18.5 | 1.5 | ||||||
2 | A800-1R5G-T4 | 1.5/2.2 | 3.8/5.1 | 78*203*145 | 23.6*11.6*18.5 | 1.5 | ||||||
3 | A800-2R2G-T4 | 2.2/4.0 | 5.1/9.0 | 78*203*145 | 23.6*11.6*18.5 | 1.5 | ||||||
4 | A800-4R0G-T4 | 4 | 9.0 | 78*203*145 | 23.6*11.6*18.5 | 1.5 | ||||||
5 | A800-4R0G/5R5P-T4 | 4.0/5.5 | 9.0/13 | 93*235*145 | 25.6*13.6*18.5 | 2.0 | ||||||
6 | A800-5R5G/7R5P-T4 | 5.5/7.5 | 13/17 | 93*235*145 | 25.6*13.6*18.5 | 2.0 | ||||||
7 | A800-7R5G-T4 | 7.5 | 17 | 93*235*145 | 25.6*13.6*18.5 | 2.1 | ||||||
8 | A800-7R5G/11RP-T4 | 7.5/11 | 17/25 | 142*282.5*187 | 33.5*20*25.2 | 4.0 | ||||||
9 | A800-11RG/15RP-T4 | 11/15 | 25/32 | 142*282.5*187 | 33.5*20*25.2 | 4.0 | ||||||
10 | A800-15RG-T4 | 15 | 32 | 142*282.5*187 | 33.5*20*25.2 | 4.0 | ||||||
11 | A800-15RG/18RP-T4 | 15/18 | 32/37 | 150*305*202 | 35.4*20.7*25.3 | 5.5 | ||||||
12 | A800-18RG/22RP-T4 | 18/22 | 37/45 | 150*305*202 | 35.4*20.7*25.3 | 5.64 | ||||||
13 | A800-22RG-T4 | 22 | 45 | 150*305*202 | 35.4*20.7*25.3 | 5.72 | ||||||
14 | A800-22RG/30RP-T4 | 22/30 | 45/60 | 180*330*208.5 | 40*25.7*27.5 | 8.7 | ||||||
15 | A800-30RG-T4 | 30 | 60 | 180*330*208.5 | 40*25.7*27.5 | 9.16 | ||||||
16 | A800-30RG/37RP-T4 | 30/37 | 60/75 | 240*358*224 | 45*34*31.5 | 15.4 | ||||||
17 | A800-37RG/45RP-T4 | 37/45 | 75/91 | 240*358*224 | 45*34*31.5 | 15.9 | ||||||
18 | A800-45RG-T4 | 45 | 91 | 240*358*224 | 45*34*31.5 | 16.12 | ||||||
19 | A800-45RG/55RP-T4 | 45/55 | 91/112 | 268*380.5*246 | 57.6*38*33 | 22.32 | ||||||
20 | A800-55RG/75RP-T4 | 55/75 | 112/150 | 268*380.5*246 | 57.6*38*33 | 22.78 | ||||||
21 | A800-75RG-T4 | 75 | 150 | 268*380.5*246 | 57.6*38*33 | 23.18 | ||||||
22 | A800-75RG/90RP-T4 | 75/90 | 150/176 | 287*625*270 | 70*38.6*34 | 38.3 | ||||||
23 | A800-90RG/110RP-T4 | 90/110 | 176/210 | 287*625*270 | 70*38.6*34 | 39.3 | ||||||
24 | A800-110RG/132RP-T4 | 110/132 | 210/253 | 317*661*320 | 72.2*39*50.3 | 48 | ||||||

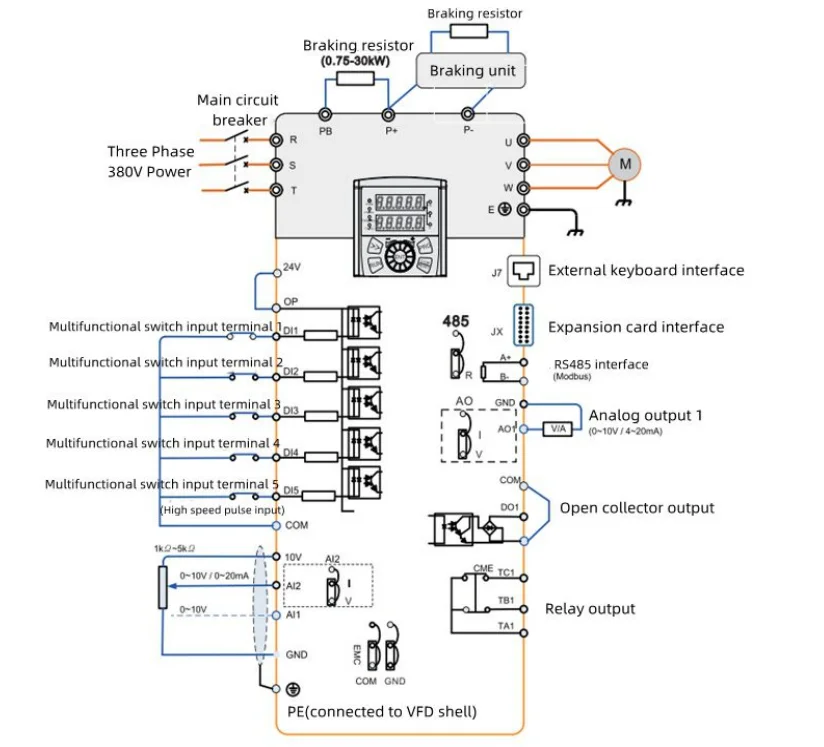

Wiring Diagram
Packing & Delivery
Package Carton: Low frequency inverter 3-phase motor controller small power vfd
Company Profile
COMPANY PROFILE
Jiangsu RIQNO Electric Co., Ltd. is one high-tech enterprise focusing on motor drive (frequency inverter), automation control, system solution integration and related technical services.
At present, RIQNO has several key technologies that have obtained national patents, and have passed ISO9001 quality management system verification & intellectual property management system verification with national high-tech enterprise certification. Powerful technical development capability and mature production quality system are the guarantee for providing customers with high-quality products and efficient technical support services. Our company has already mastered key technologies such as high-performance vector frequency inverter, servo drive and automation integration control. Meanwhile, RIQNO has one core R&D team to maintain continuous upgrading and improvement of our core technology.
Since its establishment, RIQNO has always been adhering to the business philosophy of "To seek the truth, To be pragmatic, To be pioneering, To keep innovating". Most of important, we promise to insist on working hard to provide customers with considerate and sustainable industrial automation solutions to achieve the common value. Our pursuit is to become the most trustworthy partner.
Jiangsu RIQNO Electric Co., Ltd. is one high-tech enterprise focusing on motor drive (frequency inverter), automation control, system solution integration and related technical services.
At present, RIQNO has several key technologies that have obtained national patents, and have passed ISO9001 quality management system verification & intellectual property management system verification with national high-tech enterprise certification. Powerful technical development capability and mature production quality system are the guarantee for providing customers with high-quality products and efficient technical support services. Our company has already mastered key technologies such as high-performance vector frequency inverter, servo drive and automation integration control. Meanwhile, RIQNO has one core R&D team to maintain continuous upgrading and improvement of our core technology.
Since its establishment, RIQNO has always been adhering to the business philosophy of "To seek the truth, To be pragmatic, To be pioneering, To keep innovating". Most of important, we promise to insist on working hard to provide customers with considerate and sustainable industrial automation solutions to achieve the common value. Our pursuit is to become the most trustworthy partner.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(20.00%),Africa(20.00%),Mid East(15.00%),North America(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Frequency Inverter,Automation Contro,System Solution Integration,Related Technical Services
4. why should you buy from us not from other suppliers?
Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(20.00%),Africa(20.00%),Mid East(15.00%),North America(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Frequency Inverter,Automation Contro,System Solution Integration,Related Technical Services
4. why should you buy from us not from other suppliers?
Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
