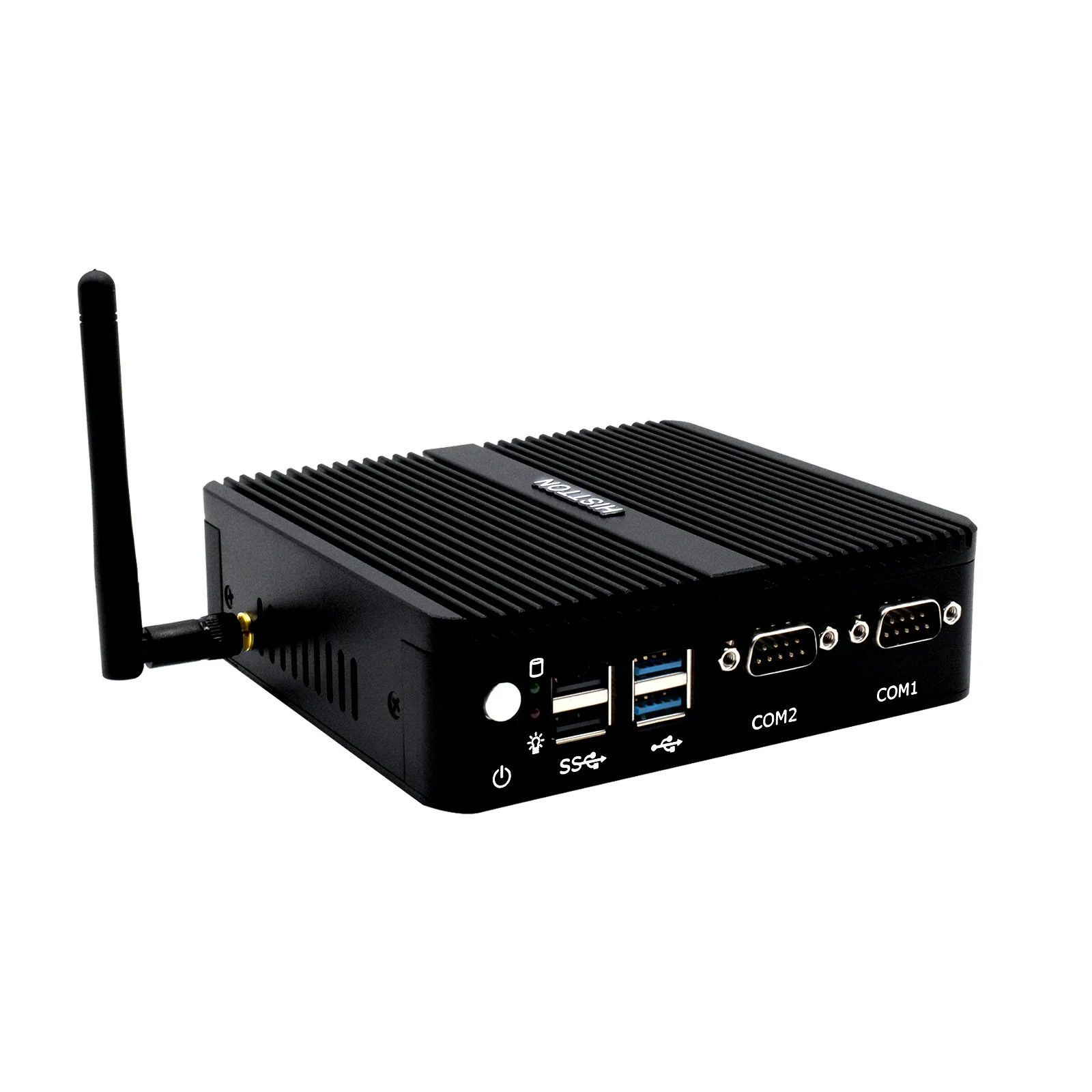

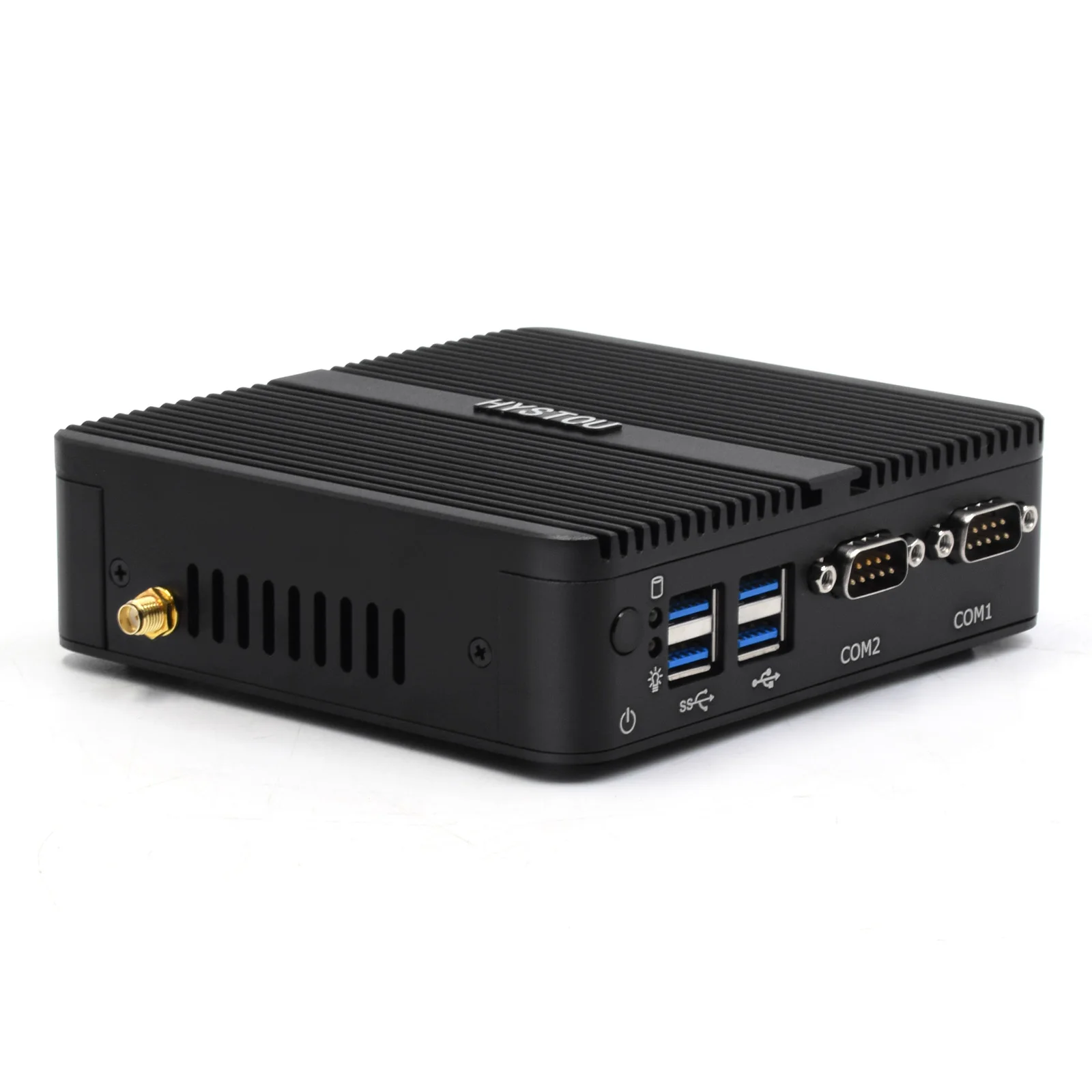

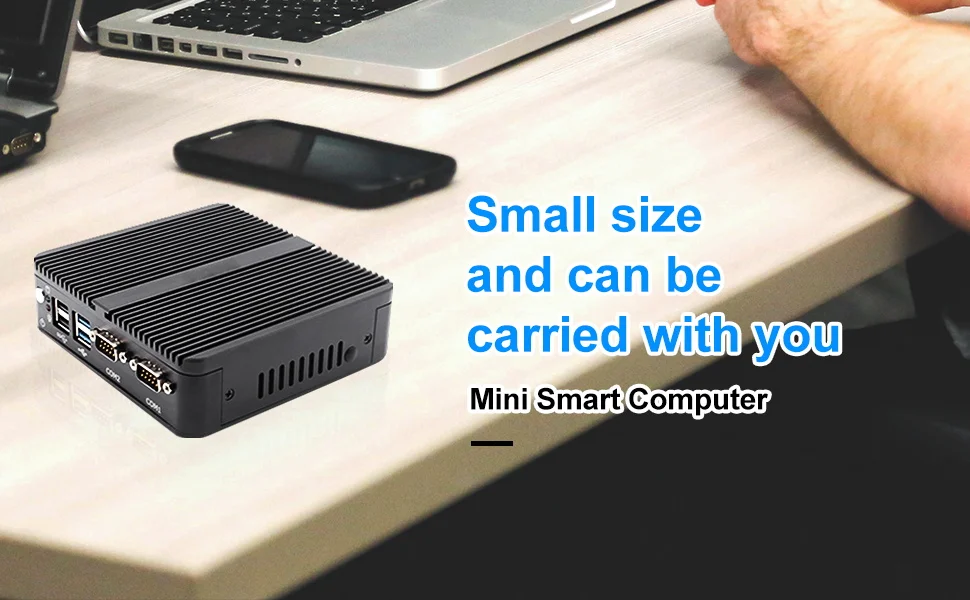

HYSTOU Fanless Industrial Mini DDR4 Low Power PC H3 J4125 models Firewall PC Celeron Desktop Computer
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (1600831864656):
Product Overview
Description
Details Images
Powerful perform,Faster Processor
HYSTOU Mini PC H3-J4125 models are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

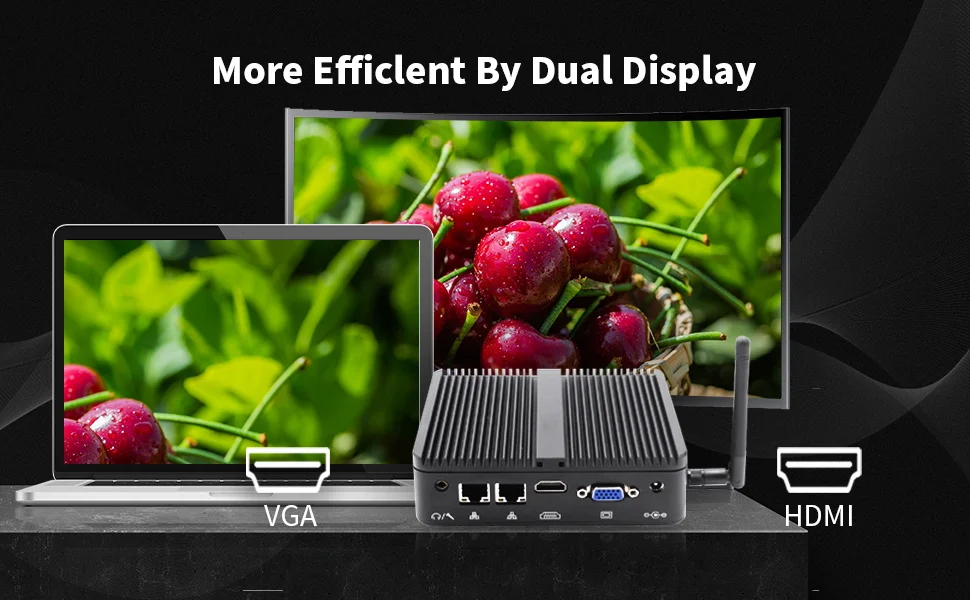

DUAL Display DOUBLE Efficiency
H3 is built with 1xHDMI port and 1xVGA port, seamlessly connecting two monitors. With integrated Intel UHD Graphics 600 to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family.

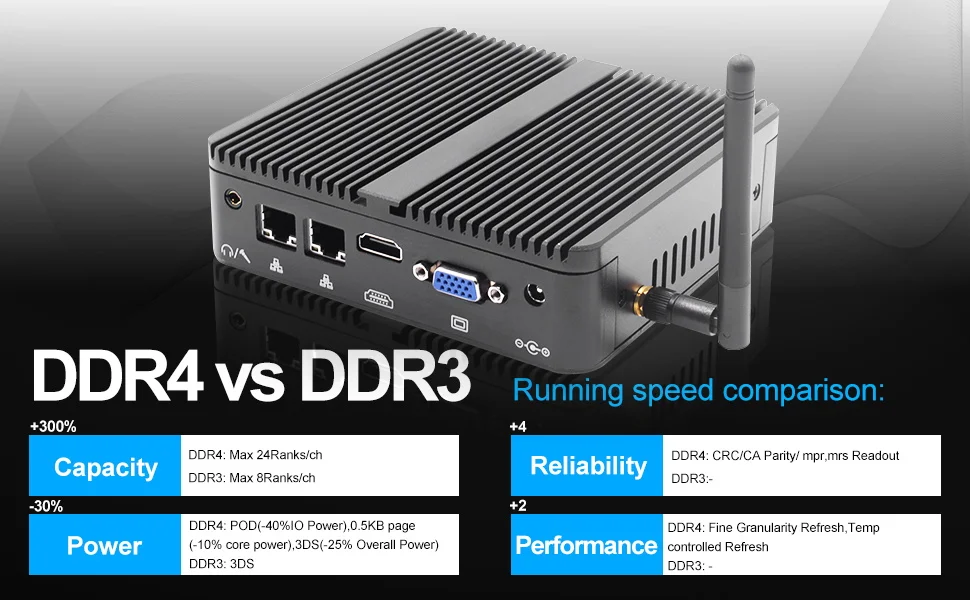

Large Storage 32GB DDR4 RAM
DDR3 memory has a starting frequency of only 800MHz and a maximum frequency of 2133MHz, while DDR4 memory has a starting frequency of 2133MHz and a maximum frequency of 3000MHz. higher frequency DDR4 memory has a significant improvement in all aspects of performance compared to DDR3 memory, with each pin of DDR4 memory providing 2Gbps of bandwidth. DDR4-3200 is then 51.2GB/s, which is a 70% increase in bandwidth over DDR3-1866.
Tips to Better Use Mini Pc
You can add a 2TB removable hard drive via the USB 3.0 port, which will allow the device to store even more and your files as you want.
Regularly delete the software distribution folder in windows directory to keep updates size use down.
This folder is used for updates for windows Uninstall any program or app that isn't needed or used.
Once done, there was enough space to update Windows HYSTOU Mini computer Support RTC Wake Settings, Auto Power On, Wake On Lan, PXE Boot etc.
You can set it on the BIOS(Press the DEL key immediately after pressing the power button to enter the BOIS page)
Product Description
New Good J4125 J4105 Desktop Compact Computer Ops 12V Ubuntu Office Oem Fanless Rs232 Micro Windows10 Mini Pc | ||

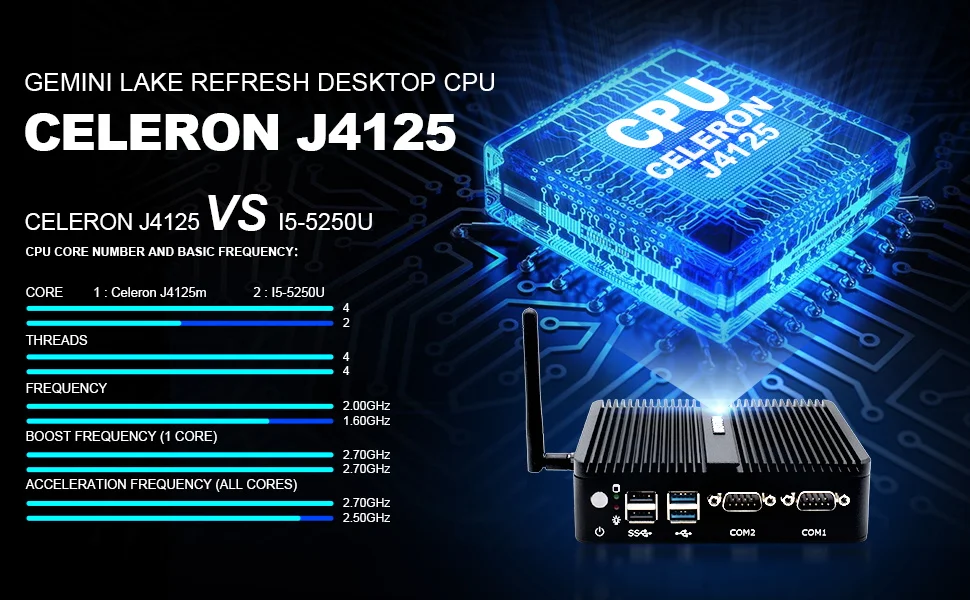

CPU | Intel Ce-leron J4125 | |
TDP | 10W | |
Memory | 1 x DDR4 SO-DIMM Socket up to 32GB RAM | |
Chipset | Gemini Lake SOC Single Chipset | |
Graphics | Intel UHD Graphics 600 | |
LAN | 2 x Realtek RTL8111E Gigabit LAN | |
Audio | Intel High Definition Audio | |
Input/output Ports | ||
Switch | 1*Power On/Off Switch | |
USB | 4* USB 2.0 2*USB 3.0 | |
COM | 2*RS 232 Serial Port | |
Power | 1*12V DC In | |
Display | 1 x HD-MI Port; 1 x VGA Port | |
Audio | 1 x Speak out and 1* Mic in | |
Lan | 2 x RJ45 Lan Port | |
Storage | ||
mSATA | 1 x mSATA 3.0 slot for mSATA SSD | |
SATA | 1 x SATA 3.0 slot for 2.5 inch HDD or SSD | |
Mechanical | ||

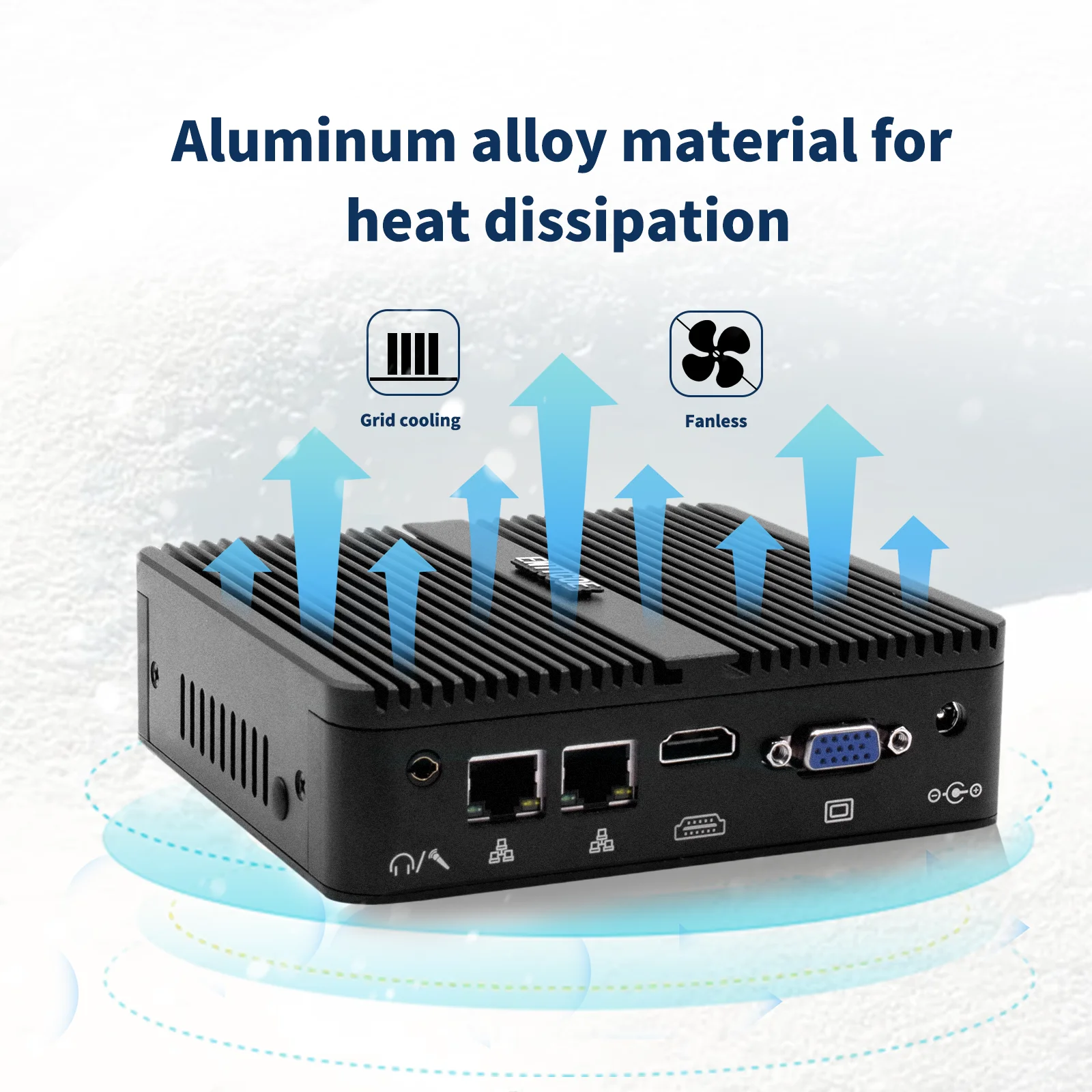

Case Material | Aluminum Alloy | |

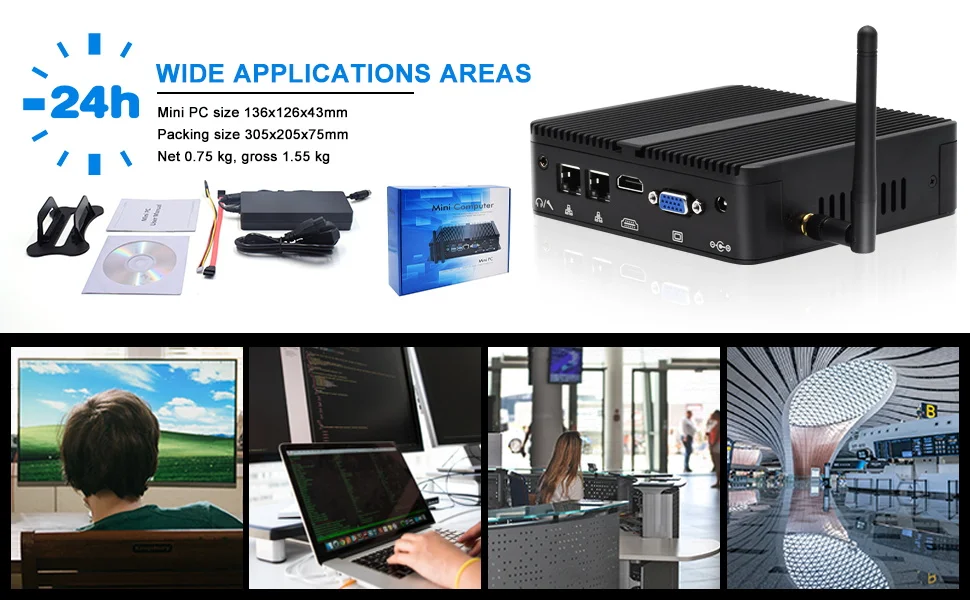

Dimension | PC size 135*127*39mm Package size 305*205*75mm | |
Weight | Net 0.6kg; Gross 1.2kg | |

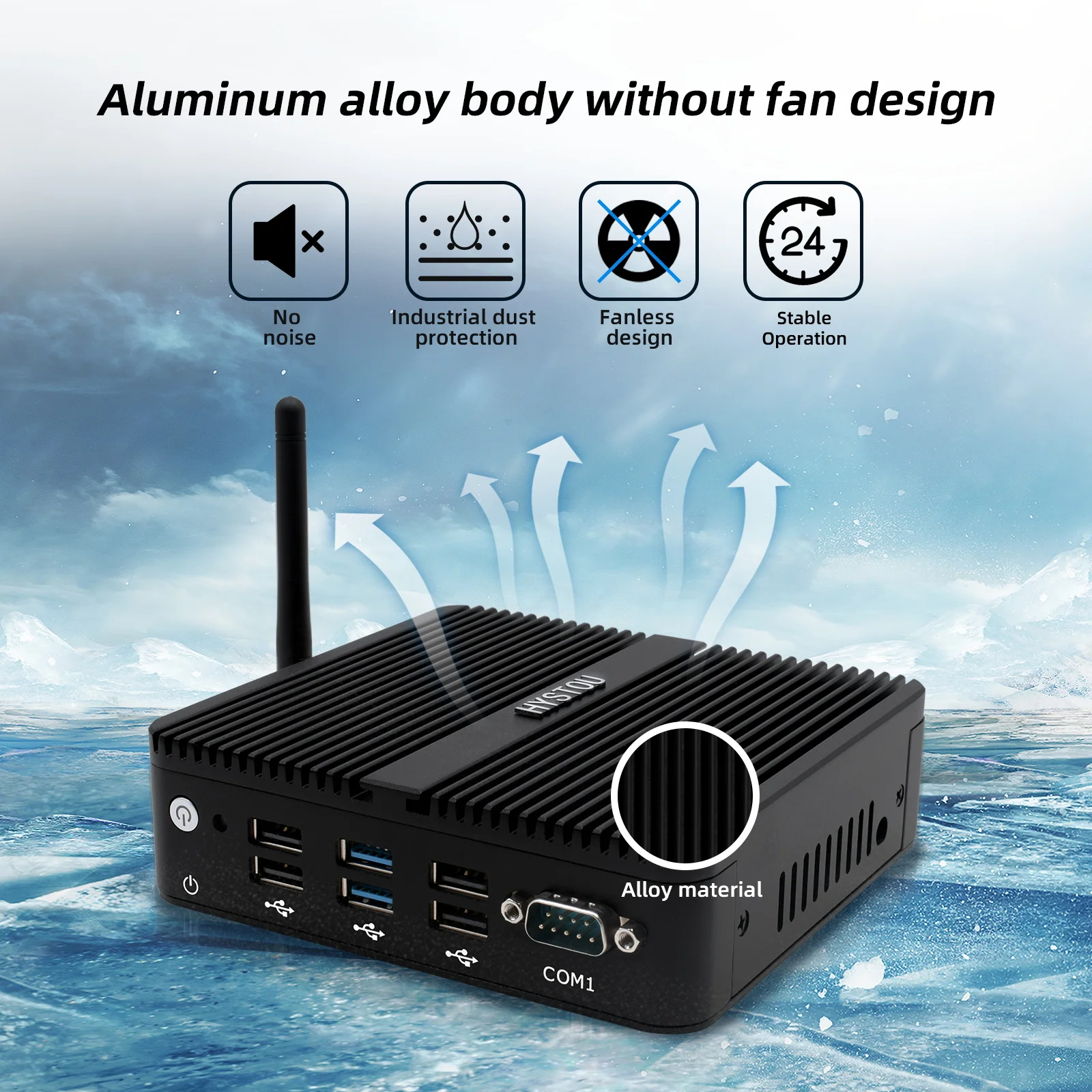

Cooling Mode | Fanless | |
Others | ||
Expansion | NO | |
Power | 12V 3A External Power Adapter | |
Temperature | -10℃~60℃ | |
OS | Windows 10, Linux | |
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Product Usage
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
