45 60 75 Degree Dovetail Groove Trough T Slot T Slot T Milling Cutter Solid Carbide 4 Flute Chamfer Endmill Mills End Mill
- Category: >>>
- Supplier: Shenzhen Bwin Precision Tools Co. Ltd.
Share on (1600831978217):
Product Overview
Description
Product Description
Product Name | 45 60 75 Degree Dovetail Groove Trough T Slot T-Slot T-Milling Cutter |
Material | Caribde |
Coating | AITiN/customized |
Standard | ISO |
HRC | 55 |
Coolant: | Water, water-soluble oil, and high-flashpoint oil |
OEM | Supply |
Suitable For | Stainless steel, Carbon Steel, Mould steel, Cast Iron, Cooper |
Application | Side milling slotting, T-shaped slotting, deep slotting, plane milling |
1. Fully enables running at rough machining parameters, resulting in finish surface quality.
2. Excellent performance in machining titanium, stainless steel and high temperature alloys.
3. The coating provides longer tool-life or increased cutting-values.
4. Suitable for all types of steel or metal.
Product Parameters
Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Coating Classifying and Advantage | ||||||||||
Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo | |||||
Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) | |||||
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | ||||||
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | ||||||
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | ||||||
Color | Black | Bronze | Bronze and gold | Blue | ||||||
Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting | ||||||
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | ||||||||
Most suitable for carbide cutting tools, turning insert | ||||||||||
Products Show

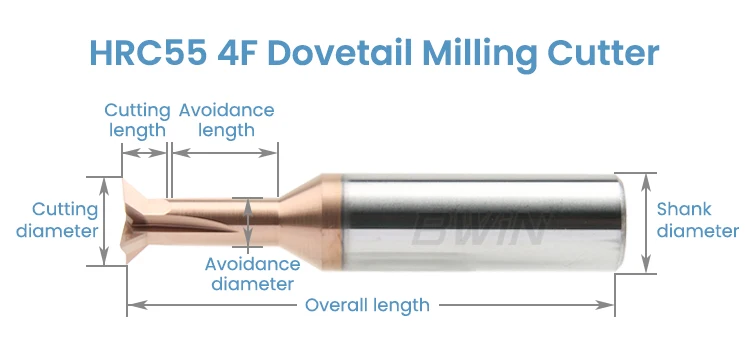

cutting Diameter | Angle | Avoidance diameter | Avoidance length | cutting length | Shank diameter | overall length | Flute |
2 | 45°/60°/75° | 1 | 3 | 0.5 | 4 | 50 | 4 |
3 | 45°/60°/75° | 1.5 | 5 | 0.7 | 3 | 50 | 4 |
4 | 45°/60°/75° | 2 | 6 | 1 | 4 | 50 | 4 |
5 | 45°/60°/75° | 2.5 | 8 | 1.2 | 5 | 50 | 4 |
6 | 45°/60°/75° | 3 | 8 | 1.5 | 6 | 50 | 4 |
7 | 45°/60°/75° | 3.5 | 10 | 1.7 | 7 | 60 | 4 |
8 | 45°/60°/75° | 4 | 10 | 2 | 8 | 60 | 4 |
9 | 45°/60°/75° | 4.5 | 15 | 2.2 | 9 | 60 | 4 |
10 | 45°/60°/75° | 5 | 15 | 2.5 | 10 | 60 | 4 |
11 | 45°/60°/75° | 5.5 | 15 | 2.7 | 11 | 60 | 4 |
12 | 45°/60°/75° | 6 | 15 | 3 | 12 | 60 | 4 |
14 | 45°/60°/75° | 7 | 20 | 3.5 | 14 | 65 | 4 |
16 | 45°/60°/75° | 8 | 20 | 4 | 16 | 65 | 4 |
20 | 45°/60°/75° | 10 | 25 | 5 | 20 | 65 | 4 |
