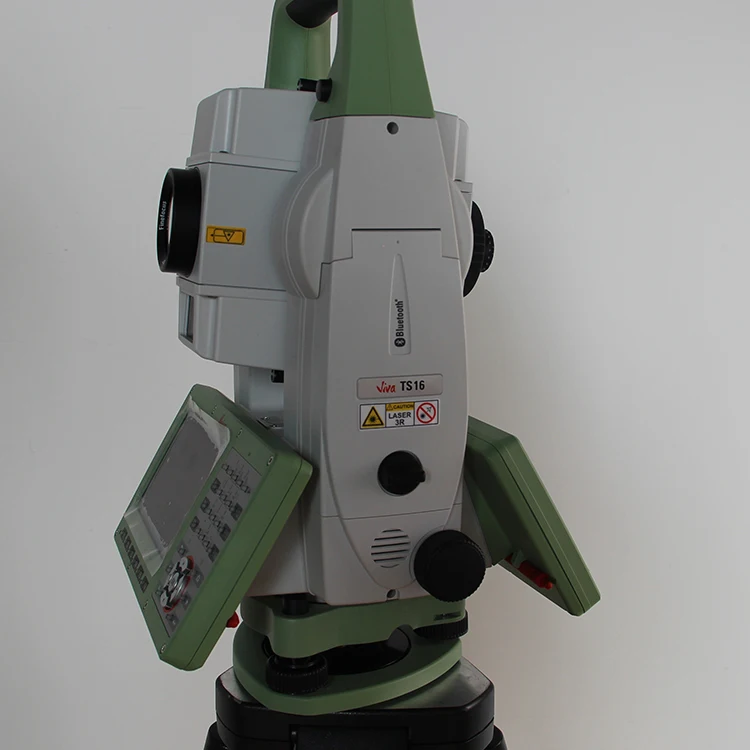

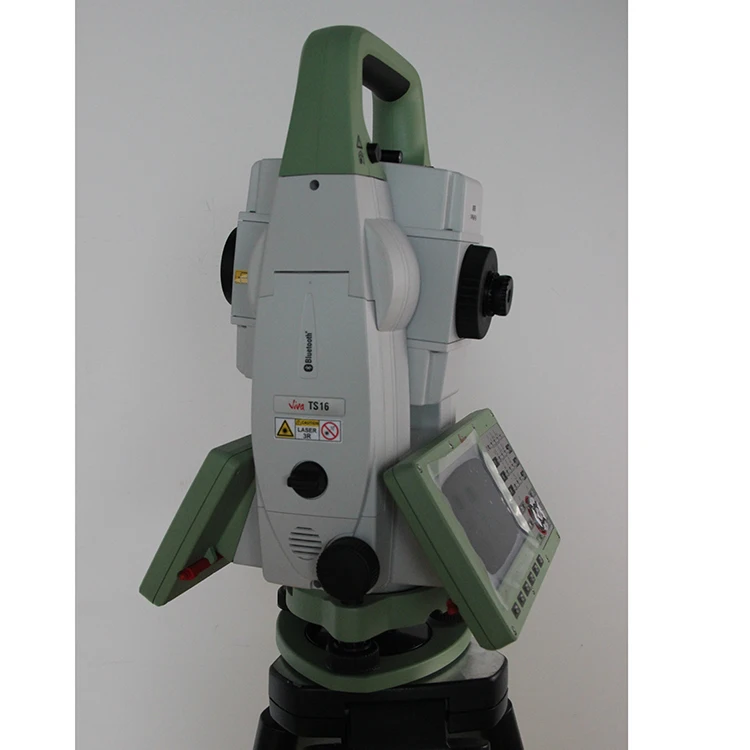

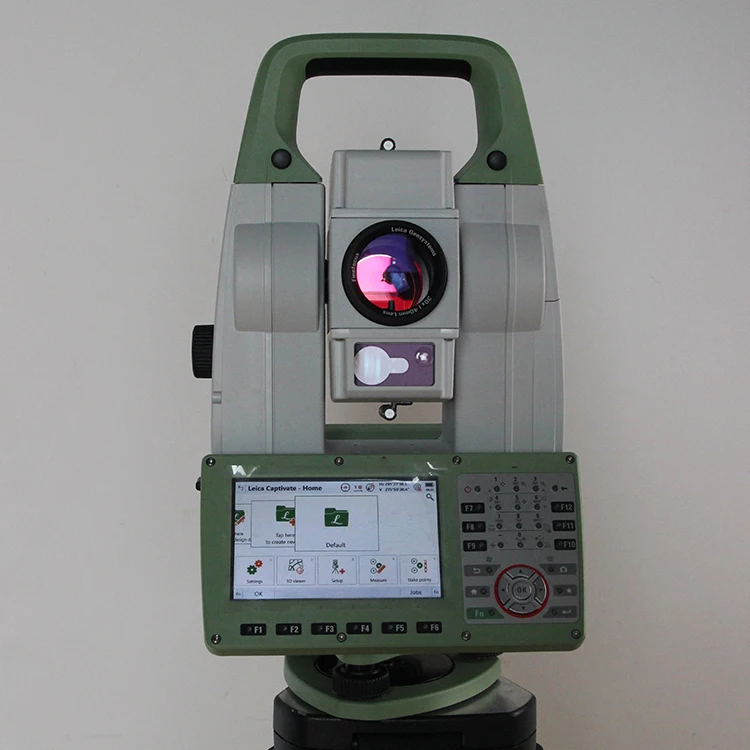

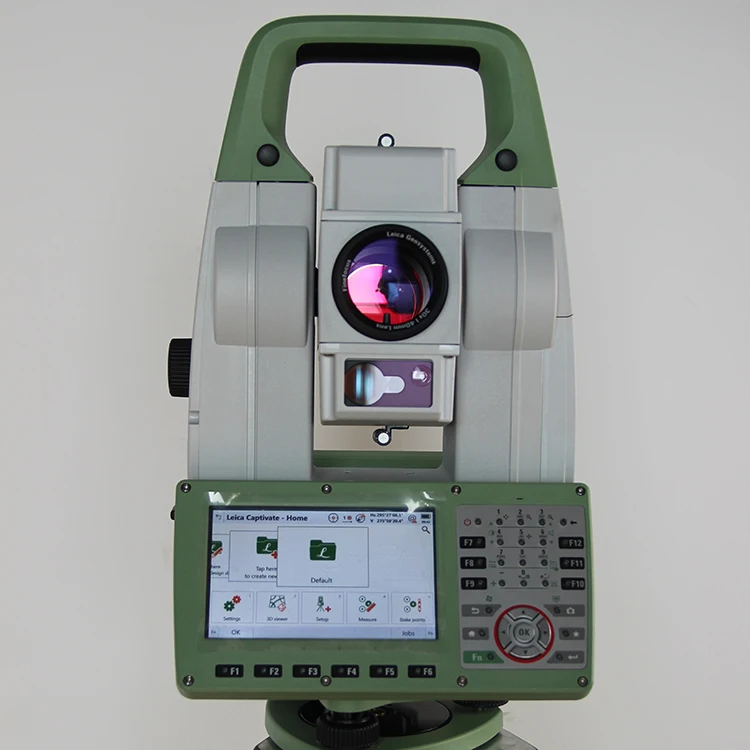

LEIKA TS16 400m China Made Total Station 1

Product Overview

Description

LEIKA TS16 Magnification 30x Total Station Land Surveying Equipment Optical Instruments

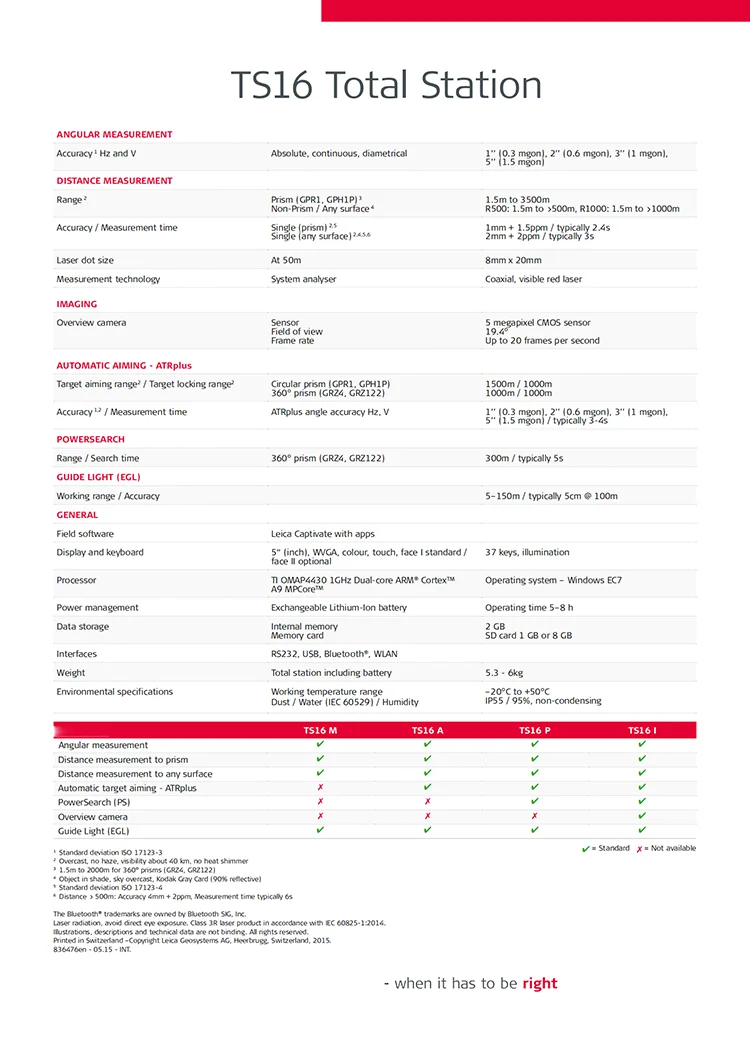

Viva TS16 Total Station
ANGULAR MEASUREMENT
Accuracy 1  Hz and V	Absolute, continuous, diametrical	1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon)
DISTANCE MEASUREMENT
Range 2	Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4	1.5m to 3500m R500: 1.5m to >500m, R1000: 1.5m to >1000m
Accuracy / Measurement time	Single (prism) 2,5 Single (any surface) 2,4,5,6	1mm + 1.5ppm / typically 2.4s 2mm + 2ppm / typically 3s
Laser dot size	At 50m	8mm x 20mm
Measurement technology	System analyser	Coaxial, visible red laser
IMAGING
Overview camera	Sensor Field of view Frame rate	5 megapixel CMOS sensor 19.4° Up to 20 frames per second
AUTOMATIC AIMING - ATRplus
Target aiming range2  / Target locking range2	Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122)	1500m / 1000m 1000m / 1000m
Accuracy 1,2  / Measurement time	ATRplus angle accuracy Hz, V	1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon), 5’’ (1.5 mgon) / typically 3-4s
POWERSEARCH
Range / Search time	360° prism (GRZ4, GRZ122)	300m / typically 5s
GUIDE LIGHT (EGL)
Working range / Accuracy		5–150m / typically 5cm @ 100m
GENERAL
Field software	Leica Captivate with apps

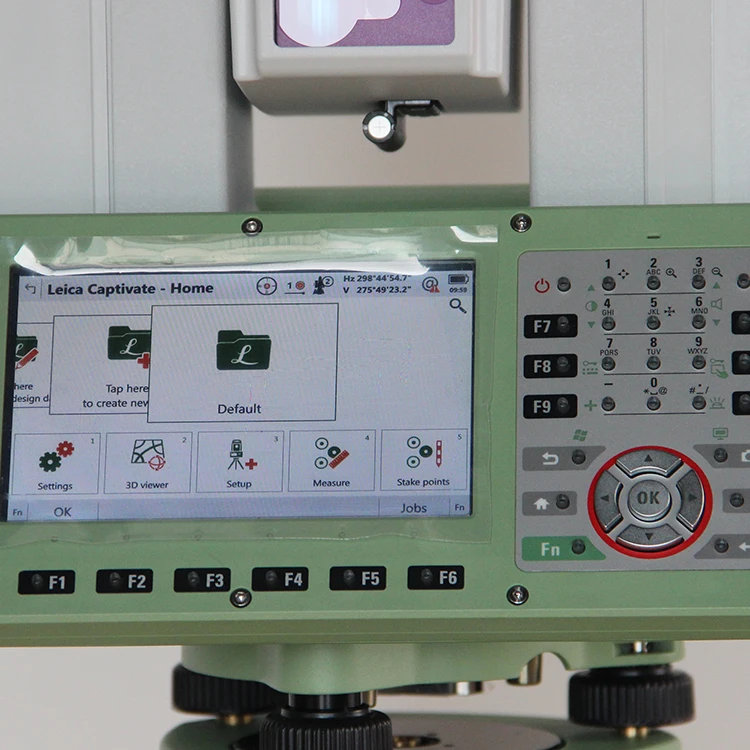

Display and keyboard	5" (inch), WVGA, colour, touch, face I standard / face II optional	37 keys, illumination
Processor	TI OMAP4430 1GHz Dual-core ARM®  Cortex™ A9 MPCore™	Operating system – Windows EC7
Power management	Exchangeable Lithium-Ion battery	Operating time 5–8 h
Data storage	Internal memory Memory card	2 GB SD card 1 GB or 8 GB

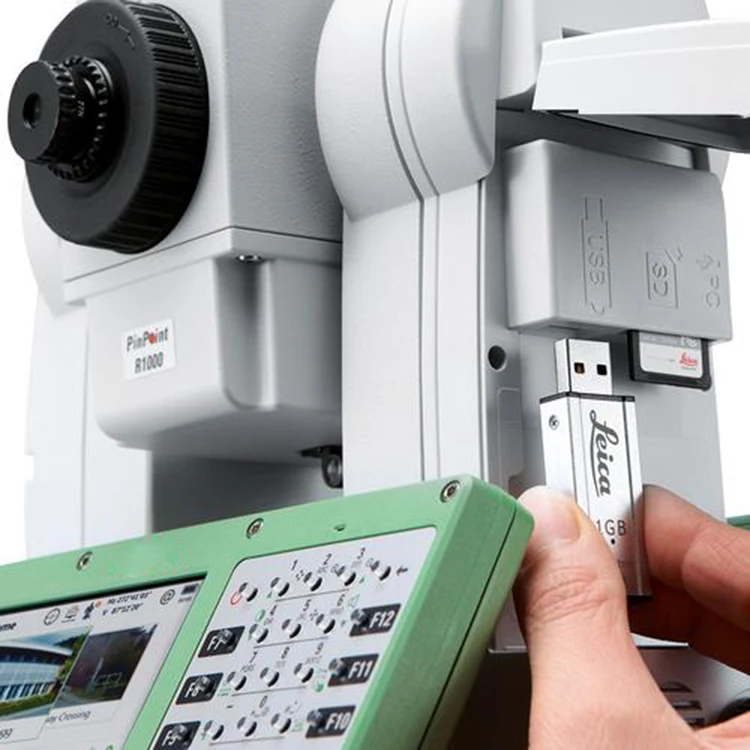

Interfaces	RS232, USB, ®, WLAN
Weight	Total station including battery	5.3 - 6kg
Environmental specifications	Working temperature range Dust / Water (IEC 60529) / Humidity	–20°C to +50°C IP55 / 95%, non-condensing
