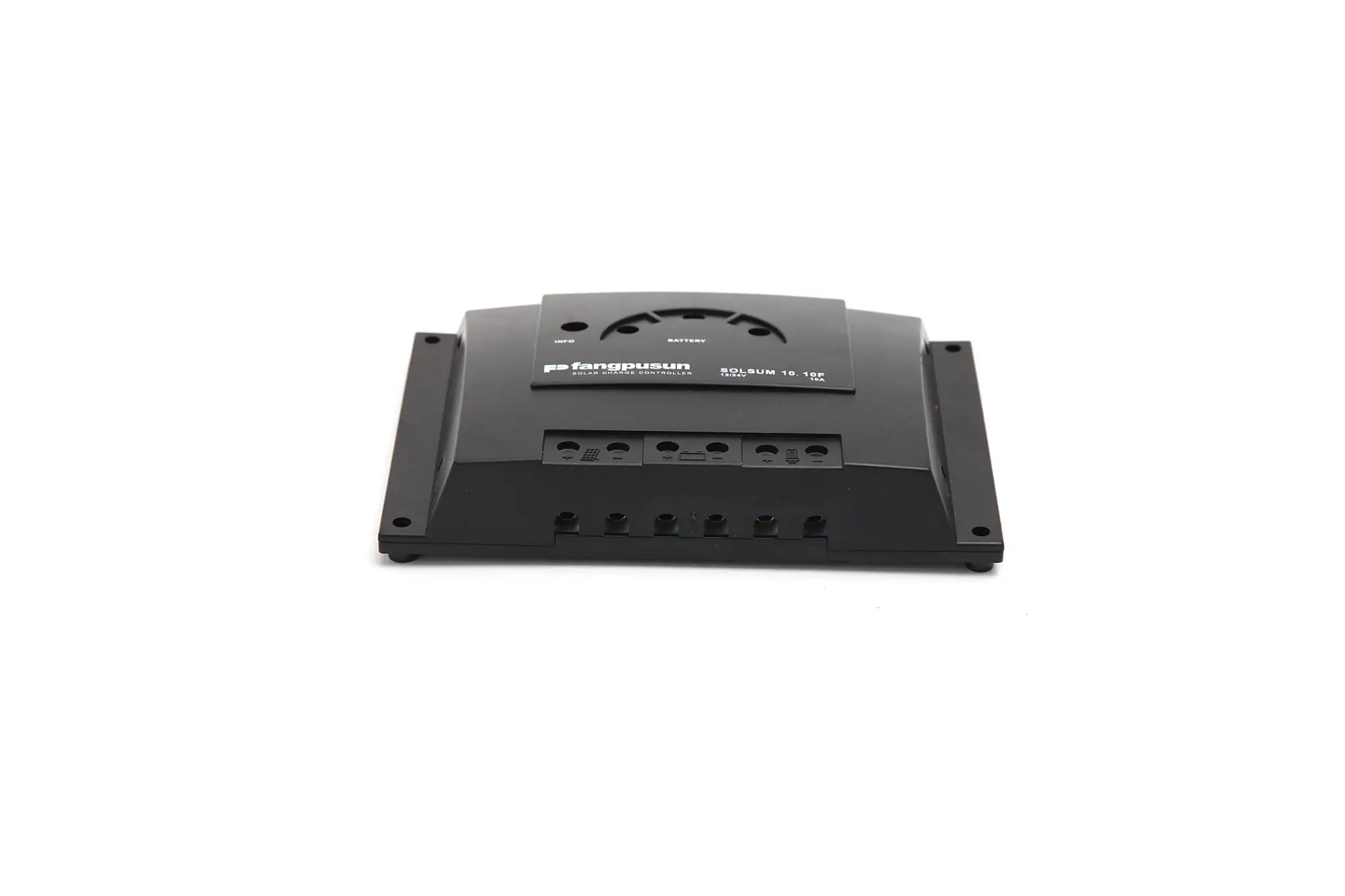

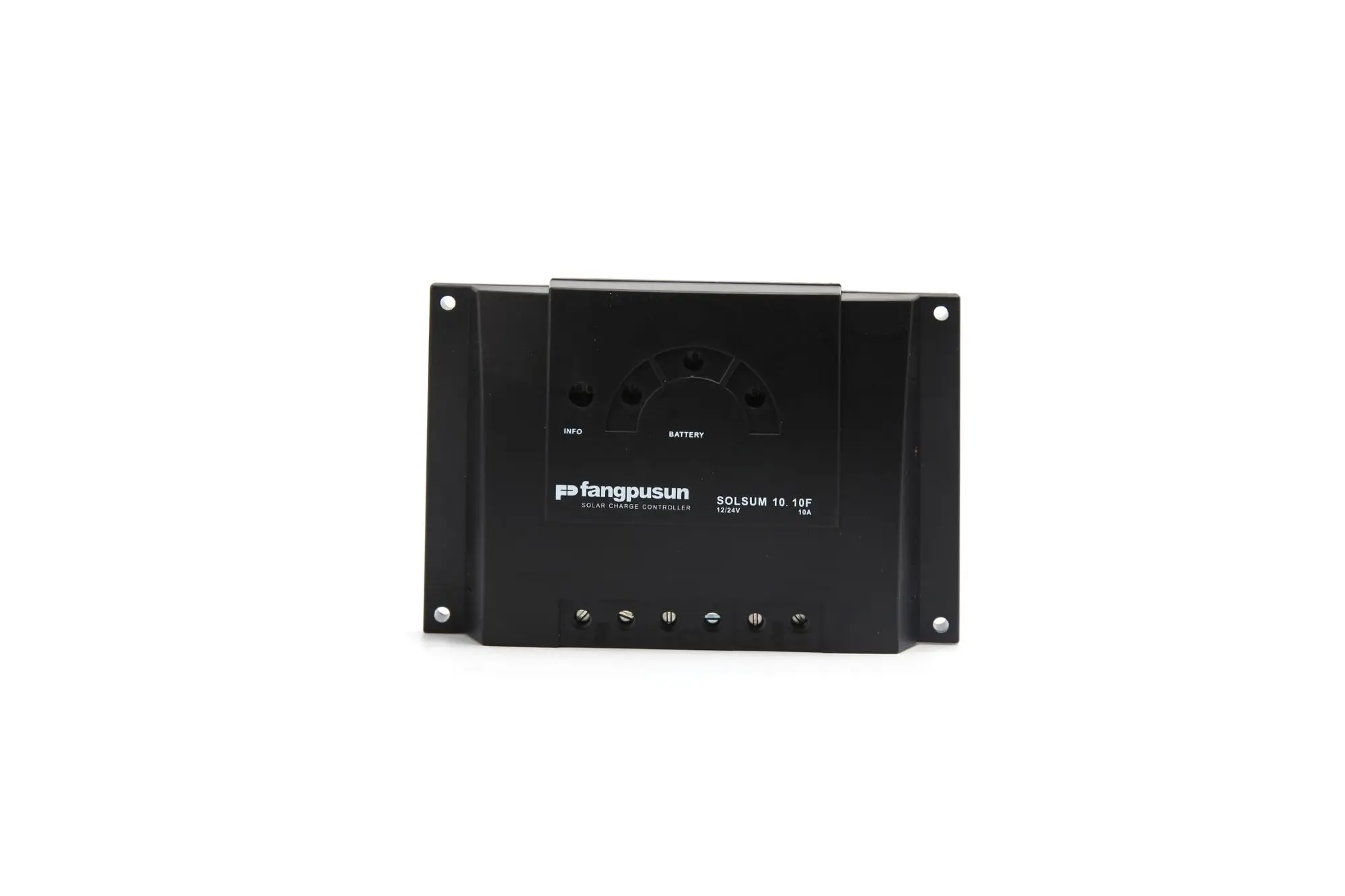

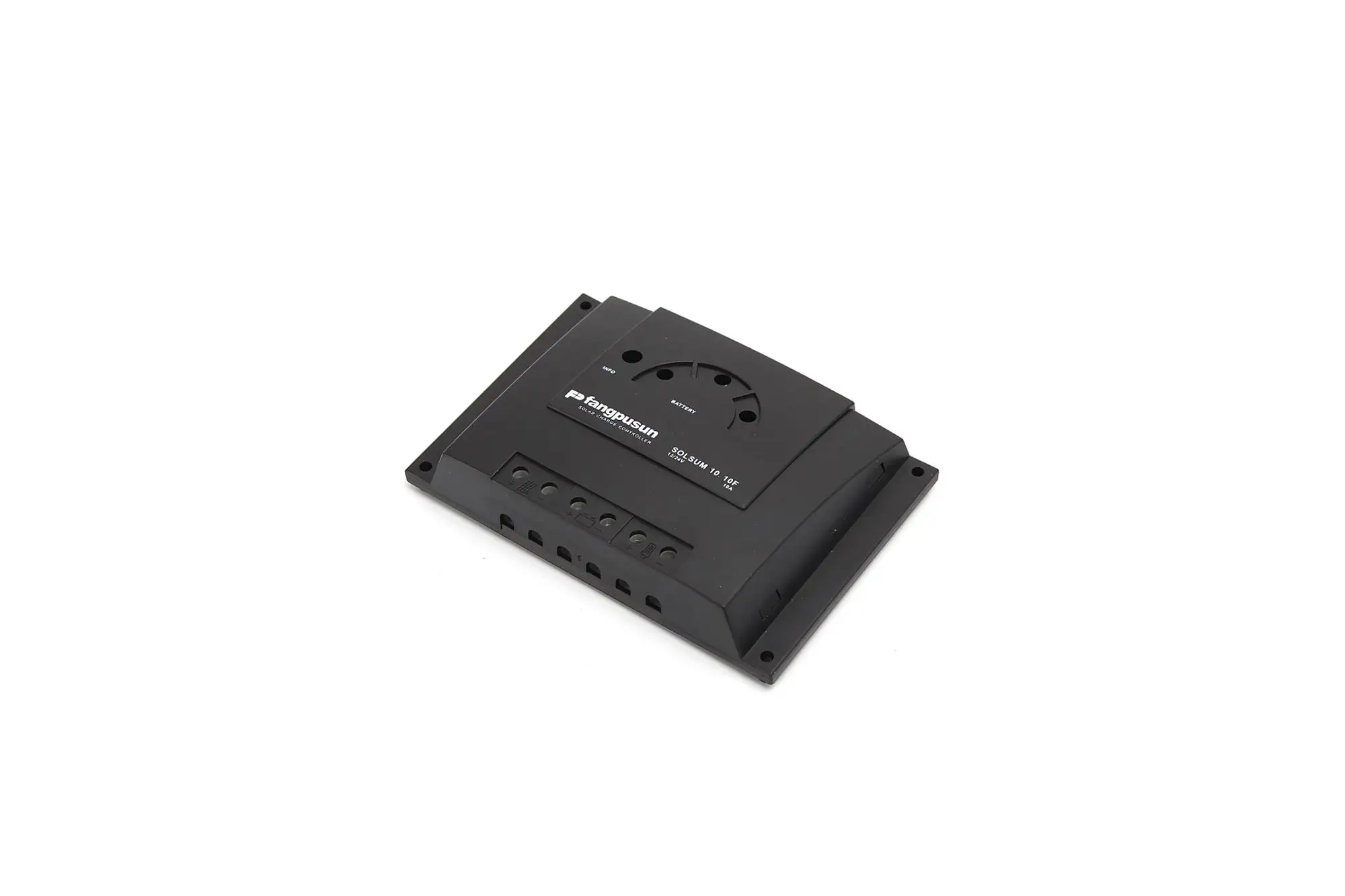

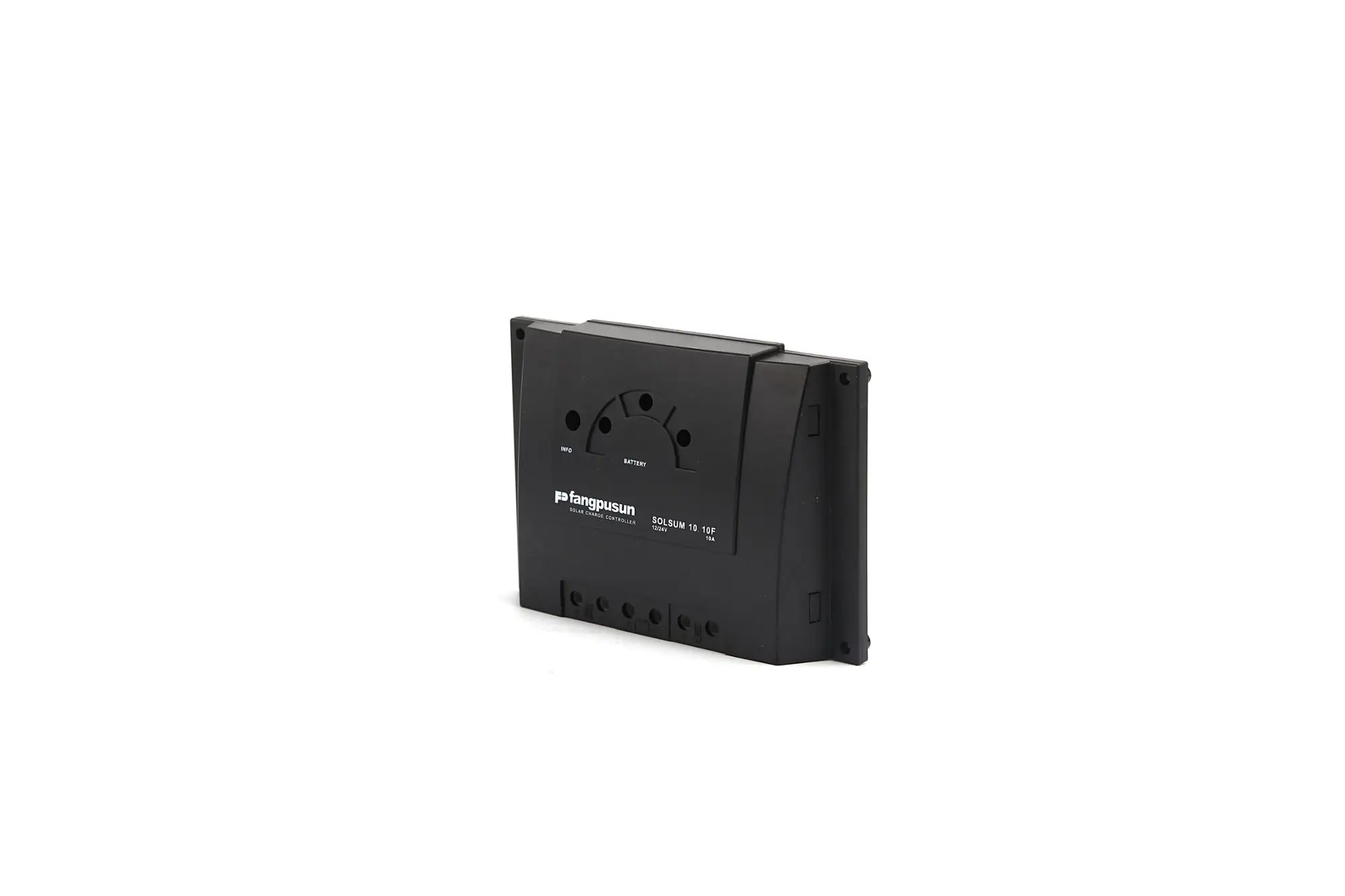

Fangpusun Battery Charger Solsum F Series Solar Charge Controller 6a 8a 10a For 12V 24V

The Fangpusun Solsum continues the huge success of one of the most used SHS controllers. With a power range of up to 10 A at automatically recognized 12 V or 24 V it fits to a system sizes of maximum 240 W.

Full circuit board protection with LED display for simple recognition of battery status. Various connections make it possible to connect easily to solar panels, battery and load. The Fangpusun Solsum F works on PWM as a low loss series controller.

Product Features

Electronic Protection Functions

* Overcharge protection
* Deep discharge protection
* Reverse polarity protection of module (≤36 V),load and battery
* Automatic electronic fuse
* Short circuit protection of load and module
* Overvoltage protection at module input
* Open circuit protection without battery
* Reverse current protection at night
* Overtemperature and overload protection
* Load disconnection on battery overvoltage

Displays

* Multifunction LED display
* Multi-coloured LED
* 4 LEDs show operating states
* for operation, state of charge, fault messages

Options

* Evening or night light function pre-set in the factory or adjustable via PA RC 100
* Parameterisation of function values via PA RC 100

Certificates

* Compliant with European Standards (CE)
* RoSH

* SGS

* ISO 9001

* Made In China
