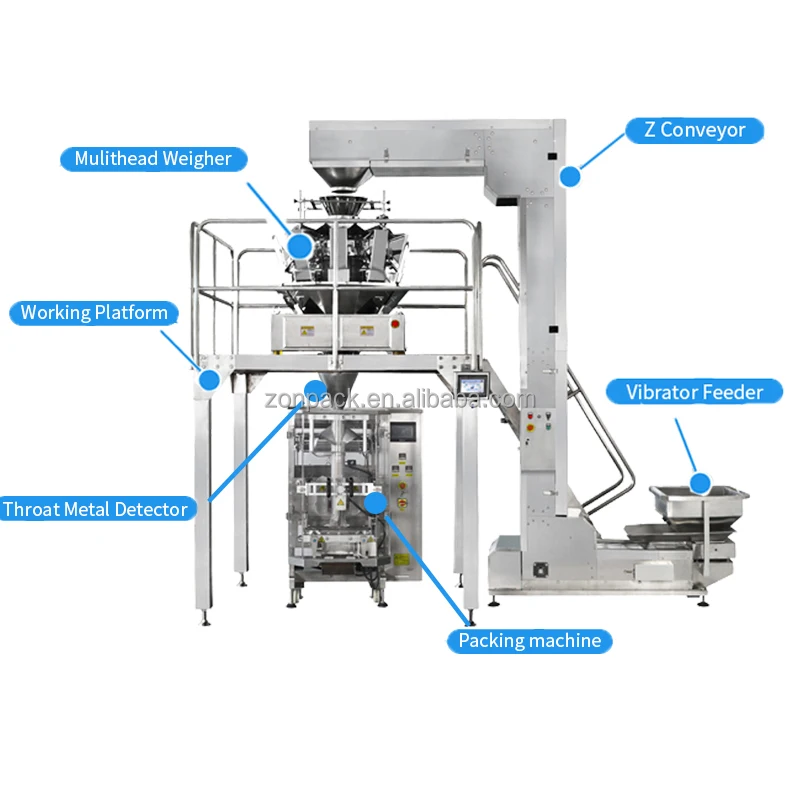

Multi function coal weighing filling charcoal packaging machines
- Category: >>>
- Supplier: Hangzhou Zon Packaging Machinery Co. Ltd.
Share on (1600832210076):
Product Overview
Description
Related Products
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
SPECIFICATIONS FOR ZH-V520 VERTICAL PACKING MACHINE | ||||||
Model | ZH-V520 | |||||
Packing Speed | 15-70 Bags / Min | |||||
Bag size(mm) | (W) 60-200 (L)60-300 | |||||
Bag making mode | Pillow bag, standing bag (gusseted), punch, Linked bag | |||||
Range of measuring (g) | 1500 | |||||
Maximum width of packing film (mm) | 420 | |||||
Thickness of film (mm) | 0.04-0.10 | |||||
Air consumption | 0.4m3/min 0.8MPa | |||||
Packing Material | laminated film | |||||
Application
Main Features
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.
7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
Detailed Images
1.Bucket Conveyor
Machine Frame: 304SS or Mildsteel frame
304ss Chain
Conveyor Height : 2.5-3.8m
Conveyor Volume : 2.5-5CBM/Hour
Bucket hopper volume :0.8L,2L,4L,10L
Bucket hopper material: 304SS, Food grade plastics
Bucket can be removed, and it is convenient to clean

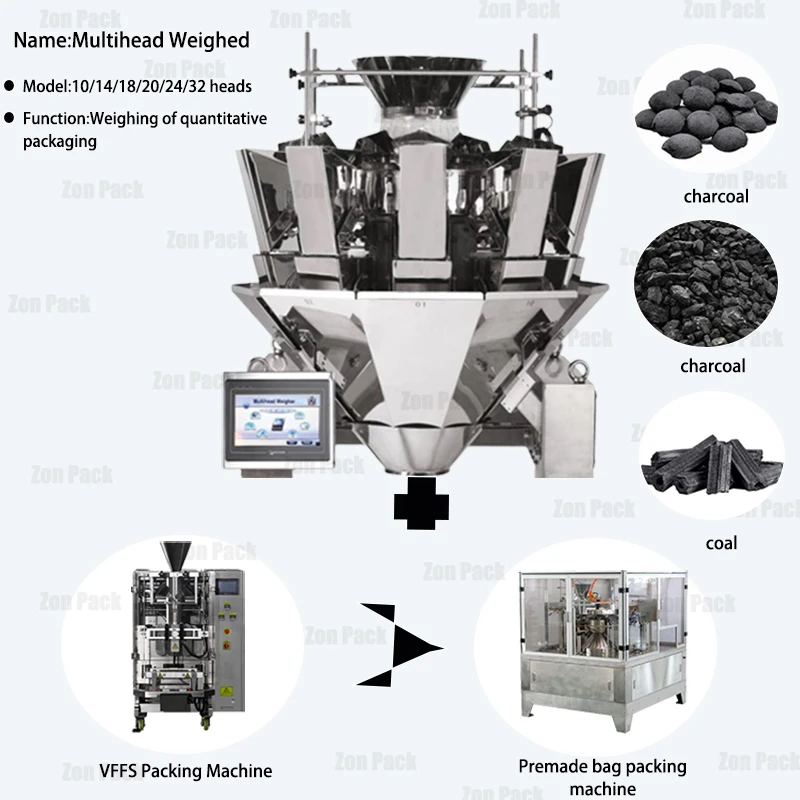

2.Multihead weigher
We usually use multihead weigher to measure the target weight.
Machine type:4 head, 10head ,14 head,20 head
Machine accuracy :± 0.1g
Material weight range: 10-5kg

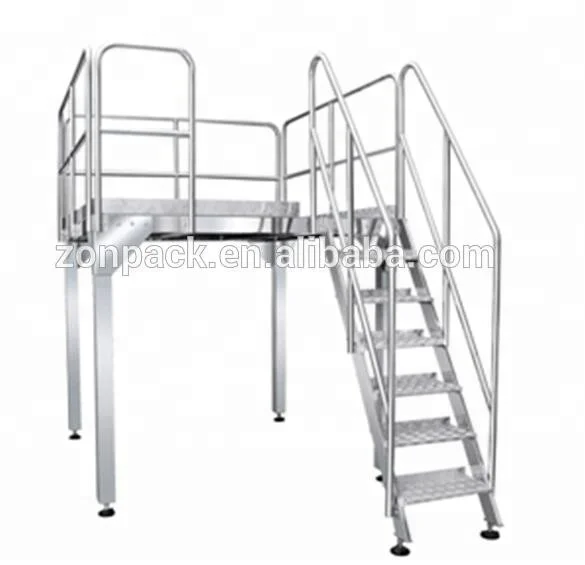

3.Working platform
304SS Frame , support the multihead weigher.
The Standard size: 1.8m(L)*1.8m(W)*1.8m(H)
Can make according your requirement

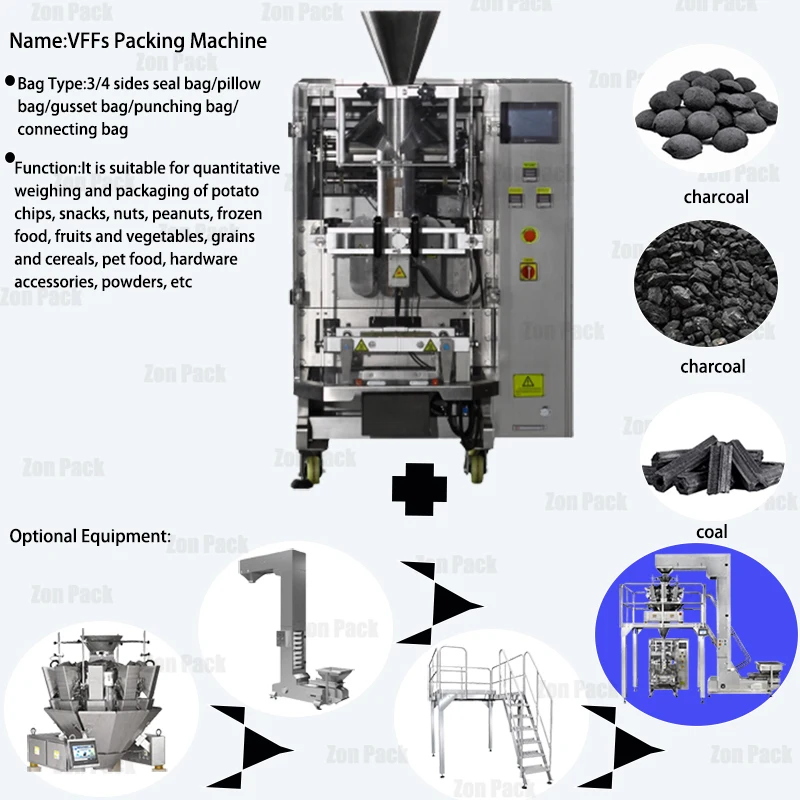

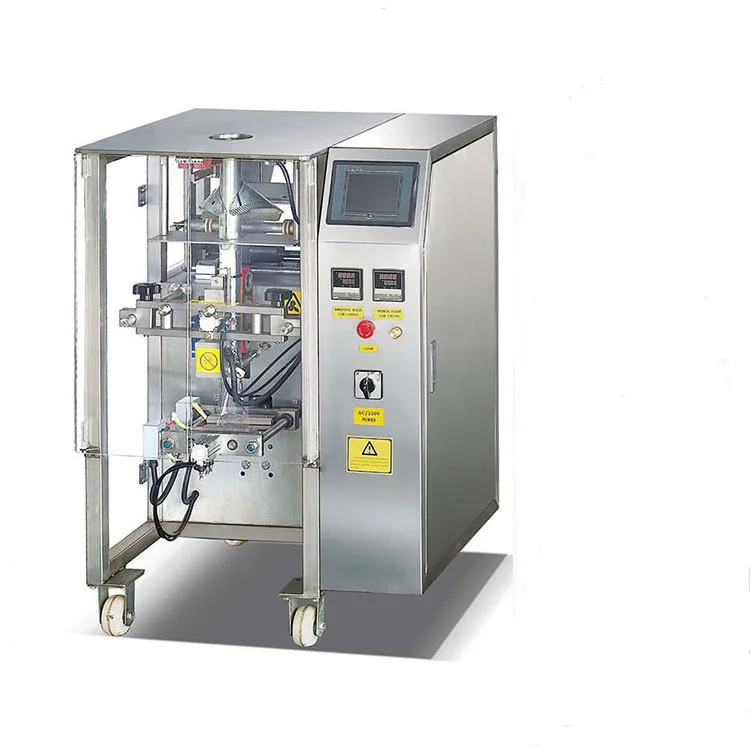

4. Packing machine
304SS Frame,
Bag size:
ZH-V420 Packing machine: (W) 60-200 (L)60-300
ZH-V520 Packing machine:(W) 90-250 (L)80-350ZH-V620 Packing machine:(W) 100-300 (L)100-400
ZH-V720 Packing machine:(W) 120-350 (L)100-450
Bag making :
Pillow bag, standing bag (gusseted), punch, Linked bag

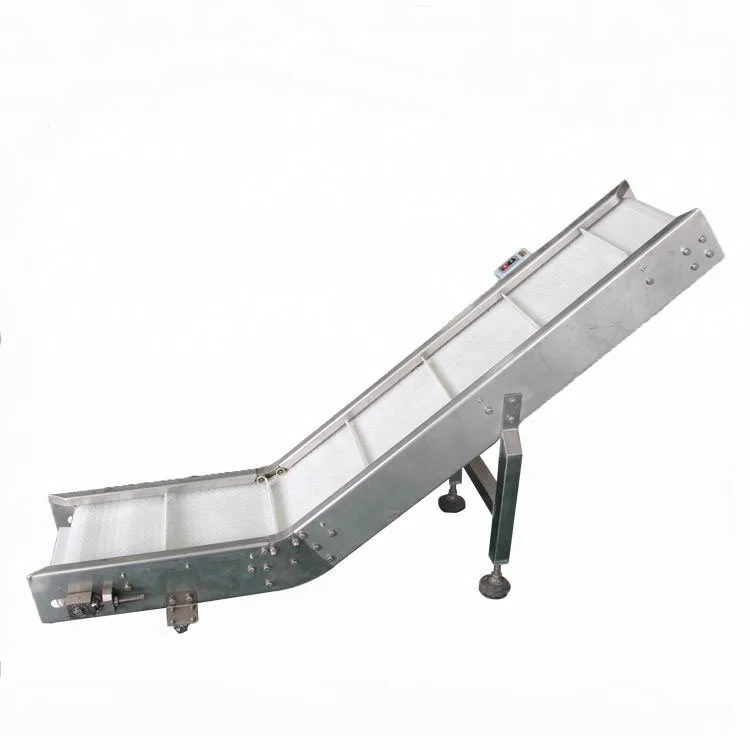

5.Finished- conveyor
PP material, motor control,
Translae bag more conveniently which was packaged.

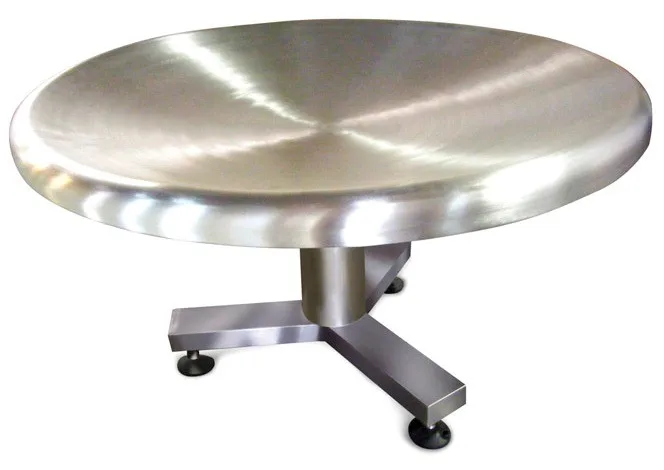

6.Rotary collected table
304SS Frame
Collecte the bag in the table, and suitable height for workers pick bags in cartons.
