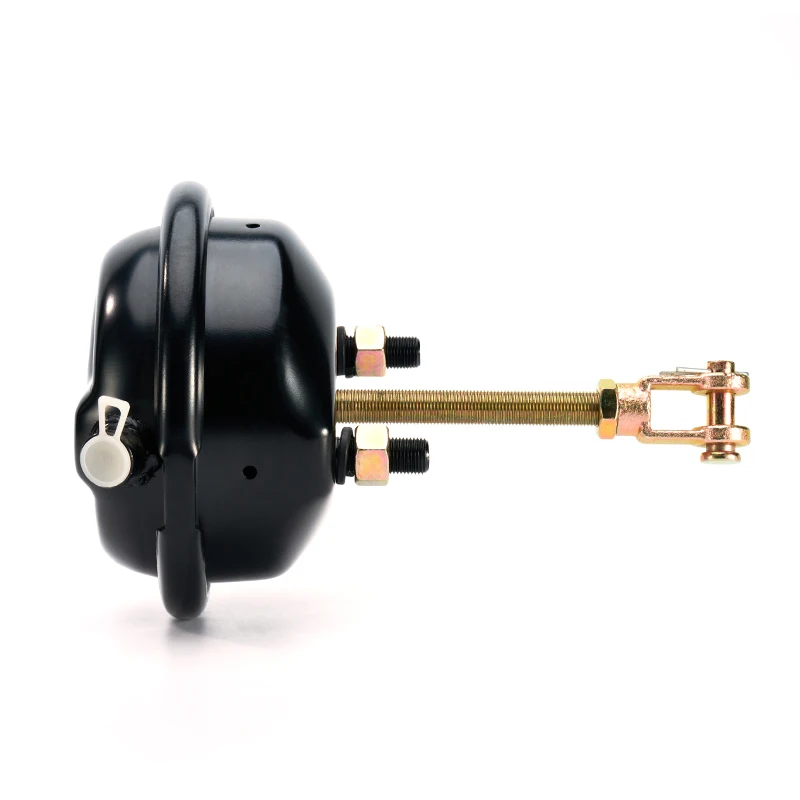

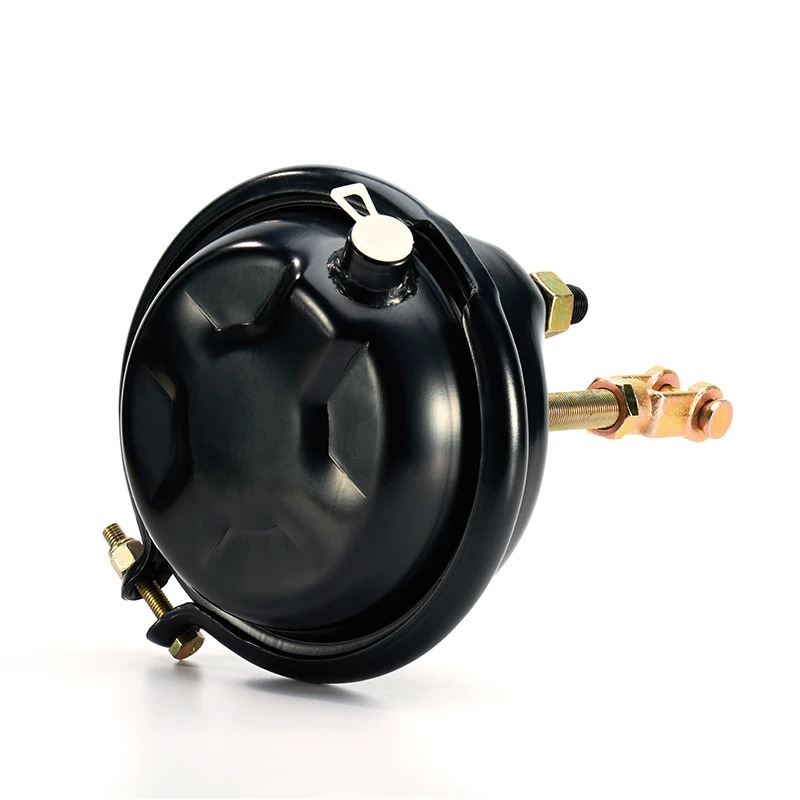

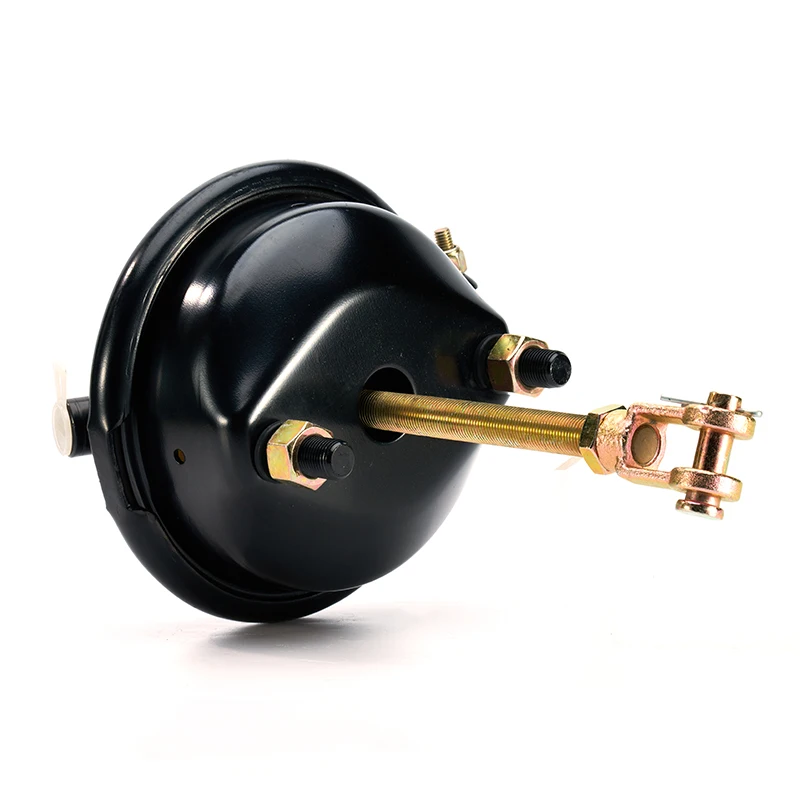

TB 24CCN 10 76 mm Stroke air brake system trucks fittings bus rear DP Drum spring s cam brake chamber
- Category: >>>
- Supplier: Jiaxing Target Auto Parts Co. Ltd.
Share on (1600832232634):
Product Overview
Description
Product Description | T24 Service Chamber (S-Cam) |
Part Number | TB-24CCN-10 |
Stroke | 3" (Long Stroke) |
Pushrod Length | 186 mm |
Port Size | M16 x 1.5 |
Finish | E-coating/Zinc-plated |
Chamber Style | Single Diaphragm |
Clamp band | 185 mm |
Bolt threads | M16 x 1.5 |
Distance between bolts | 120.7 mm |
Push-rod thread | M16 x 1.5 |
Output force | 9800 N |
Rating Working Pressure | 8.5 bar |
Working temperature | -40℃～+80℃ |
Service chamber | above 1,000,000 times |
Adaptation Truck Type | ALEXANDER DENNIS, DAF IVECO,MAN,MERCEDES-BENZ,NEOPLAN, RENAULT,SCANIA,VOLVO |
Direct AftermarkeAt Replacement For OEM | ALEXANDER DENNIS:AB4231069000 DAF:834483 IVECO:3345108R1 MAN:81511016080,81511016081,81511016082,81511016083,81511016105,81511016111,81511016115,81511019105 MERCEDES-BENZ:0004207424,0004207524 0004209124,0004209224 0014203524,0014203624 0014203724,0014203824 0014203924,0014206724 0014206824,0014207424 0044208618,0044208718 0064201618,0064201718 NEOPLAN: 080220100,11015181,07010024 RENAULT:0038855200,5000809565,38855200,5021170051 SCANIA: 1738480,1010154 VOLVO: 6212188 |
Product Paramenters
Products Description

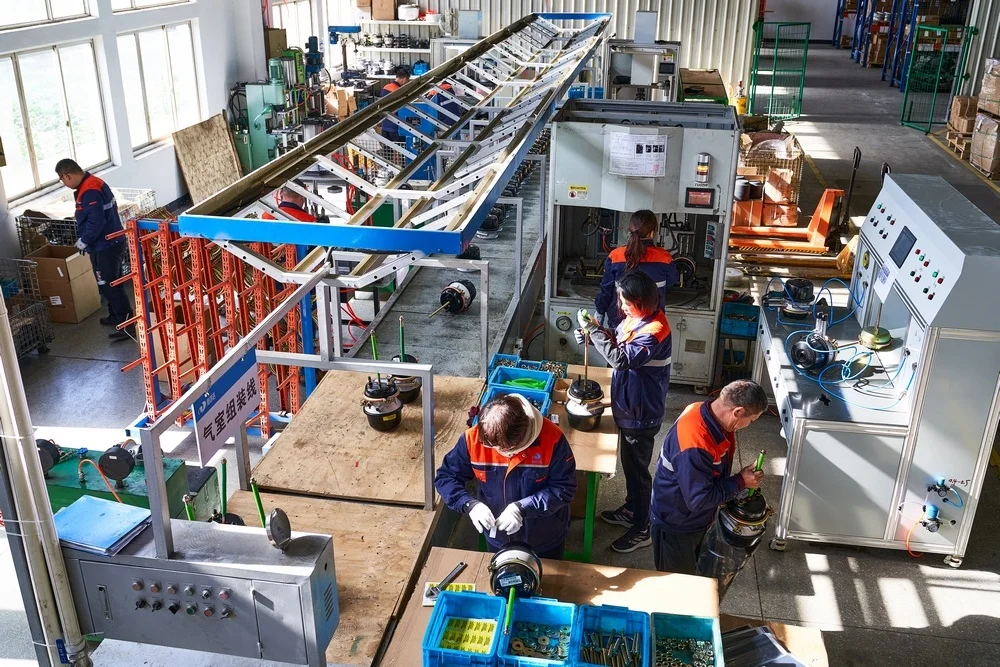

Company Profile
