Wholesale 325v Electric Car 2000w Module 10kw Und Bldc Motor Controller For Ev With Kit

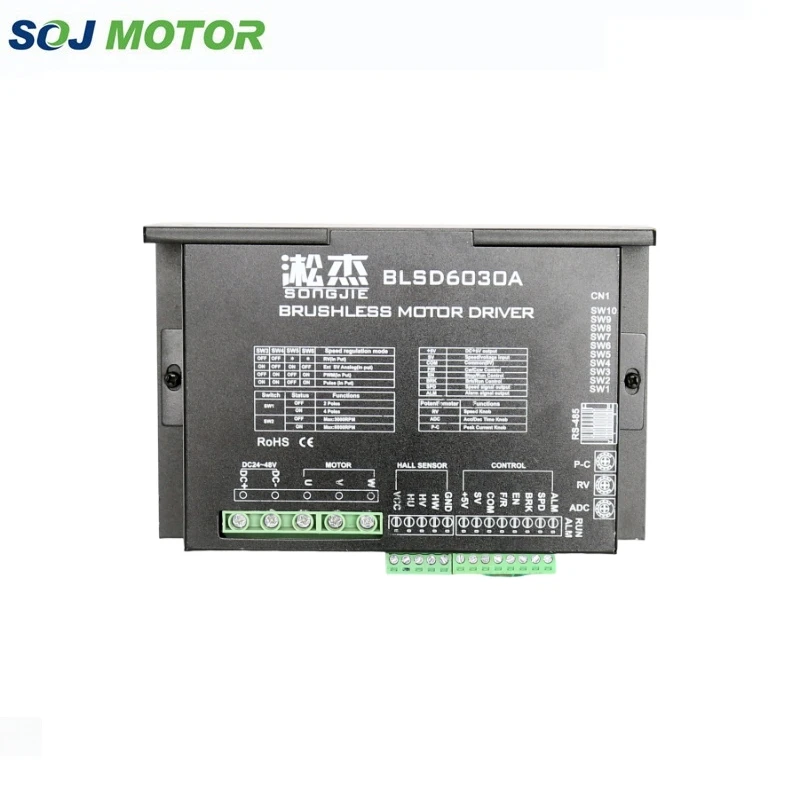

 6030A BLSD series brushless motor driver manual

Thank you for choosing BLSD brushless motor drive.
New brushless drive product series.
Satisfy various functions required for motor control to the maximum extent.
Achieve unprecedented small, high speed,high efficiency and multi-function.

This user manual describes the use of the product and precautions.
Please read the user manual carefully before using the product and pay attention to safety when using the product.
After reading the user manual,please save it in an appropriate place for easy reference.

Product introduction
ARM high speed chip control is adopted.
Can be applied to the upper computer (PLC or SCM, etc.) PWM, frequency, or analog speed regulation.
Manual speed regulation can be adopted (with potentiometer, or with external potentiometer manual speed regulation).
Over current, over pressure, under pressure, blocking, hall signal illegal.
Speed signal output.
Optimize control performance, debug simple and convenient.
Abnormal signal alarm output.
High speed torque output is stable and rotating speed is stable.
