Stainless steel evaporator coil cooling tower closed type cooling tower
- Category: >>>
- Supplier: Luoyang Gaohua Environmental Cooling Technology Co. Ltd.
Share on (1600832773041):
Product Overview
Description
Why Choose Us
GH Cooling is a professional design & manufacturer of Evaporative Condenser in China. Our main products are evaporative condenser, closed cooling tower, air cooled heat exchanger, "air cooling + evaporative cooling" composite closed cooling system, anti-white mist efficient cooling system, etc. The products are widely used in power, chemical, metallurgy, petrochemical, coal chemical, air condition, food refrigeration industries and so on. Our plant covers an area of 13,500m2 and with ISO certificates. Our products are popular in domestic and international markets.
Products Description
Product Description of Evaporative Condenser
NZL Evaporative Condenser
The NZL evaporative condenser is a energy-saving, water-saving, high-efficiency and eco-friendly cooling tower which uses evaporation and condensation as the main mode of heat exchange. The vapor to be condensed is circulated through a condensing coil, which is continually wet on the outside by a recirculating water system. Air is pulled over the coil, causing a small portion of the recirculating water to evaporate. The evaporation removes heat from the vapor in the coil, causing it to condense. It takes up a small area and is easy to operate and maintain.
Details Description
Details Description of Evaporative Condenser
Product Paramenters

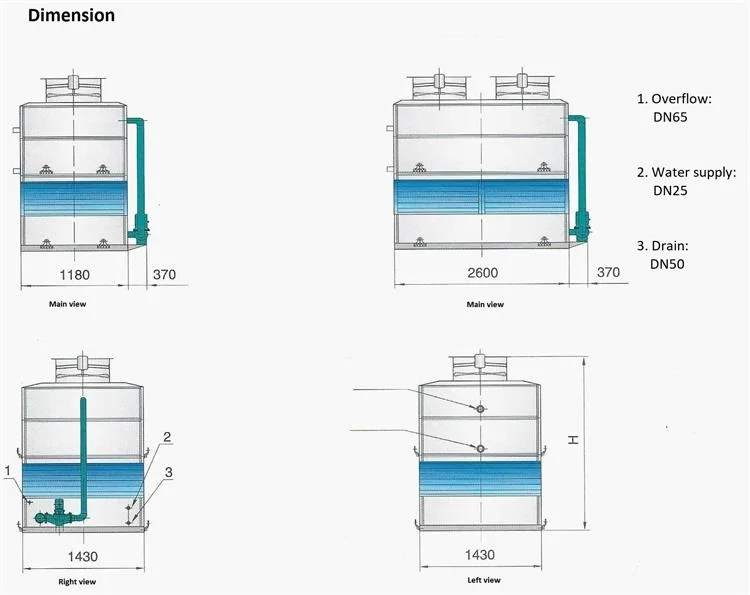

Parameters of Evaporative Condenser
Item | Model | Heat exchange capacity, KW | Fan power,KW | Air volume, m3/h | Water flow, m3/h | Pump power, Kw | Net weight, KG | Dimension,mm | Connection size |
1 | NZL100 | 103 | 1.1 | 15000 | 25 | 0.75 | 1460 | 1180*1430*3206 | 2-DN80 |
2 | NZL150 | 152 | 1.1 | 15000 | 25 | 0.75 | 1710 | 1180*1430*3456 | 2-DN80 |
3 | NZL200 | 202 | 1.5 | 18500 | 25 | 0.75 | 1920 | 1180*1430*3706 | 2-DN80 |
4 | NZL260 | 261 | 1.1*2 | 15000*2 | 35 | 1.1 | 2320 | 1180*1430*3206 | 2-DN80 |
5 | NZL380 | 382 | 1.5*2 | 18500*2 | 35 | 1.1 | 2673 | 1180*1430*3456 | 2-DN80 |
6 | NZL400 | 403 | 2.2*2 | 26000*0 | 35 | 1.1 | 2783 | 1180*1430*3636 | 2-DN80 |
7 | NZL450 | 451 | 1.5*2 | 18500*2 | 60 | 2.2 | 3064 | 1180*1430*3706 | 2-DN80 |
8 | NZL500 | 502 | 2.2*2 | 26000*2 | 60 | 2.2 | 3125 | 1180*1430*3786 | 2-DN80 |
9 | NZL580 | 582 | 4.0 | 55000 | 60 | 2.2 | 4372 | 2620*2720*3561 | 2-DN80 |
10 | NZL600 | 600 | 5.5 | 78000 | 60 | 2.2 | 4126 | 2620*2720*3561 | 2-DN80 |
11 | NZL800 | 803 | 5.5 | 80000 | 60 | 2.2 | 5104 | 2620*2720*3811 | 2-DN80 |
12 | NZL950 | 955 | 7.5 | 100000 | 87 | 3.0 | 5823 | 2620*2720*4061 | 2-DN80 |
13 | NZL1000 | 1006 | 5.5 | 80000 | 87 | 3.0 | 6482 | 2620*2720*4311 | 2-DN80 |
14 | NZL1200 | 1206 | 7.5 | 100000 | 120 | 4.0 | 7669 | 3190*2720*44311 | 2-DN125 |
15 | NZL1400 | 1403 | 5.5*2 | 75000*2 | 135 | 5.5 | 8605 | 3790*3190*4061 | 2-DN125 |
16 | NZL1900 | 1905 | 5.5*2 | 78000*2 | 170 | 7.5 | 11832 | 3990*3190*4351 | 3-DN100 |
Our Advantages
(1) Power-saving; Water-saving; Space-saving;
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.
Main Parts

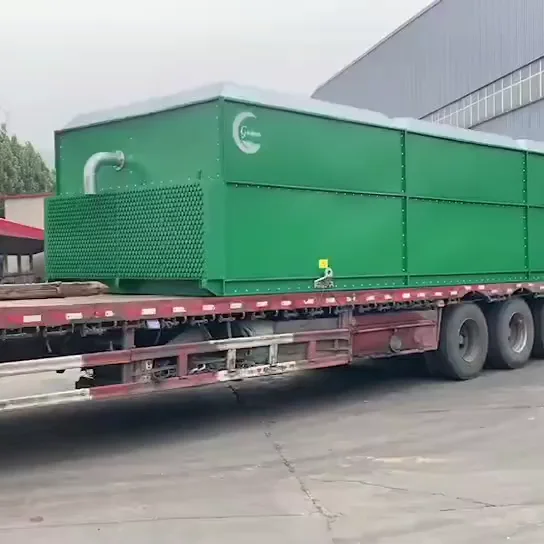

Packaging & Delivery
Project cases
You may like
FAQ
Q1. If I want to get a quotation quickly, what necessary parameters should I provide?
A: Flow rate, Inlet and Outlet temperature, Wet-bulb temperature.
Q2. Which industries can evaporative condensers be used in?
A: Evaporative condensers can be used in electric power, metallurgy, petrochemical, coal chemical, food refrigeration and other industries.
Q3. What material of heat exchange tube should I choose?
A: If the medium of the cooling tower is not corrosive, carbon steel hot-dip galvanizing is recommended, which is cheap; if the medium is corrosive, you can choose stainless steel with high corrosion resistance.
Q4. How long is the delivery time?
A: Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirm.
A: Flow rate, Inlet and Outlet temperature, Wet-bulb temperature.
Q2. Which industries can evaporative condensers be used in?
A: Evaporative condensers can be used in electric power, metallurgy, petrochemical, coal chemical, food refrigeration and other industries.
Q3. What material of heat exchange tube should I choose?
A: If the medium of the cooling tower is not corrosive, carbon steel hot-dip galvanizing is recommended, which is cheap; if the medium is corrosive, you can choose stainless steel with high corrosion resistance.
Q4. How long is the delivery time?
A: Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirm.
