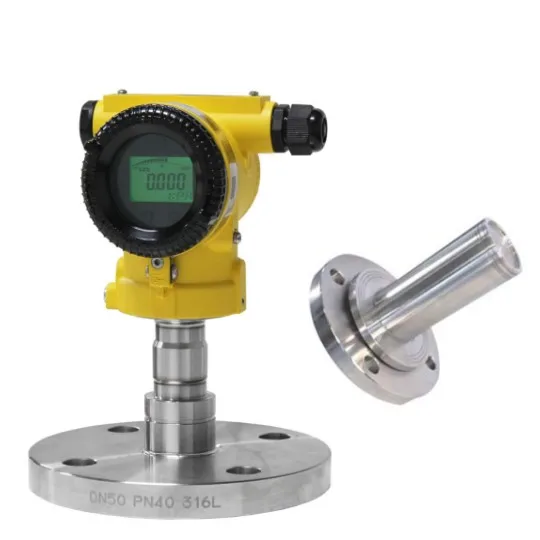

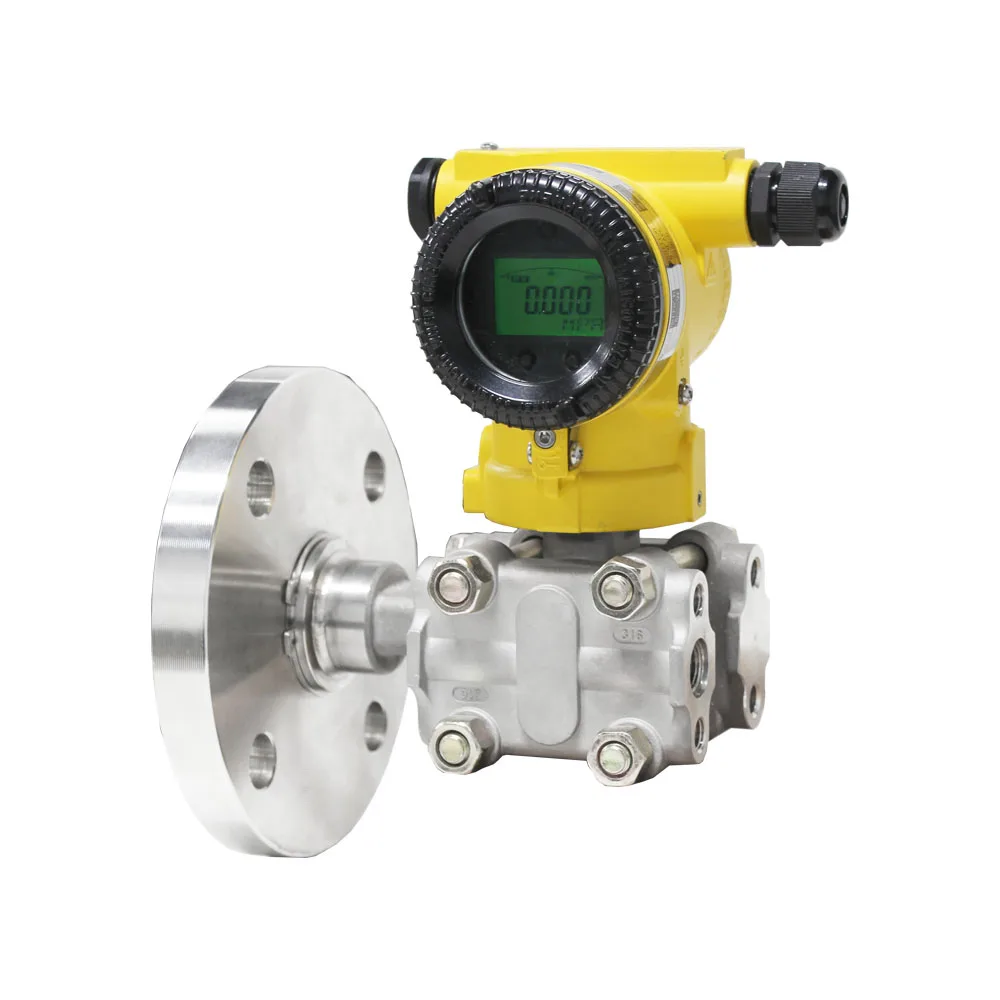

LCD display 4 20mA HART diaphragm seal pressure transmitter
- Category: Pressure Measuring Instruments >>>
- Supplier: Shandong Friend Control System Co. Ltd.
Share on (1600832836727):
Product Overview
Description
Products Description

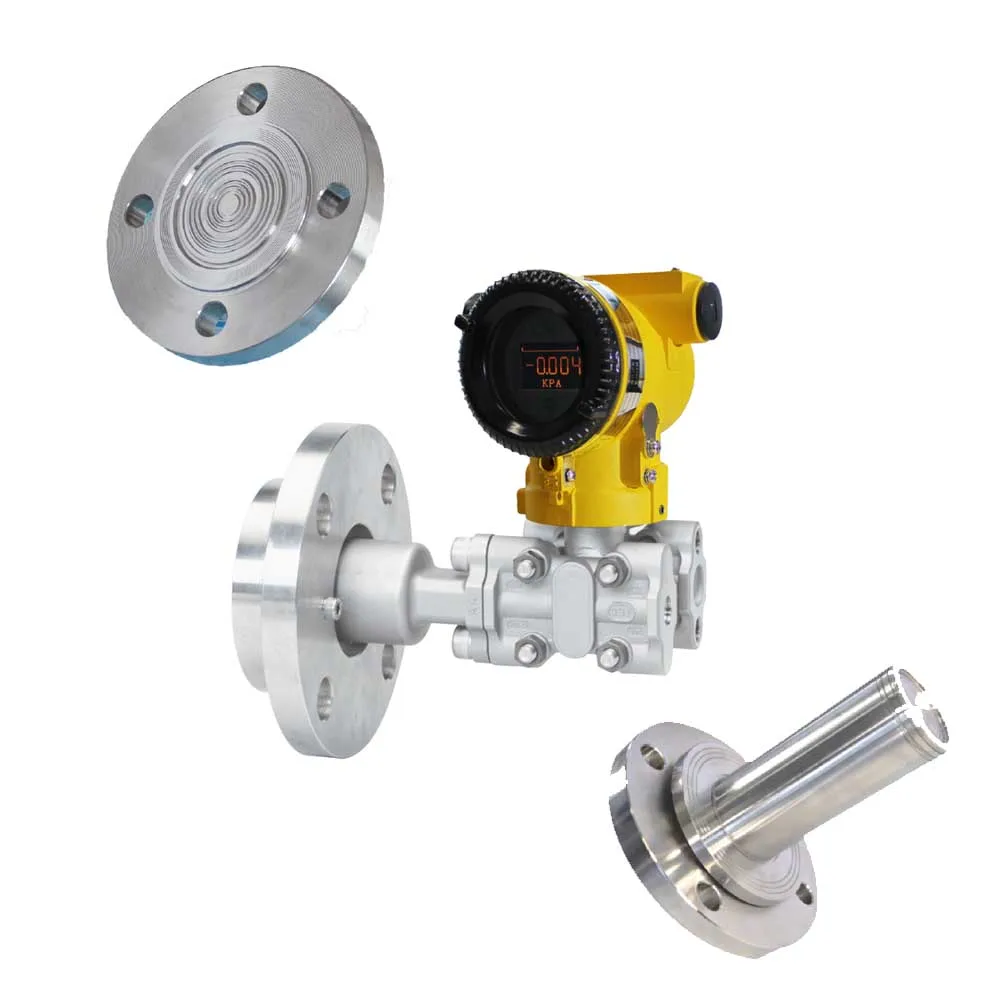

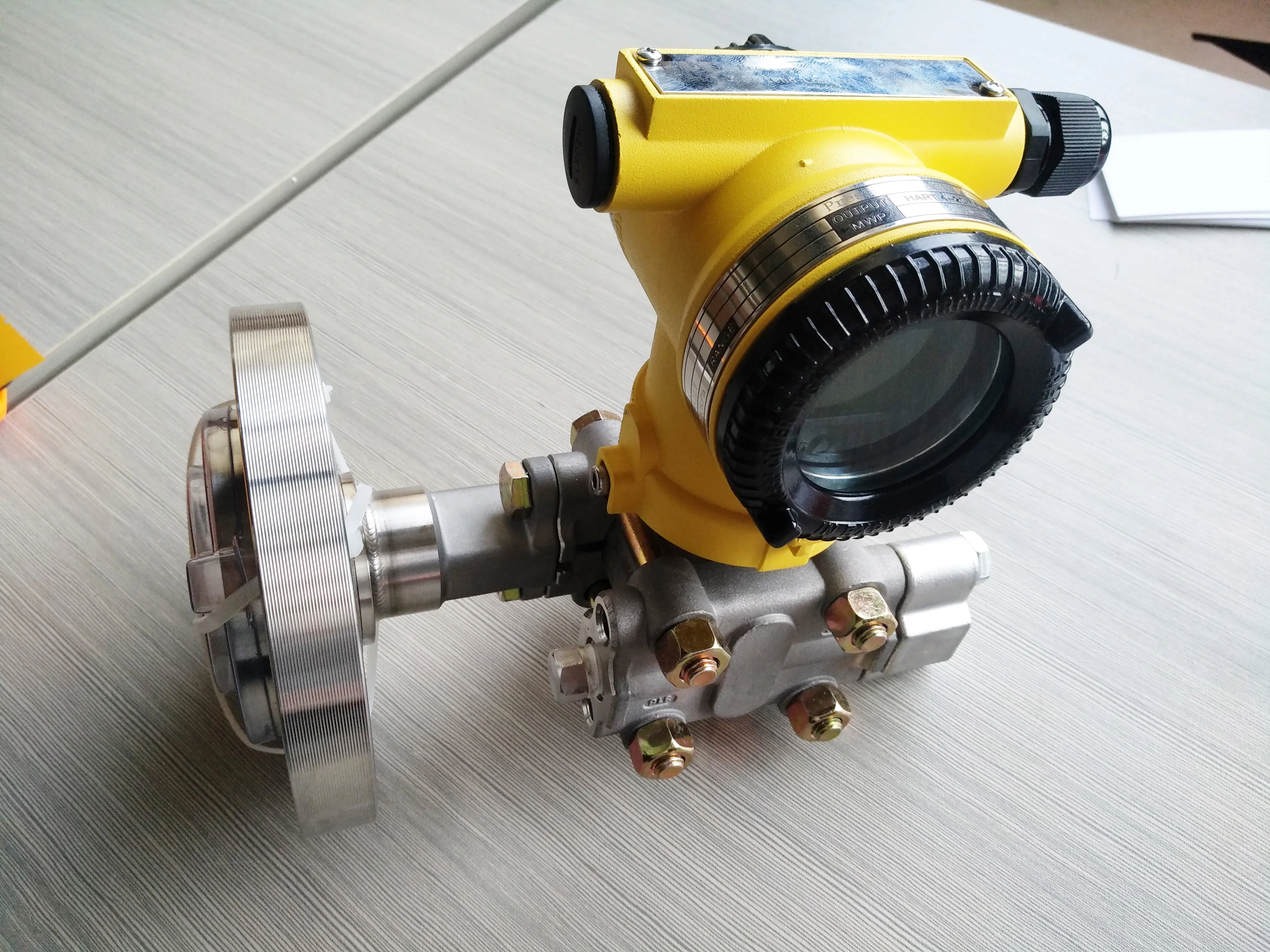

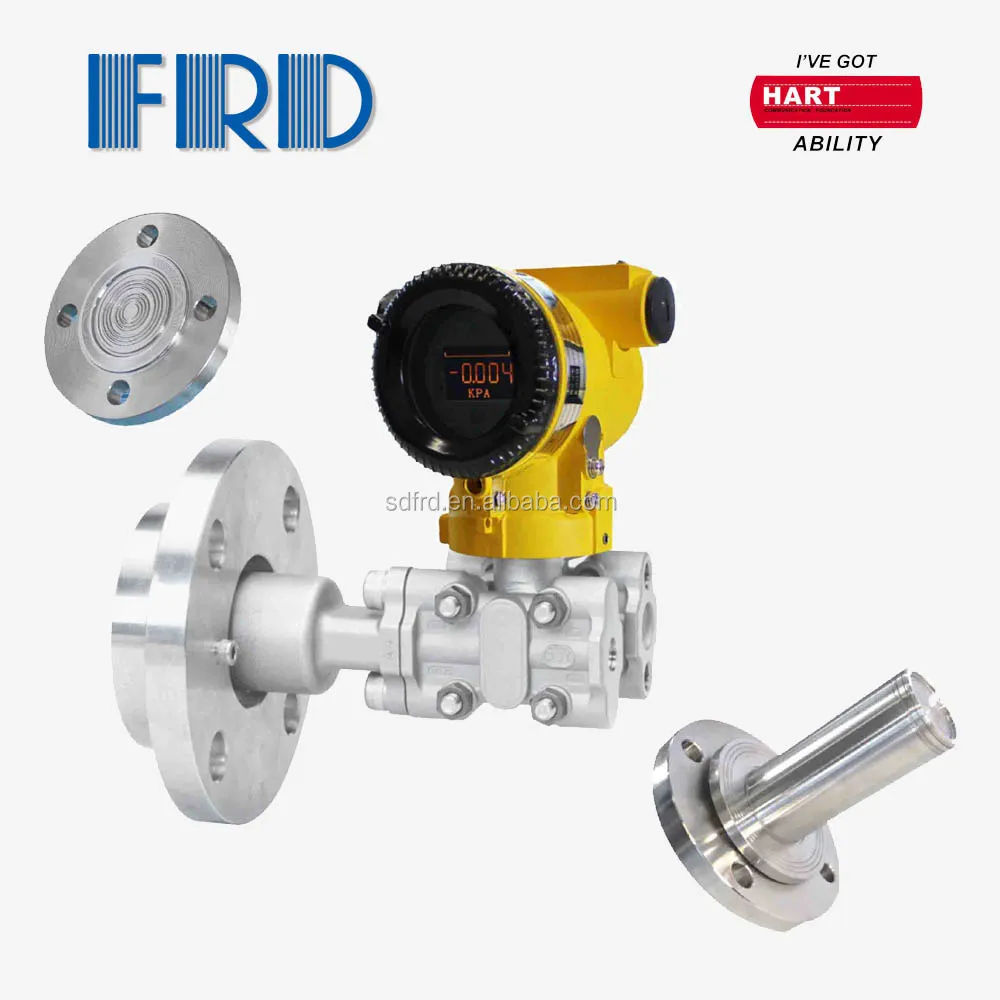

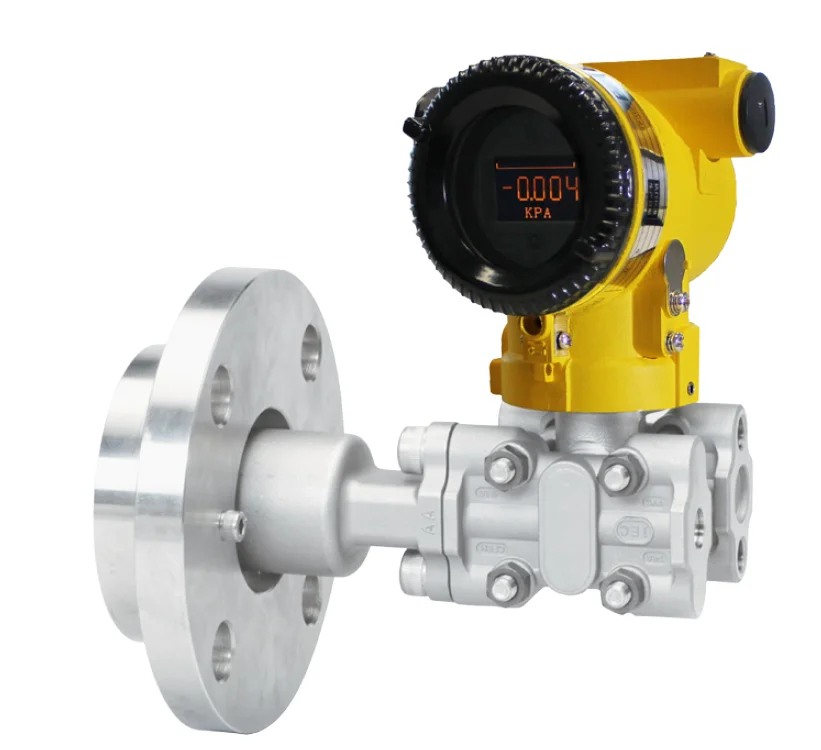

Flange side mounted differential level pressure transmitter for paper production
FD3051S LT differential pressure level transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level,density and pressure. FD3051S LT outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Details Images
Product Paramenters
Model | FD3051S LT differential pressure transmitter flanged |
Pressure Range | -5Bar...-0.06Bar...~0~0.006Bar...0.4Bar..1Bar....30Bar(optional). |
Pressure Type | Pressure/Differential pressure |
solating Diaphragm | SS316L,Hastelloy C,Tantalum |
Output Signal | Two Wire 4~20mADC, 4~20mADC with HART |
Output Signal | 15-36V DC,24V DC |
Accuracy | ≤ 0.25%,0.5% |
Working Temperature | -30 to 180°C Optional |
Storage Temperature | Max 85℃ |
Overload pressure | 150% FS |
Burst Pressure | 200% FS |
Electrical Connection | Standard: 0.2%/year |
Standard: 0.2%/year | 0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa) |
Insulation Resistance | >100M Ω @50V |

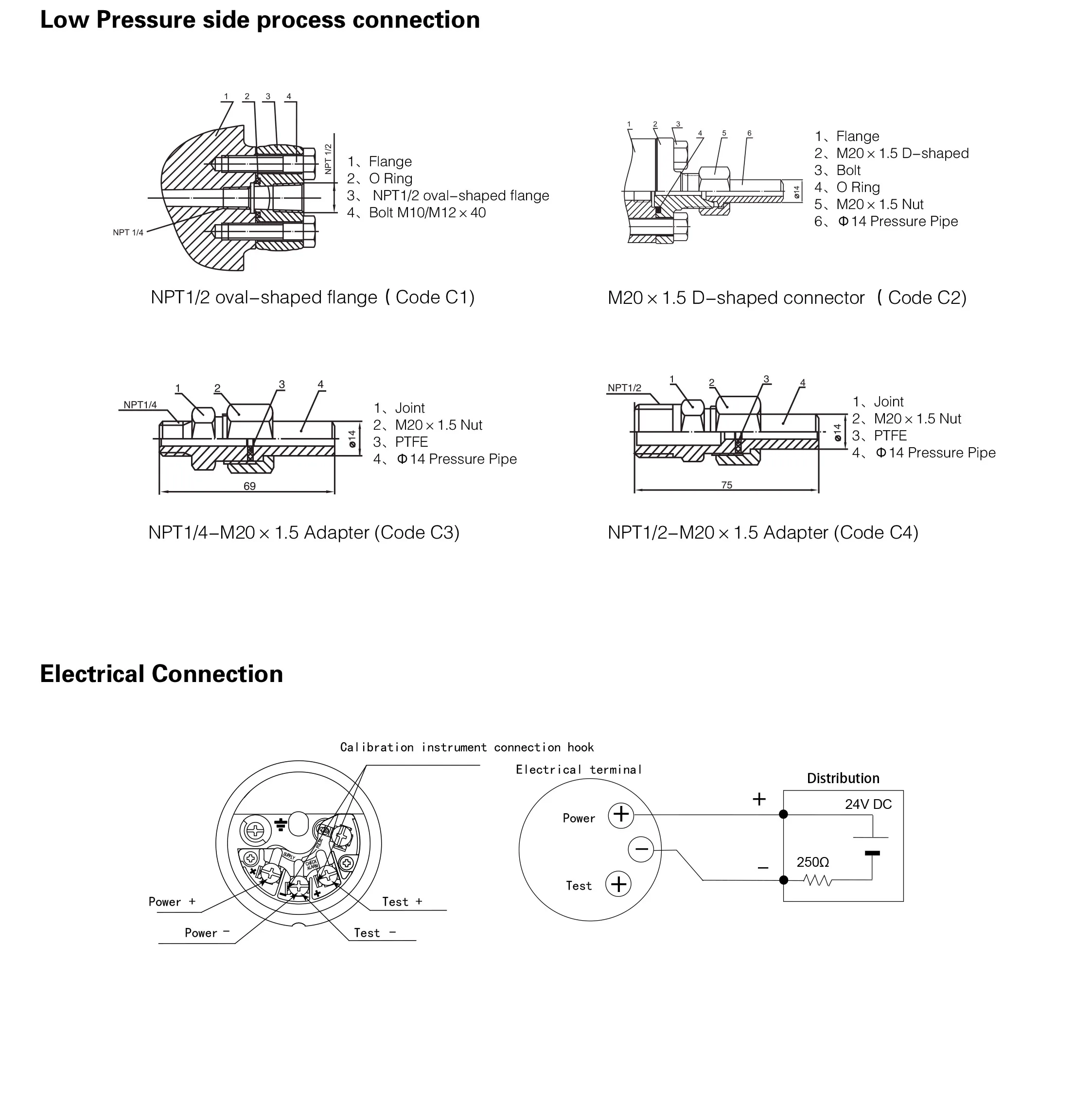

Electrical Connection | M20x1.5,1/2''NPT Cable entry |

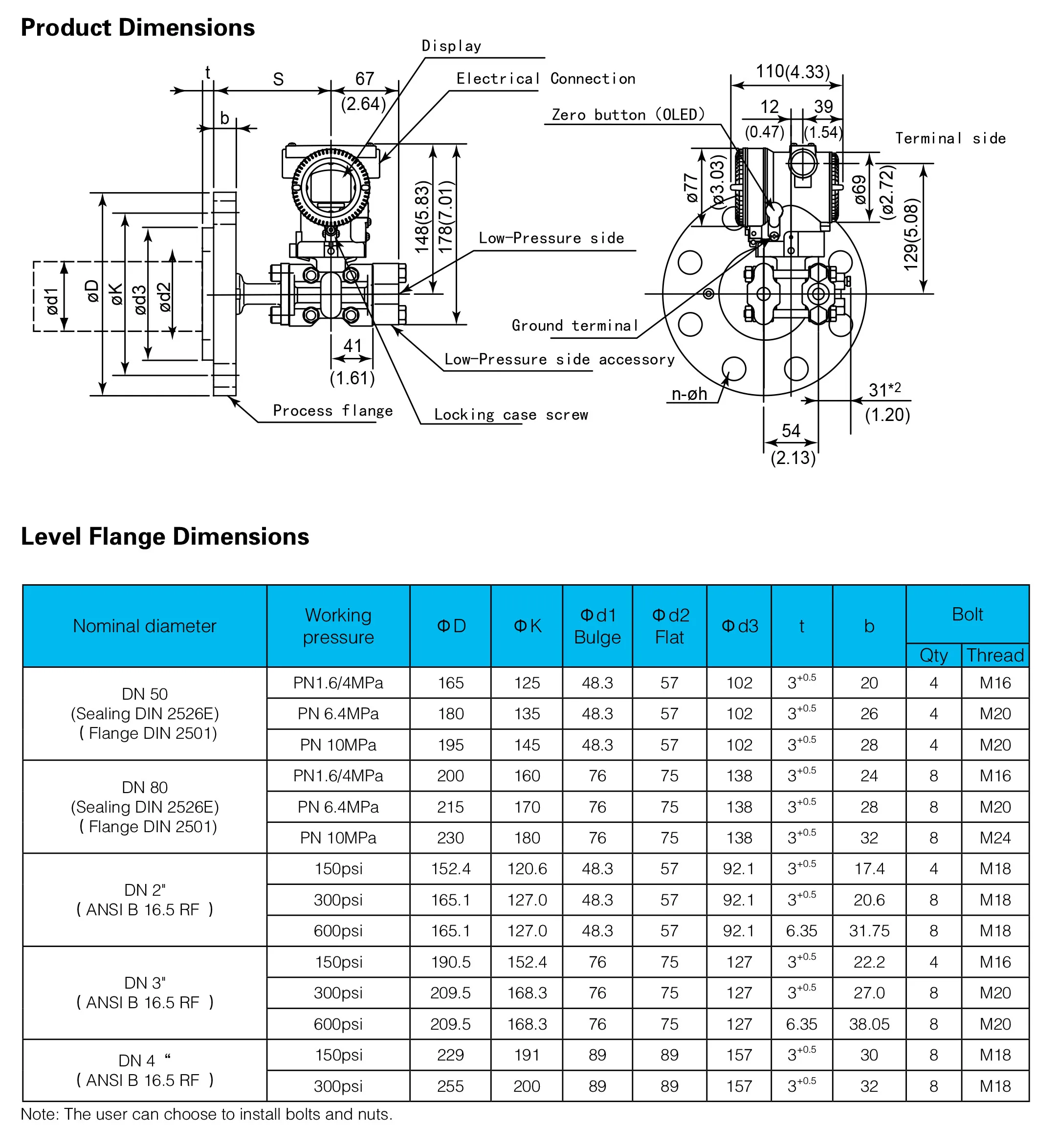

Process Connection | Flange DN 50/2",DN 80/3",DN 4". |
Indicator | LCD Display |
Housing Material | Aluminum with Epoxy Resin Coat |
Process Material | 316/304 Stainless Steel |
Fill fluid | Silicone oil/Fluorinated oil |
Configuration | Digital communication or local key adjustment. |
Explosion Protection | NEPSI : Ex dⅡC T6, Ex iaⅡC T4 |
Protection Level | IP65,IP67 |
Weight | 5-12KGS |
Our Advantages
1. The powerful 24-bit CPU realizes high-precision and fast response LCD display;
2. The low temperature can reach -30 ℃;
3. Key operation can rewrite the range on site.
2. The low temperature can reach -30 ℃;
3. Key operation can rewrite the range on site.
1. Powerful personal protection, transmitter security guard;
2. Despite the thunder and lightning, still working steadily.
Used in the requirements of strong corrosiveness to the chemical site and harsh environment.
1. Beautiful appearance, showing the beauty of fashion technology;
2. Inner thick and sturdy, meet the most demanding environment.
1. Precise liquid filling technology eliminates the influence of temperature and static pressure;
2. Double-diaphragm overload protection structure, easily deal with high overload test.
2. Double-diaphragm overload protection structure, easily deal with high overload test.
1. Super thick reinforced structure, indestructible;
2. Powerful guarantee of high static pressure and high overload.
Application

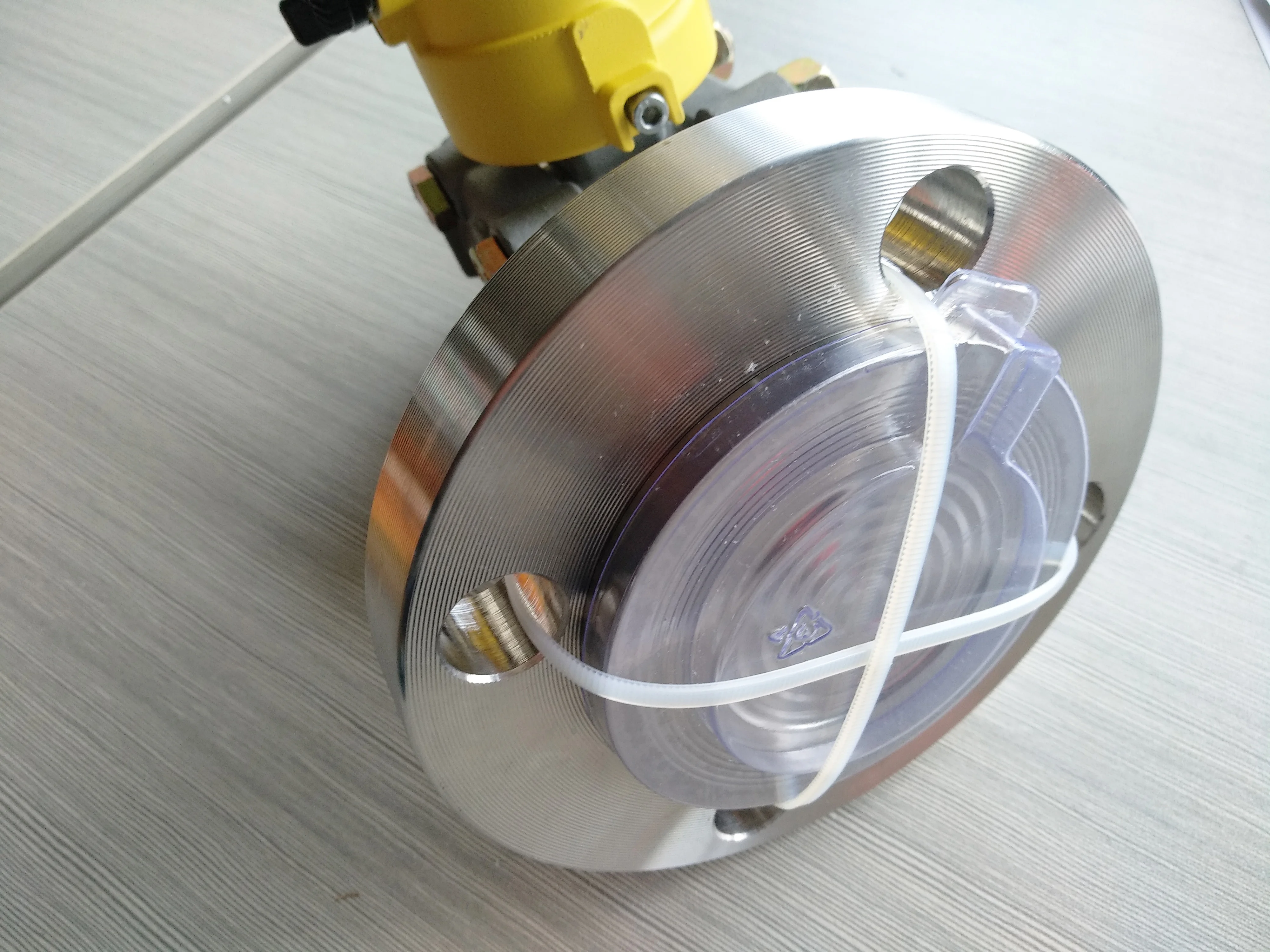

Product packaging
