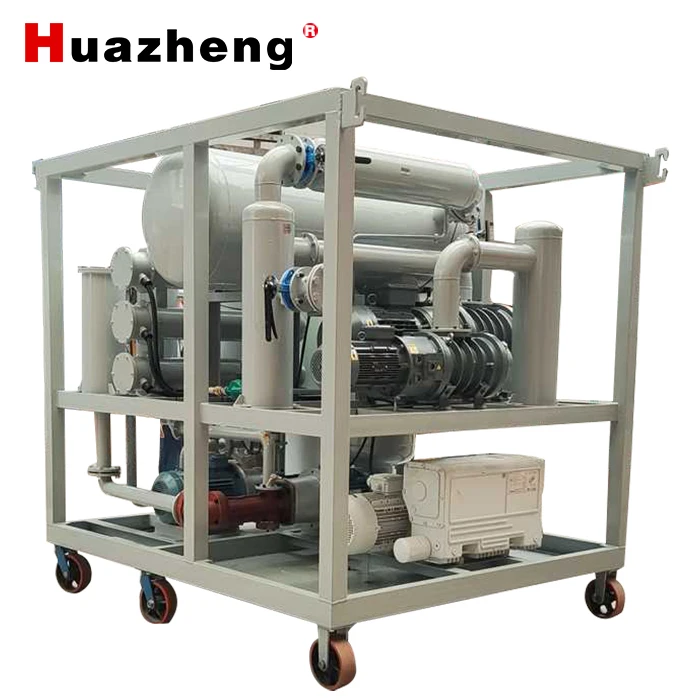

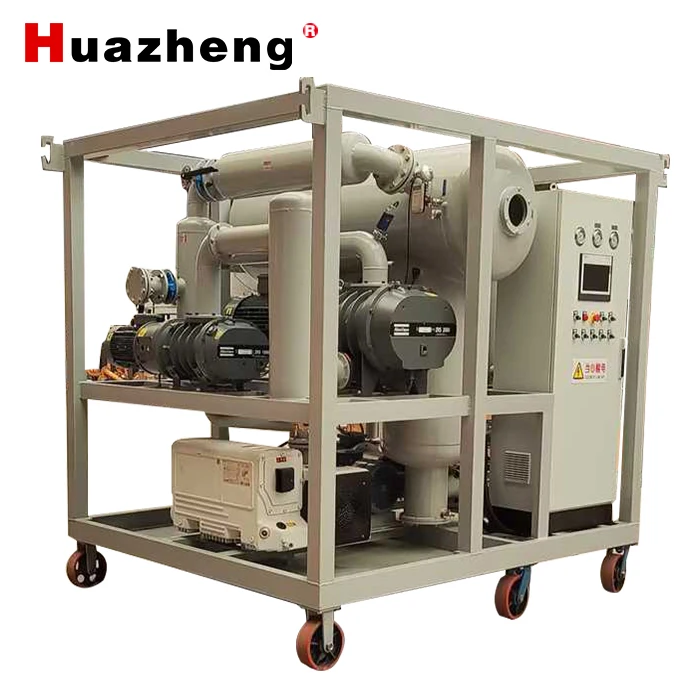

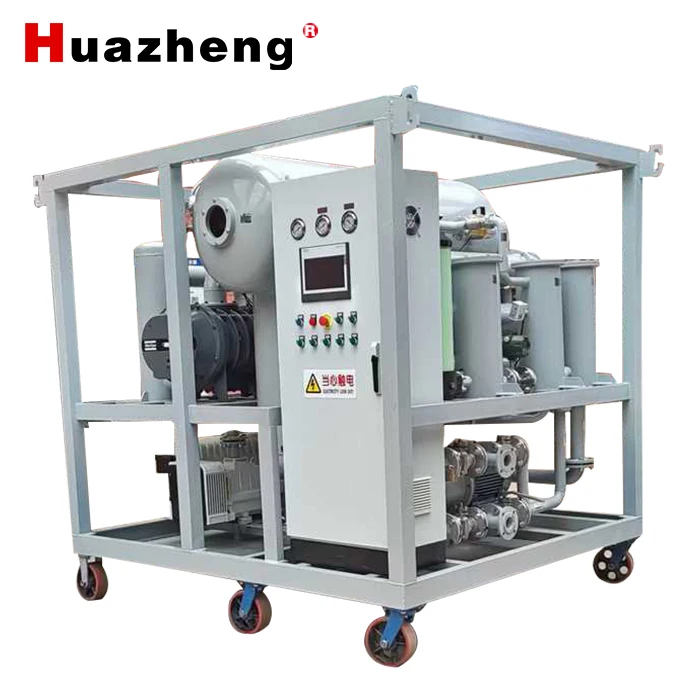

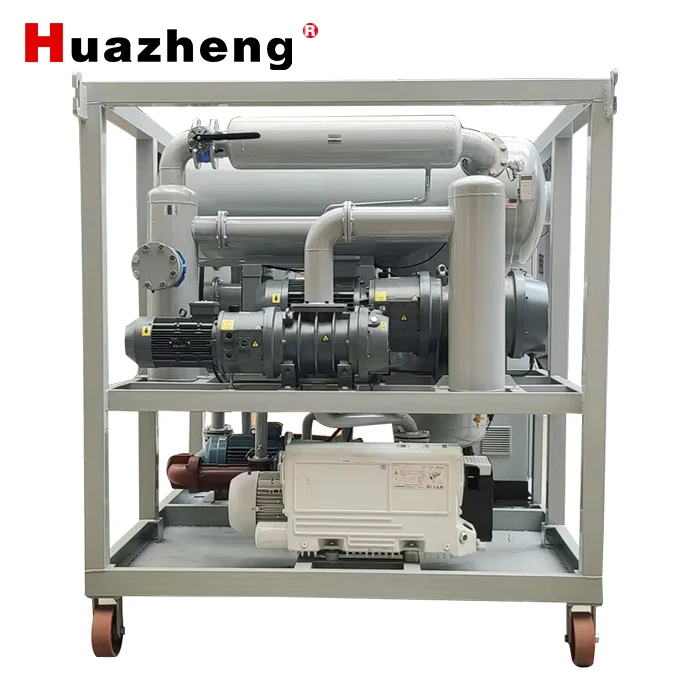

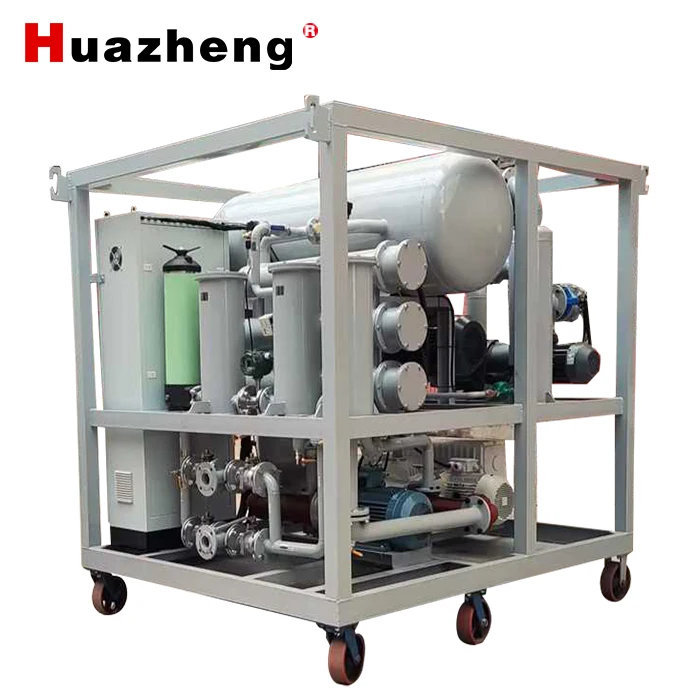

HZLY 30 30L/M Single Stage Vacuum Dehydration Transformer Oil Purification System Used Dielectric Oil Recycling Plant

1.FUNCTION

The main function of HZLY Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.

2.TECHNICAL FEATURES

l Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.

l Adoption of American fine filter element, fineness: 5μm, ß≥1000

l Low noise and long life of the oil transport system

l Adoption of American heating technique with the way of thermal radiation, constant temperature control.

l The use of float valve and photoelectric oil level control, eliminates supervision

l Adoption of French de-foaming technique to avoid oil leaking

l Controlled digitally and automatically by PLC

l Major electric apparatus are imported from America, so the controlling system safe and reliable

3.Specification

Model:   HZLY-30

Nominal flow: 1800L/h

Net oil capacity: 30L/min

Pumping rate: 25M³/h

Ultimate vacuum: ≤1000Pa

Working pressure: ≤0.5Mpa

Working oil temperature:20~80℃

Working power supply: 50Hz380V three-phase three-wire

Heating power: 24Kw (Separate control by two groups)

Total power: 27kw

Operating noise: ≤75dB(A)

Inlet/outlet flange: DN25

Vacuum interface flange: DN25

Dimensions: 150×105×150cm

Equipment weight: 340Kg

Continuous working time: ≥200 hours

Average trouble-free working time:≥ 5000 hours

Configurations

We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.

We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester,  transformer test class, lightning arrester test class, comprehensive test class.

From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
