manual Lift Stacker 1 ton Remote Control manual lifting stacker with self lock
- Category: >>>
- Supplier: Jiangsu Jingxin Lifting Equipment Co. Ltd.
Share on (1600832912435):
Product Overview
Description
Product Overview

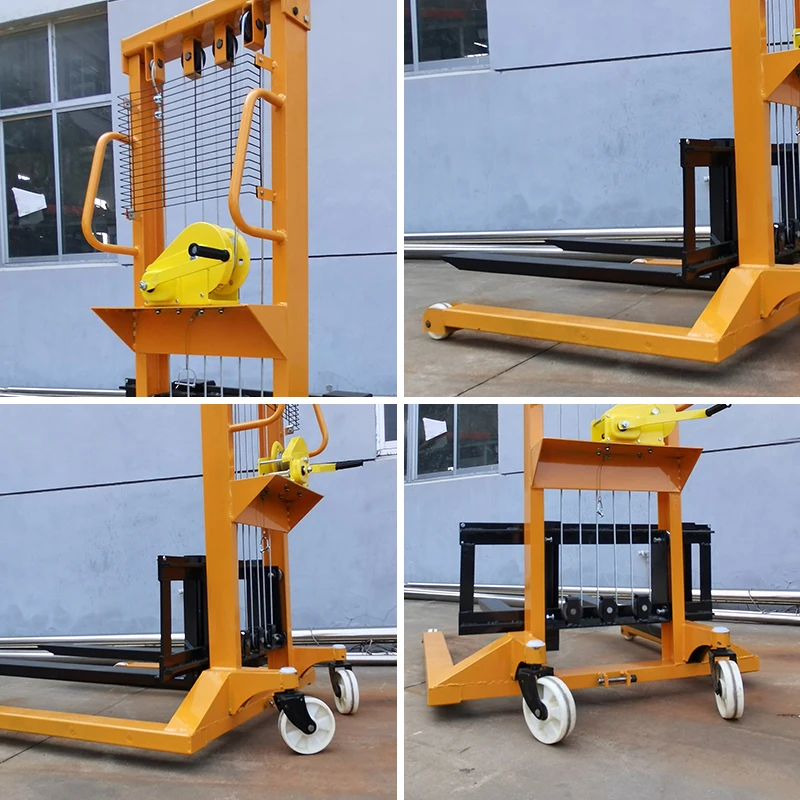

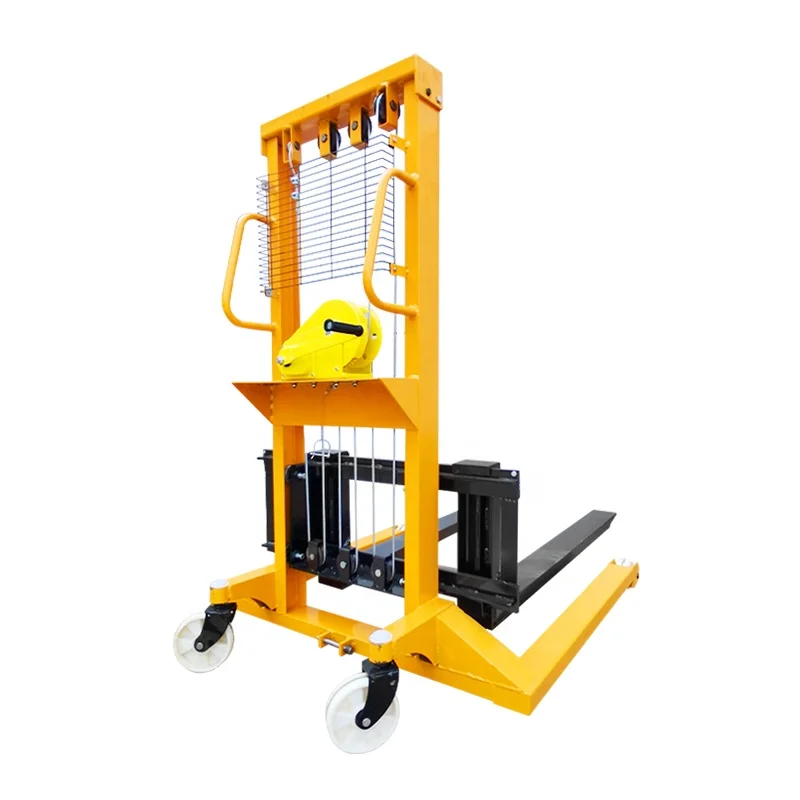

winch manual lifting stacker
Straddle legs width reach 1300mm(500kg)and1250mm(1000kgs). Lifting Height from 1500-1600mm. With adjustable forged forks. High quality steel mast ensures rigidity and durability.High efficient pumps makes the control easier to operate.Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements. Metal grid protects user from lift chains.With safety wheel guard and brake system to ensure safety during operation.
Company Profile
Products Description
High quality oil cylinder, safe and durable
so that the goods lift smoothly and forcefully, and improve the safety performance of the whole car, easy to operate safe and labor-saving, can improve the efficiency of work
Thicker wire rope, sturdy and durable
The use of thickened 4 wire rope chain drive design, stronger load-bearing capacity, more durable, improve safety performance and save energy.
PRODUCT SPECIFICATIONS
No. | Item | Data | Unit |
1 | Capacity | 1100/500 | lbs/kg |
2 | Load center diatance | 19.7/500 | inch/mm |
3 | Fork height, lowered | 2.8/700 | inch/mm |
4 | Height, mast lowered | 78.7/2000 | inch/mm |
5 | Max. lift height | 80.7/1600 | inch/mm |
6 | Overall length | 52.8/63(1340/1600) | inch/mm |
7 | Overall width | 60/1525 | inch/mm |
8 | Fork dimensions | 1.9/3.95/31.5(48/100/800) | inch/mm |
9 | Width overall forks | 29.3/745 | inch/mm |
10 | Lifting speed, laden/unladen | 1.00(25) | inch(mm)/time |
11 | Truck weight | 492/223 | (lbs)/kg |
PRODUCT CONFIGURATION
High quality casters
the handle winch of self lock
Bearing guide wheel
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Can we print the LOGO on products?
A1: Yes, the OEM is available with the permission of our customers.
Q2: What is your payment term?
A2: T/T or L/C, if you want any other way, please contact us.
Q3: What can I get from cooperating with Jingxin?
A3: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A1: Yes, the OEM is available with the permission of our customers.
Q2: What is your payment term?
A2: T/T or L/C, if you want any other way, please contact us.
Q3: What can I get from cooperating with Jingxin?
A3: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
