custom 2 layer pcb service double sided pcb circuit board assembly pcba manufacturer
- Category: Double-sided PCB >>>
- Supplier: Shenzhen Wanfeng Technology Co. Ltd.
Share on (1600832932712):
Product Overview
Description
Product Description
item | value |
Model Number | poe-03 |
Type | medical pcba |
Place of Origin | China |
Guangdong | |
Brand Name | POE |
Supplier Type | factory supplier |
Layers | 2layer |
Solder mask color | Black |
Base meterial | FR4 |
Max PCB size: | 510*460mm |
Board thickness: | 0.4-5mm |
Components size | 0201-150mm |
Components Max height: | 25mm |
Min lead pitch: | 0.3mm |
Min BGA ball pitch | 0.4mm |
Placement precision: | +/-0.03mm |

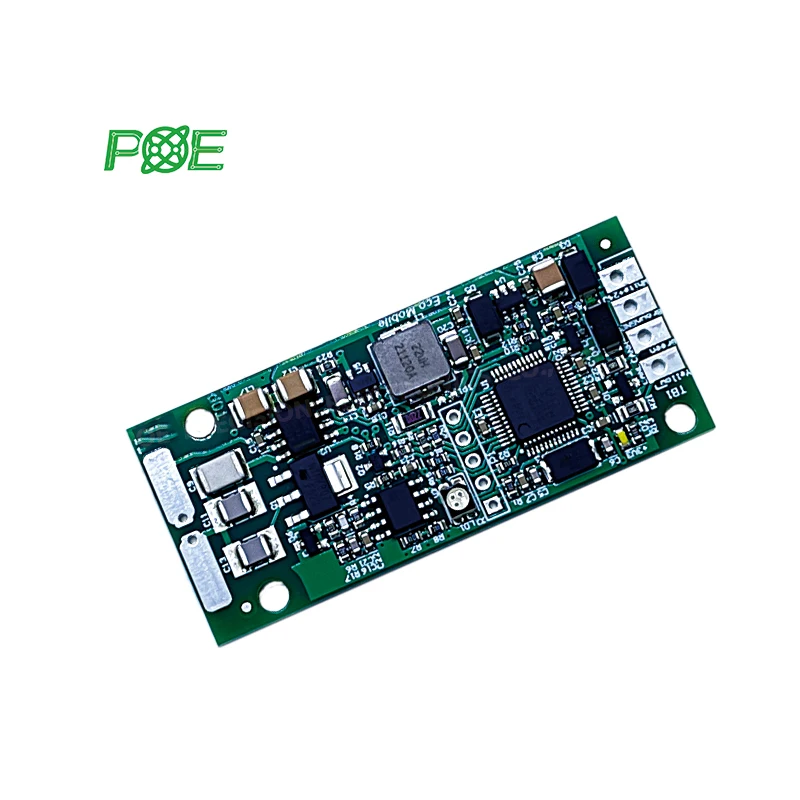

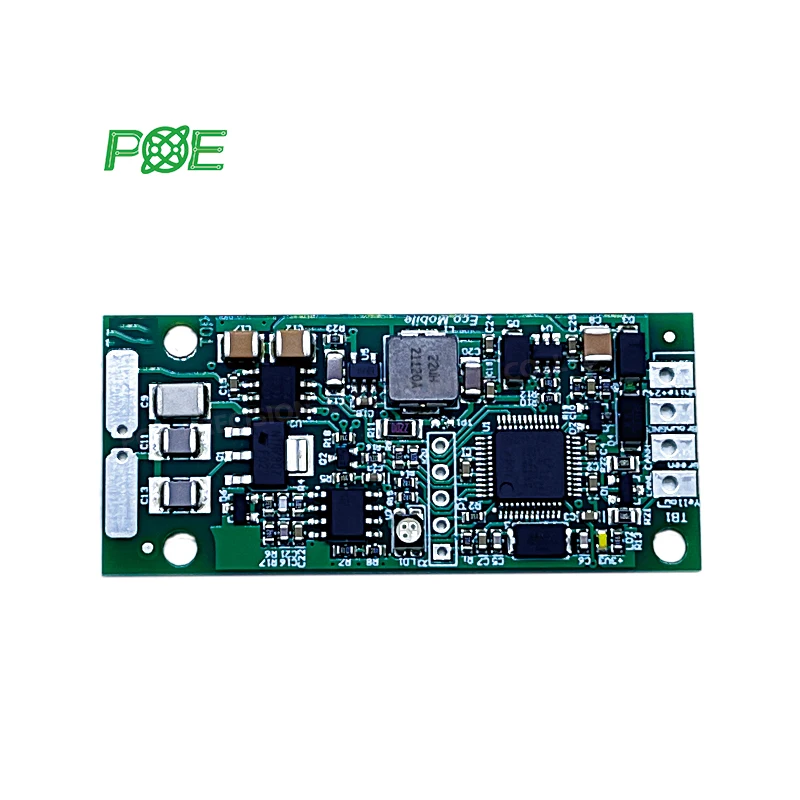

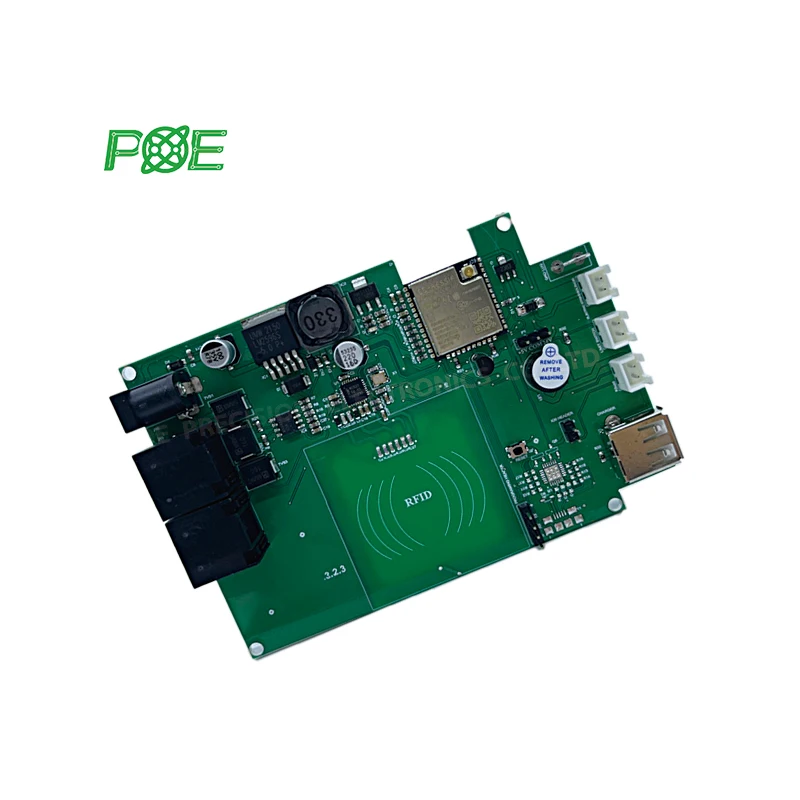

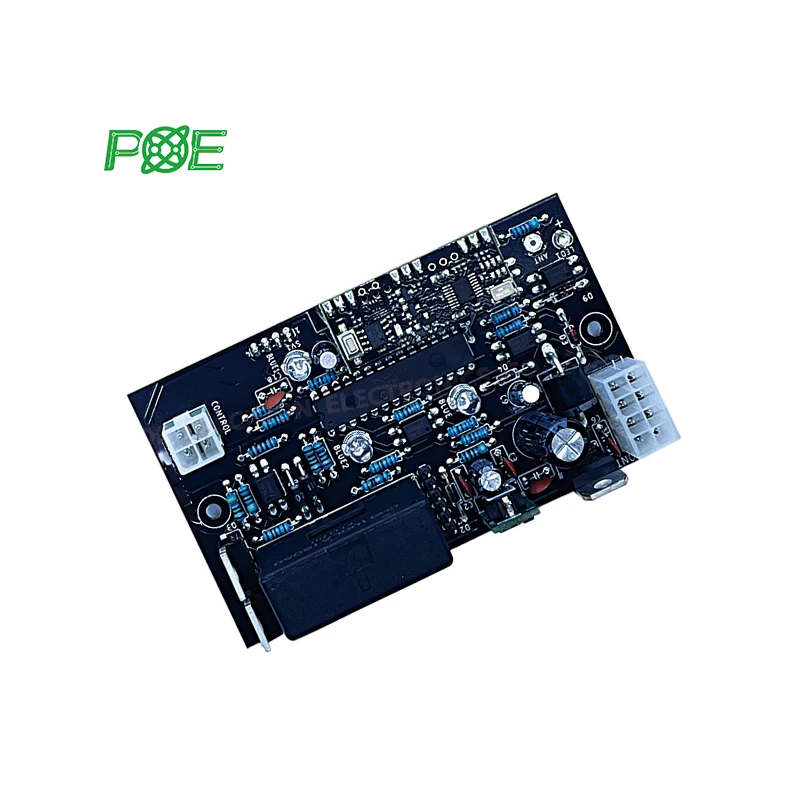

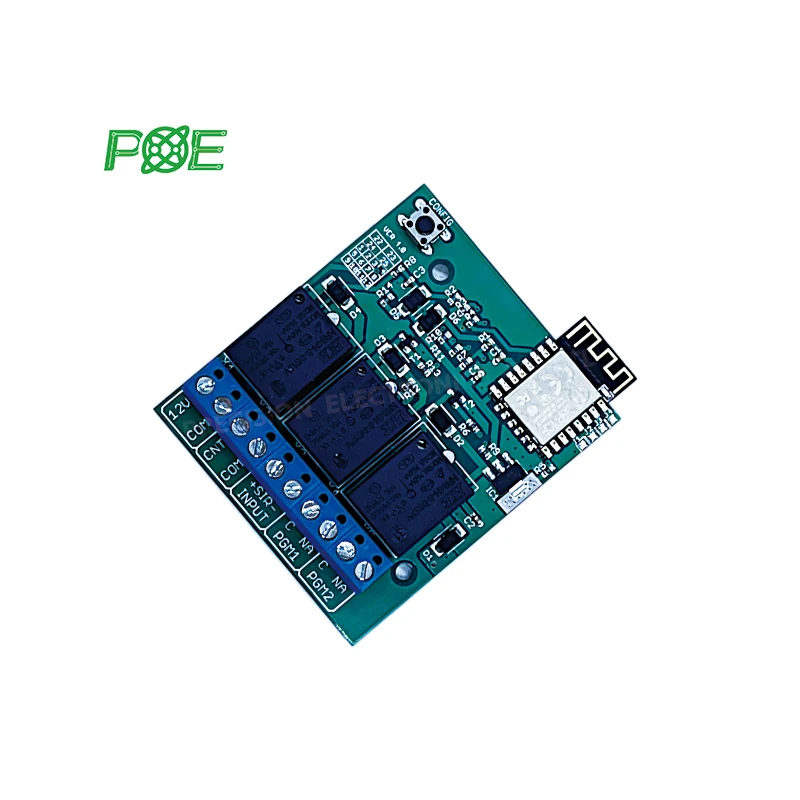

PCB Assembly Board with SMD components and DIP parts.
Flat and Clean DIP parts soldering.
SMD Components soldering from minimum 0201 package to complex chips.
Application
Mainly used in the Industrial Control, Medical Device, Automobile area LED Light, Communication,
Aviation and so on. All PCBs are ISO9001, ROHS certified and meet the international IPC standard.
FAQ
Q: What is needed for PCB/PCBA quotation?
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special specs.
For PCBA project, please provide above information as well, and BOM list, pick and place file. If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity (MOQ)?
A: There is no MOQ in POE (PCBA Shenzhen). We are able to handle small as well as large volume production with flexibility.
Q: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What other service do you have?
A: We mainly focus on PCB +Assembly +Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
Q: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process. We Welcome you visit our factory to inspect our production process.
Q: What is your testing policy and how you control the quality?
A: Regarding to PCB samples, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by Electrical fixture which is faster. As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection (FAI) before mass production.
