Датчик 3 в 1, датчик расхода воды ZHONGJIANG сочетает в себе расход воды, температуру воды и TDS с трубкой 1/4 'или 3/8'
- Category: Flow Sensors >>>
- Supplier: Foshan,Shunde,Zhongjiang,Energy,Saving,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
1. In order to prevent particles and debris entering into the sensor, a filter must be installed at the water inlet of the sensor.
2. The water flow sensor is suitable for installation indoors or inside the equipment, and it must not be exposed to harsh environments such as outdoors or humidity and high temperature for a long time. The installation of the water flow sensor must avoid the environment and application of vibration and shaking, so as not to affect the measurement accuracy.
3. When magnetic material is placed close to the sensor, its characteristics may change.
2. The water flow sensor is suitable for installation indoors or inside the equipment, and it must not be exposed to harsh environments such as outdoors or humidity and high temperature for a long time. The installation of the water flow sensor must avoid the environment and application of vibration and shaking, so as not to affect the measurement accuracy.
3. When magnetic material is placed close to the sensor, its characteristics may change.
CONTACT US
Certificates
Branded Products
SEA Factory

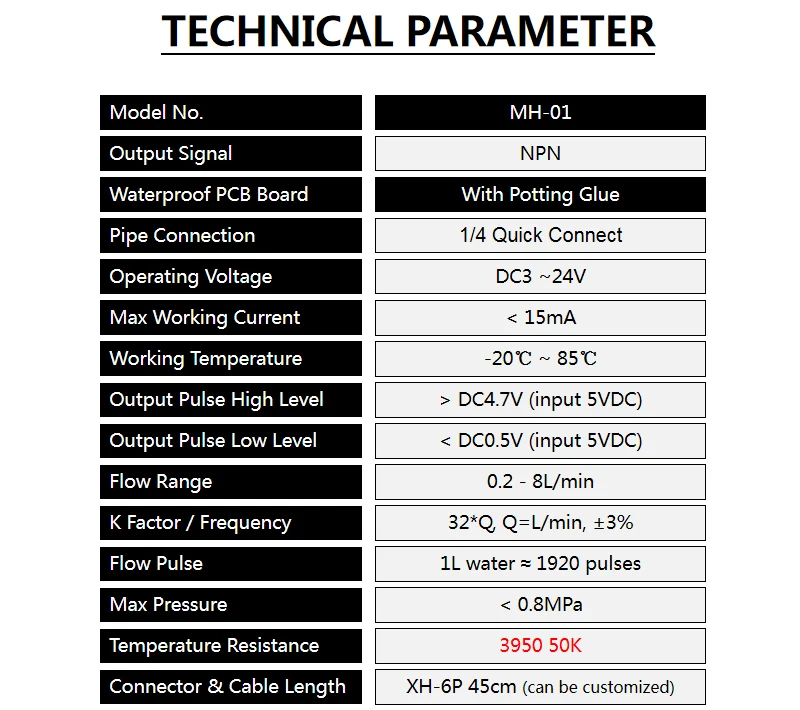

Model No.: MH-01 | ||||||
Sensor | Hall Effect ; Pulse Signal | Water Pressure | < 0.8MPA | |||
1/4Pipe Connection | 3/8 PE | Output Pulse High Level | >DC 4.7V | |||
