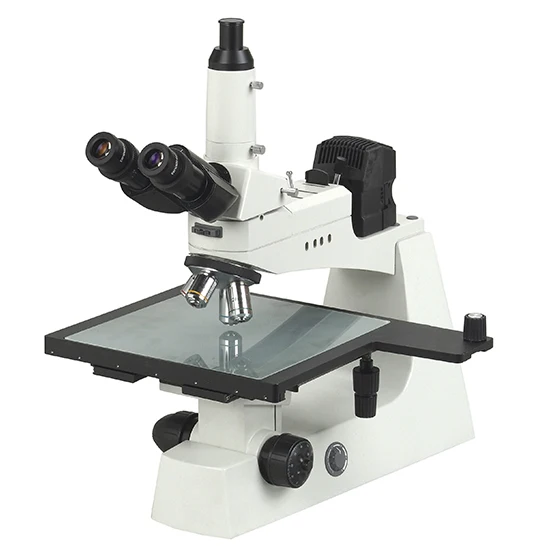

BestScope BS 4000B Trinocular Industrial Inspection Microscope for Precise Industrial Inspection
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (1600832947489):
Product Overview
Description
Products Description
Introduction
BS-4000 series microscopes are specially designed for precise industrial inspection. They adopt infinite optical system and long working distance high-power objective lens. They provide an outstanding optical performance and available to IT
industry,large-scale integrated circuits, chips observation and testing.
industry,large-scale integrated circuits, chips observation and testing.
Features
1. Big stage with extra large moving range 250×250mm.
2. Well designed structure, easy to operate.
3. Excellent optical quality with Infinite Optical System and LWD high magnification objective.
4. Stage speedy movement by hand to get observation point immediately.
5. Easy, Safe and Reliable Lamp Replacement.
6. Comfortable and enjoyable operation with low and pre position control knob.
Application

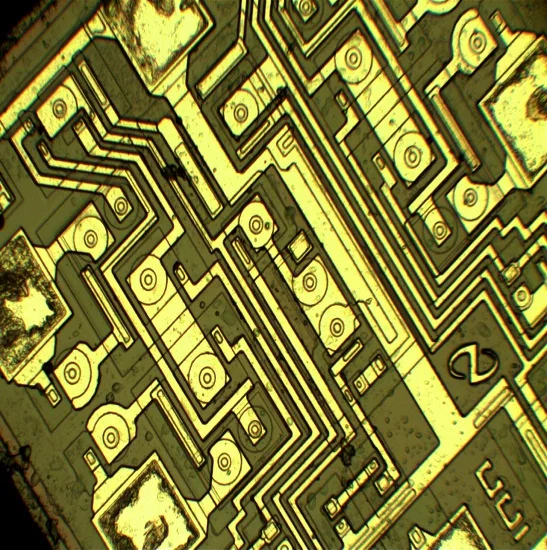

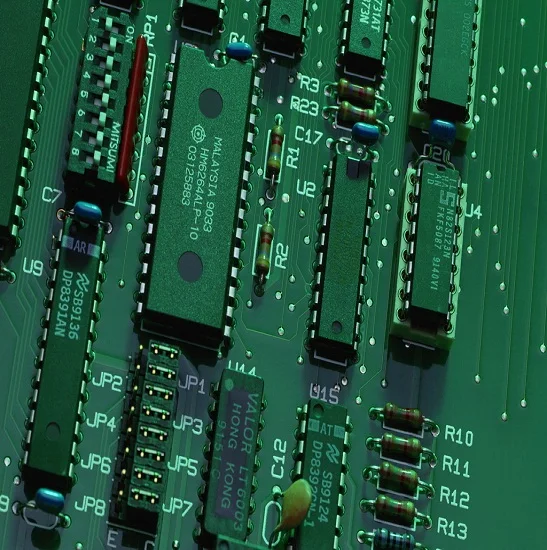

It is specially used in IT Industry for Large Area Integrate Circuit board, Wafer Observation and other industrial Inspection.
It is specially used in IT Industry for Large Area Integrate Circuit board, Wafer Observation and other industrial Inspection.
Specification
Item | Specification | BS-4000B | ||
Viewing Head | Seidentopf type trinocular head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | ||
Eyepiece | Extra Wide Field Eyepiece EW10×/ 22 | ● | ||
Objective | Infinite Plan Achromatic Objectives | 4×/0.1/∞/- WD 17.8mm | ||
5×/0.12/∞/- WD 15.5mm | ● | |||
10×/0.25/∞/- WD 10.0mm | ||||
10×/0.25/∞/- (BF/DF) WD 10.0mm | ● | |||
20×/0.40/∞/0 WD 5.8mm | ||||
20×/0.40/∞/0 (BF/DF) WD 4.3mm | ● | |||
40×/0.6/∞/0 WD 2.9mm | ||||
50×/0.75/∞/0 WD 0.32mm | ● | |||
100×/0.8/∞/0 WD 2.0mm | ● | |||
Nosepiece | Quadruple Nosepiece | |||
Quintuple Nosepiece | ● | |||
Stage | Stage size 300×268mm, Moving range 250×250mm | ● | ||
Focusing | Coaxial coarse & fine Adjustment, Moving Range 24mm | ● | ||
Illumination | 6V/ 20W Halogen Lamp, Brightness Adjustable | |||
24V/ 100W Halogen Lamp, Brightness Adjustable | ● | |||
Polarization Set | Analyzer and Polarizer | ○ | ||
Filter | Blue, Green, Yellow and Frosted glass filters | ● | ||
Photo Adapter | Used to connect DSLR cameras(Nikon & Canon) | ○ | ||
Video Adapter | 1× or 0.5× C-Mount | ○ | ||
Note: ● Standard Outfit, ○ Optional
